Installation Instructions Wood Door – TG 9387 single-sided blind pull

1. Single pull assembly - wood door blind fasteners

 Single ladder pull hardware-wood door

                              Description12”18”24”36”42"48"60"72"
1TG 9387 B2B GL pull handle, internal279-105  279-106279-124279-107279-108279-119 279-109279-117
2Gasket, 1” OD
Permanently attached to standoff and rose at factory.		                          979-107
31/4-20 x 1-5/8” socket head cap screw                          900-203
41/4-20 x 3/8” set screw, cone point,
interior pull 		                         900-202
12Connector, TG 138 wood door                         979-026

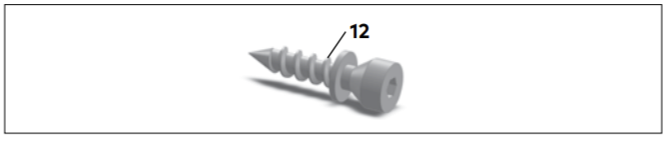

Fig. 1 Wood door connector

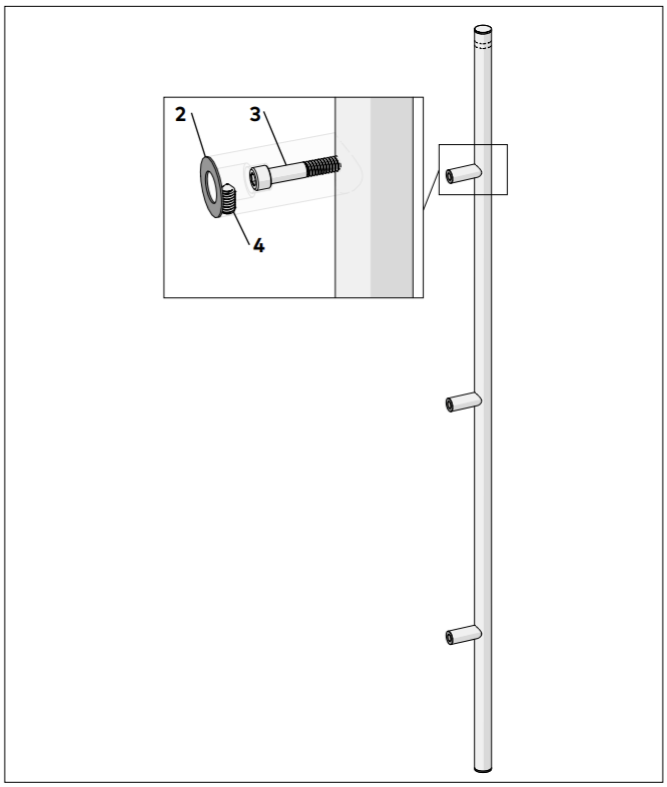

Fig. 2  Wood door single ladder pull hardware

2. Install wood door connectors

Single ladder blind pull hardware-wood door

                              Description                                       49-3/16”         60”       72”       84”
12Connector, TG 138 wood door,
#18 wood screw		                                           979-026

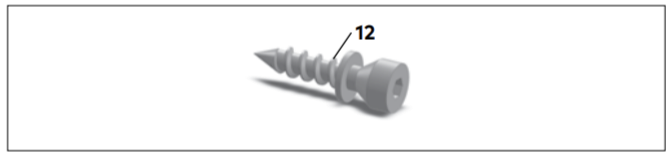

Fig. 3 Wood door connector

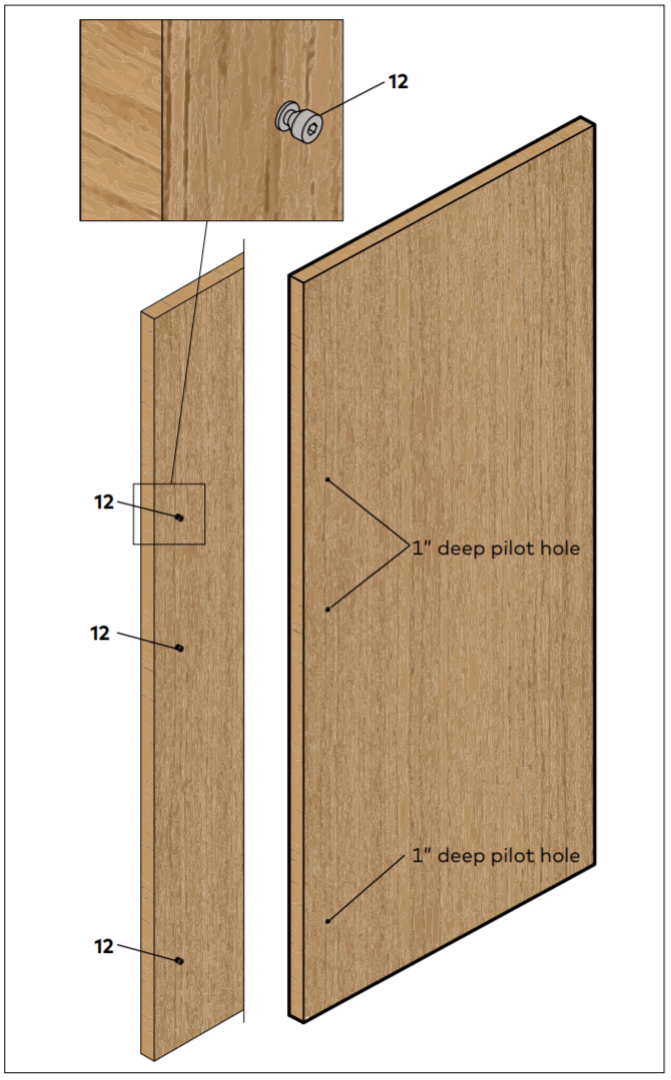

Fig. 4 Wood door connectors installed



CAUTION
  • Use caution when handling wood door
  1.  Drill pilot holes in wood door for connectors (12).
    1. Reference the architectural drawings to determine hole locations in the door.
    2. Use applicable drill (Para. 1.2) to drill 1” deep pilot holes in wood door for connectors (12).
  2. Thread connectors into wood door pilot holes.
    1. Using a 3/16” T-handle hex key, screw each connector into its pilot hole until the wood door
      connector flange is tight against the door.

3. Assemble pull assembly to wood door

Pull handle hardware

                              Description12”18”24”36”42"48"60"72"
1TG 9387 B2B GL pull handle, internal279-105  279-106279-124279-107279-108279-119 279-109279-117
2Gasket, 1” OD
Permanently attached to standoff and rose at factory.		                          979-107
31/4-20 x 1-5/8” socket head cap screw                          900-203
41/4-20 x 3/8” set screw, cone point,
interior pull 		                         900-202
12Connector, TG 138 wood door                         979-026

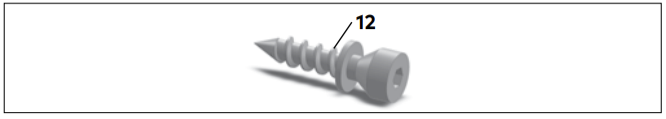

Fig. 6  Wood door connector

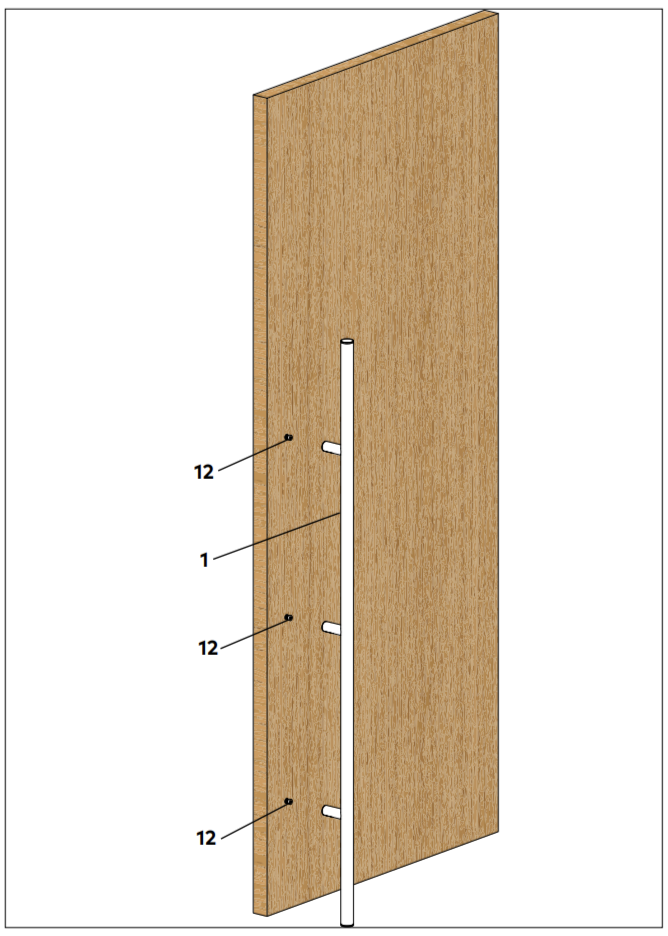

Fig. 7 Wood door connectors installed

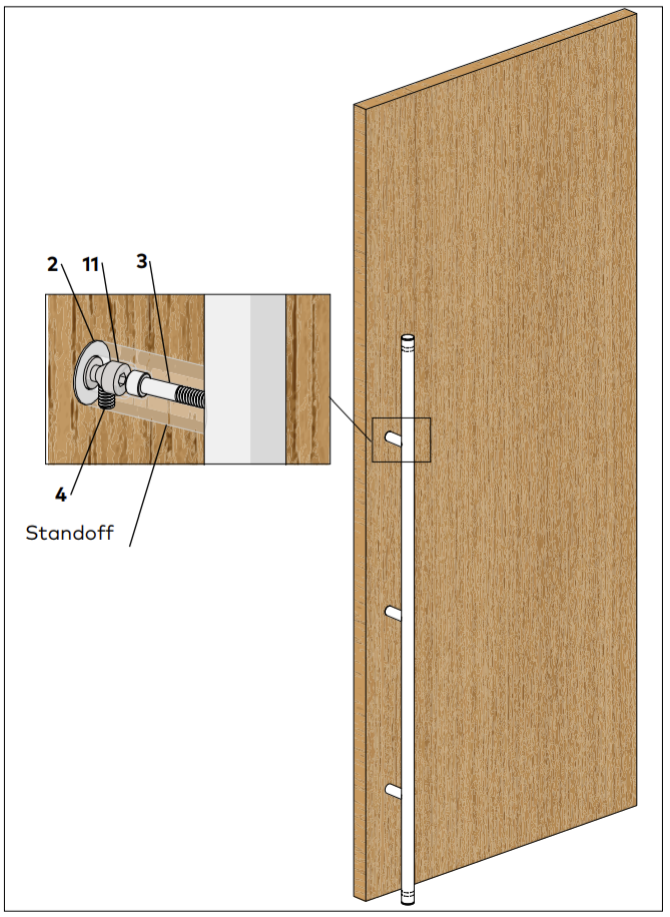

Fig. 8 Wood door pull assembly installed

  1. Install pull assembly onto connectors.
    1. Ensure standoff setscrews (4) are loosened.
    2. Slide pull assembly standoffs onto threaded connectors (12) until standoff gaskets (2) are flush
      with wood door.
    3. Using a 1/8” hex key, tighten each standoff setscrew
      (4) against its wood door connector (12).
