1. Disassemble pull
Single pull handle hardware
| Description | 49 -3/16” | 60” | 72” | 84” | ||
| 1 | TG 138 B2B GL pull handle, internal | 279-005 | 279-006 | 279-007 | 279-008 | |
| 2 | Rose, TG138 -1-3/8” OD | 979-004 | ||||
| 3 | Gasket, 1-3/8” OD Permanently attached to standoff and rose at factory. | 979-006 | ||||
| 4 | Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP | Factory assembled | 979-010 | |||
| 5 | Anchor, threaded, M6-1.0 x 12.5 mm | 979-028 | ||||
| 6 | Bushing, plastic, TG 138 5/8 - 3/4 GL | 979-031 | ||||
| 7 | Rod, threaded M6-1.0 x 1-3/4” | 979-032 | ||||
| 10 | 1/4-20 x 1-5/8” socket head cap screw | 900-203 | ||||
| 11 | 1/4-20 x 1/2” set screw, cone point, interior pull | 900-201 | ||||

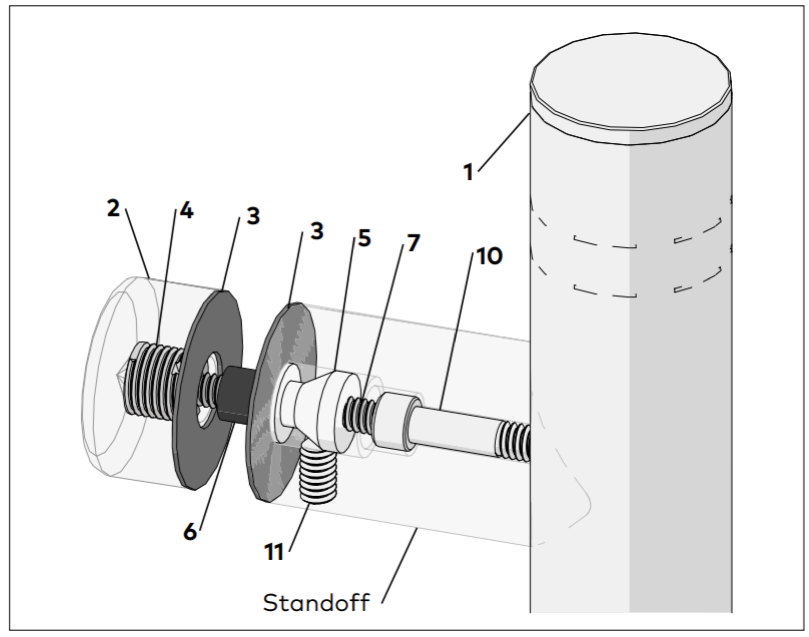

Fig. 1 Ladder pull and rose hardware Fig. 2 Single pull assembly - rose remova |
NOTE: Pulls will come preassembled from factory with glass hardware for 3/8” [10] - 3/4” [19] glass.
Disassemble pulls on a flat surface.
- Remove rose assemblies from single pull handle.
• Threaded insert (4) has Loctite® applied at factory. Insert is removed with rose.
• Gaskets (3) are secured to rose and to standoff at factory.
2. Prepare pull assemblies for glass installation
Single pull handle hardware
| Description | 49 -3/16” | 60” | 72” | 84” | |
| 1 | TG 138 B2B GL pull handle, internal | 279-005 | 279-006 | 279-007 | 279-008 |
| 2 | Rose, TG138 -1-3/8” OD | 979-004 | |||
| 3 | Gasket, 1-3/8” OD | 979-006 | |||
| 4 | Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP | 979-010 | |||
| 5 | Anchor, threaded, M6-1.0 x 12.5 mm | 979-028 | |||
| 6 | Bushing, plastic, TG 138 5/8 - 3/4 GL | 979-031 | |||
| 7 | Rod, threaded M6-1.0 x 1-3/4” | 979-032 | |||
| 10 | 1/4-20 x 1-5/8” socket head cap screw | 900-203 | |||
| 11 | 1/4-20 x 1/2” setscrew, cone point, interior pul | 900-201 | |||

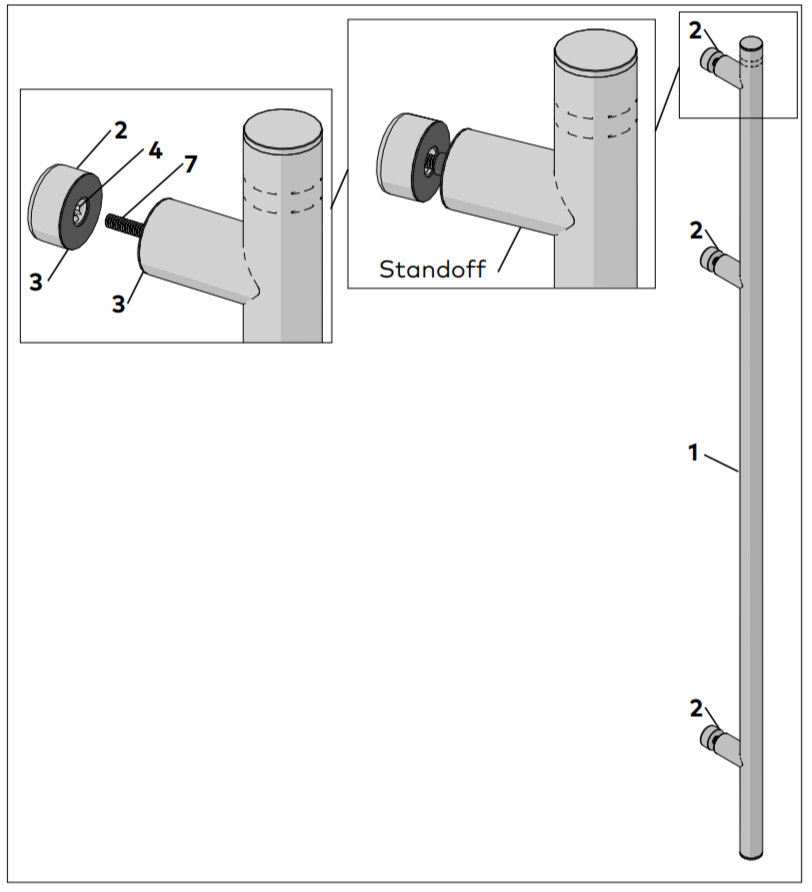

Fig. 2 Single pull assembly - rose removal |
NOTICE
Threaded rods.
Rod, threaded M6-1.0 x 1-3/4”: for 3/8” [10] - 3/4” [19] glass.
Pull hardware (Fig. 2) is factory assembled to the external pull handle standoffs

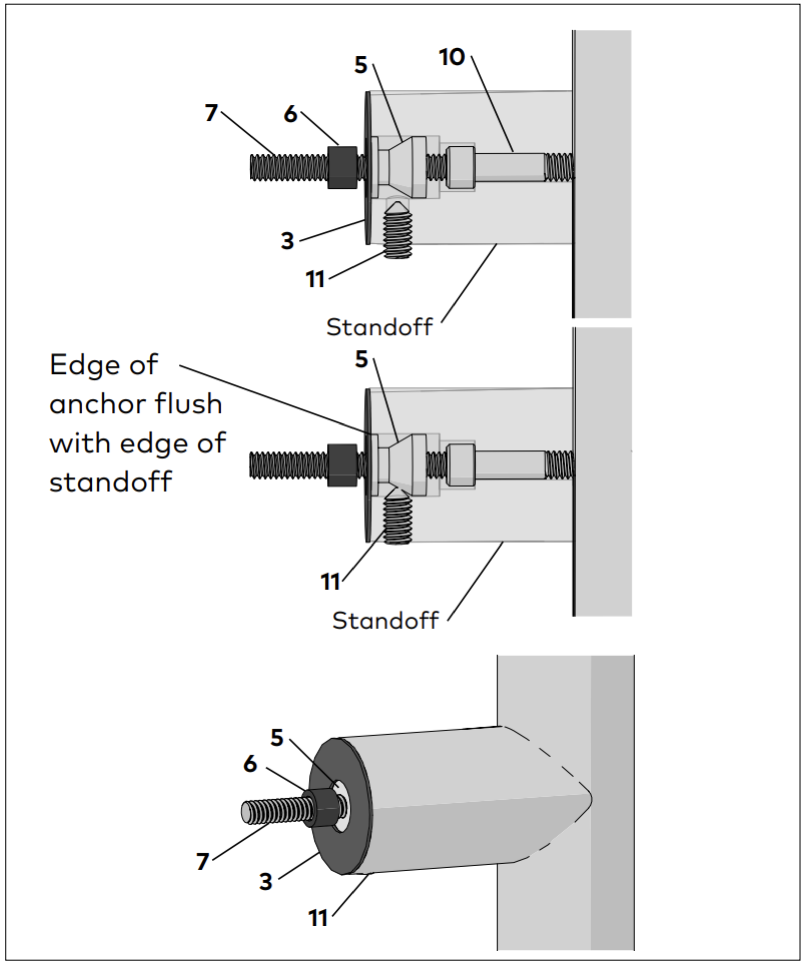

- Bushing installation on threaded rod.
- Ensure bushing (6) is installed on each threaded rod.
- Position M6 threaded anchors in standoffs.
- Threaded anchor (5) must be installed on its threaded rod so that it is flush with the edge of the standoff (Fig. 2.)
- Tighten setscrews.
- Using a 1/8” hex key, tighten each set screw against its threaded anchor
3. Assemble external pull assembly to glass
Single pull handle hardware
| Description | 49 -3/16” | 60” | 72” | |
| 1 | TG 138 B2B GL pull handle, internal | 279-005 | 279-006 | 279-007 |
| 2 | Rose, TG138 -1-3/8” OD | 979-004 | ||
| 3 | Gasket, 1-3/8” OD | 979-006 | ||
| 4 | Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP | 979-010 | ||
| 6 | Bushing, plastic, TG 138 5/8 - 3/4 GL | 979-031 | ||
| 7 | Rod, threaded M6-1.0 x 1-3/4” | 979-032 | ||
| 11 | 1/4-20 x 1/2” set screw, cone point, interior pull | 900-201 | ||
| CAUTION |
|

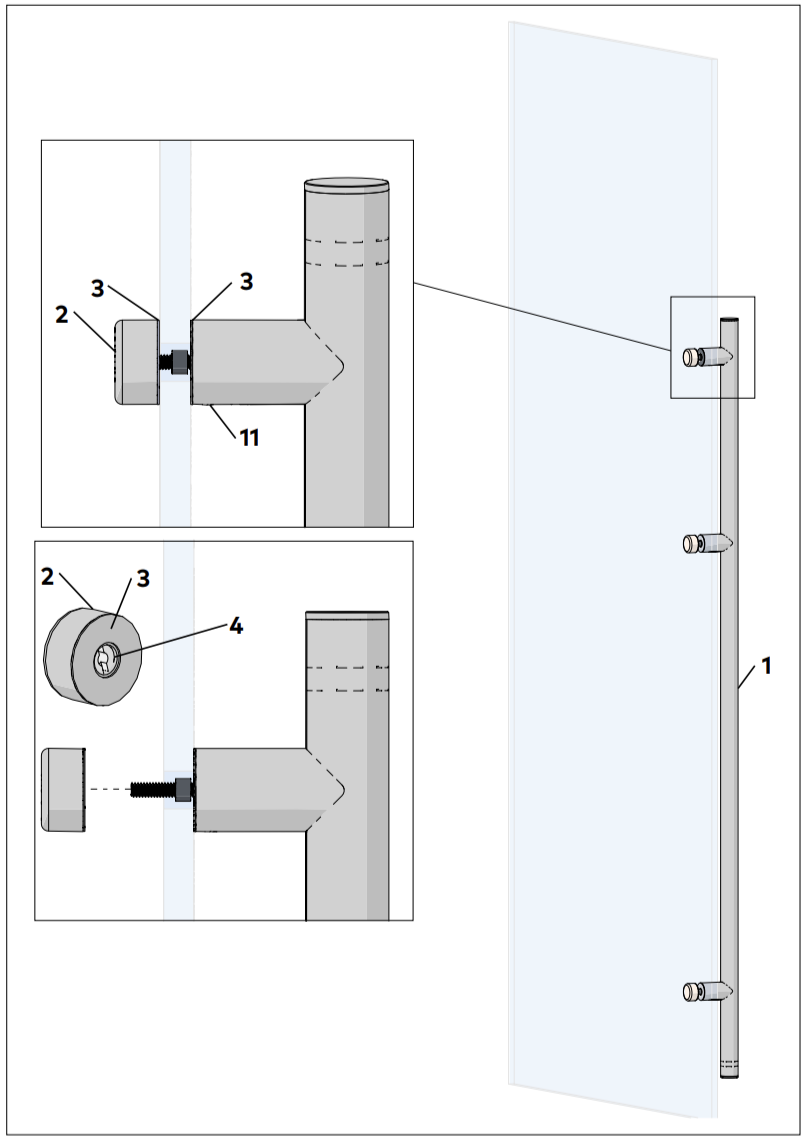

Fig. 3 Internal pull installed against glass |
- Install internal pull assembly against glass.
- Align pull standoffs with glass mounting holes.
- Move internal pull assembly toward glass until standoff gaskets are flush with glass surface.
- Install rose assemblies onto threaded rods.
- Thread each rose assembly onto its threaded rod
and tighten.
- Thread each rose assembly onto its threaded rod
