Installation Instructions Glass Door – TG 9387 single-sided non-locking pull

1. Disassemble pull

Single pull handle hardware

                              Description12”18”24”36”42"48”60"72”
1TG 9387 B2B GL
pull handle, internal		279-005 279-006279-007 279-008279-114279-119279-109279-117
2Rose, TG9387 - 1” OD
(Factory assembled)		                                                          979-104
3Gasket, 1” OD Permanently attached
to standoff and rose at factory
(Factory assembled)		                                                          979-107
4Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP
(Factory assembled)		                                         979-010
3Gasket, 1” OD Permanently attached
to standoff and rose at factory.		                                        979-107
5 Anchor, threaded, M6-1.0 x 12.5 mm
(Factory assembled)		                                        979-028
6Bushing, plastic, TG 138 5/8 - 3/4 GL
(Factory assembled)		                                        979-031
7Rod, threaded M6-1.0 x 1-3/4”
(Factory assembled)		                                         979-032
10 1/4-20 x 1-5/8” socket head cap screw                                        900-203
111/4-20 x 1/2” set screw, cone point, interior pull                                         900-201

Fig. 1 Glass ladder pull hardware

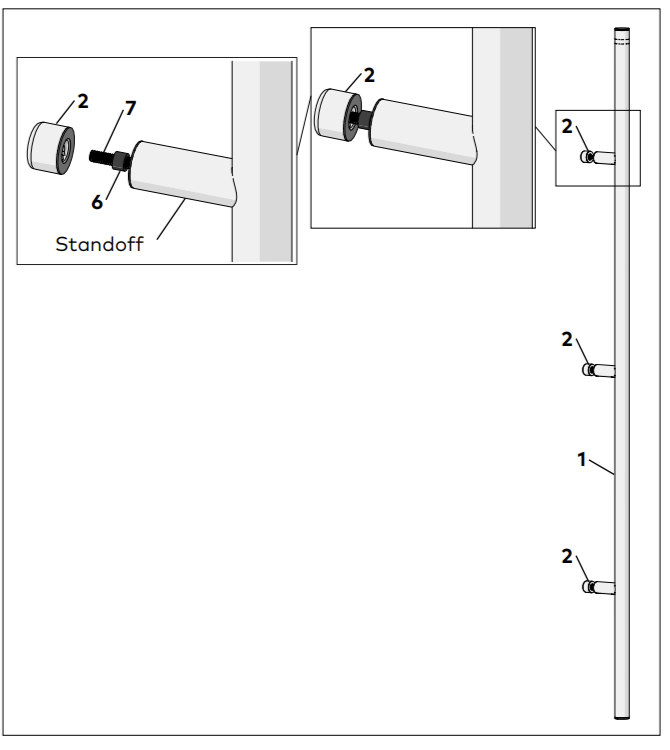

Fig. 2 Single pull assembly - rose removal

  1. Remove rose assemblies from single pull handle.
    • Threaded insert (4) has Loctite® applied at factory. Insert is removed with rose.
    • Gaskets (3) are secured to both the rose and the standoff at factory

2. Prepare pull assemblies for glass installation

 External pull hardware

                              Description12”18”24”36”42"48"60"72"
1TG 9387 B2B GL pull handle, internal279-105 279-106279-124 279-107279-108279-119279-109279-117
2Rose, TG138 -1” OD                         979-104
3Gasket, 1” OD                         979-107
4Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP                         979-010
5Anchor, threaded, M6-1.0 x 12.5 mm                         979-028
6Bushing, plastic, TG 138 5/8 - 3/4 GL                        979-031
7Rod, threaded M6-1.0 x 1-3/4”                        979-032
101/4-20 x 1-5/8” socket head cap screw                        900-203
111/4-20 x 3/8” setscrew, cone point, interior pull                       900-202

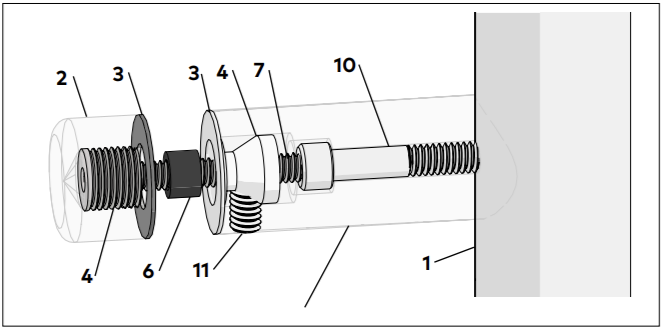

Fig. 3 Single pull assembly

NOTICE

Threaded rods.
Rod, threaded M6-1.0 x 1-3/4”: for 3/8” [10] - 3/4” [19] glass.
Pull hardware (Fig. 2) is factory assembled to the external pull handle standoffs

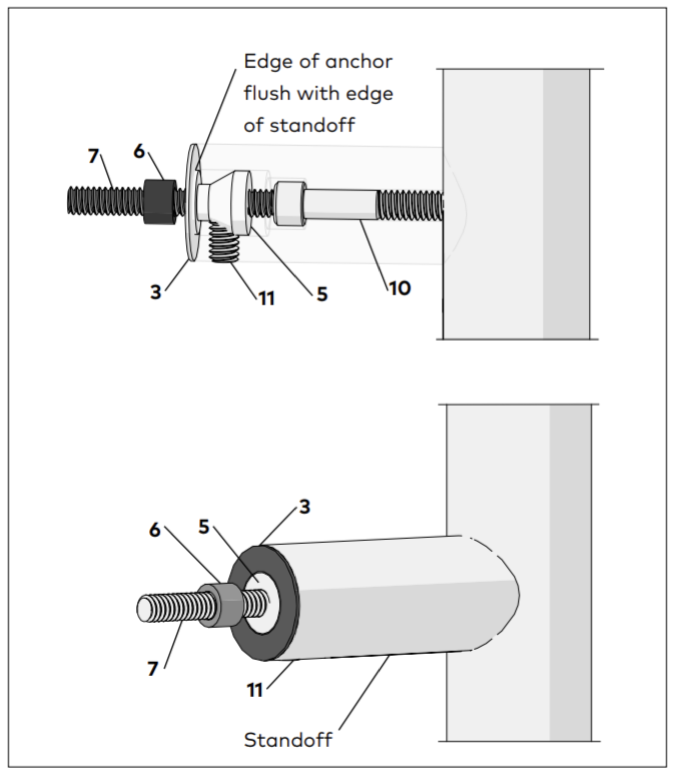

  1.  Bushing installation on threaded rod.
    1. Ensure bushing (6) is installed on each threaded rod.
  1.  Tighten setscrews.
    1. Using a 1/8” hex key, tighten each set screw against Standoff its threaded anchor.

3. Assemble external pull assembly to glass

Single pull handle hardware

                              Description12”18”24”36”42"48"60"72"
1TG 9387 B2B GL pull handle, internal279-105 279-106279-124 279-107279-108279-119279-109279-117
2Rose, TG138 -1” OD                         979-104
3Gasket, 1” OD                         979-107
4Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP                         979-010
6Bushing, plastic, TG 138 5/8 - 3/4 GL                        979-031
7Rod, threaded M6-1.0 x 1-3/4”                        979-032
111/4-20 x 3/8” setscrew, cone point, interior pull                       900-202
CAUTION
  • Use caution when handling glass.

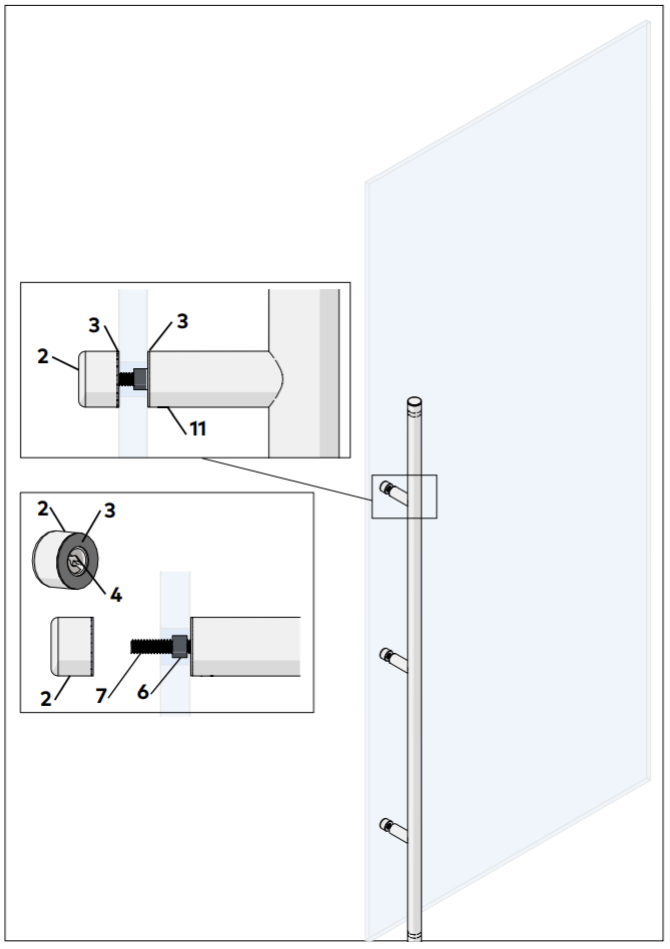

 Fig. 3 Internal pull installed against glass

  1. Install internal pull assembly against glass.
    1. Align pull standoffs with glass mounting holes.
    2. Move internal pull assembly toward glass until standoff gaskets are flush with glass surface.
  1. Install rose assemblies onto threaded rods.
    1. Thread each rose assembly onto its threaded rod and tighten.
