1. Single sided blind pull assembly
Single ladder blind pull hardware-wood doo
| Description | 49 -3/16” | 60” | 72” | 84” | ||
| 1 | TG 138 B2B GL pull handle, internal | 279-005 | 279-006 | 279-007 | 279-008 | |
| 3 | Gasket, 1-3/8” OD Permanently attached to standoff and rose at factory. | Factory assembled in standoffs | 979-006 | |||
| 10 | 1/4-20 x 1-5/8” socket head cap screw | 900-203 | ||||
| 11 | 1/4-20 x 1/2” set screw, cone point, interior pull | 900-201 | ||||
| 12 | Connector, TG 138 wood door | 979-026 | ||||

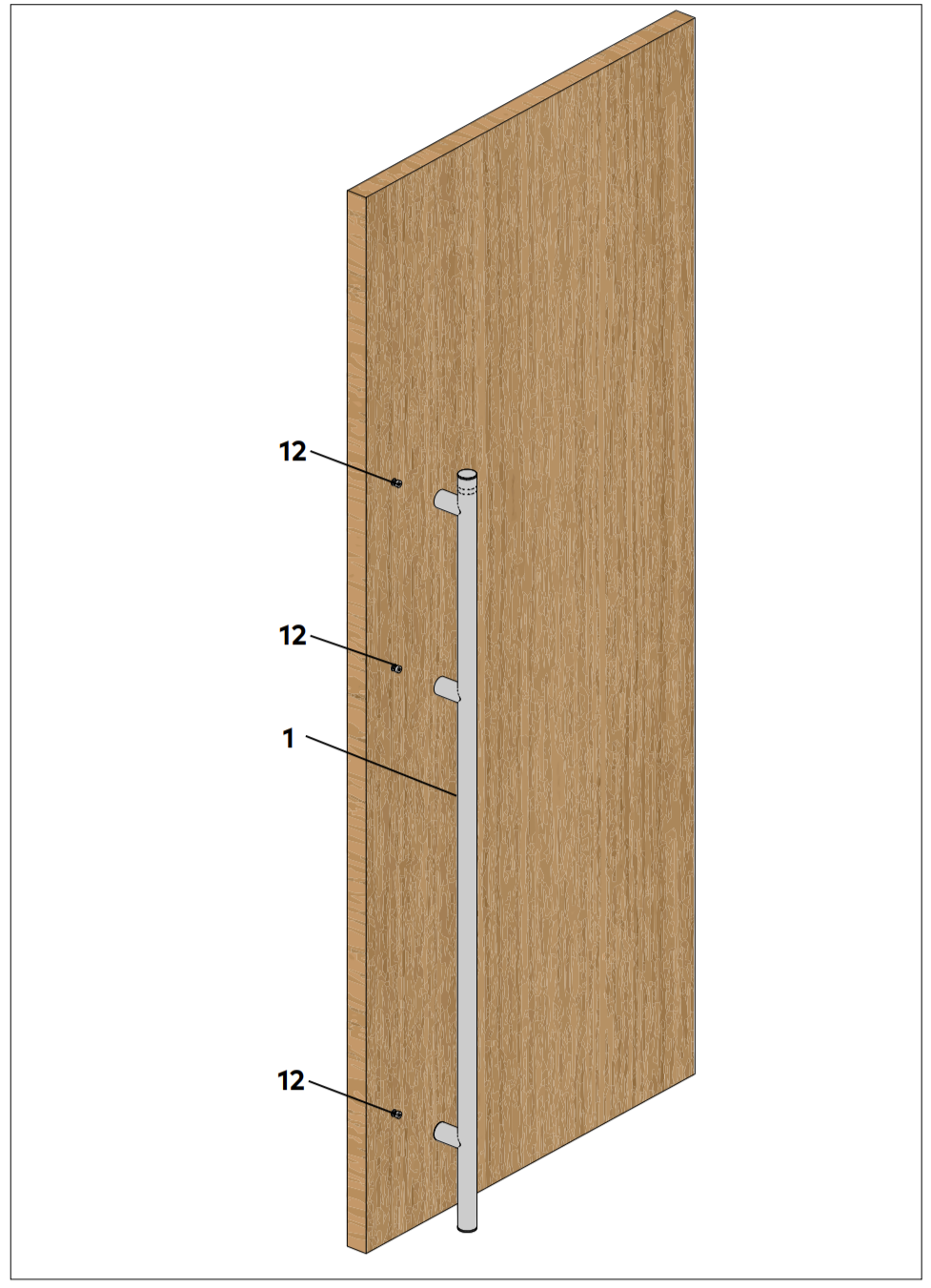

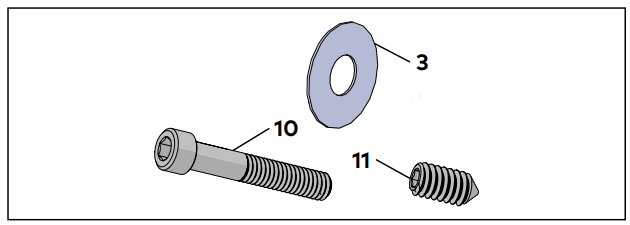

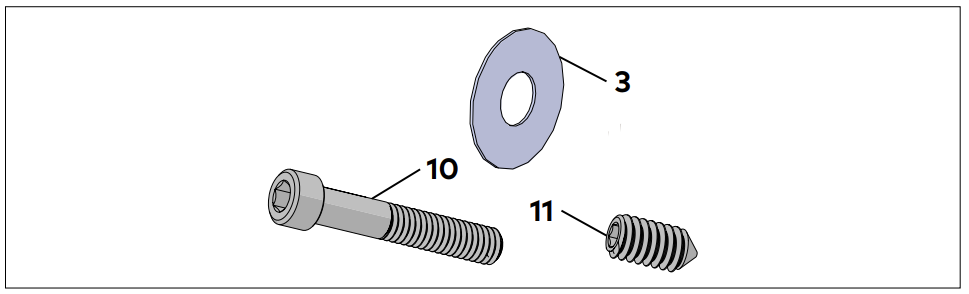

Fig. 1 Wood door ladder blind pull hardware Fig. 2 Wood door connector Fig. 3 Single blind pull assembly |
2. Install wood door connectors
Single pull handle hardware
| Description | 49 -3/16” | 60” | 72” | 84” | |
| 11 | Connector, TG 138 wood door, #18 wood screw | 979-026 | |||

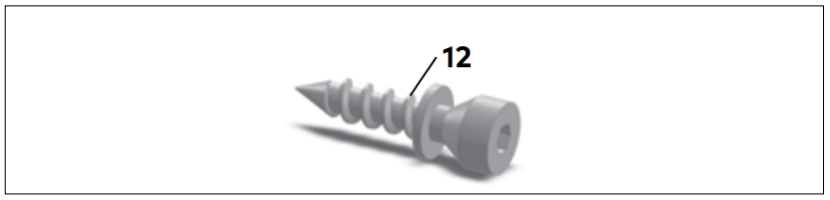

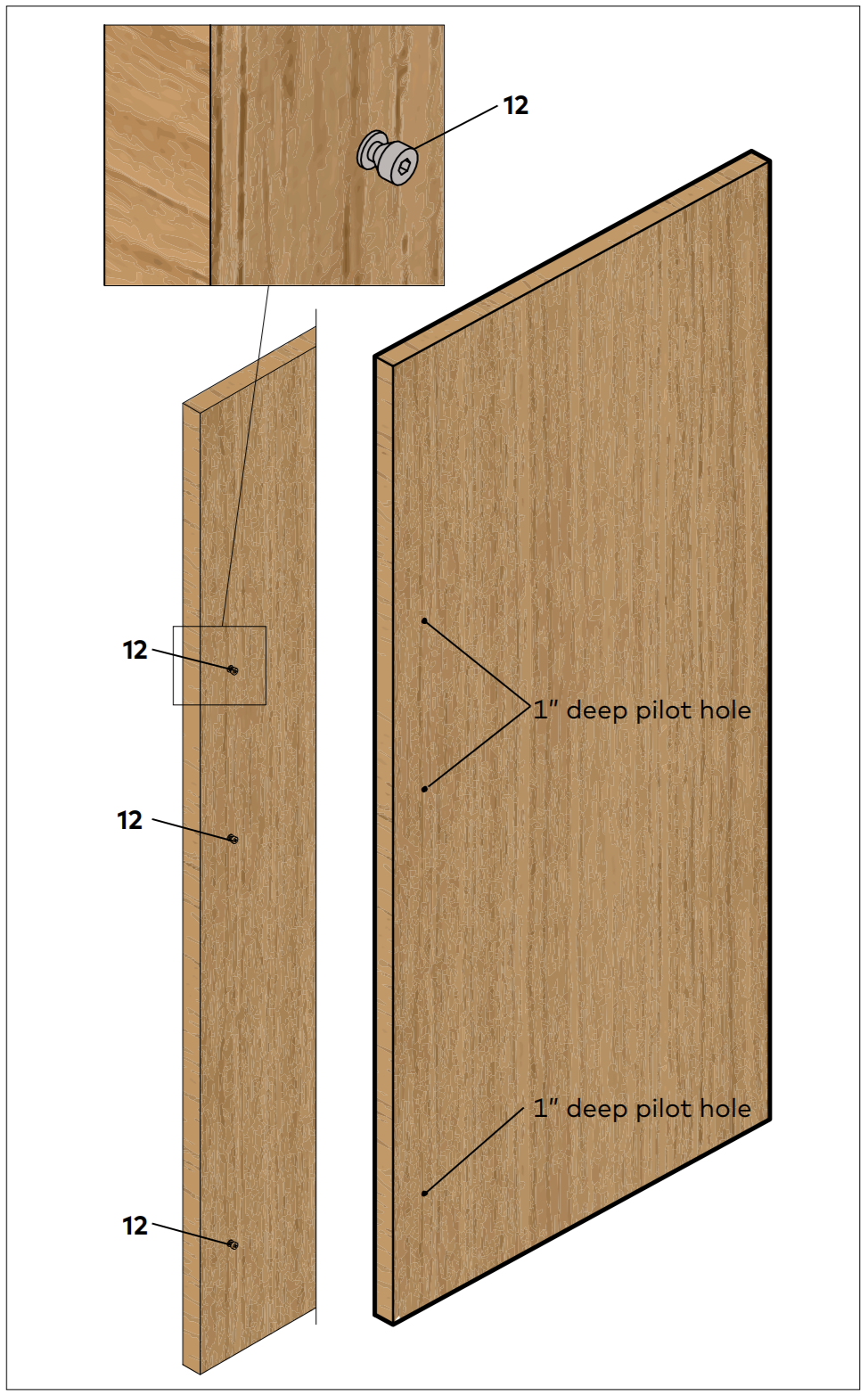

Fig. 4 Wood door connector Fig. 5 Wood door connectors installed |
| CAUTION |
|
- Drill pilot holes in wood door for connectors (12).
- Reference the architectural drawings to determine hole locations in the door.
- Use applicable drill (Para. 1.2) to drill 1” deep pilot holes in wood door for connectors (12).
- Thread connectors into wood door pilot holes.
- Using a 3/16” T-handle hex key, screw each connector into its pilot hole until the wood door
connector flange is tight against the door.
- Using a 3/16” T-handle hex key, screw each connector into its pilot hole until the wood door
3. Install pull assembly onto wood door
Single ladder blind pull hardware-wood door
| Description | 49 -3/16” | 60” | 72” | |
| 1 | TG 138 GL pull handle, internal | 279-005 | 279-006 | 279-007 |
| 2 | Gasket, 1-3/8” OD Permanently attached to standoff and rose at factory. | 979-004 | ||
| 3 | 1/4-20 x 1-5/8” socket head cap screw | 979-006 | ||
| 11 | 1/4-20 x 1/2” set screw, cone point, interior pull | 900-201 | ||
| 12 | Connector, TG 138 wood door, #18 wood screw | 979-026 | ||

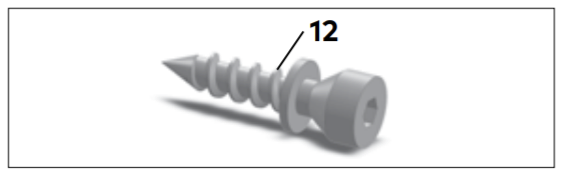

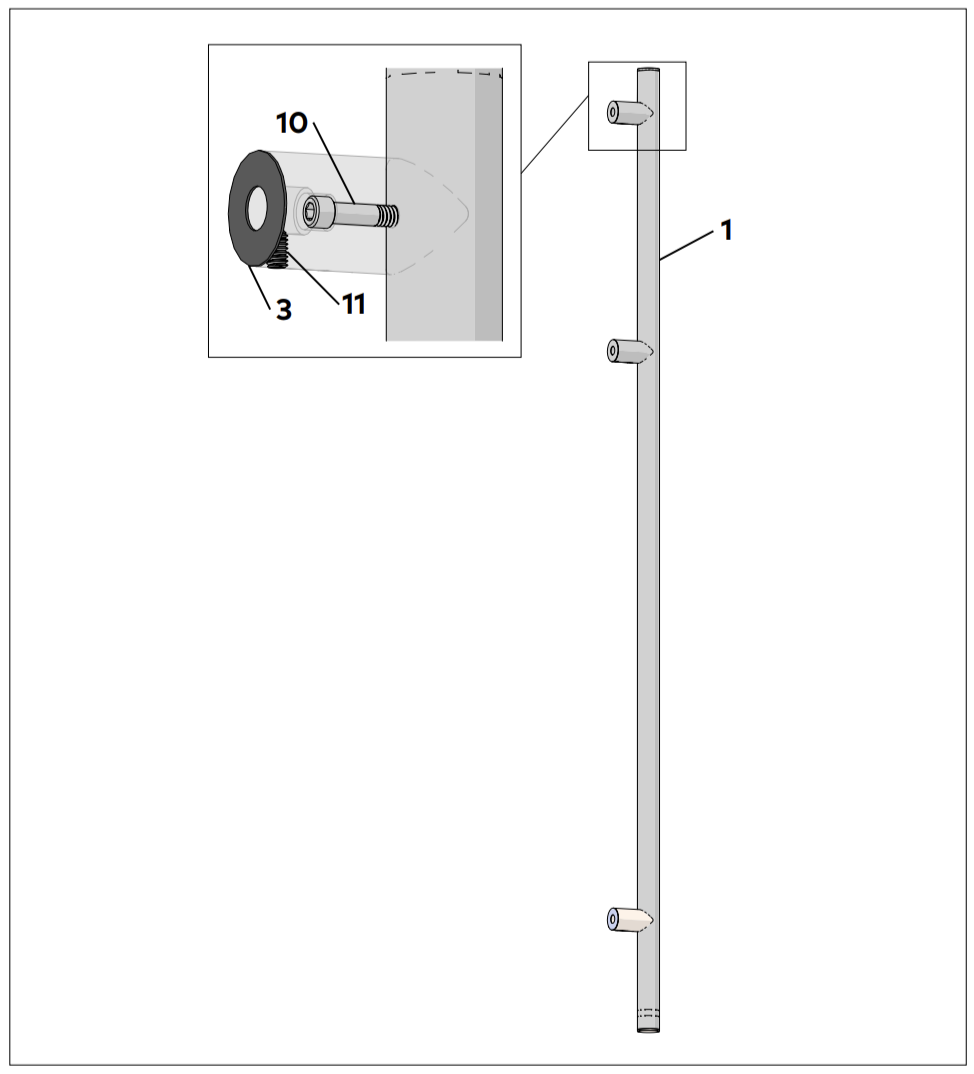

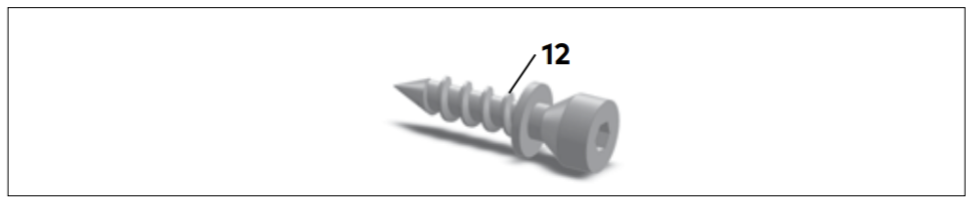

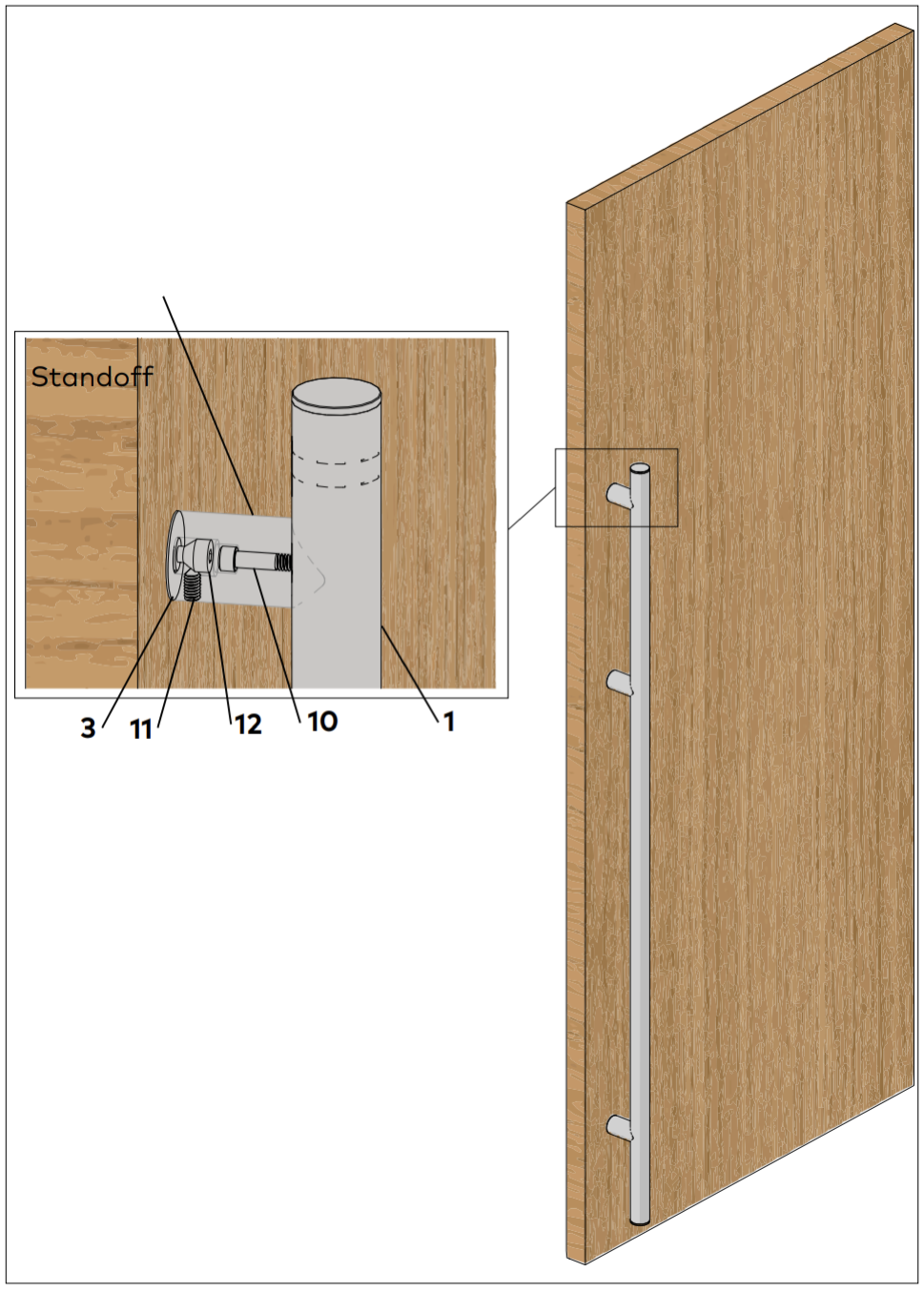

Fig. 6 Wood door ladder blind pull hardware Fig. 7 Wood door connector Fig. 8 Wood door connectors installed Fig. 9 Pull assembly installed |
- Install pull assembly onto connectors.
- Ensure standoff setscrews (11) are loosened.
- Slide pull assembly standoffs onto threaded connectors (12) until standoff gaskets (3) are flush
with wood door. - Using a 1/8” hex key, tighten each standoff setscrew (11) against its wood door connector (12).
