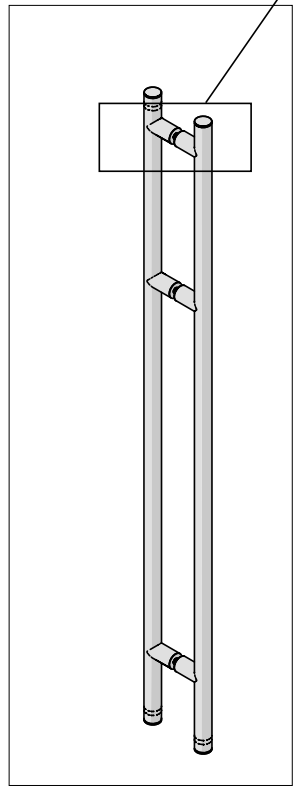

1.TG 138 back-to-back pull handles – door assemblies

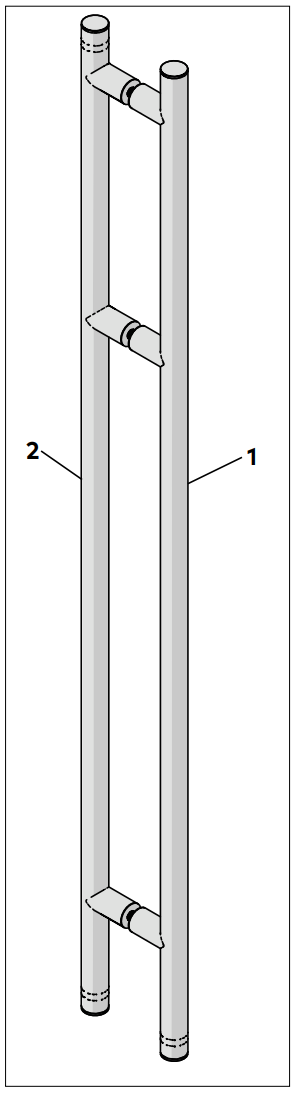

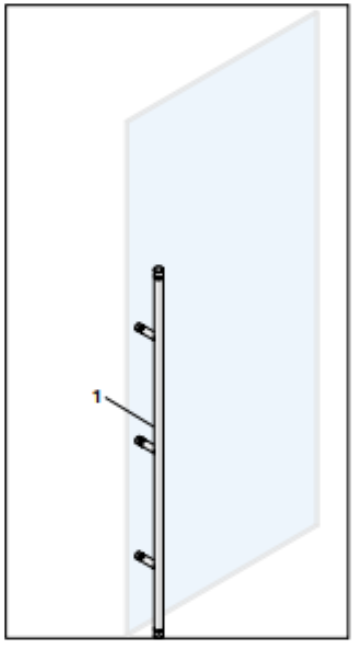

Fig. 1.1 60" glass door |

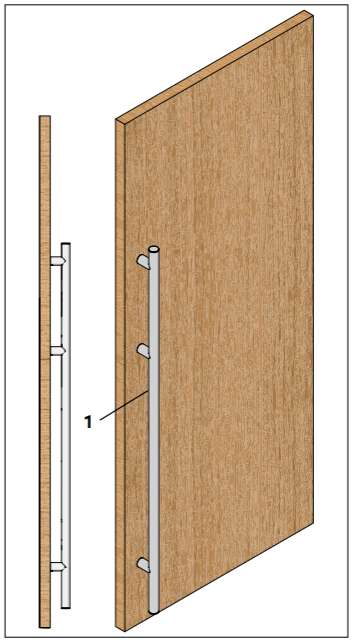

Fig. 1.2 60" wood door |

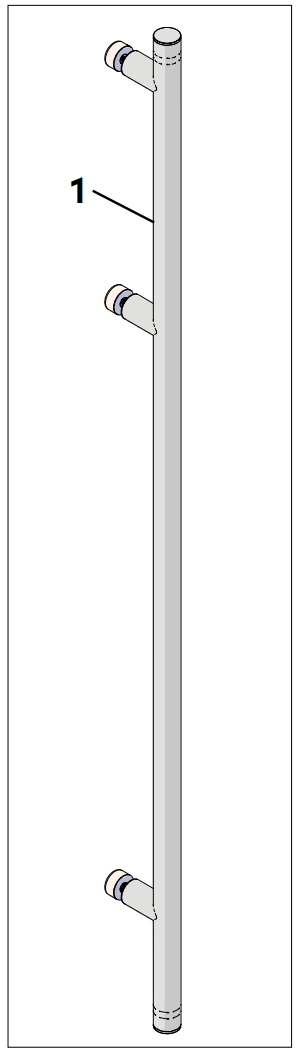

2. TG 138 single pull handles – door assemblies

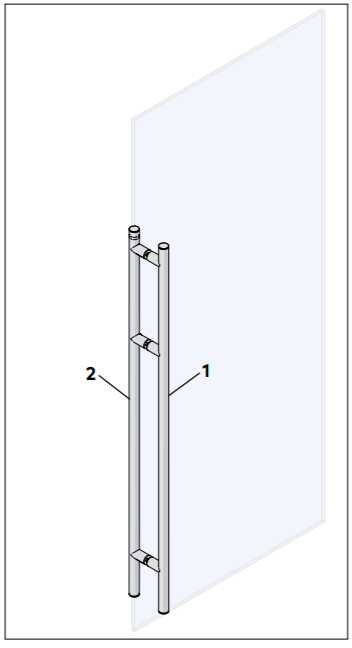

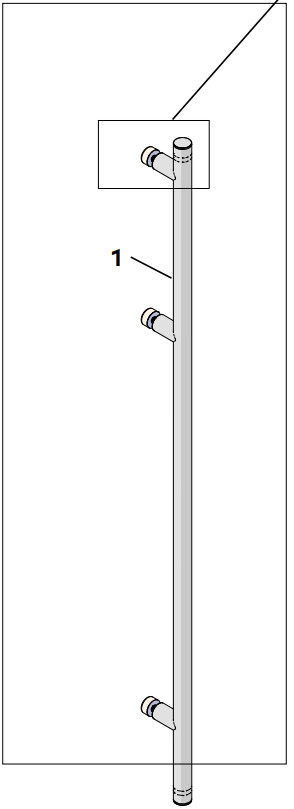

Fig. 2.1 60" glass door |
Fig. 2.2 60" wood door |

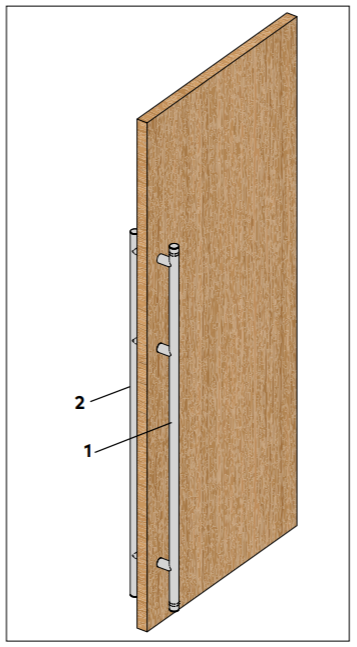

Fig. 2.3 60" wood door-blind |
3. TG 138 back-to-back pull handle assemblies
| Description | 49 -3/16” | 60” | 72” | 84” |
| TG 138 B2B GL pull handle, internal | 279-005 | 279-006 | 279-007 | 279-008 |
| TG 138 B2B GL pull handle, external | 279-010 | 279-011 | 279-012 | 279-013 |
| Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP | 979-010 | |||
| Anchor, threaded, M6-1.0 x 12.5 mm | 979-028 | |||
| Bushing, plastic, TG 138 5/8 - 3/4 GL | 979-031 | |||
| Rod, threaded M6-1.0 x 1-3/4” | 979-032 | |||
| Rod, threaded M6-1.0 x 3-1/4” (for wood door) | 970-030 | |||
| Connector, wood door | 979-026 | |||
| 1/4-20 x 1-5/8” socket head cap screw | 900-203 | |||
| Gasket, 1-3/8” OD | 979-006 | |||
| 1/4-20 x 1/2” set screw, cone point, interior pull | 900-201 | |||

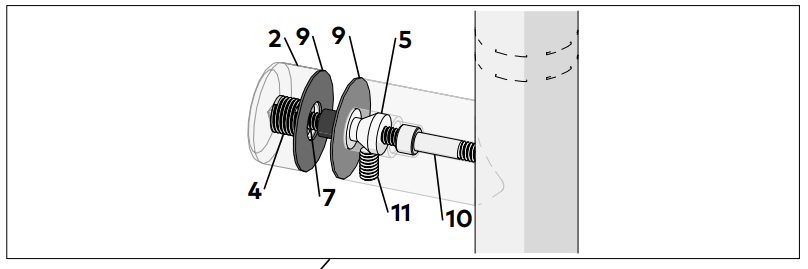

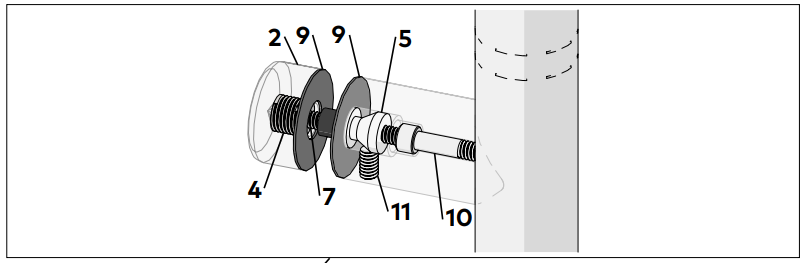

Fig. 3.1 Pull handle standoff detail |

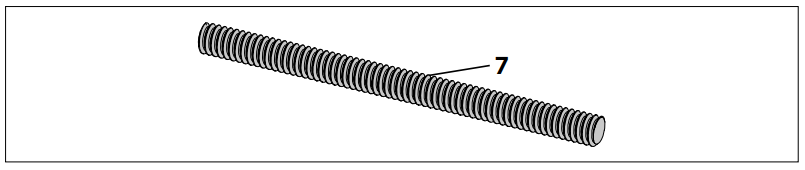

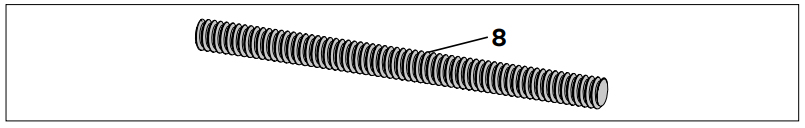

Fig. 3.2 Wood door threaded rod |
Fig. 3.3 Wood door connector, blind door |
Fig. 3.4 49 - 3/16” |

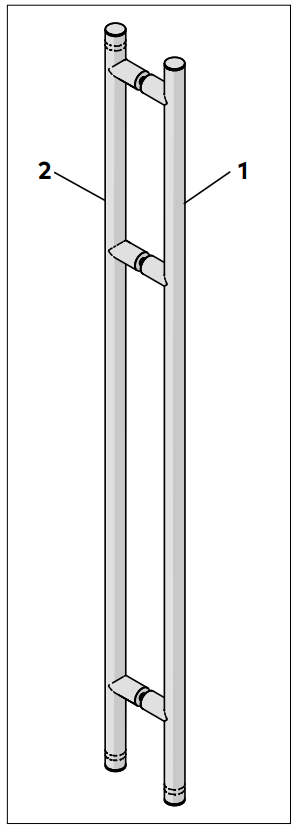

Fig. 3.5 60" |
Fig. 3.5 72" |
Fig. 3.5 84" |

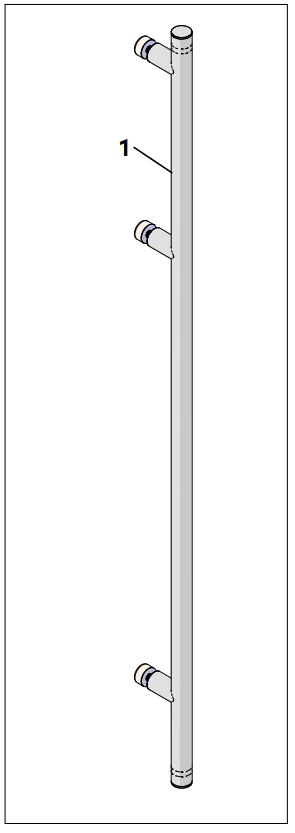

4. TG 138 single pull handle assemblies
| Description | 49 -3/16” | 60” | 72” | 84” |
| TG 138 B2B GL pull handle, internal | 279-005 | 279-006 | 279-007 | 279-008 |
| Rose, TG138 1-3/8” OD | 979-004 | |||
| Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP | 979-010 | |||
| Anchor, threaded, M6-1.0 x 12.5 mm | 979-028 | |||
| Bushing, plastic, TG 138 5/8 - 3/4 GL | 979-031 | |||
| Rod, threaded M6-1.0 x 1-3/4” | 979-032 | |||
| Rod, threaded M6-1.0 x 3-1/4” (for wood door) | 970-030 | |||
| Gasket, 1-3/8” OD | 979-006 | |||
| 1/4-20 x 1-5/8” socket head cap screw | 900-203 | |||
| 1/4-20 x 1/2” set screw, cone point, interior pull | 900-201 | |||
| Connector, for blind wood door | 979-026 | |||
Fig. 4.1 Standoff and rose detail |
Fig. 4.2 Wood door threaded rod |
Fig. 4.3 Wood door connector, blind door |
|

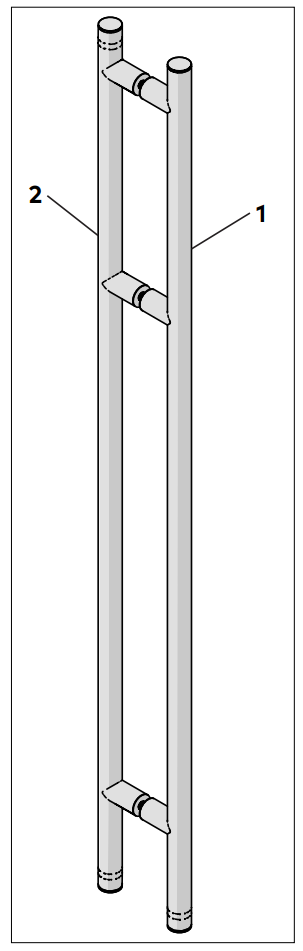

Fig. 4.5 60” |
Fig. 4.6 72” |
Fig. 4.7 84” |
