Installation Instructions Wood Door – TG 9387 back-to-back non-locking pulls

1. Disassemble pull

Single pull handle hardware

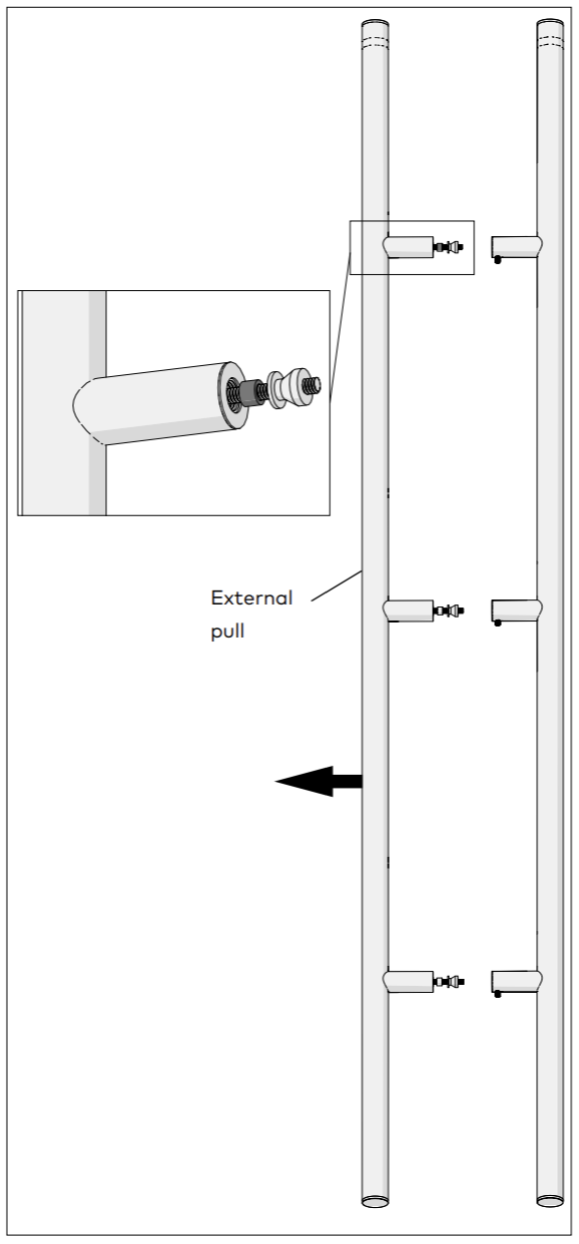

Fig. 1 Back to back pulls disassembly

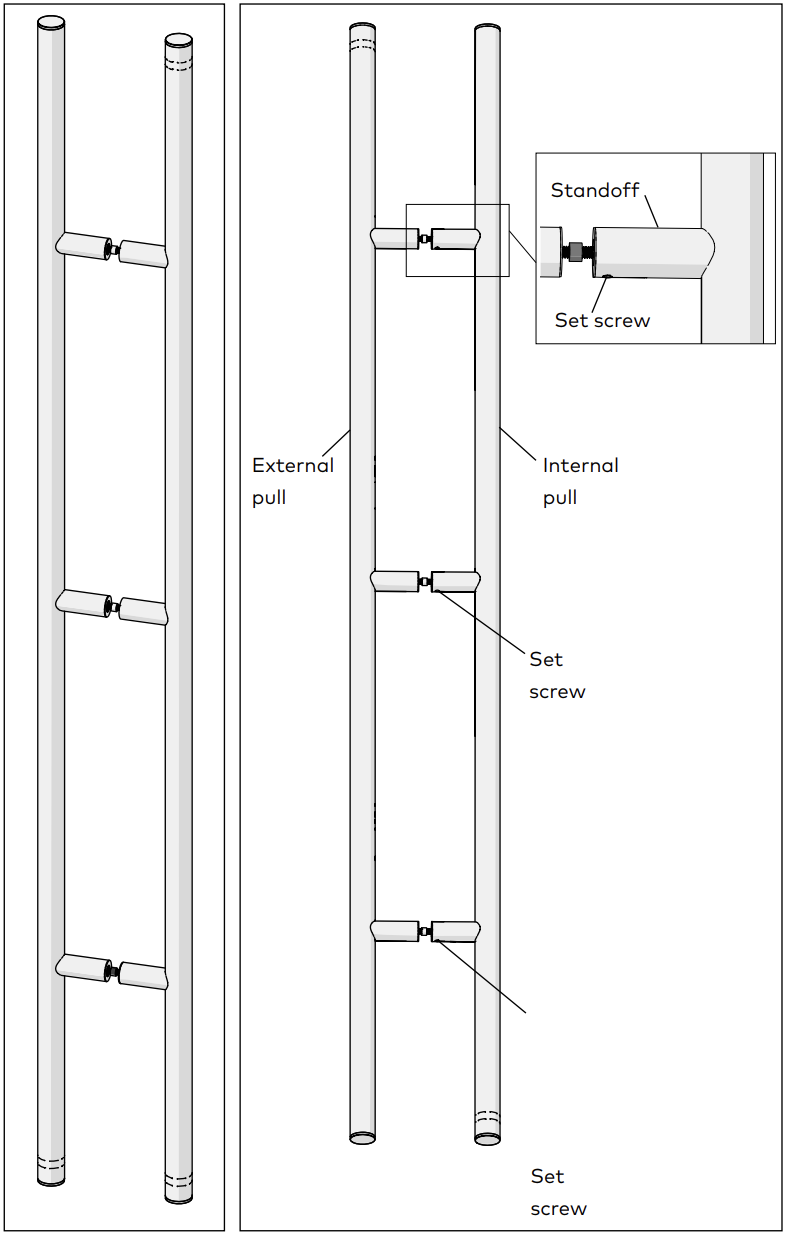

Fig. 2 Back to back pulls disassembly

  1.  Disassemble pulls on a flat surface.
    • Loosen set screw in each internal pull standoff.
    • Pull external pull assembly away from internal pull assembly.

2. Prepare pull assemblies for wood door installation

 External pull hardware

                              Description12”18”24”36”42"48"60"72"
2TG 9387 B2B GL pull handle, internal279-111   279-112979-125279-113279-114279-120 279-115279-118
3Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP
4Anchor, threaded, M6-1.0 x 12.5 mm
5Rod, threaded M6-1.0 x 1-3/4”
6Gasket, 1” OD
Permanently affixed to standoff at factory
7 Rod, threaded M6-1.0 x 3-1/4” (for wood door)
81/4-20 x 1-5/8” socket head cap screw
9Bushing, plastic, TG 138 5/8 - 3/4 GL

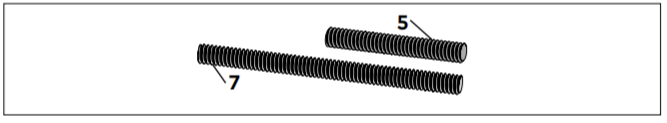

Fig. 3 Threaded rods

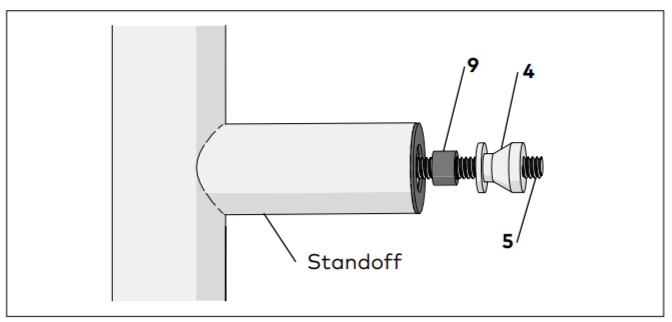

Fig. 4 External pull standoff and hardware with 1-3/4” threaded rod

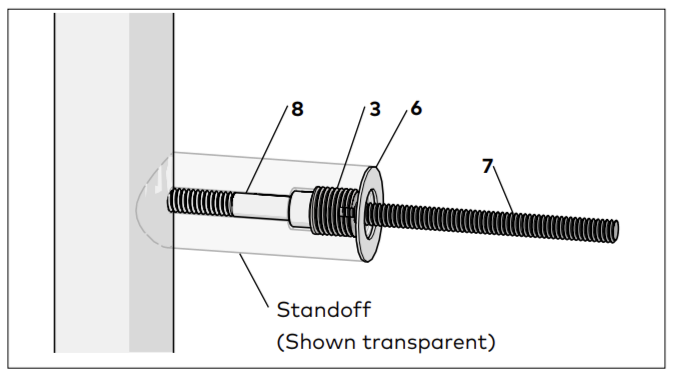

Fig. 5 External pull standoff with 3-1/4” threaded rod

NOTICE

Long threaded rods for wood door.
Ladder pulls are shipped from factory with 1-3/4” threaded rods.

3-1/4” threaded rods (item # 7) are required for wood doors. These rods will be in a hardware
bag in the box.
Pull hardware is factory assembled to the external pull handle standoffs.

  1. Remove threaded anchors.
    1. Remove threaded anchors (4) and bushings (9) from 1-3/4” threaded rods.
    2. Unscrew 1-3/4” threaded rods (5) from threaded inserts inside standoffs.
  2. Install rose assemblies onto threaded rods.
    1. Thread the 3-1/4” threaded rods into the threaded inserts (3) inside the standoffs. Tighten threaded rods against socket head cap screws (8).
    2. No bushing (9) is required for wood doors.

3. Assemble external pull assembly to wood door

External pull hardware

4Anchor, threaded, M6-1.0 x 12.5 mm
6Gasket, 1” OD
Permanently affixed to standoff at factory
7Rod, threaded M6-1.0 x 3-1/4” (for wood door)
CAUTION
  • Use caution when handling glass.

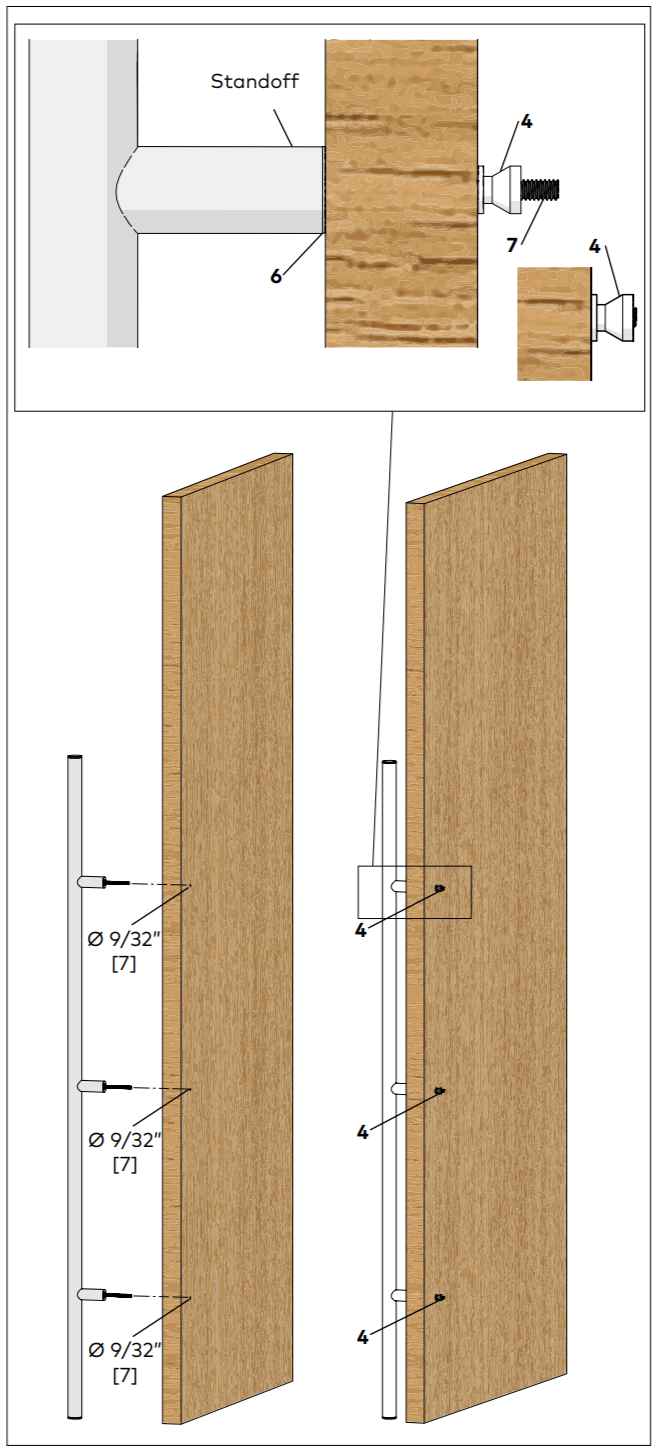

 Fig. 6 External pull installation

  1. Drill holes for external pull threaded rods in door
    1. Reference the architectural drawings to determine hole locations in the door.
    2. Drill a 9/32” [9] thru-hole for each threaded rod.
  1. Place external pull assembly against wood door.
    1. Align external pull standoffs with holes in wood door and insert threaded rods into holes in door.
    2. Push external pull assembly toward wood door until standoff gaskets are flush with wood door surface.
  2. Install threaded anchors on threaded rods
    1. Install threaded anchor (4) onto each threaded rod. Tighten each threaded anchor (4) against the wood door.
  3. Trim threaded rods.
    1. Trim excess length of threaded rods (7) to be flush with the threaded anchors (4).

4. Assemble internal pull assembly to wood door

 Pull handle hardware

4Anchor, threaded, M6-1.0 x 12.5 mm
6Gasket, 1” OD
Permanently affixed to standoff at factory
7Rod, threaded M6-1.0 x 3-1/4” (for wood door)
10 1/4-20 x 1-5/8” socket head cap screw (Factory installed)
11 1/4-20 x 3/8” set screw, cone point, interior pull
(Factory installed)
CAUTION
  • Use caution when handling glass.

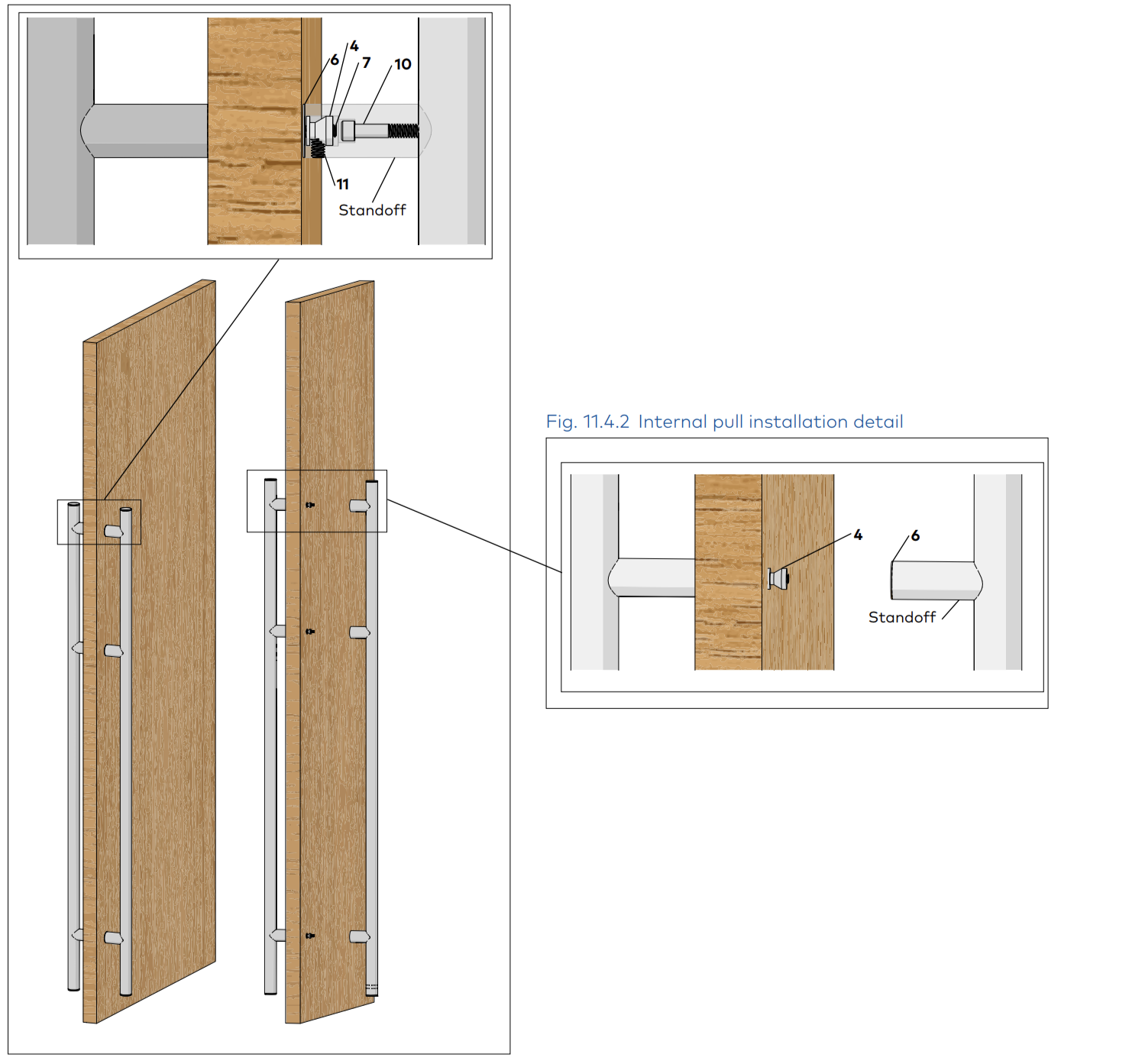

 Fig. 7 Internal pull installation

  1. Drill holes for external pull threaded rods in door
    1. Ensure standoff set screws (11) are loosened or removed prior to internal pull installation.
    2. Align internal pull handle standoffs with threaded anchors (4).
    3. Slide pull handle standoffs onto threaded anchors until standoffs are flush with wood door surface.
    4. Using a 1/8” hex key, tighten set screws (11) against threaded anchors (4).
