1. Overall
2. Secure Manet connectors through glass

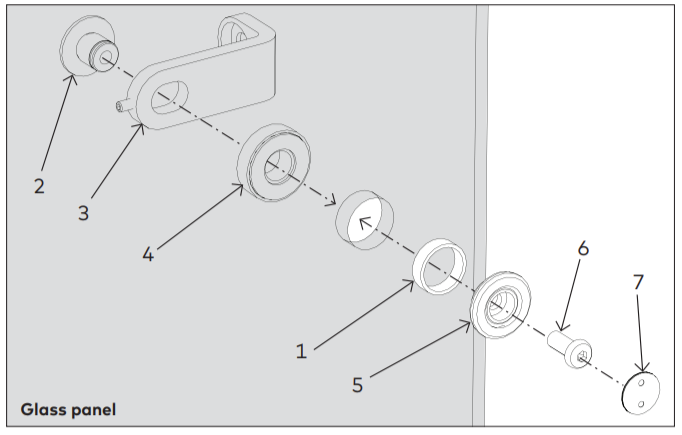

Countersunk Ceiling Connectors (clamping disk)
1. Insert bushing (1) into glass.
2. Press capture cap (2) through connector (3) and spacer (4), and into hole in glass.
3. Press clamping disk (5) through opposite side of glass.
4. Secure all connector parts to glass via included screw (6).
• Use a 5mm hex key.
5. Snap cover cap (7) into place.

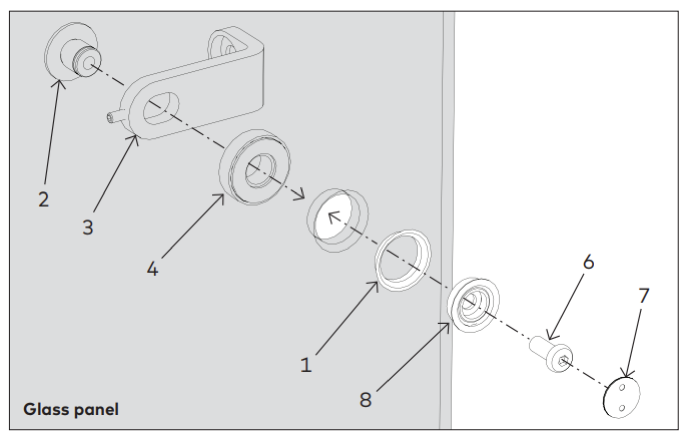

Countersunk Ceiling Connectors(carrying function)
1. Insert countersunk bushing (1) into glass.
2. Press capture cap (2) through connector (3) and spacer (4), and into hole in glass.
3. Press countersunk fitting (8) through opposite side of glass.
4. Secure all connector parts to glass via included screw (6).
• Use a 5mm hex key.
5. Snap cover cap (7) into place.

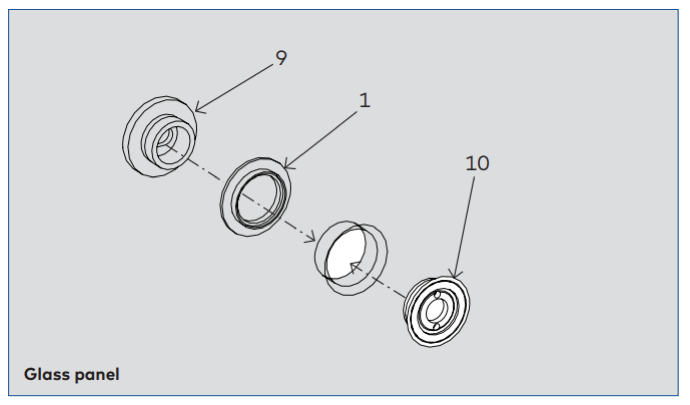

Single-Point Fittings (non-adjustaable)
1. Insert bushing (1) into glass.
2. Press single-point fitting capture cap (9) through bushing and into hole in glass.
3. Press countersunk single-point fitting (10) through opposite side of glass.
3. Secure glass and connectors to mounting surface

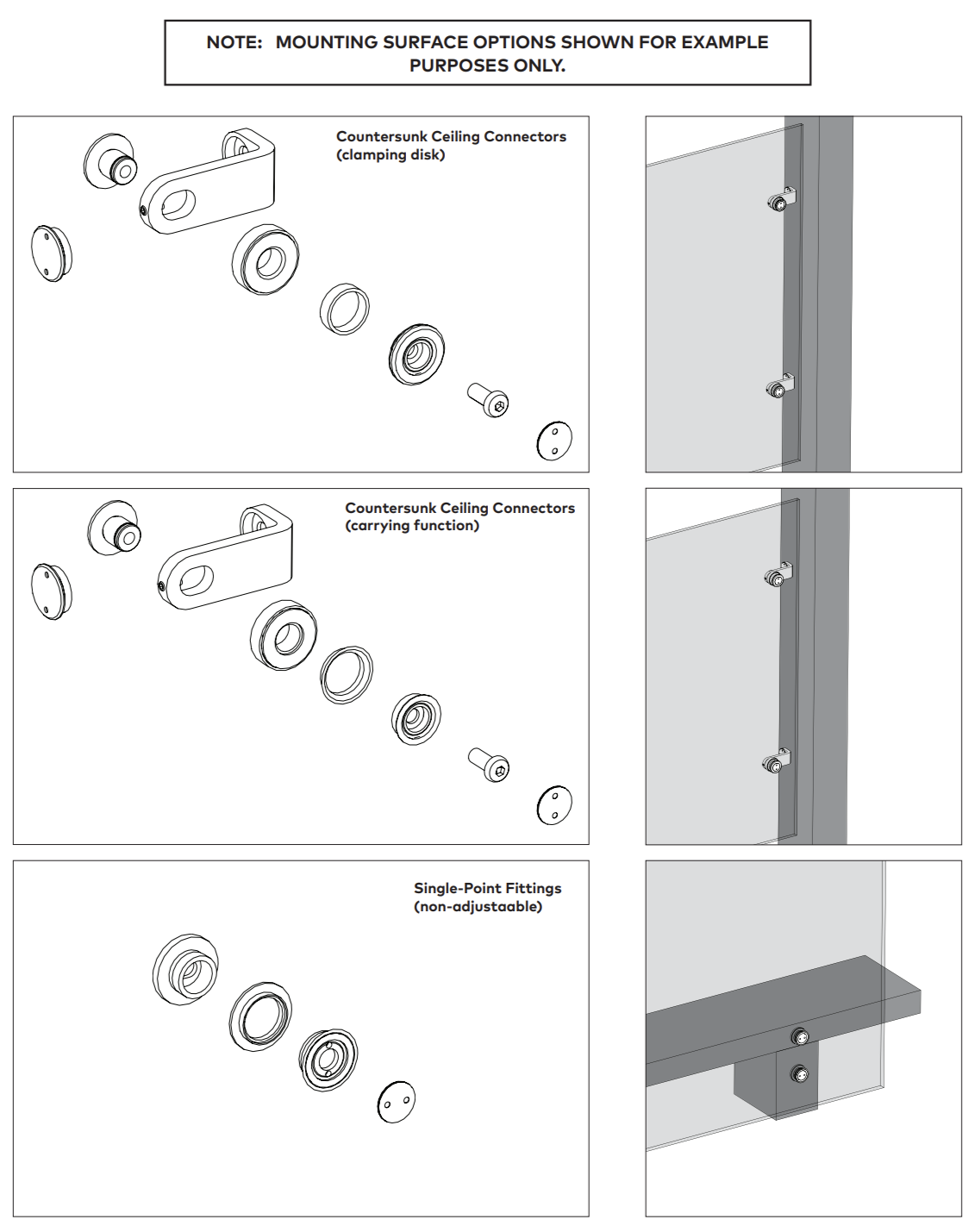

Countersunk Ceiling Connectors (clamping disk)
NOTE: Mounting surface shown for example purposes only

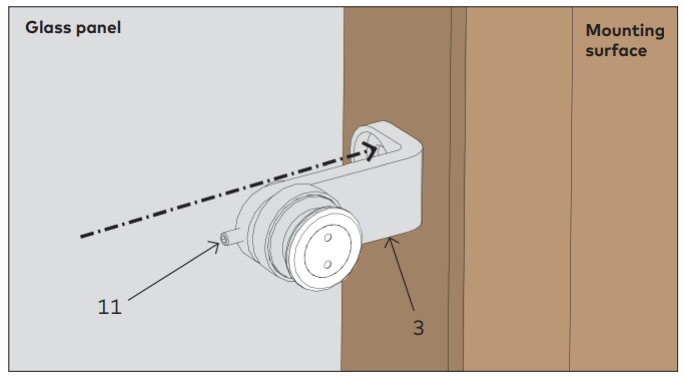

1. Lock all connector parts together by tightening set screw (11).
2. Align glass panel to appropriate location on mounting surface.
NOTE: Ensure glass is plumb and level.
3. Secure connectors (3) to mounting surface with fasteners appropriate to mounting surface
material.
Countersunk Ceiling Connectors (carrying function)
NOTE: Mounting surface shown for example purposes only.

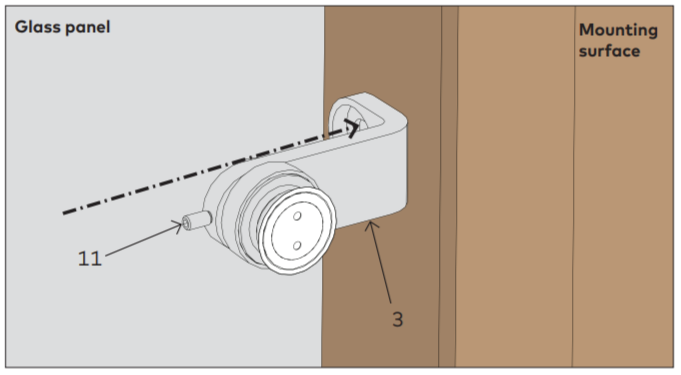

1. Lock all connector parts together by tightening set screw (11).
2. Align glass panel to appropriate location on mounting surface.
NOTE: Ensure glass is plumb and level.
3. Secure connectors (3) to mounting surface with fasteners appropriate to mounting surface
material
Single-Point Fittings (non-adjustaable)
1. Align glass panel to appropriate location on mounting surface.
NOTE: Ensure glass is plumb and level.

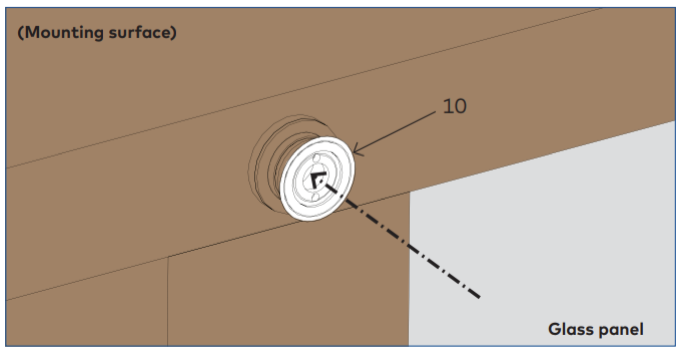

2. Secure to mounting surface through countersunk single-point fittings (10) with fasteners
appropriate to mounting surface material.
4. Snap cover caps into place
Countersunk Ceiling Connectors (clamping disk)
NOTE: Mounting surface shown for example purposes only.

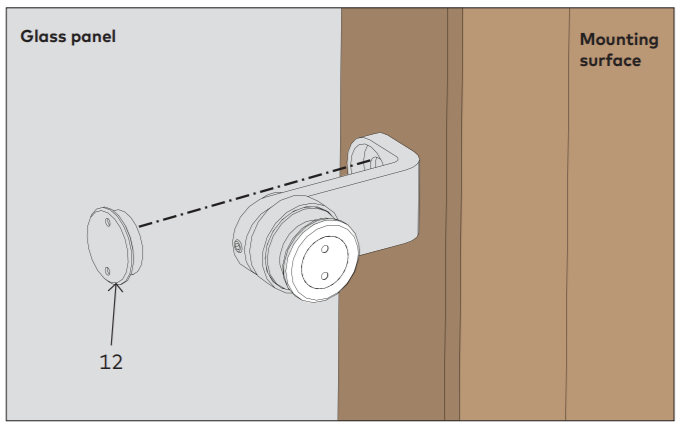

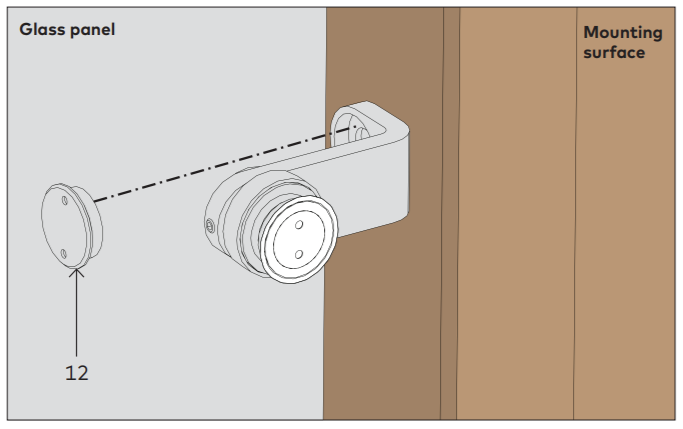

1. Snap connector caps (12) into place.
Countersunk Ceiling Connectors(carrying function)
NOTE: Mounting surface shown for example purposes only.
1. Snap connector caps (12) into place.
Single-Point Fittings (non-adjustaable)
NOTE: Mounting surface shown for example purposes only.

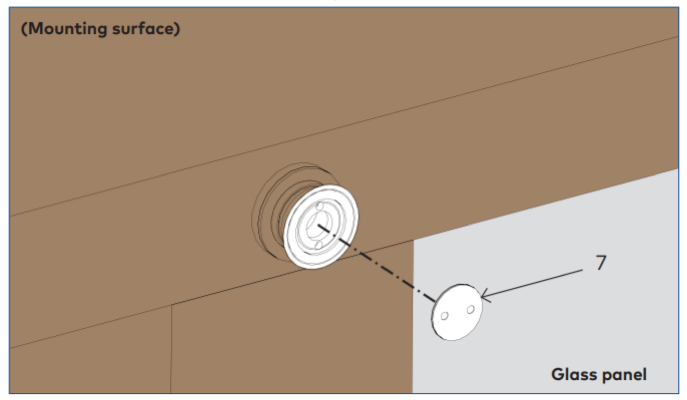

1 Snap cover caps (7) into place.
