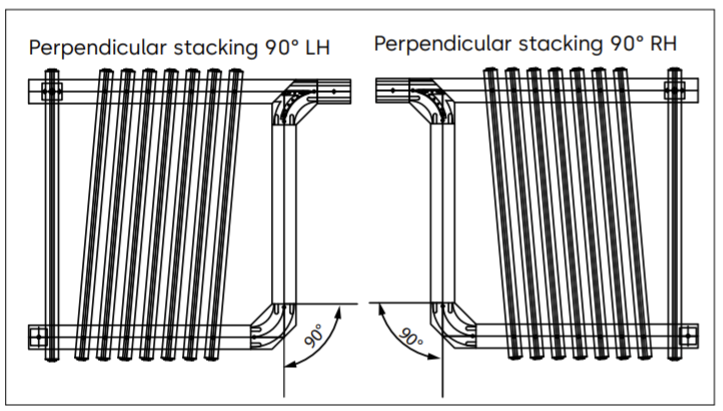

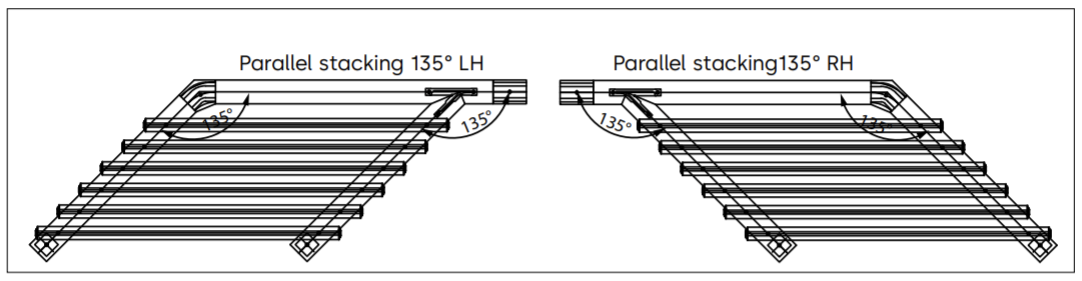

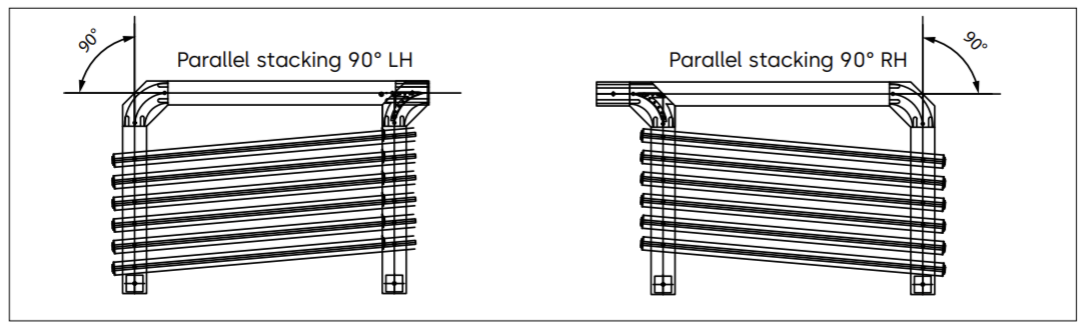

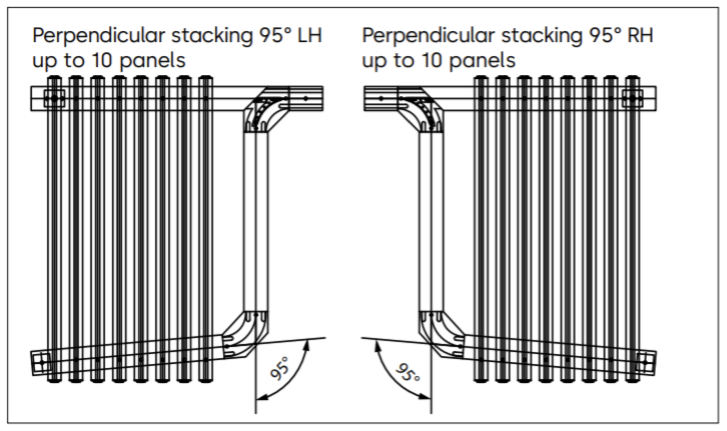

1. HSW stacking arrangements
2. Track installation
| 1 | HSW slide track connector |
| 2 | M6 x 8 mm set screw |
| 3 | 4 x 20 mm connecting pin (dowel) |
| 4 | HSW diverter |
| 5 | HSW corner |
| 6 | HSW revision piece |
| 7 | HSW stacking |
Hex key size
Slide track connector piece set screws for step #2. 3mm
Drill bit size
Substructure Dependent upon substructure material

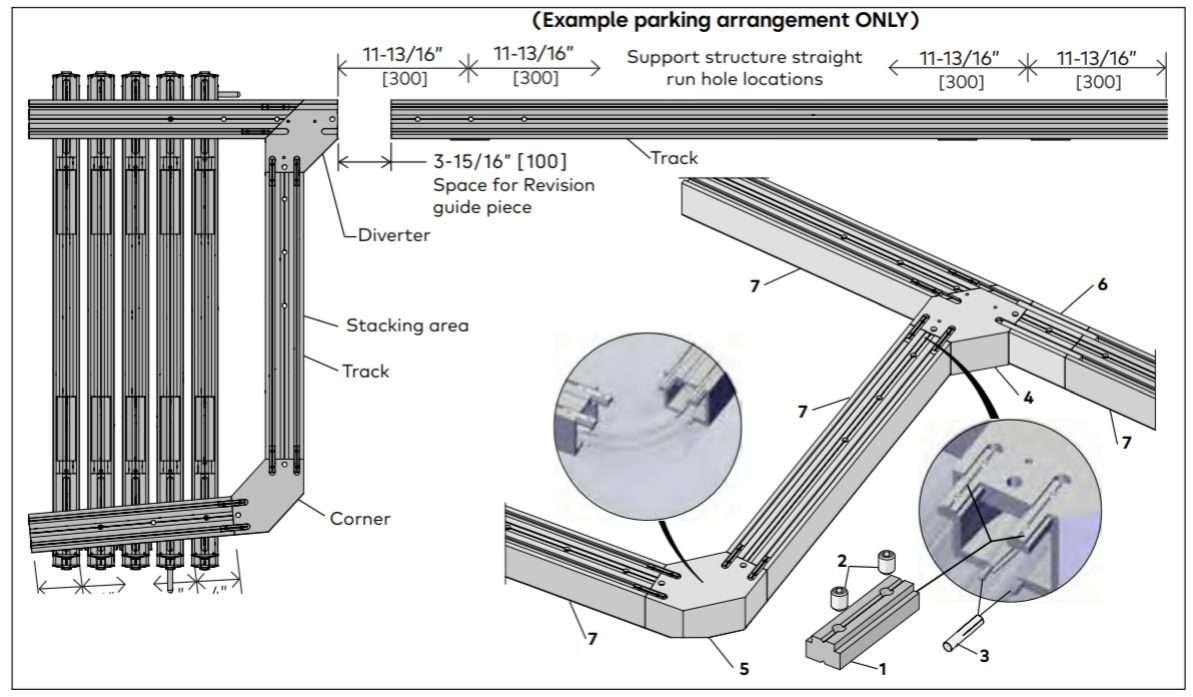

Track installation.
1. Slide connecting pins (3) inside track grooves until flush with track.
2. Pre-connect diverter (4) and corner (5) with slide track connectors (1).
3. Fully tighten slide track connector set screws.
4. Align track on ceiling accordingly. Mark and drill support structure hole locations.
• Straight run holes: 11-13/16” [300] apart.
• Stacking area holes: approximately 4” [100] apart.

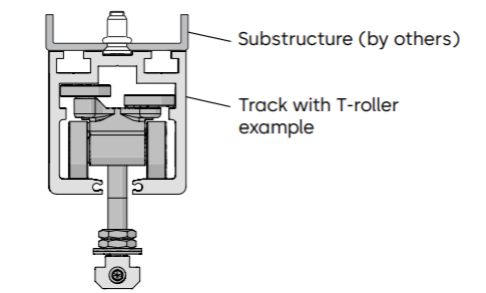

5. Secure top track along its entire length, including the stacking area, to the substructure.
• Use fasteners appropriate for substructure material. Recommend 5/16” [8] diameter
fasteners

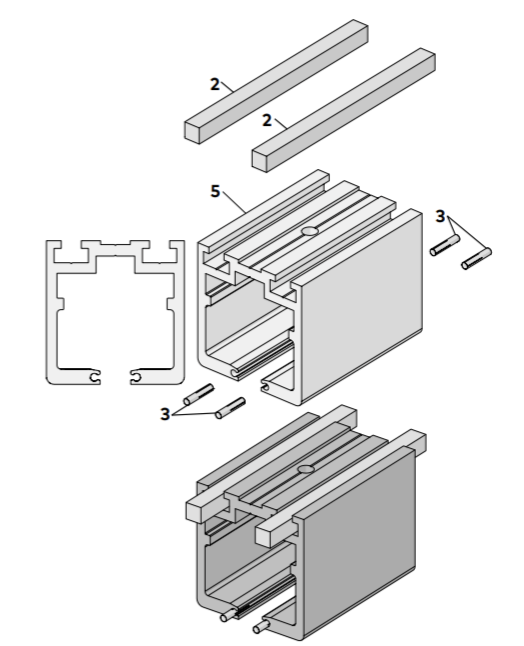

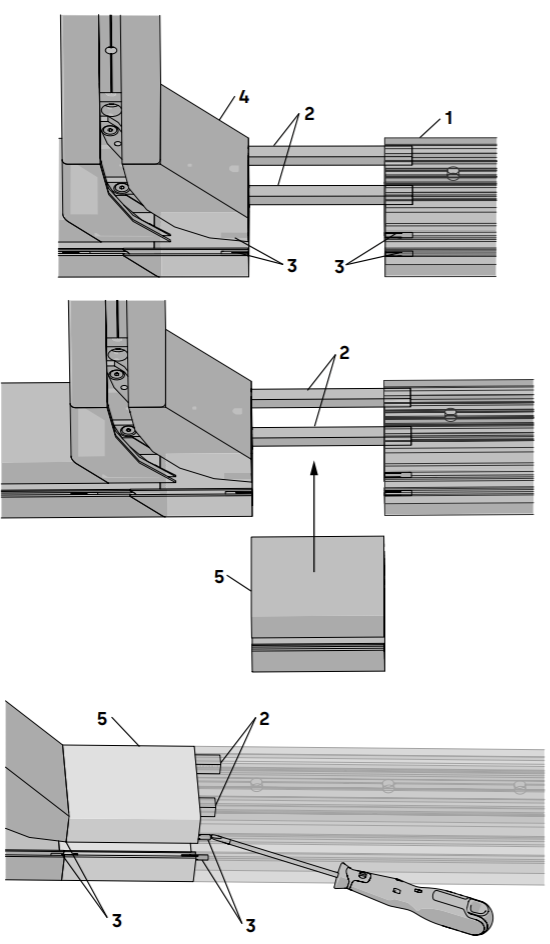

3. Installation and removal of the revision piece
| 1 | HSW-DRS track profile | |
| 2 | Block | 10 mm x 10 mm x 140 mm 3/8” x 3/8” x 5-1/2” |
| 3 | Connecting pin | 4 mm x 20 mm 5/32” x 25/32” |
| 4 | HSW diverter | |
| 5 | Revision piece |
| Tools required | |
| Connecting pin | Rubber mallet |
| Screwdriver | |
- Slide blocks into diverter and track.
- Install revision piece into track, sliding revision piece into blocks.
- Using a screw driver and mallet, tap pre-installed connecting pins in either direction
so they span the revision piece, track and diverter.
Note: Revision piece will be removed before panel installation is started, then reinstalled after installation is
complete
4. Installing door track panel stop

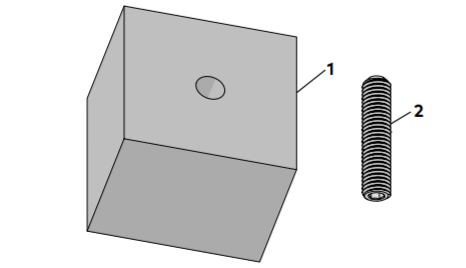

| 1 | HSW panel stop |
| 2 | M10 x 45 mm set screw |

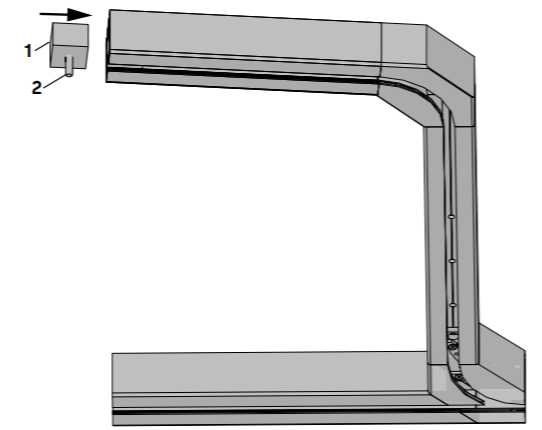

Install door track panel stop.
Panel stop location is determined by panel stacking arrangement. Refer to customer order.

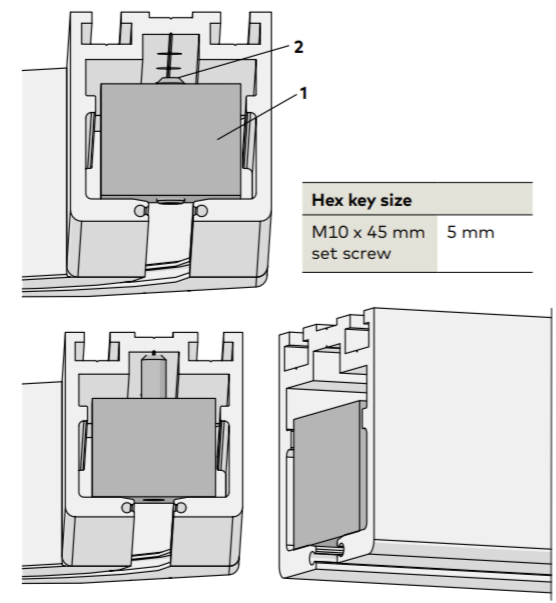

1. Install M10 x 45 mm setscrew into door track panel stop.
2. Slide door panel stop into open section of track.
3. Slide door panel stop through track into stacking area on opposite side of swing door pivot.
4. Turn set screw to tighten door panel stop against track.
