1. Install cylinder locks
1.1 Cylinder locks.
• Interconnecting lock and cylinder lock panels (IC).
• Cylinder lock panels (SC).

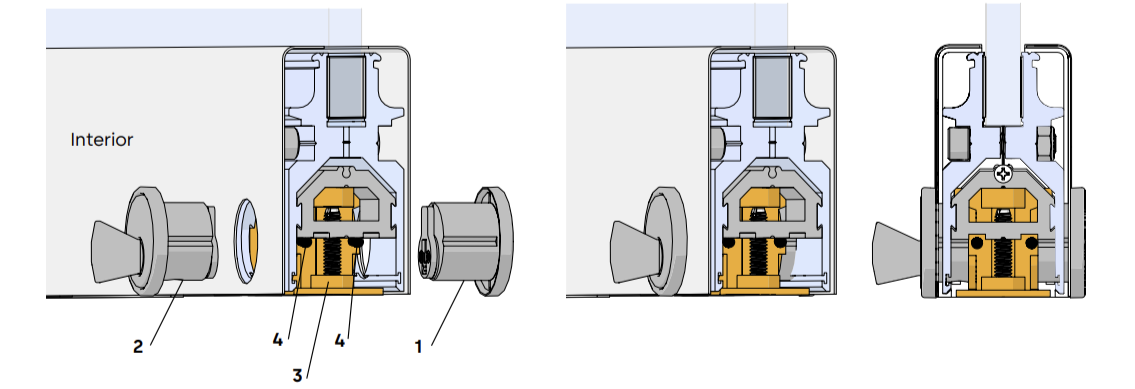

1.2 Install cylinder locks.
1. Thread cylinder locks (1,2) into lock chassis.
• Install Thumb turn cylinder (2) on interior side of door.
2. Secure each cylinder lock with set screw (4).
| 1 | Mortise lock cylinder with key and slip ring |
| 2 | Mortise lock cylinder with thumb turn and slip ring |

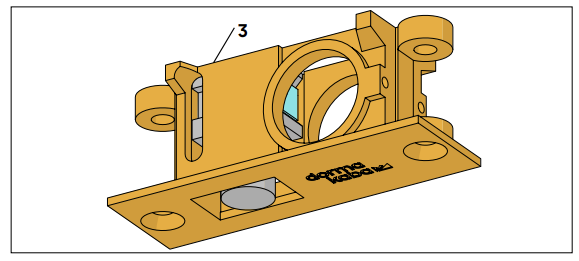

| 3 | Lock chassis and bolt assembly |
| 4 | 4 mm set screw |
| 5 | Dust-proof floor strike |

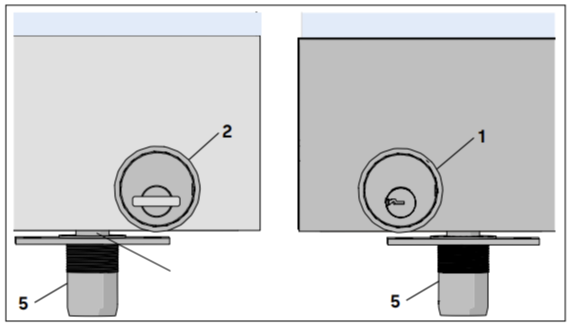

2. Test each panel cylinder lock
2.1 Test each panel cylinder lock.
1. With panels extended, test each panel thumb turn cylinder and key cylinder to insure bolt
extends into dust-proof strike.
