1. Install end caps and end cap inserts
1.1 Secure each end cap and end cap insert to rail with 6-32 x 1/2” Phillips flat head screw.
Interconnecting lock panel ( Fig. 1.1) shown for reference.
| 1 | 6-32 x 1/2” Phillips FHS |
| 2 | End cap |
| 4 | Insert, end cap |
| Tools required | |
| End caps | Phillips screw driver |

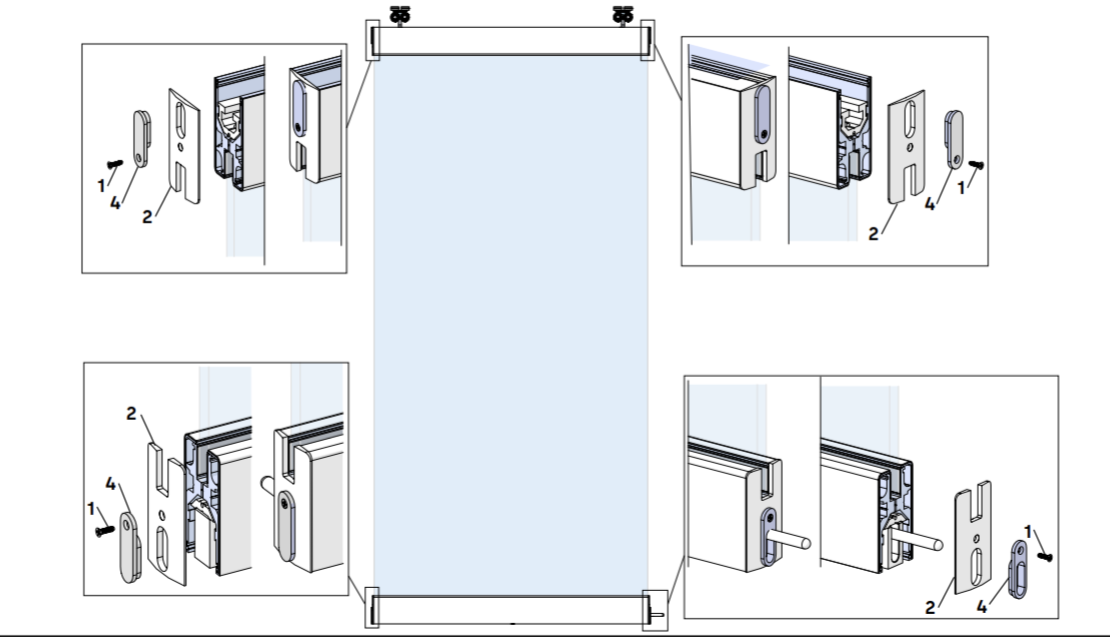

Fig. 1.1
