NOTICE
Covers and cladding.
Bottom rail covers and cladding type for each panel depends on rail configuration (Ref. DRS bottom rail assemblies.) Refer to approval drawing.
1. Install covers/cladding
Install covers/cladding on all top rail and bottom rail assemblies.
Note: cladding is factory installed.Covers/cladding snap into place.
Fig. 1 Cover and cladding examples

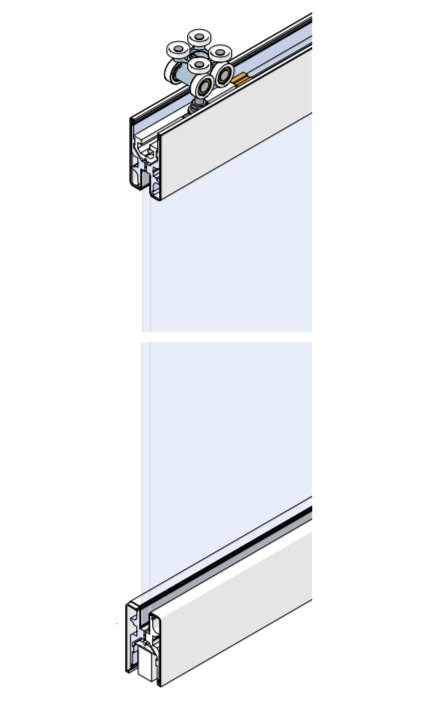

Fig. 2 Top and bottom rail covers and cladding
