Product overview – TG 9387 non-locking ladder pull handles

Updated

1.TG 9387 back-to-back pull handles – door assemblies

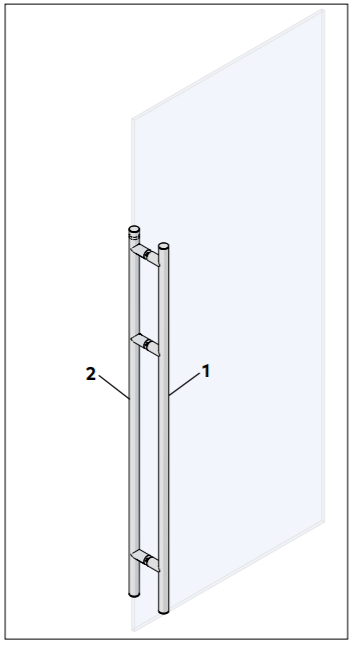

60" glass door with back-to-back pull handles

Fig. 1.1 60" glass door

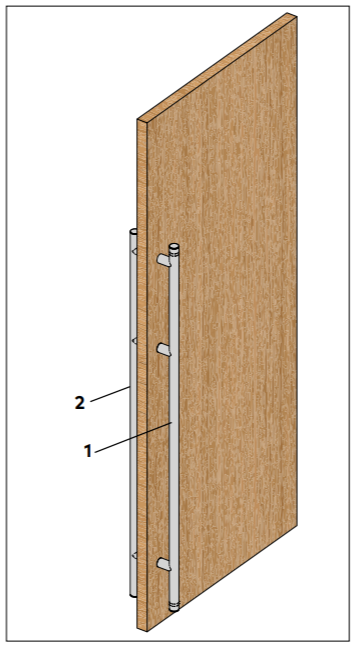

60" wood door with back-to-back pull handles

Fig. 1.2 60" wood door

1 Pull handle, internal
2Pull handle, external

2. TG 9387 single pull handles – door assemblies

60" glass door single pull handles

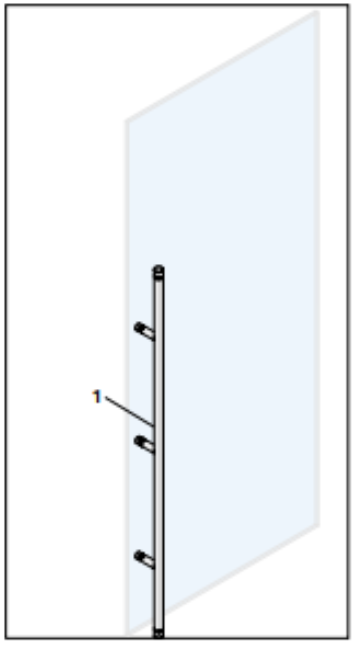

Fig. 2.1 60" glass door

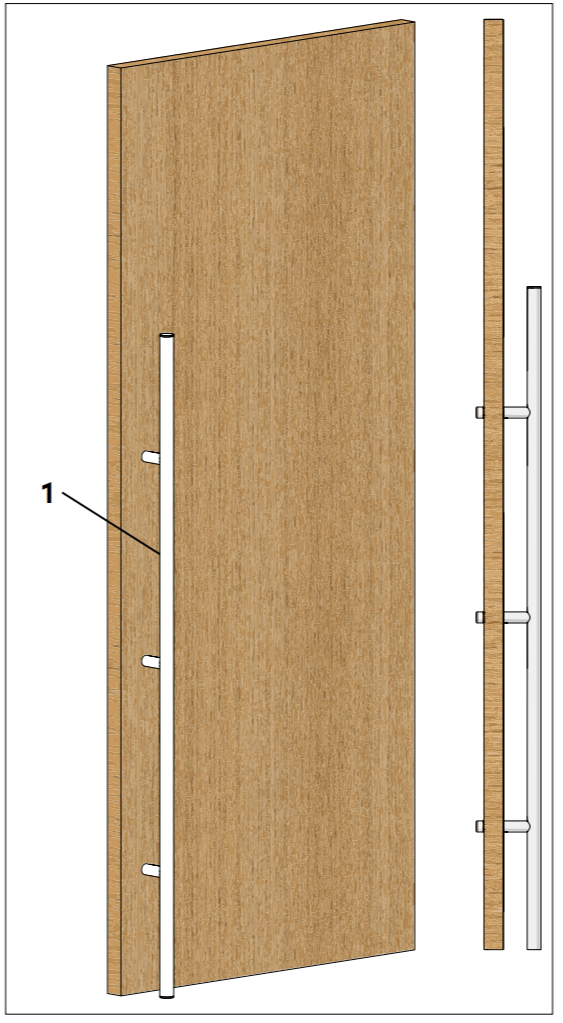

Fig. 2.2 60" wood door

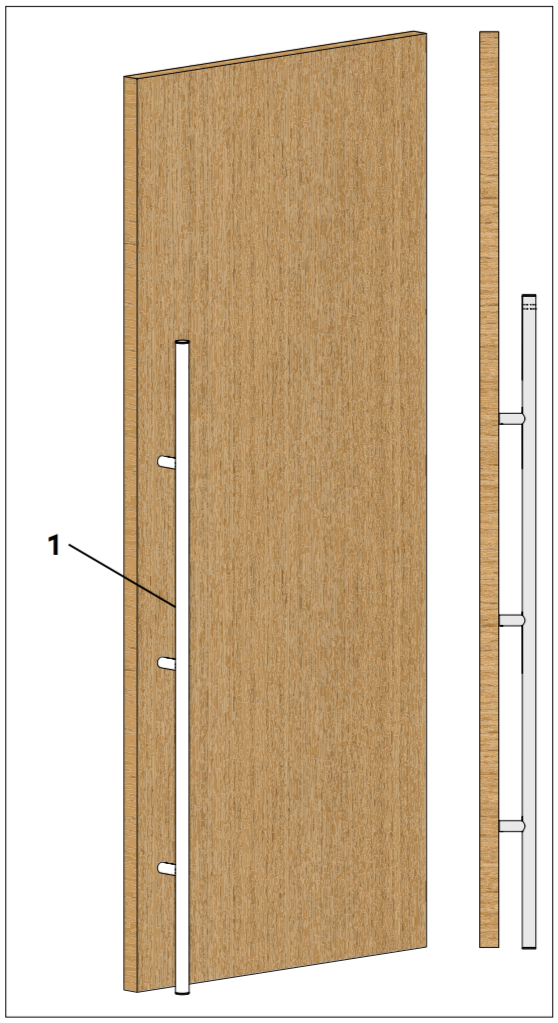

Fig. 2.3 60" wood door-blind

3. TG 9387 back-to-back pull handle assemblies

 Back-to-back pull handles

Description12”18”24”36”42”48”60”72”
1TG 9387 B2B GL
pull handle, internal		279-105279-106279-124279-107 279-108279-119279-109279-117
2TG 9387 B2B GL
pull handle, external		279-111279-112979-125279-113 279-114279-120279-115279-118

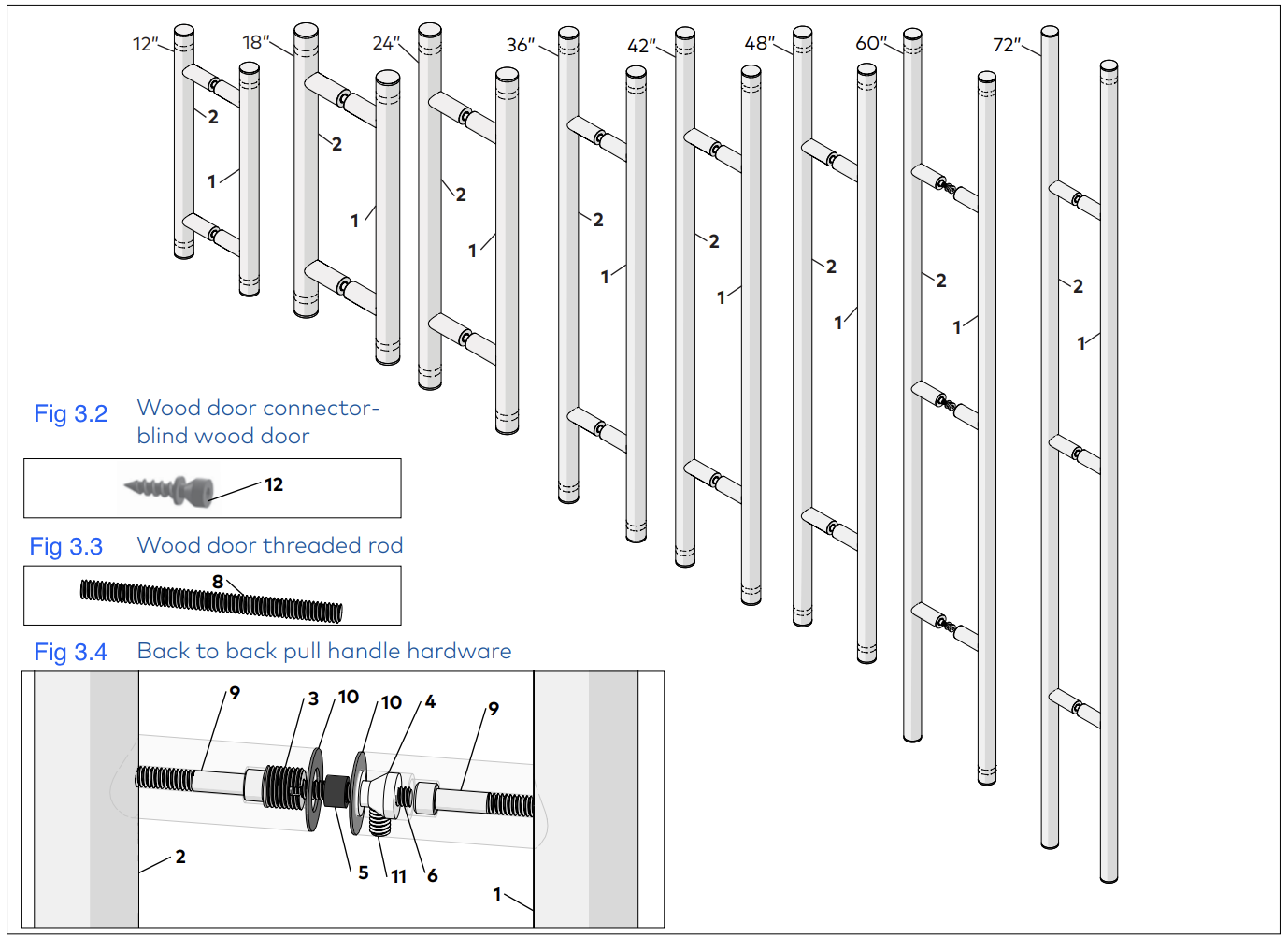

Fig. 3.1 Back to back pull handles

 Back-to-back pull handle hardware

3Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP                                          979-010
4Anchor, threaded, M6-1.0 x 12.5 mm                                          979-028
5Bushing, plastic, 3/8 - 1/2 GL                                          979-031
6Rod, threaded M6-1.0 x 1-3/4”                                          979-032
8Rod, threaded M6-1.0 x 3-1/4” (wood door)                                          970-030
91/4-20 x 1-5/8” socket head cap screw                                          900-203
10Gasket, 1” OD                                          979-107
111/4-20 x 1/2” set screw, cone point, interior pull                                           900-202
12Connector, wood door                                          979-026

4. TG 9387 single pull handle assemblies

 Single pull handles

Description12”18”24”36”42”48”60”72”
1TG 9387 B2B GL
pull handle, internal		279-105279-106279-124279-107 279-108279-119279-109279-117

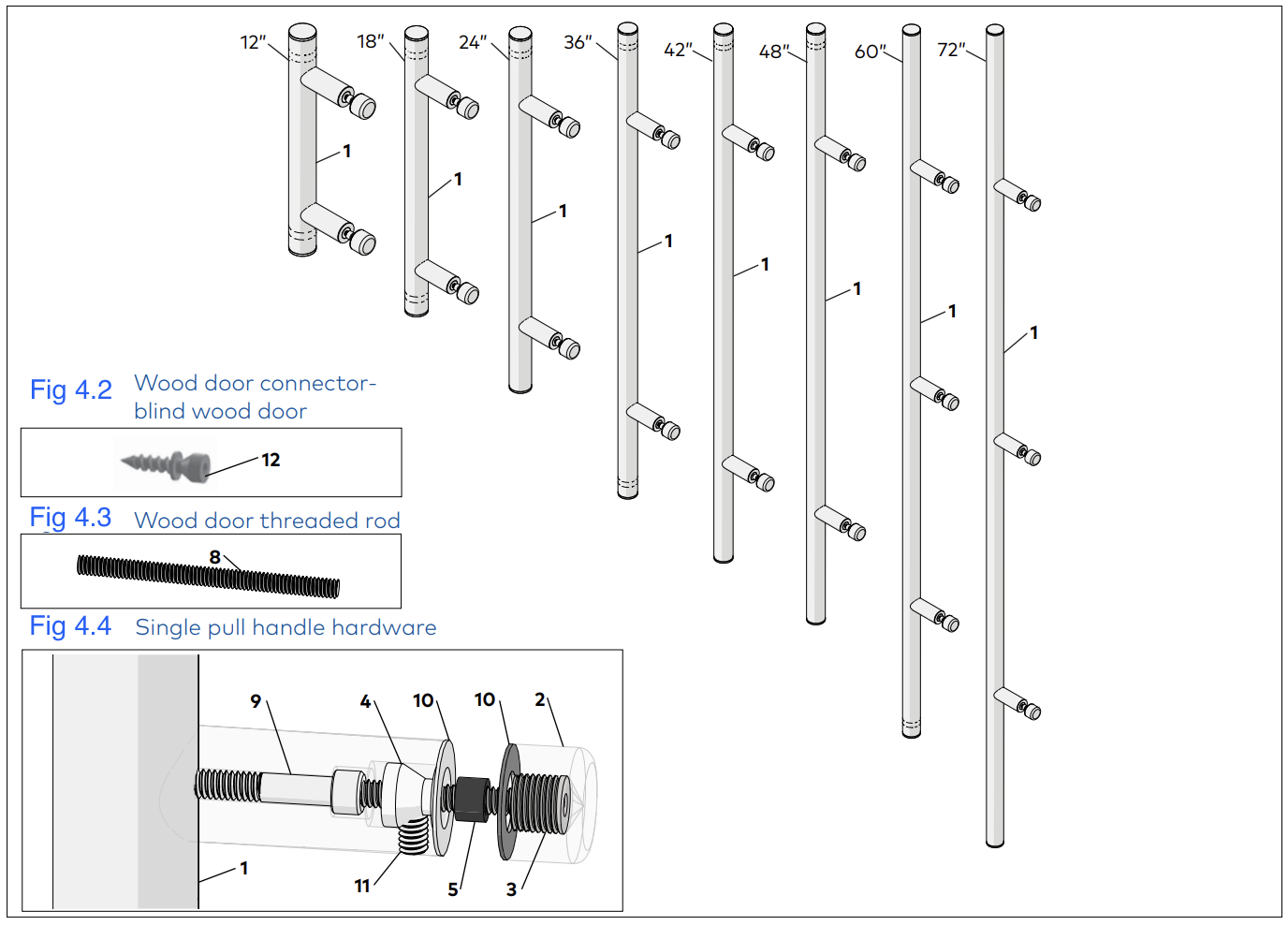

Fig. 4.1 Single pull handles

 Single pull handle hardware

2Rose, TG9387 1” OD [Preassembled
at factory(Fig 4.2)]		                                          979-104
3Threaded Insert, 1/2-20 UNF, M6 x 1.0 NLLP [Preassembled
at factory(Fig 4.2)]		                                          979-010
10Gasket, 1” OD                                          979-107
4Anchor, threaded, M6-1.0 x 12.5 mm                                          979-028
5Bushing, rubber, 3/8-1/2 GL                                          970-031
6Rod, threaded M6-1.0 x 1-3/4”                                          900-032
8Rod, threaded M6-1.0 x 3-1/4”
(Wood door)		                                          979-030
91/4-20 x 1-5/8” socket head cap screw [Preassembled into standoffs
at factory (Fig. 4.2)]		                                          900-203
10 Gasket, 1” OD [Preassembled into standoffs
at factory (Fig. 4.2)]		                                          979-107
111/4-20 x 3/8” set screw, cone point, interior pull [Preassembled into standoffs at factory (Fig. 4.2)]900-202
12Connector for blind wood door979-026
