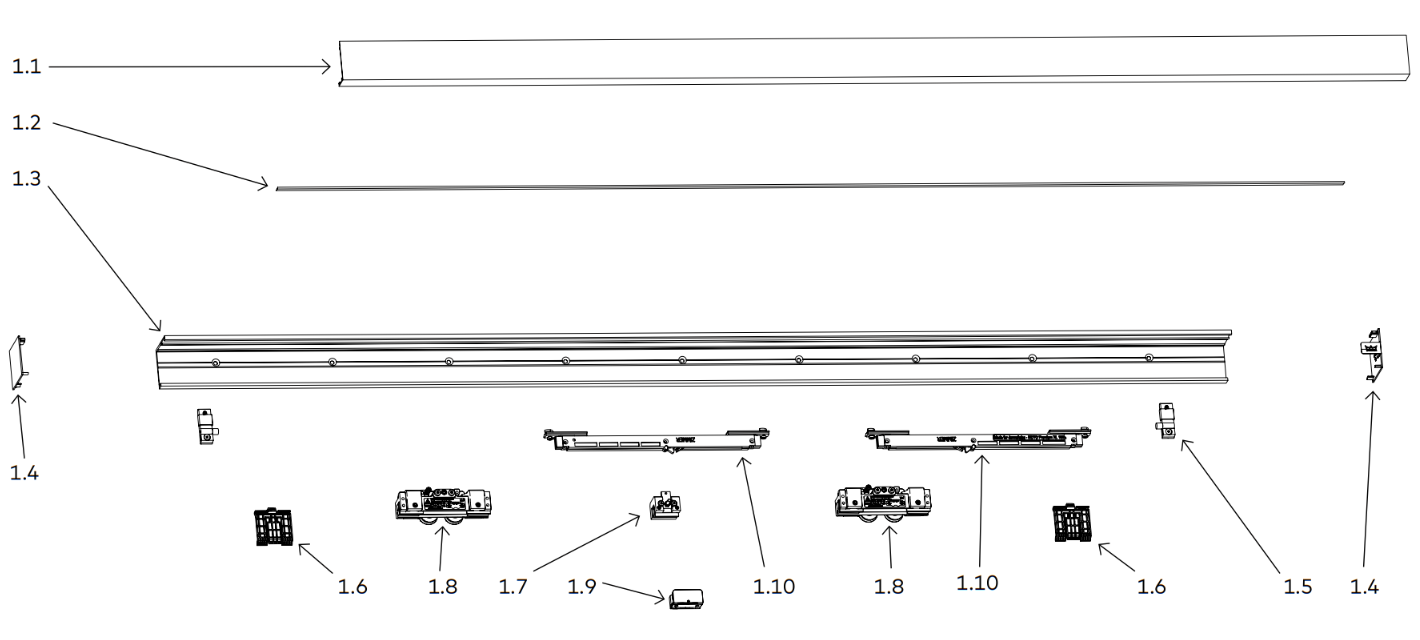

1. Overall
| 1 | Cover panel |
| 2 | Brush strip |
| 3 | Track |
| 4 | End cap (glass clamp profile) |
| 5 | End cap (track) |
| 6 | Glass clamp profile |
| 7 | End stop |
| 8 | Cover clips |
| 9 | Dormotion units(optional; only with Dormotion units) |
| 10 | Roller carrier |
| 11 | Floor guide |
| 12 | Start/stop (optional) |
| 13 | Clamping plates |

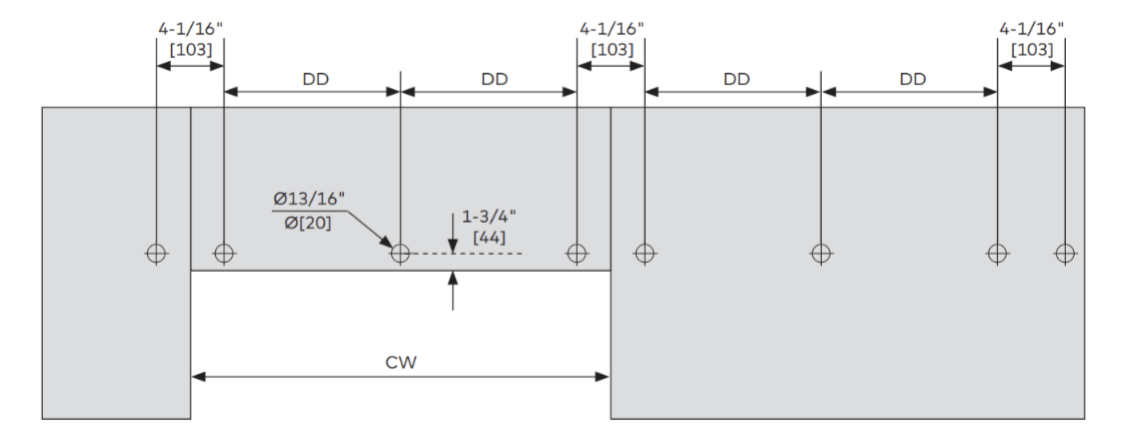

2. Glass door prep - single door mount
| 1 | Use the equation at the right to determine the ‘drilling distance’ [DD] between each hole. |
| 2 | First find the measured ‘clear opening width’ [CW] on the chart at the right. |
| 3 | Determine ‘T’ for the equation. |
| 4 | Insert appropriate values into equation and calculate accordingly. |
| DD = (CW - 106) ÷ T = __ mm DD = (CW - 4-3/16”) ÷ T = __” |
| Clear opening width | T | Z |
| CW ≥ 23-5/8" [600] ≤ 31-1/2" [800] | 2 | 8 |
| CW > 31-1/2" [800] ≤ 39-3/8" [1000] | 3 | 10 |
| CW > 39-3/8" [1000] ≤ 47-1/4" [1200] | 4 | 12 |
| CW > 47-1/4" [1200] ≤ 59-5/8" [1388] | 5 | 14 |
SEE LEGEND BELOW FOR REFERENCE.
| Legend | |
| Abbreviation | Description |
| CW | Clear opening width |
| DD | Drilling distance |
| T | Division variable |
| Z | Qty of hole preps |
| XL 150 DM | XL 80 DM | |
| Min. door width | 40-1/8" [1020] | 31-7/8" [810] |
| Min. clear opening width | 37-13/16" [960] | 29-1/2" [750] |
| Max. door width | 57" [1448] | 57” [1448] |
| Max. clear opening width | 54-3/4" [1390] | 54-3/4" [1390] |

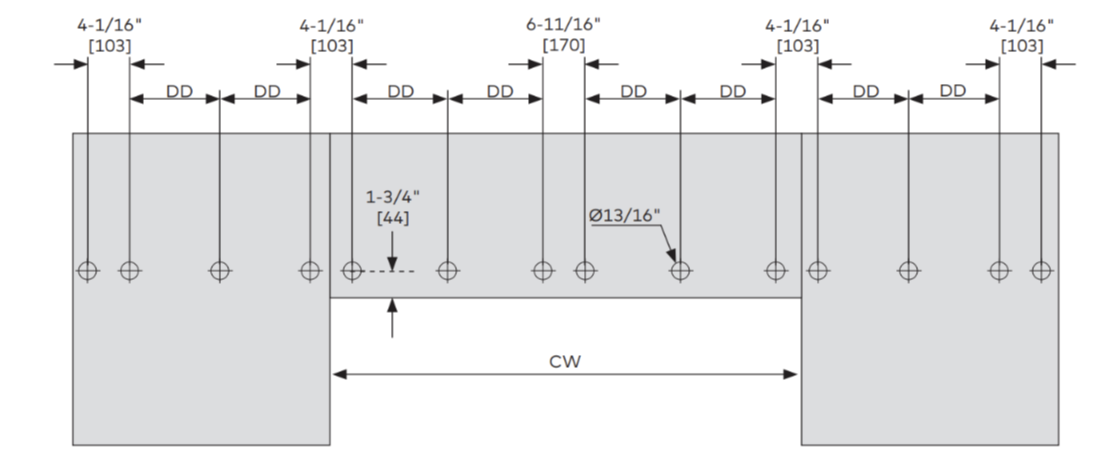

3. Glass door prep - double door mount
| 1 | Use the equation at the right to determine the ‘drilling distance’ [DD] between each hole. |
| 2 | First find the measured ‘clear opening width’ [CW] on the chart at the right. |
| 3 | Determine ‘T’ for the equation. |
| 4 | Insert appropriate values into equation and calculate accordingly. |
| DD = (CW - 106 - 170) ÷ T = __ mm DD = (CW - 4-3/16” - 6-11/16”) ÷ T = __ “ |
| Clear opening width | T | Z |
| CW ≥ 47-1/4" [1200] ≤ 59-1/16" [1500] | 4 | 14 |
| CW > 59-1/16" [1500] ≤ 78-3/4" [2000] | 6 | 18 |
| CW > 78-3/4" [2000] ≤ 112-1/16" [2846] | 8 | 22 |
SEE LEGEND BELOW FOR REFERENCE.
| Legend | |
| Abbreviation | Description |
| CW | Clear opening width |
| DD | Drilling distance |
| T | Division variable |
| Z | Qty of hole preps |
| XL 150 DM | XL 80 DM | |
| Min. door width w/o dormotion | 26" [660] | 26" [660] |
| Min. door width w/dormotion | 40-3/16" [1020] | 31-7/8" [810] |
| Min. clear opening width w/o dormotion | 49-7/8" [1266] | 49-7/8" [1266] |
| Min. clear opening width w/ dormotion | 78-3/16" [1986] | 61-11/16" [1566] |
| Max. door width | 57" [1448] | 57" [1448] |
| Max. clear opening width | 112-1/16" [2846] | 112-1/16" [2846] |

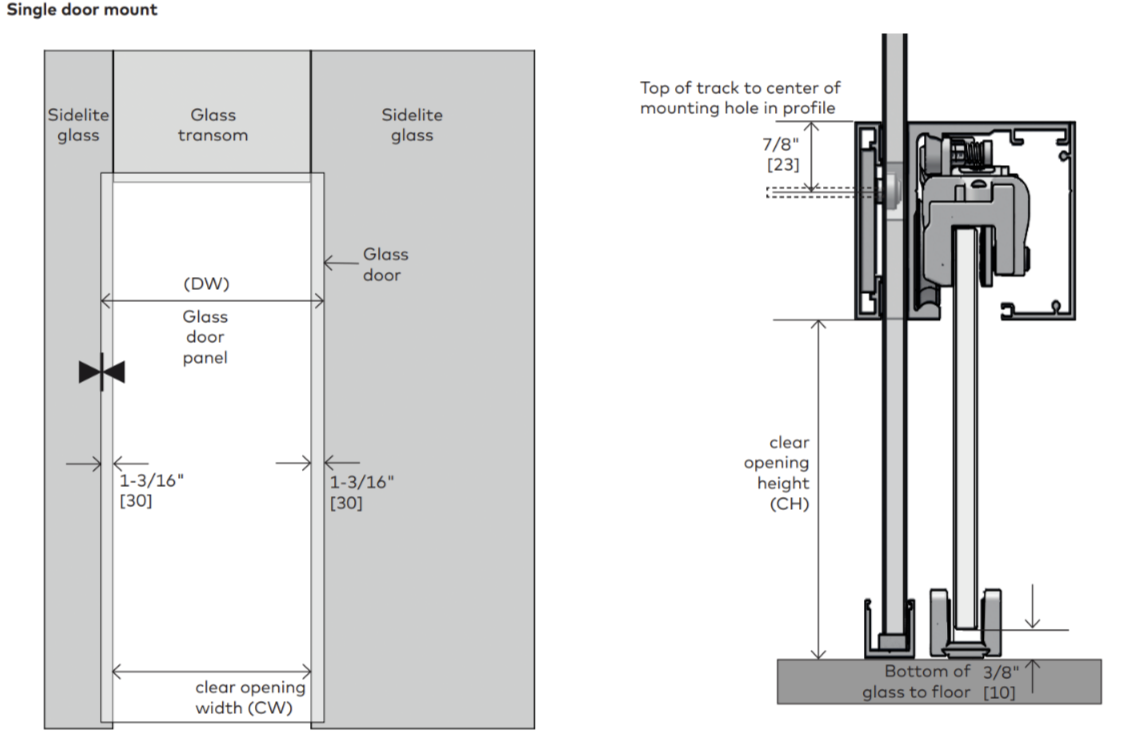

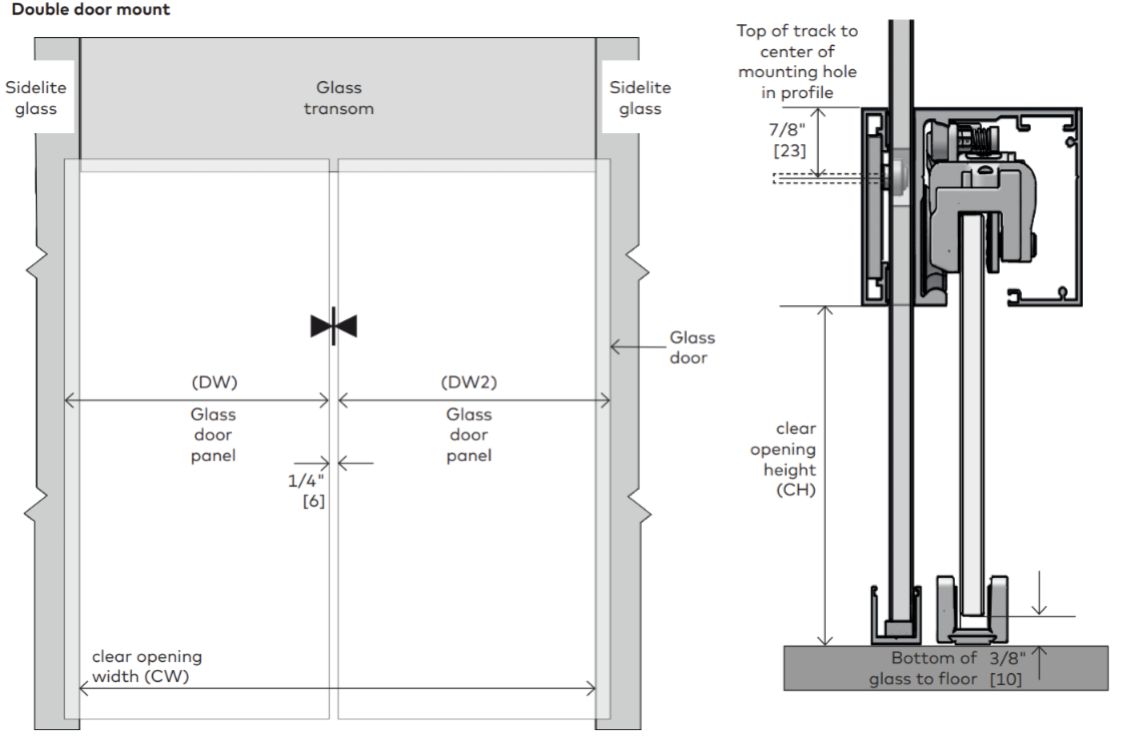

3. Door/wall dimensions

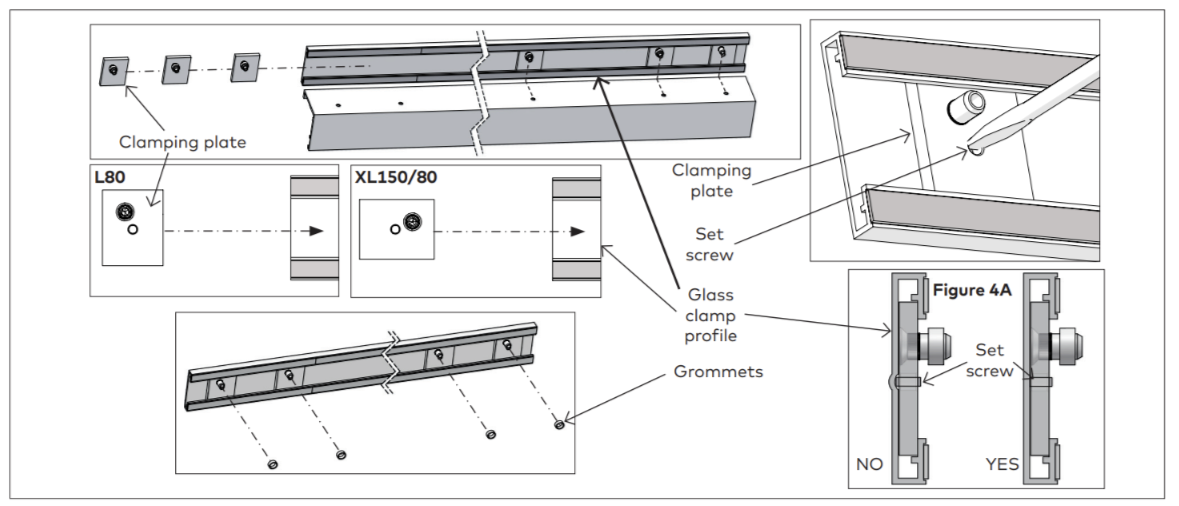

4. Preparing track
| 1 | Slide clamping plates into end of glass clamp profile. NOTE: Quantity dependent upon number of holes in track. |
| 2 | Orient plates properly as shown above; L80 or XL150/80. |
| 3 | Secure via set screw. NOTE: Be sure set screw does not indent back of glass clamp profile. See Figure 4A for reference. |
| 4 | Secure grommets to each clamping plate peg. |

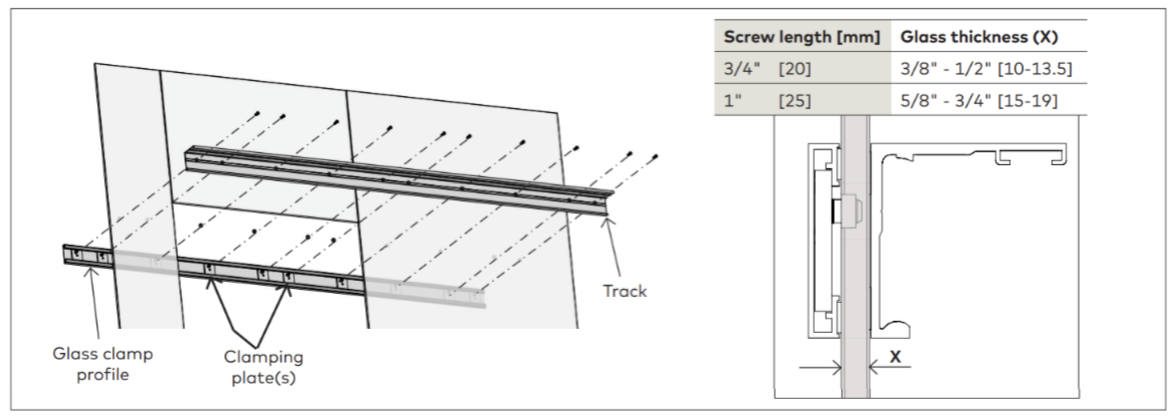

5. Securing glass clamp profile and track to glass mounting surface
| 1 | Ensure the track is properly level. |
| 2 | Align glass clamp profile clamping plates and track through glass mounting surface. |
| 3 | Secure with proper fasteners per chart above. NOTE: SEE DOOR/WALL DIMENSIONS ON PRIOR PAGE FOR REFERENCE. |

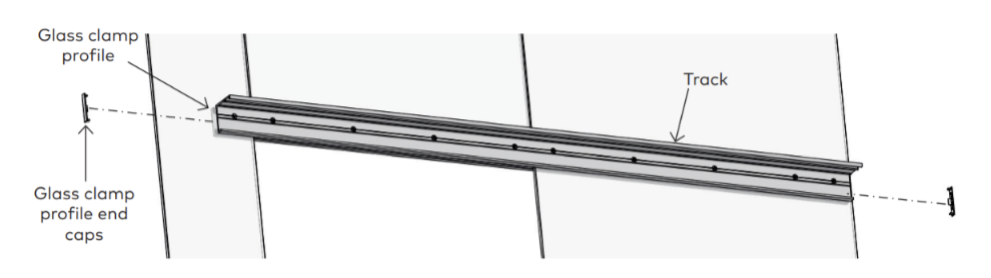

6. Securing glass clamp profile end caps
| 1 | Slide glass clamp profile end caps into ends of glass clamp profile |
