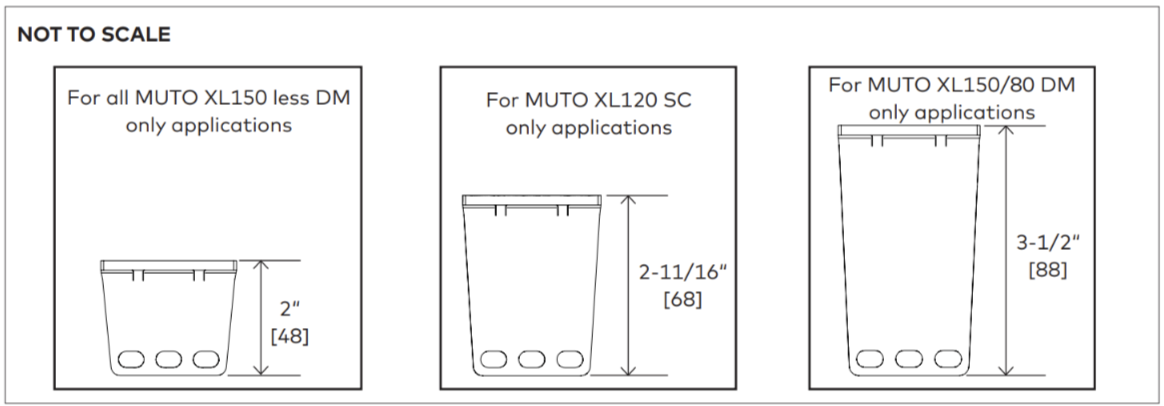

1. Dimensions

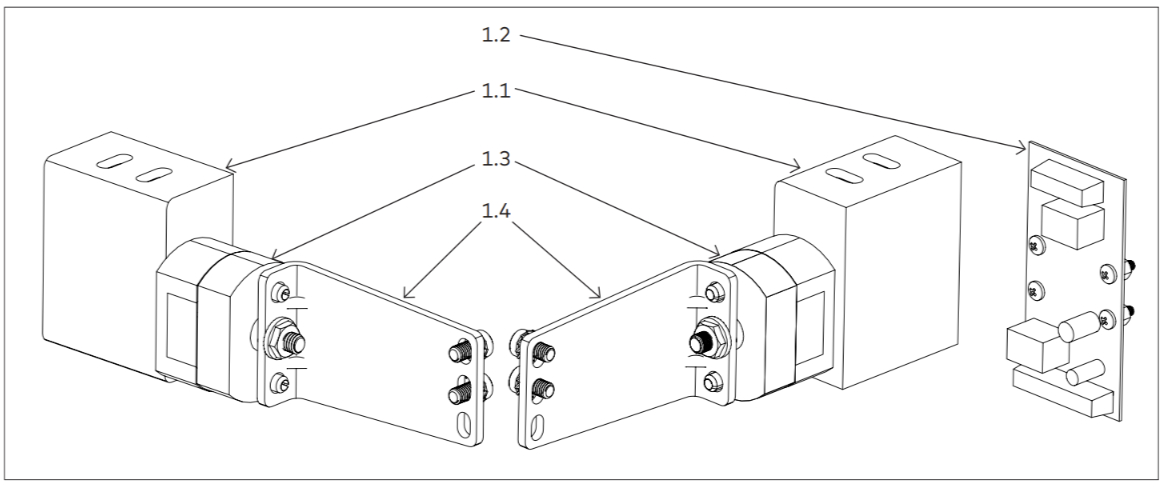

2. Overall
| 1 | MEM4400 mag lock |
| 2 | Circuit board |
| 3 | Armature |
| 4 | Armature bracket |

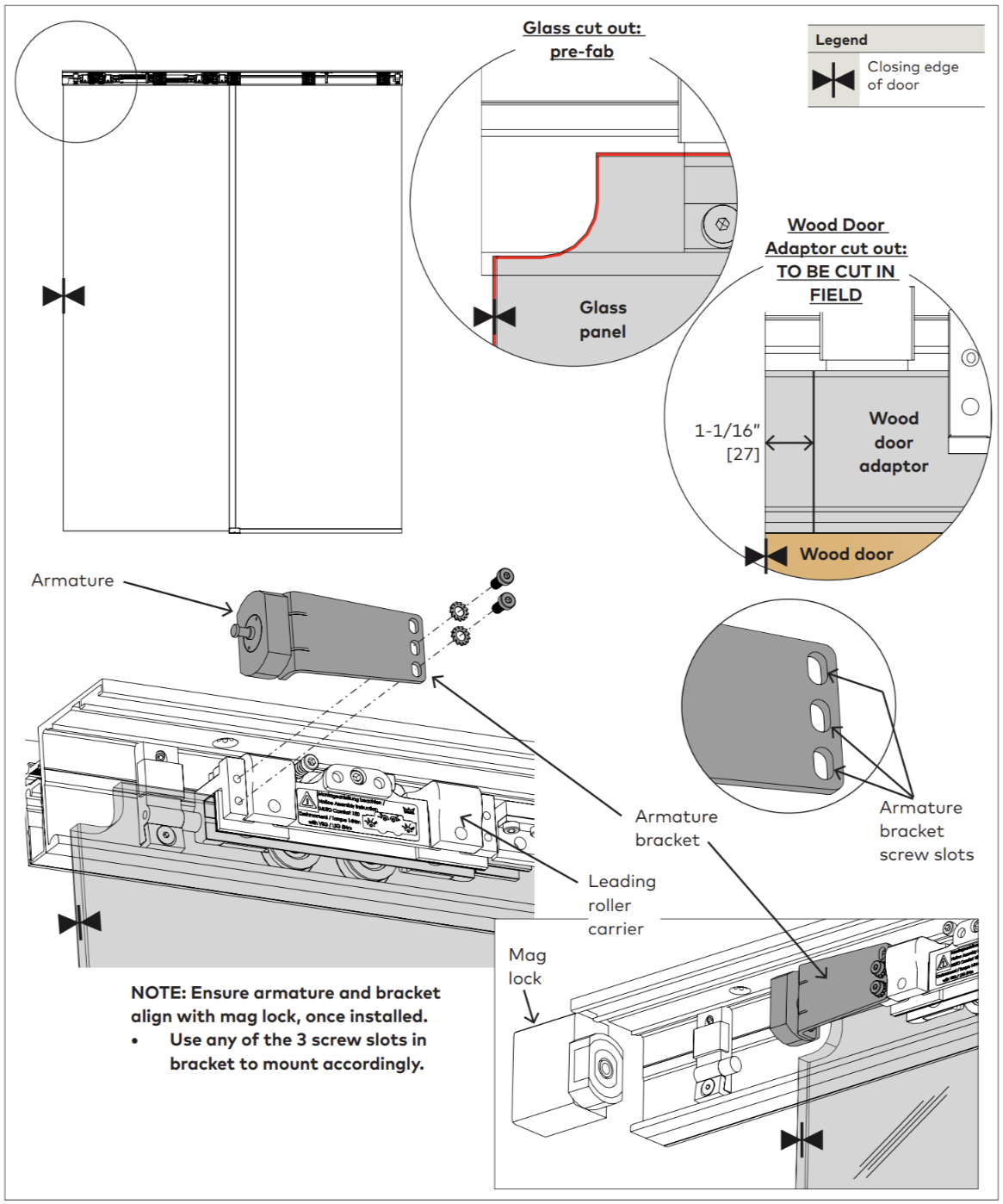

3. Secure armature bracket to rollers: to glass or wood doors
| 1 | Glass door: Ensure glass cut out is toward the closing side of the moving panel. |
| 2 | Wood door: Cut 1-1/16” [27] from leading end of wood door adaptor. |
| 3 | Secure armature bracket to leading roller carrier. • Use included fasteners |

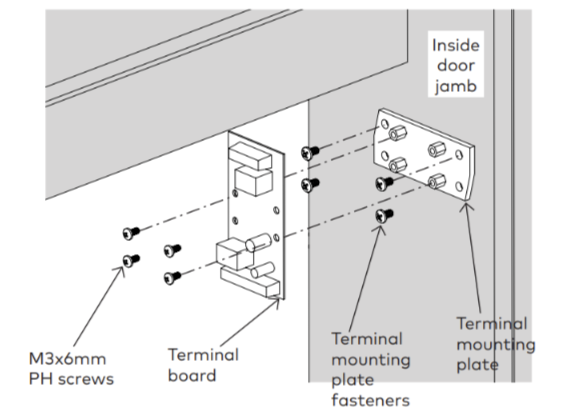

4. Secure terminal block to door frame
| 1 | Secure terminal mounting plate to a concealed location in close vacinity to mag lock. (preferably in jamb or above ceiling) |
| 2 | Secure terminal board to mountg plate. • Use included M3x6mm PH Phillips screws (x4). |

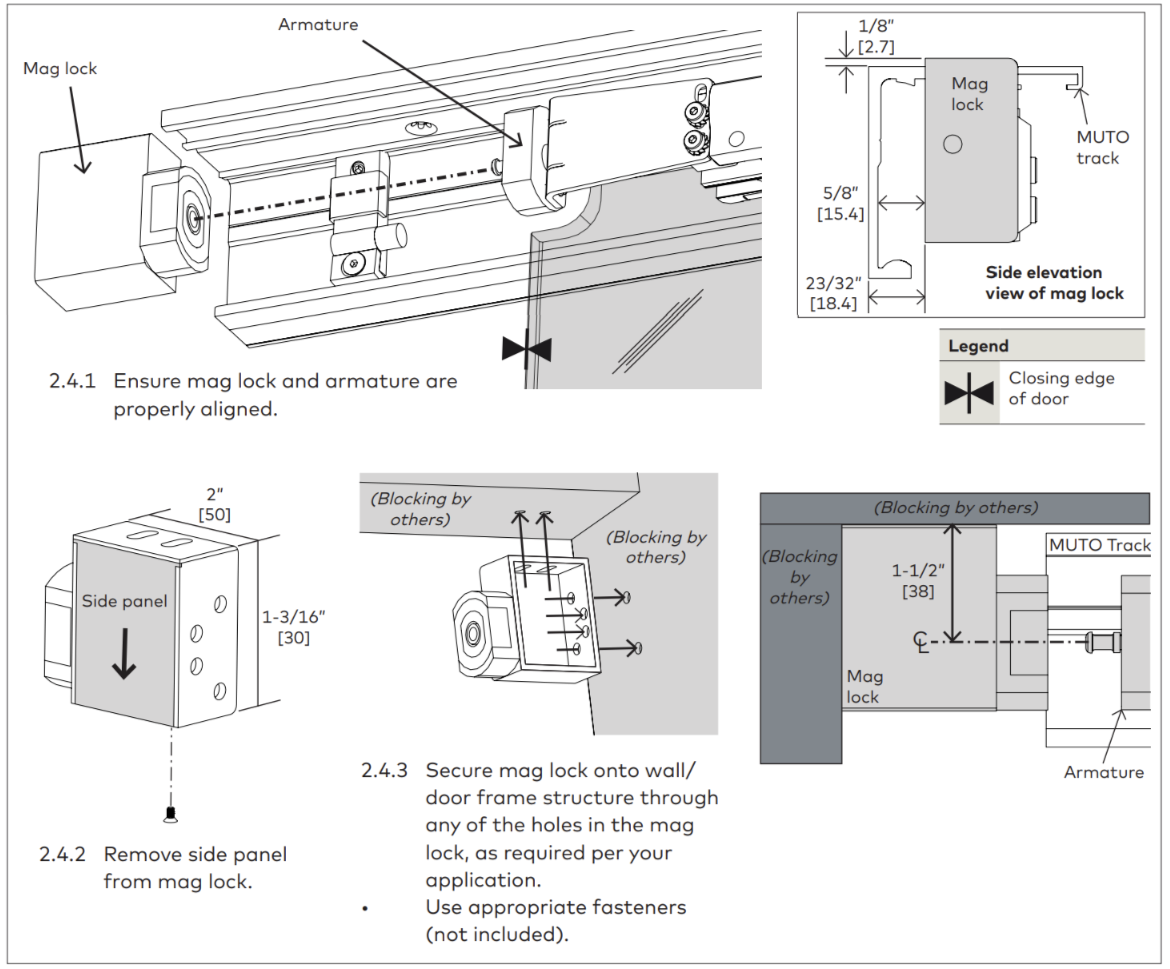

5. Secure mag lock to wall/door frame structure
6. Change handing of mag lock - Change handing

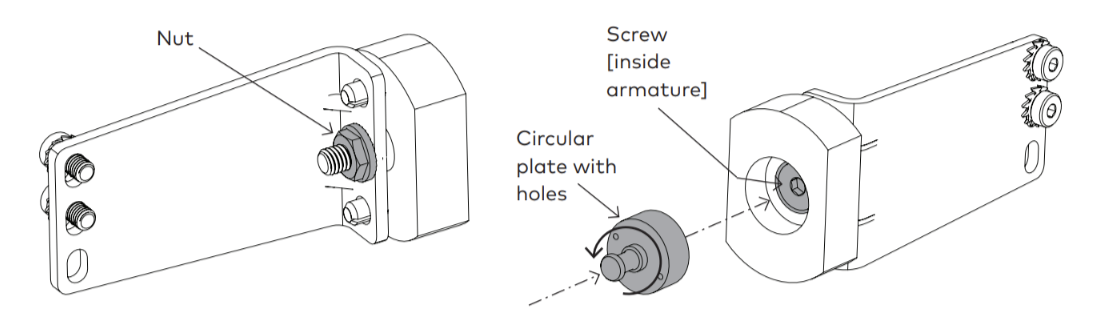

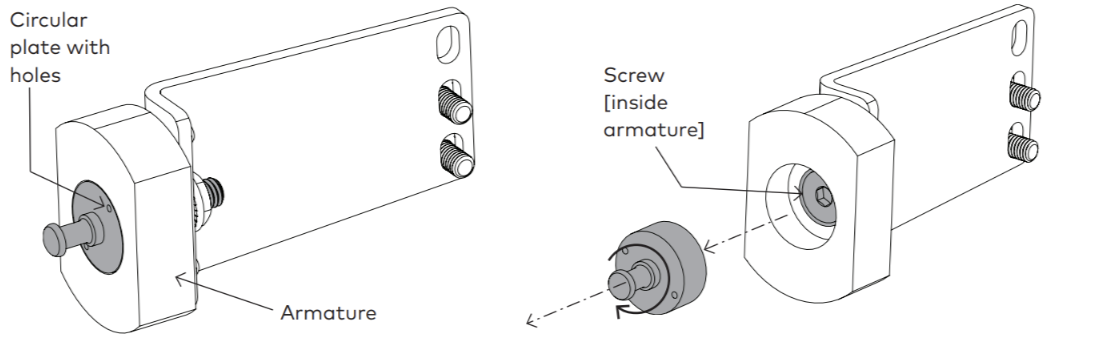

| 1 | To change to another size bracket: Press spanner wrench into holes in the end of the armature and partially rotate circular plate |
| 2 | Remove circular plate to access screw inside armature. |

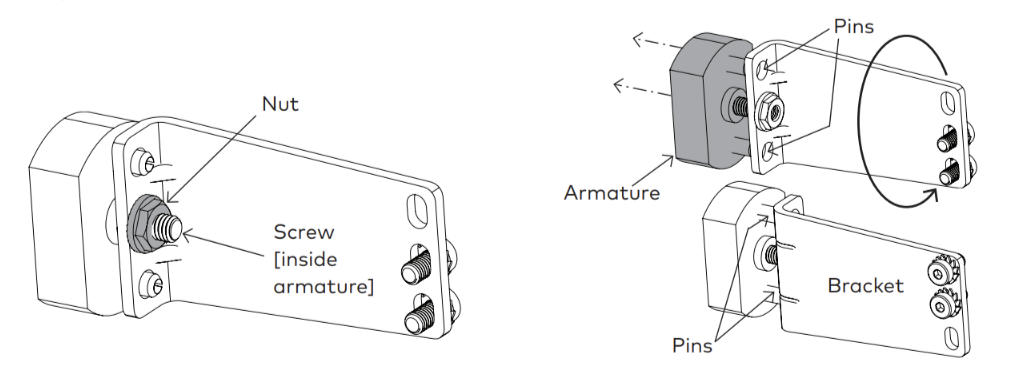

| 3 | Hold nut in place, and unthread/loosen screw from inside armature. • NOTE: The screw does NOT need to be fully removed. |
| 4 | Pull the armature away from the bracket to disengage the two pins. |
| 5 | Rotate armature bracket in correct direction depending upon your application, until the two pins reengage in the bracket. |
| 6 | Hold nut in place, and tighten screw inside the armature. |
| 7 | Place circular plate back into end of armature. |
| 8 | Rotate, with spanner wrench, to lock into place. |

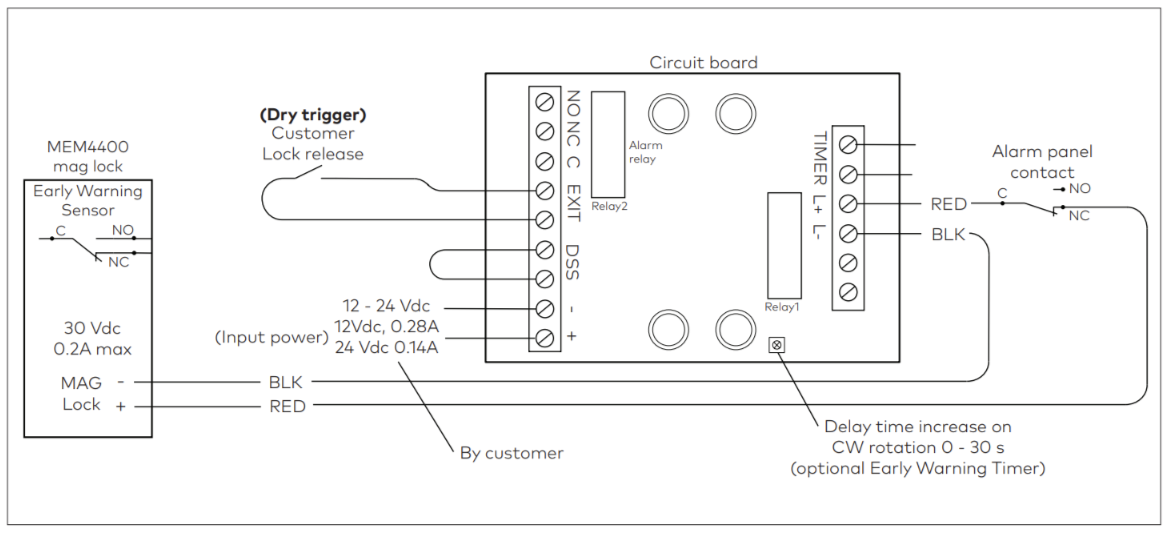

7. Wiring the circuit board - Wiring diagram
| MEM Lock Wirng to PCB | Wire color | |
| MEM Power Input, 12VDC | Black (-) | Connects to Power Input |
| Red (+) | ||
| EW Sensor Output (EW = Early Warning) | White (NC) | Connects to DSS if used |
| Grey (NO) | ||
| PCB Connection | Terminal Designation | |
| Power Input | - | +12 VDC, 1A maximum |
| + | ||
| Exit Input | EXIT | Connects to customer dry trigger |
| DSS Sensor Input | DSS | Use jumper or Early Warning Sensor brown and white wires |
| MEM Lock Power Output | L- (BLK) | Connect to Mag Lock |
| L+ (RED) | ||
| Alarm Relay Output 30 VDC, 2A max. 120 VAC, 1A max. | NO | Use to trigger auxiliary LED, siren, alarm panel, etc. |
| NC | ||
| C | ||
| Alarm Relay Timer Input | TIMER | 0 to 30 sec. delay timer (EW) Contact closes to activate Alarm Relay Output Use to trigger alarm panel or other. |
