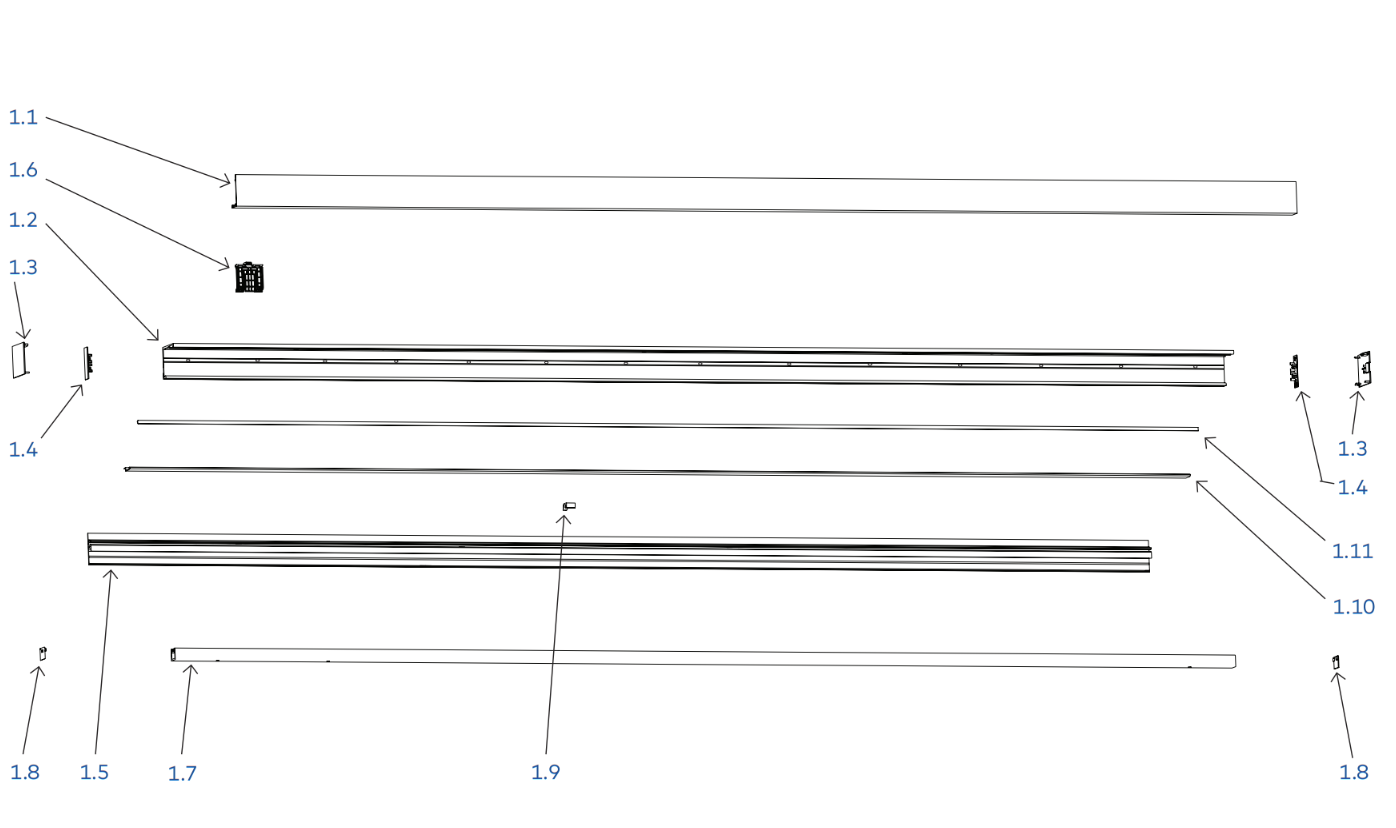

1. Overall
| 1 | Cover |
| 2 | Track |
| 3 | End cap |
| 4 | Sidelite end cap |
| 5 | Sidelite section profile |
| 6 | Cover clips |
| 7 | U-channel |
| 8 | U-channel end caps |
| 9 | View protection clip |
| 10 | View protection profile |
| 11 | Sidelite glass gasket |

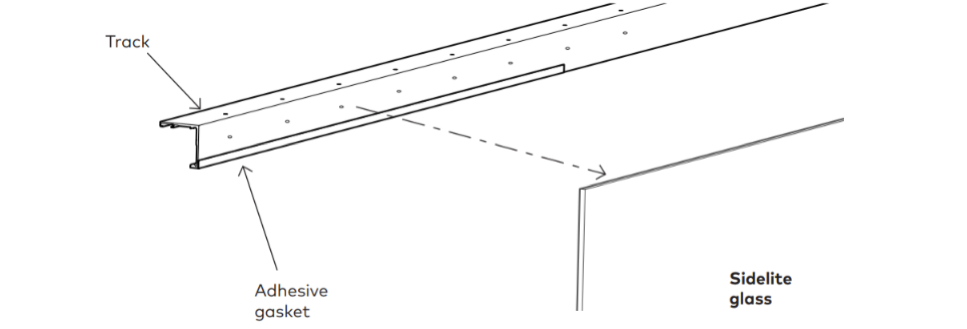

2. Securing gasket to track
Fig. 1 Sidelite gasket
| 1 | Ensure track is cut to proper length. NOTE: SEE DIMENSION INSTRUCTIONS BELOW |
| 2 | Cut adhesive gasket equal to track length. |
| 3 | Adhere gasket along bottom edge of back of track. |

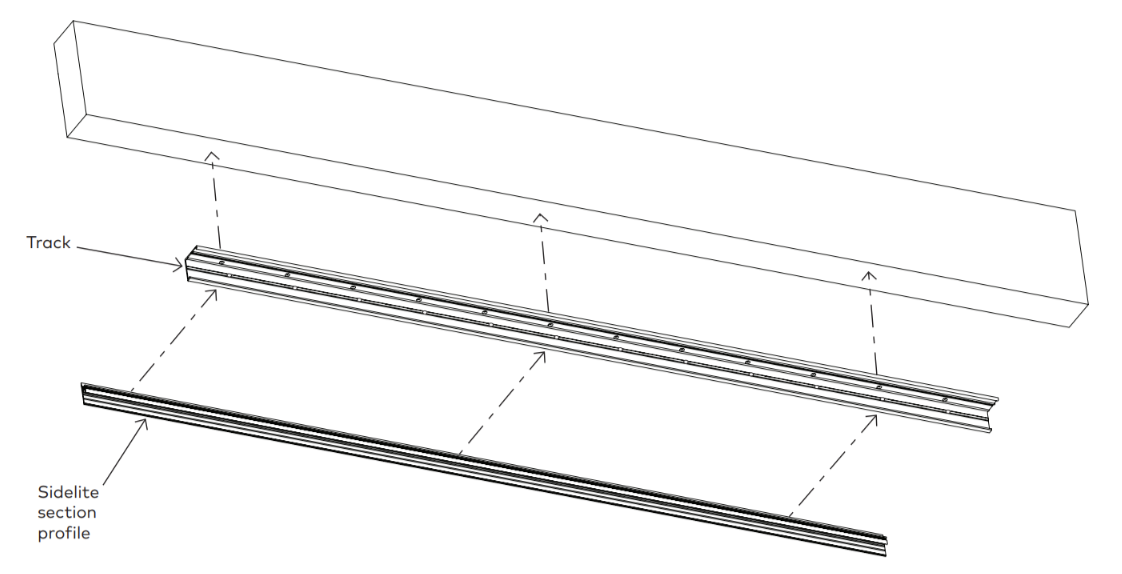

3. Secure sidelite section profile to track and mounting surface
| 1 | Align sidelite profile screw slot with track profile holes. NOTE: Holes will be predrilled every 7-7/8” [200]. |
| 2 | Secure with provided fasteners. |
| 3 | Ensure track is properly level and secure it to the header mounting surface per the appropriate measurements on the following page. NOTE: SEE DIMENSION INSTRUCTIONS ON NEXT PAGE FOR REFERENCE. |
| 4 | Use appropriate fasteners according to the following recommendations. |

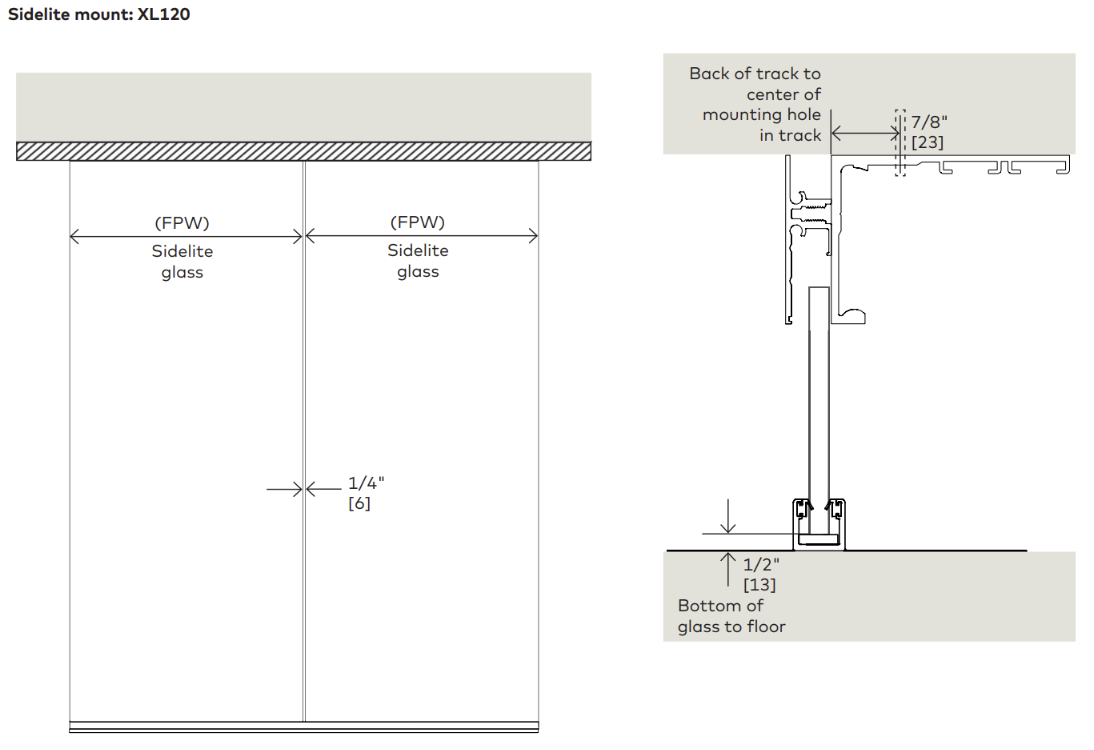

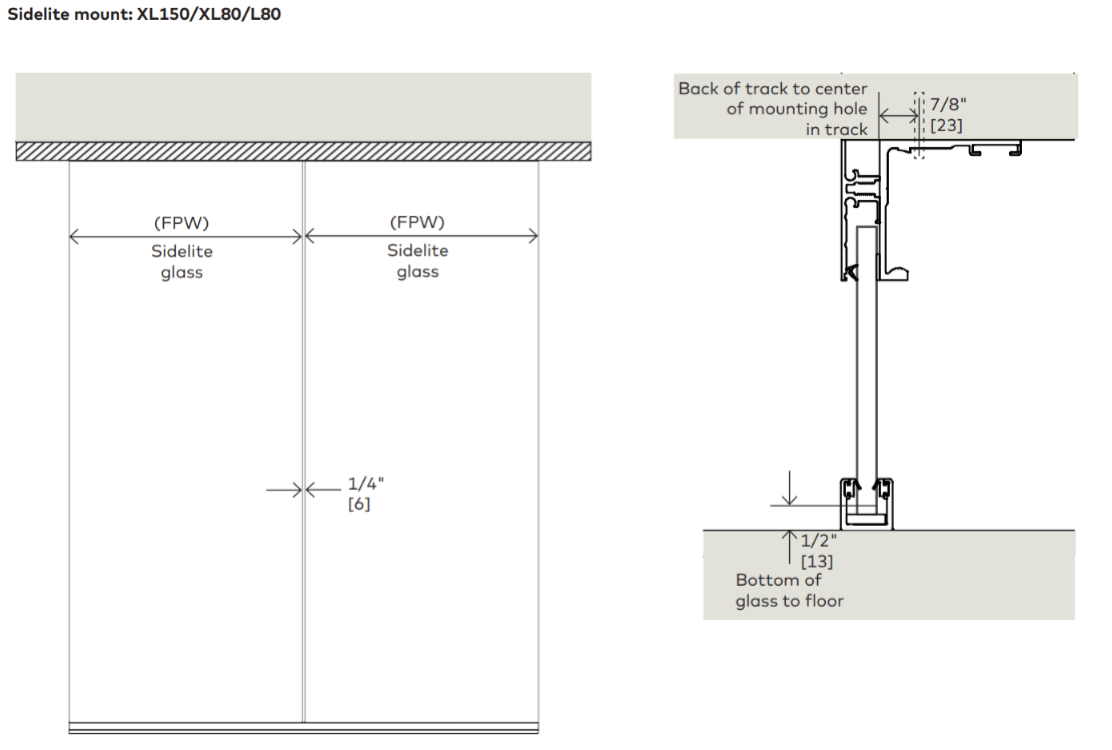

4. Door/wall dimensions

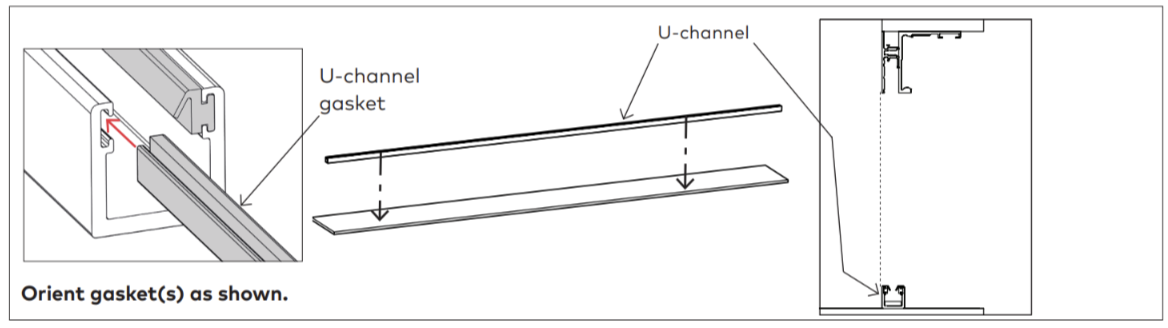

5. Installing U-channel for sidelite
Fig. 3 U-channel
| 1 | Install gaskets as shown. Trim to correct length. |
| 2 | Secure u-channel to floor using appropriate fasteners. |
NOTE: Ensure U-channel is plumb and the back of the u-channel profile aligns with back of sidelite profile.
NOTE: Gaskets are pre-installed.

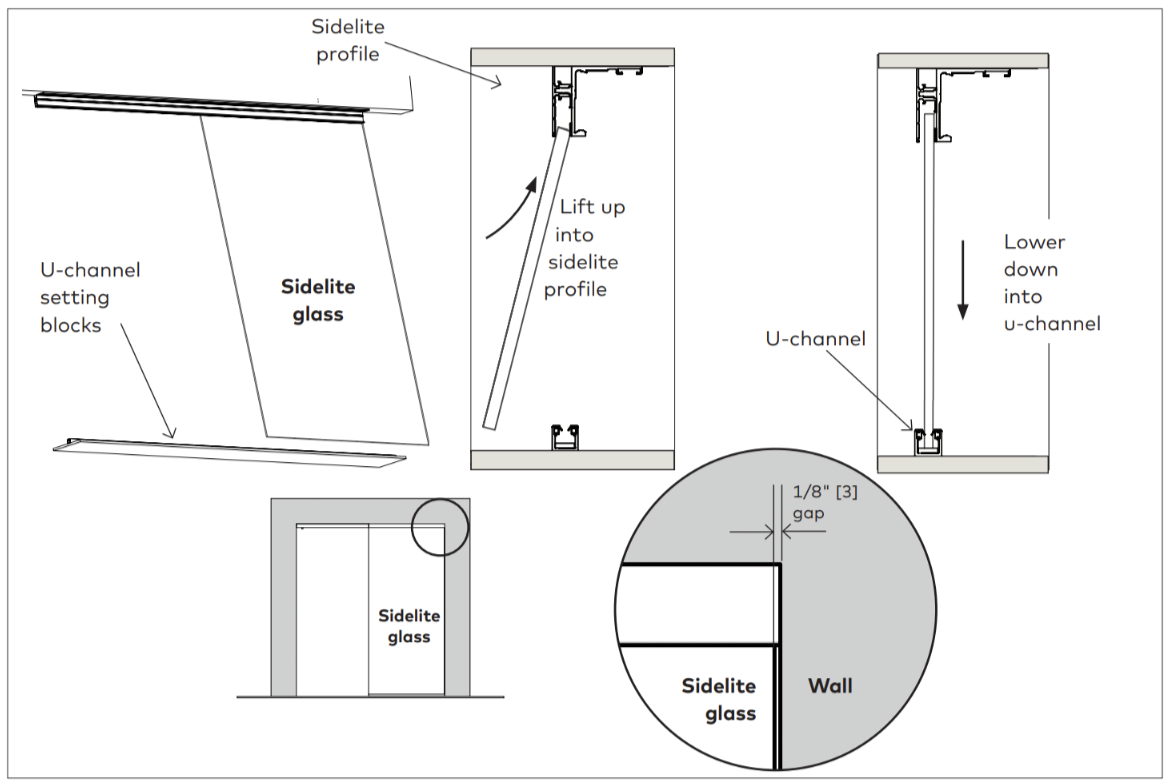

6. Installing sidelite glass
Fig. 4 Sidelite glass
| 1 | Place setting blocks into u-channel. |
| 2 | Spray inside of u-channel with glass cleaner. |
| 3 | Lift glass up and into sidelite profile. |
| 4 | Lower glass down into u-channel. |
| 5 | Ensure there is 1/8" [3] gap between wall and edge of sidelite glass. |
NOTE: If using tempered laminated glass, gently press glass against u-channel gasket, and dispense silicone along full length of non-gasket side of u-channel.
NOTE: If using multiple sidelite panels, ensure there is an adequate gap between each panel of glass.

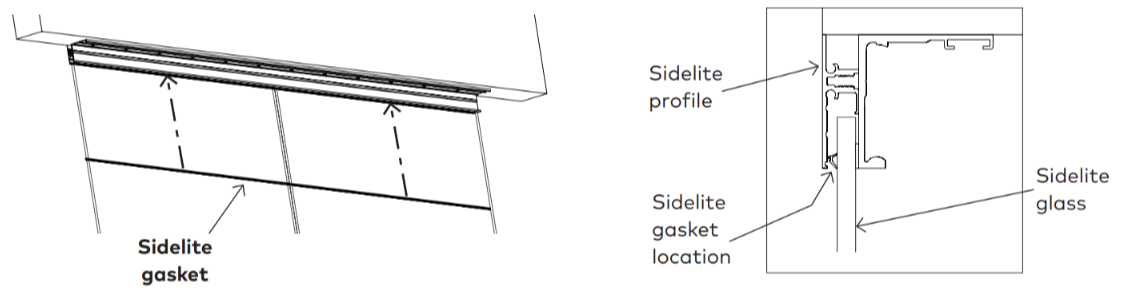

7. Installing sidelite glass gasket
Fig. 5 Sidelite gasket
| 1 | Cut gasket to length. |
| 2 | Press gasket in between sidelite glass and sidelite profile. |

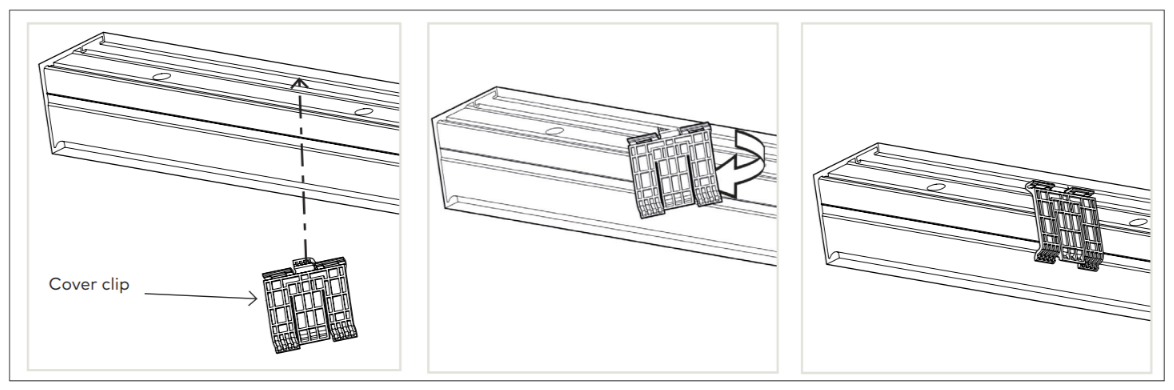

8. Install cover clips
| 1 | Insert cover clips into track. |
| 2 | Insert perpendicular to track and turn CLOCKWISE to snap into place. |
NOTE: 1 clip per foot of cover extrusion.

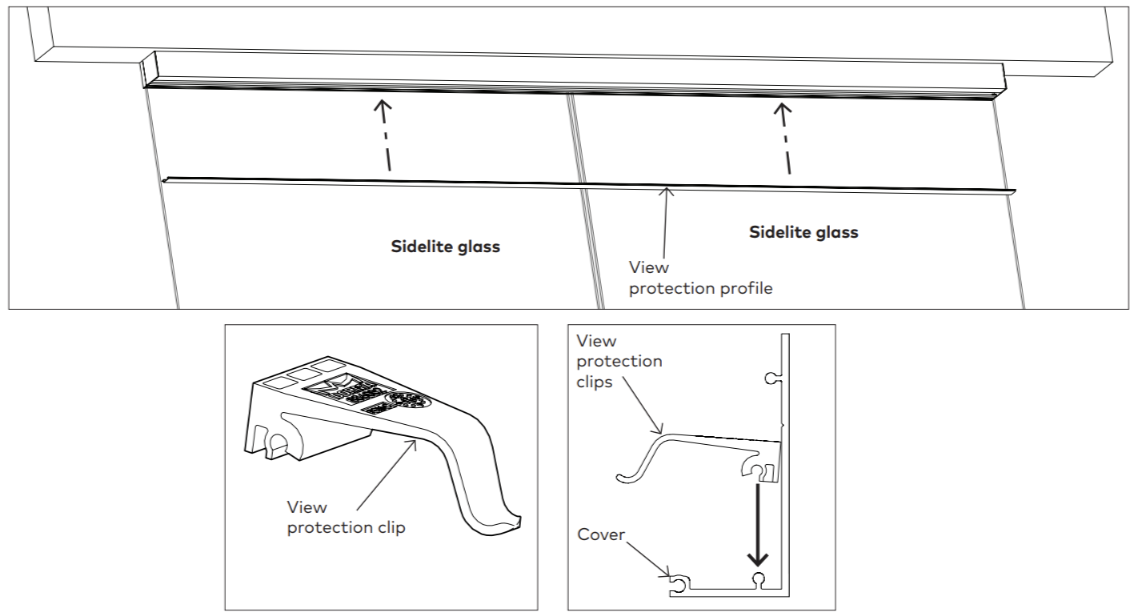

9. Install view protection clips
TO BE USED WITH ONE OR MULTIPLE SIDELITE APPLICATIONS.
| 1 | Measure and cut view protection profile to fit into empty sliding portion of track - 3/16" [5]. |
| 2 | Snap view protection clips onto inside of cover as shown. |
| 3 | Use minimum 1 clip per foot of profile. Exception: If profile is minimum of 1 foot in length, use 2 clips. |

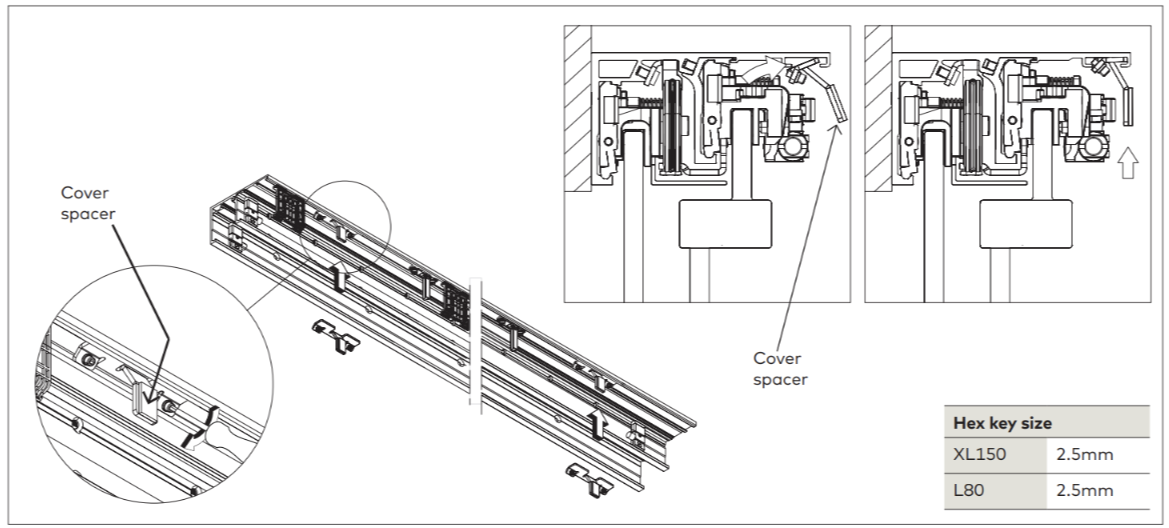

10. Cover spacers
Fig. 8 Cover spacers

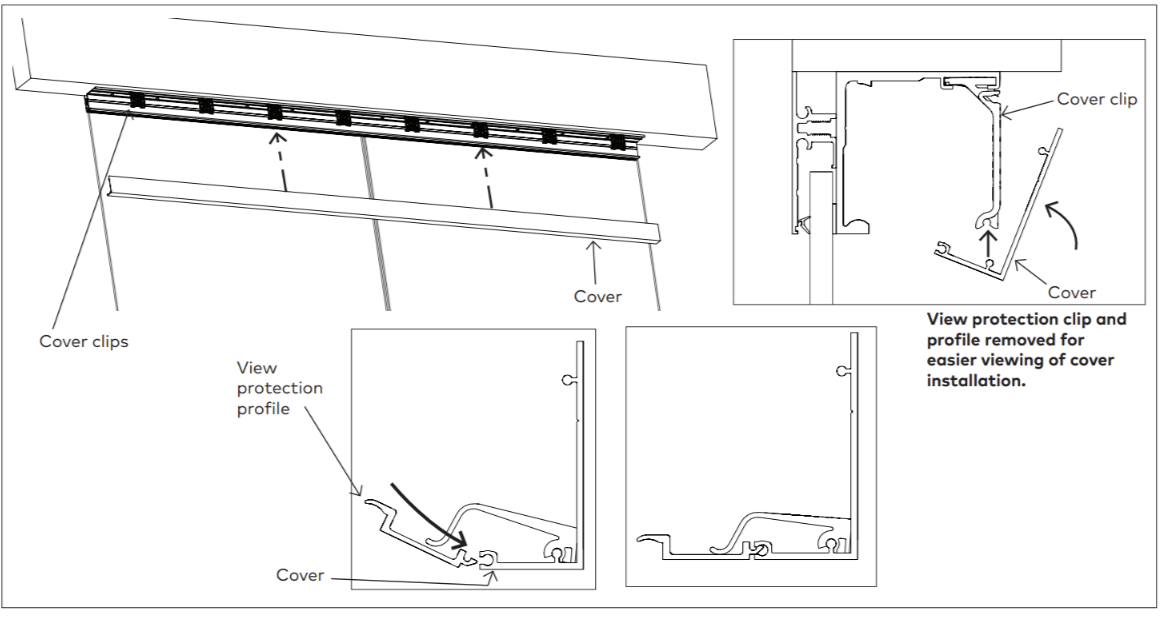

11. Install cover and view protection profile
| 1 | Secure cover to clips and snap into place. NOTE: Roll cover from the bottom upwards. Ensure the bottom of the cover is supported by the groove in the cover clip. |
| 2 | Once cover is in place, tip view protection profile up in between track and cover. |
| 3 | Snap down into cover and onto track as shown. |

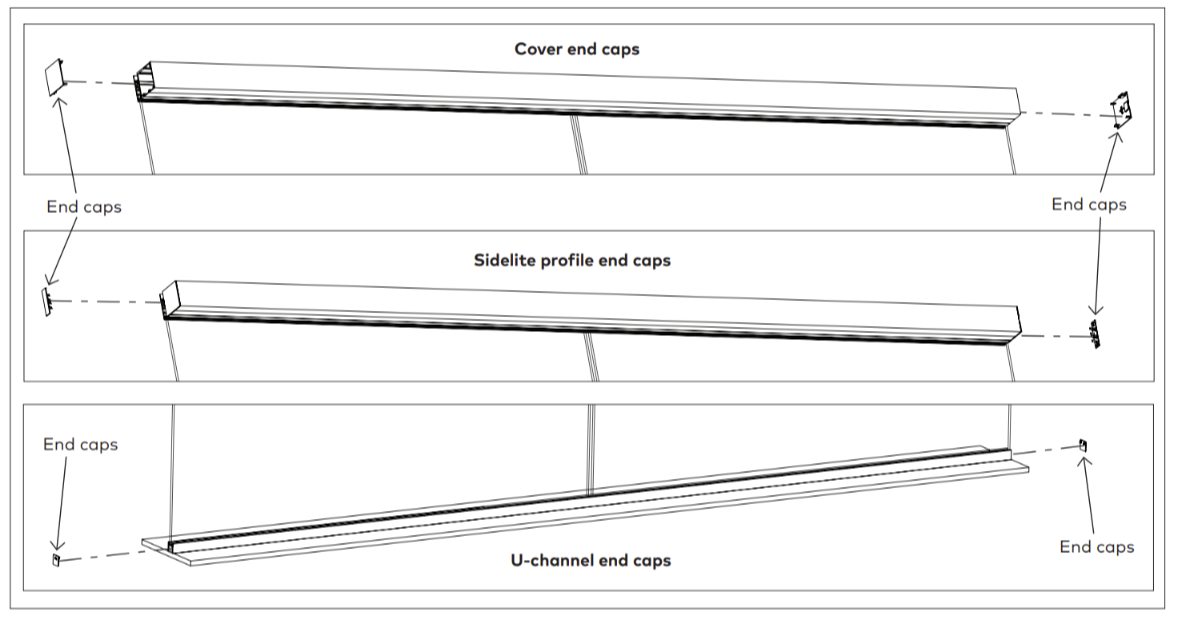

12. Install end caps
| 1 | Snap end caps into cover. |
| 2 | Snap end caps into ends of sidelite profile. |
| 3 | Snap end caps into ends of u-channel |
