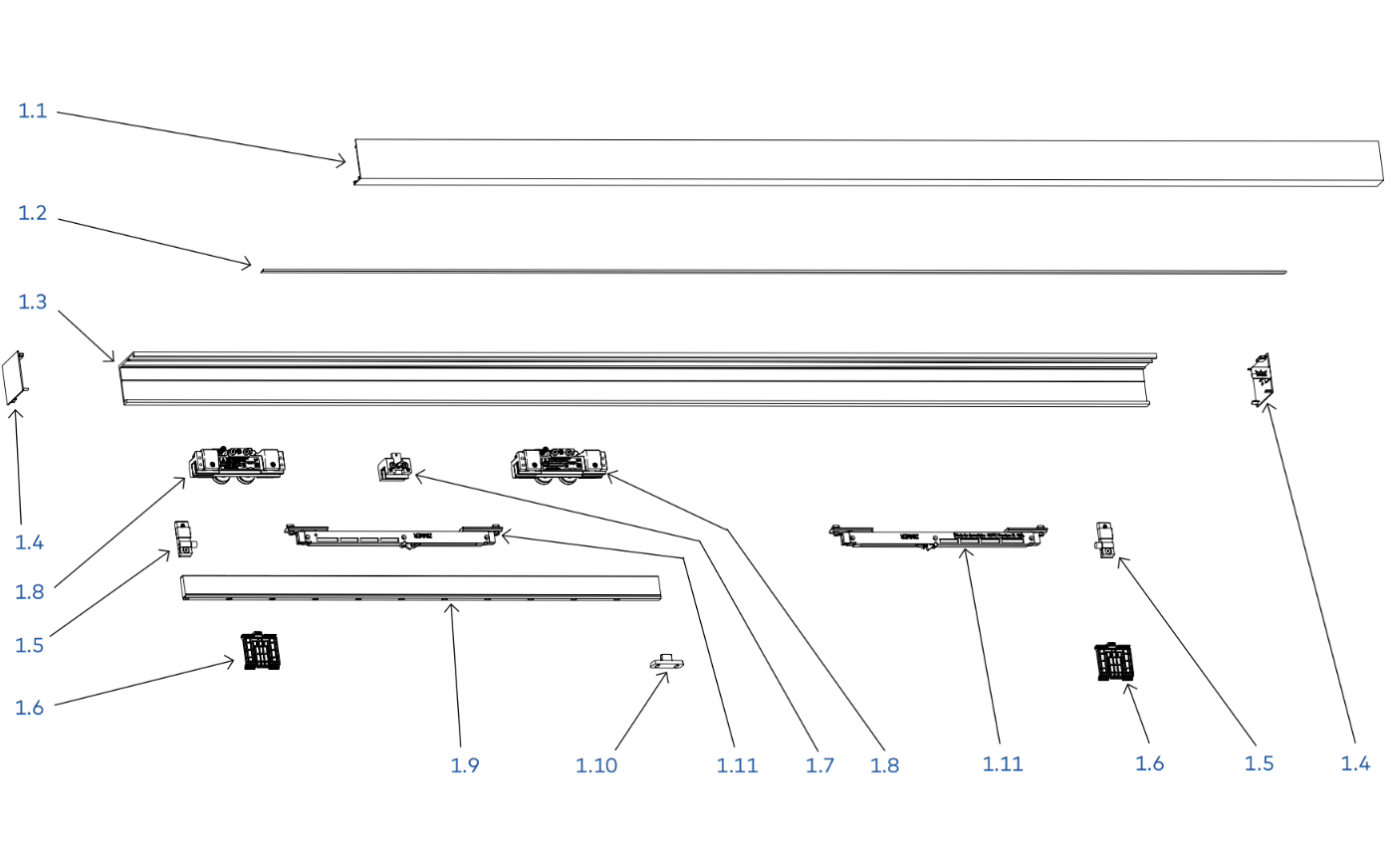

1. Overall
| 1 | Cover pane |
| 2 | Brush strip |
| 3 | Track |
| 4 | End cap |
| 5 | End stop |
| 6 | Cover clips |
| 7 | Start/stop |
| 8 | Roller carrier (XL shown) |
| 9 | Wood door adaptor |
| 10 | Floor guide |
| 11 | Dormotion units |

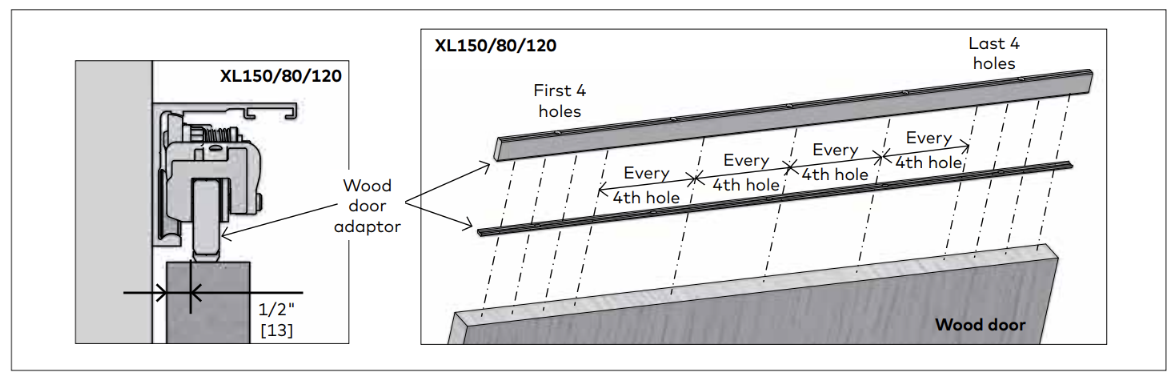

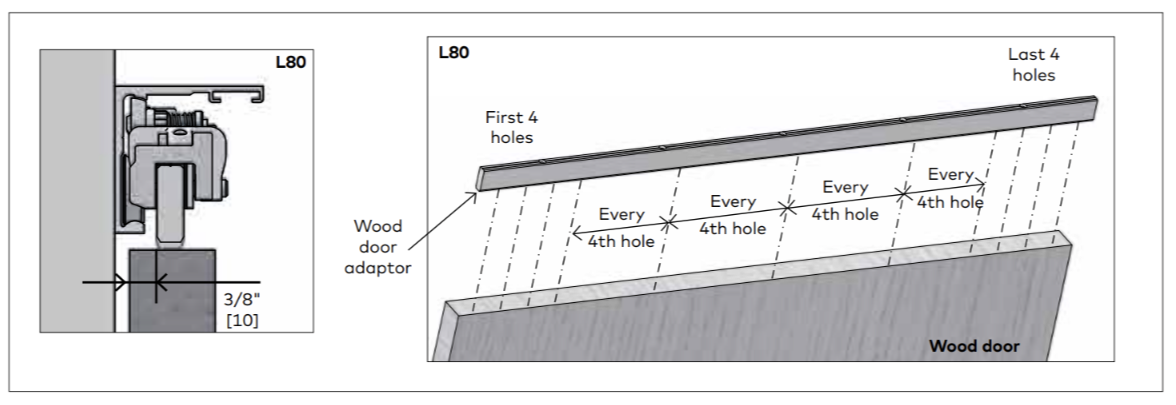

2. Securing wood door adaptor
Fig. 1 Sidelite gasket
NOTE: Top of door must be reinforced to secure wood door adapter
| 1 | Prepare door properly for wood door adaptor. NOTE: Seal top and bottom of door to minimize warping (use wood door manufacturer's recommendations). |
| 2 | Cut wood door adapter to be equal width of door |
| 3 | Secure the two wood door adaptor pieces to top of wood door with #10 x 3" wood screws. |
NOTE: Be sure screws are always secured in the first four and last four holes of the adaptor, along with every fourth hole in between.

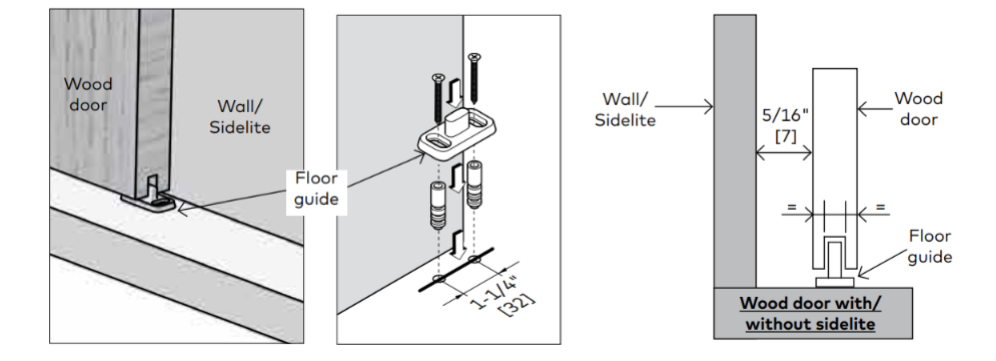

3. Install floor guide
| 1 | Temporarily slide floor guide into bottom groove of wood door. 2.10.2 2.10.3 |
| 2 | Be sure the door is plumb. |
| 3 | Mark appropriate floor guide measurements. |
| 4 | TEMPORARILY REMOVE WOOD DOOR AND ROLLERS FROM TRACK (TO ALLOW FOR DRILLING SPACE). |
| 5 | Pre-drill into mounting surface using a 5/16" drill bit. |
| 6 | Secure floor guide with included fasteners. |
| 7 | SET WOOD DOOR AND ROLLERS BACK ONTO TRACK. |

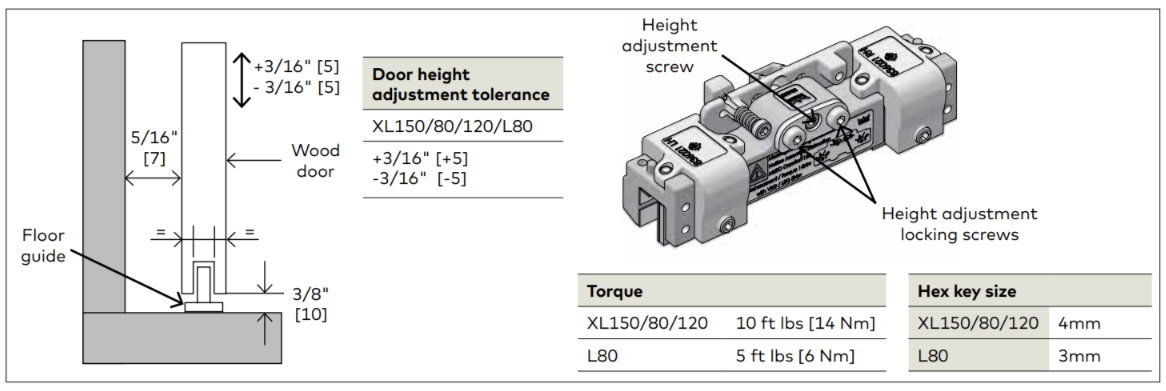

4. Adjust door height
| 1 | Set height of glass door. |
| 2 | Loosen height adjustment locking screws of carrier. |
| 3 | Using appropriate-size hex key, turn height adjustment screw CLOCKWISE or COUNTERCLOCKWISE to raise or lower door. |
NOTE: Be sure wood door is level during this adjustment.
