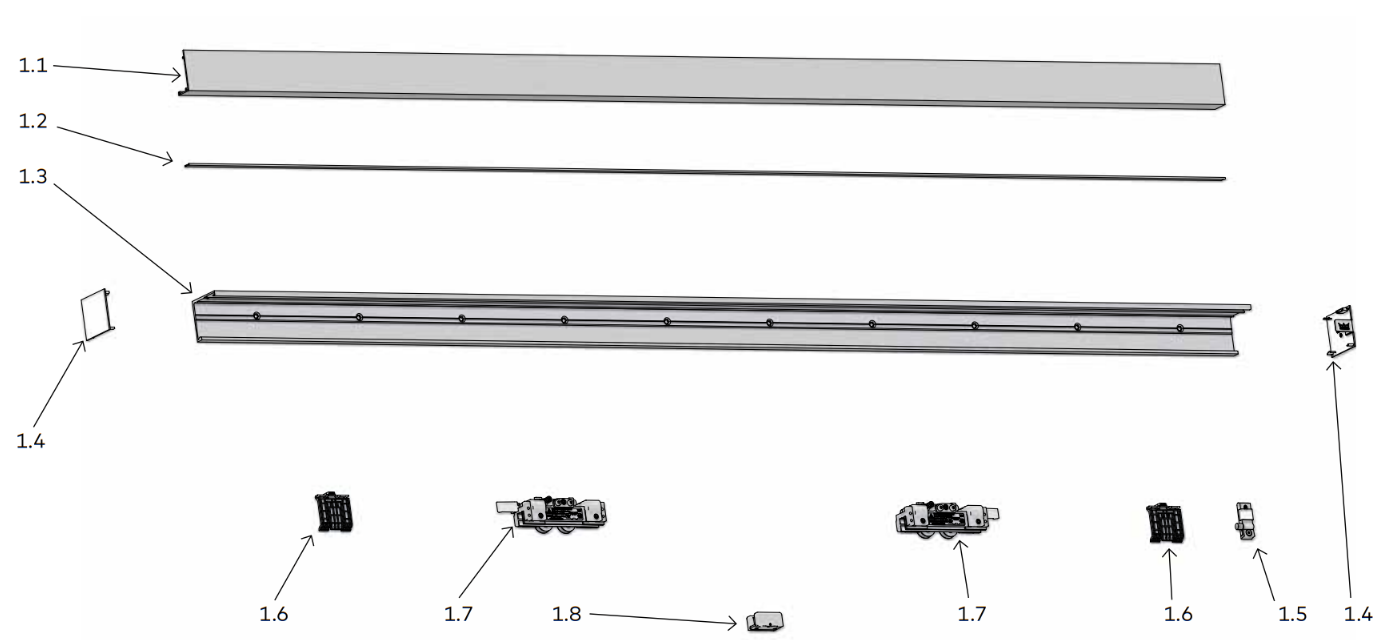

1. Overall
| 1 | Cover panel |
| 2 | Brush strip |
| 3 | Track |
| 4 | End cap |
| 5 | End stop |
| 6 | Cover clips |
| 7 | Roller carrier |
| 8 | Floor guide |

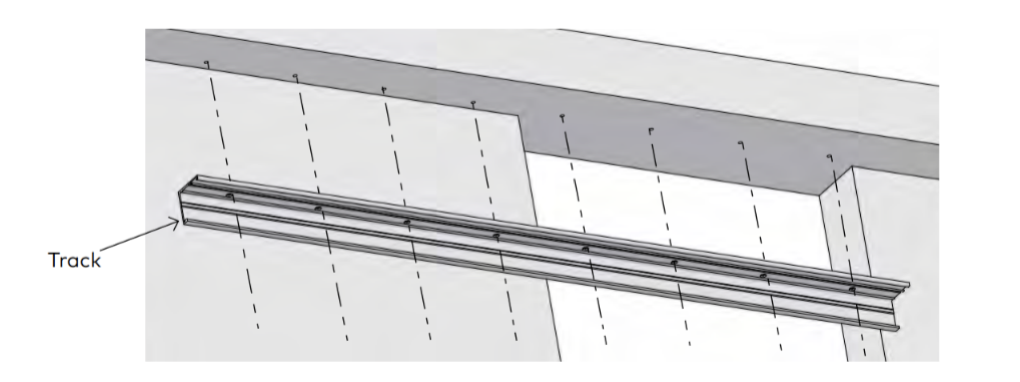

2. Securing track to mounting surface
NOTE: IF MOUNTING TO GLASS, REFER TO THE SEPARATE SUPPLEMENTAL GLASS MOUNT INSTALLATION INSTRUCTIONS.
THEN BEGIN AT STEP 2.5A IN THIS BOOKLET
| 1 | Ensure the track is properly level and secure it to the wall per the appropriate measurements on the following page. |
| 2 | Use appropriate fasteners according to the following recommendations. |
NOTE: SEE DIMENSION INSTRUCTIONS ON NEXT PAGE FOR REFERENCE.
NOTE:
WALL REINFORCEMENT:
The wall reinforcement must be a minimum of ¼” [6] x 3” [76] steel angle, 16 gauge metal stud, or 1-1/2” [38] thick wood blocking secured to the wall studs on a maximum 16” [406] centers for the length of the track. The wall reinforcement may be flush on the wall surface or on the interior of the wall. For masonry walls the track may be secured directly to the wall with lead anchors.
Track mounting screws must fully penetrate the steel angle, metal stud, or wood blocking, utilizing the
predrilled holes in the MUTO track.
Consult with a structural engineer to determine if reinforcement is adequate for your specific application
or to meet specific codes in your location.

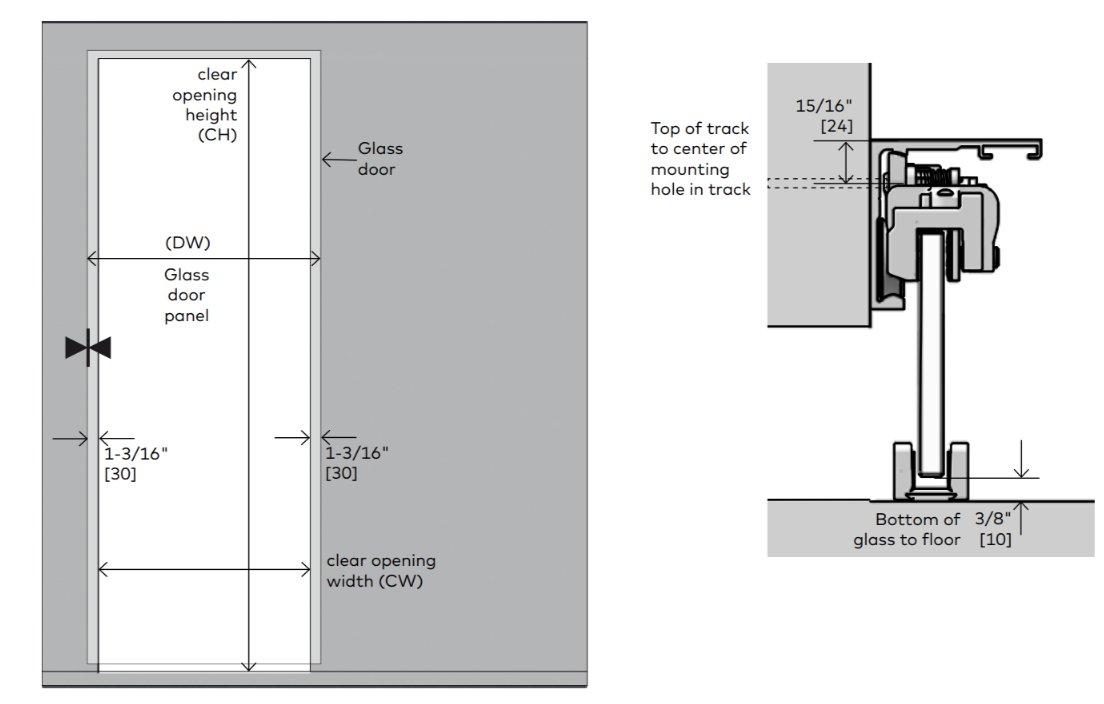

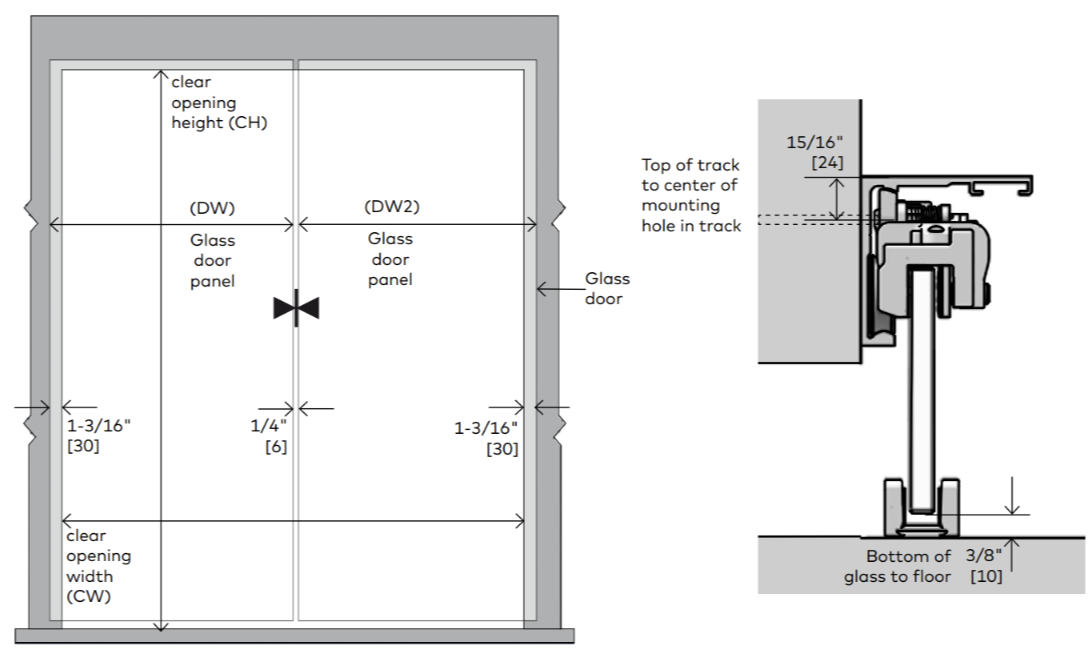

3. Door/wall dimensions
Single door mount
Double door mount

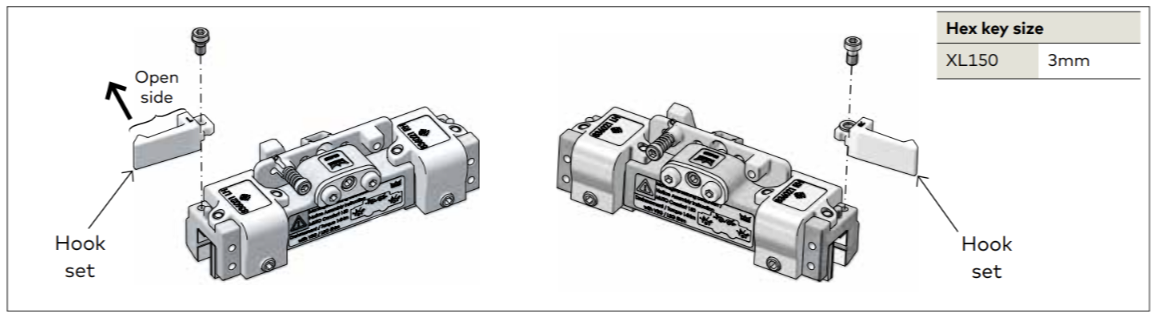

4. Installing hook set
| 1 | With rollers facing away from the installer, determine which roller will be leading and which will be trailing. |
| 2 | Secure hook onto roller with open side facing away from the installer. |
| 3 | Secure hook using appropriate-size hex key. |

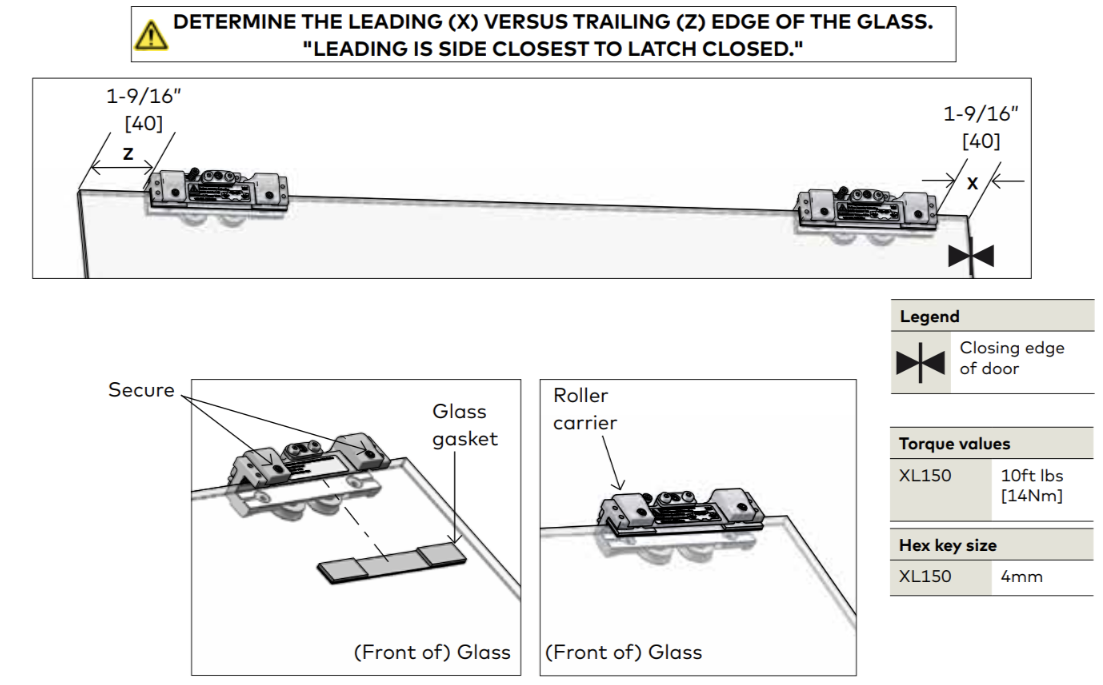

5. Installing roller carriers: on monolithic glass ONLY
NOTE: FULLY CLEAN SURFACE OF GLASS WITH AN ALCOHOL-BASED MILD GLASS AND SURFACE
CLEANER. ENSURE GASKET IS FREE OF DEBRIS.
ENSURE ROLLER CARRIER WHEELS ARE FREE OF DEBRIS.
| 1 | Slide carriers onto glass. |
| 2 | Slide glass gasket and metal shim between glass and roller carrier. NOTE: Orient gasket with rubber side facing the glass. |
| 3 | Secure roller carriers to glass using appropriate-size hex key at 10 ft lbs [14 Nm]. |

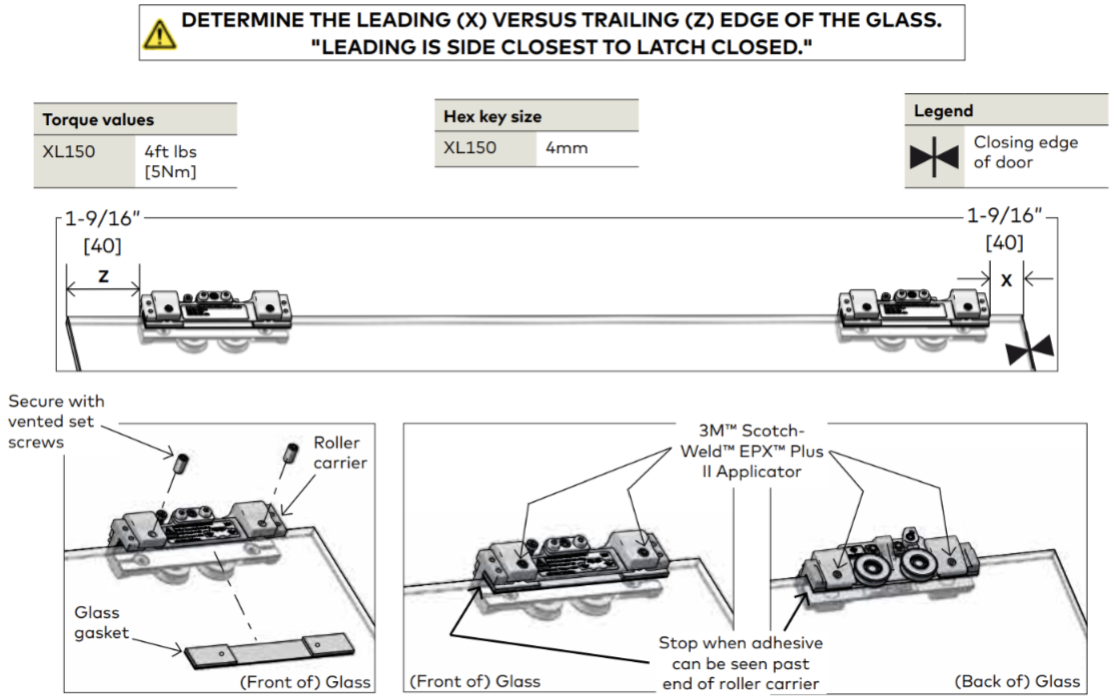

6. Installing roller carriers: on tempered laminate glass ONLY
NOTE: THE RECOMMENDED ADHESIVE’S SET-UP TIME IS 20 MINUTES FOR THE DUO-PAK CARTRIDGES.
NOTE: USE 1:1 RATIO PLUNGER WITH THE 3M™ Scotch-Weld™ Urethane Adhesive.
NOTE: FULLY CLEAN SURFACE OF GLASS WITH AN ALCOHOL-BASED MILD GLASS AND SURFACE
CLEANER. ENSURE NO DEBRIS IS ON THE GASKET.
ENSURE ROLLER CARRIER WHEELS ARE FREE OF DEBRIS
| 1 | Slide carriers onto glass. |
| 2 | Replace existing gasket with TLG gasket. |
| 3 | Slide laminated glass gasket and metal shim between glass and roller carrier. NOTE: Orient gasket with rubber side facing the glass. |
| 4 | Replace existing set screws with vented set screws. |
| 5 | Tighten vented set screws at 4 ft lbs [5Nm] NOTE: Onto scrap material, first dispense approximately 12" of 3M™ Scotch-Weld™ Urethane Adhesive prior to application to prevent mixing errors and ensure optimal hardening. |
| 6 | Dispense adhesive into vented set screws on both sides of carrier |
Stop application when adhesive can be seen past edge of roller carrier.
DO NOT WIPE any excess adhesive from glass surface. Allow adhesive to dry and scrape off glass
surface with a beveled-edge chisel or putty knife.
NOTE: Keep glass flat during curing process.
NOTE: See chart in Specifications section for appropriate curing time.

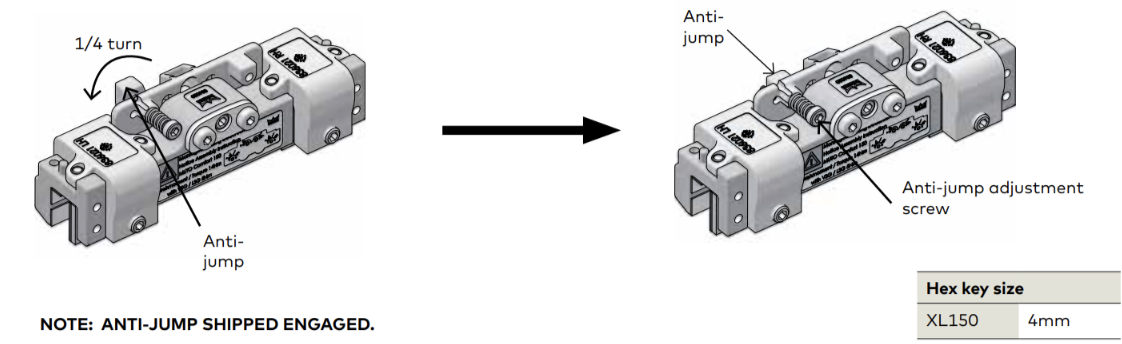

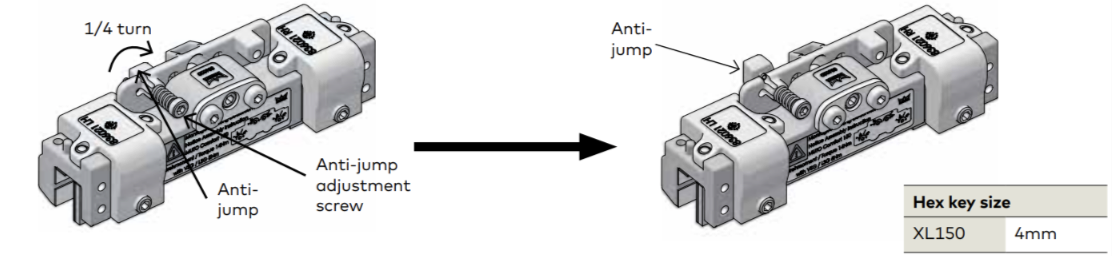

7. Disengaging the anti-jump
| 1 | Disengage the anti-jump on roller carrier. |
NOTE: Using the appropriate-size hex key, push antijump adjustment screw IN and turn COUNTERCLOCKWISE 90° to disengage anti-jump

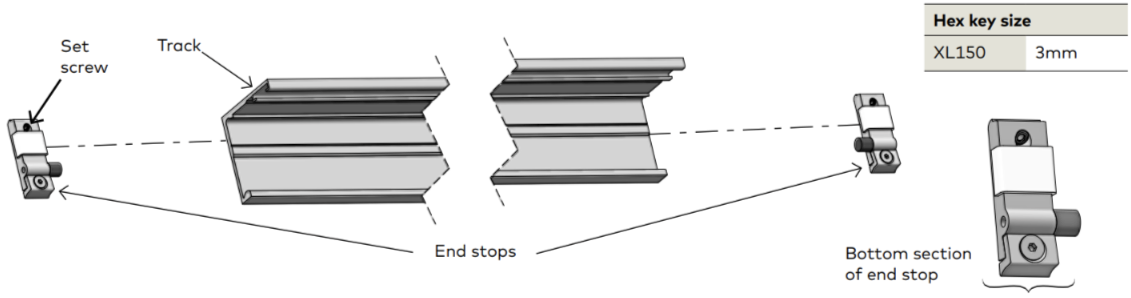

8. Installing end stops
| 1 | Slide end stops into each end of the track. |
NOTE: Loosen bottom section of end stop for easier install.
NOTE: FOR XL150 end stops, be sure set screw is flush with back of end stops.
NOTE: Exact location/adjustments will be determined in “Adjustment End Stop Location” step.

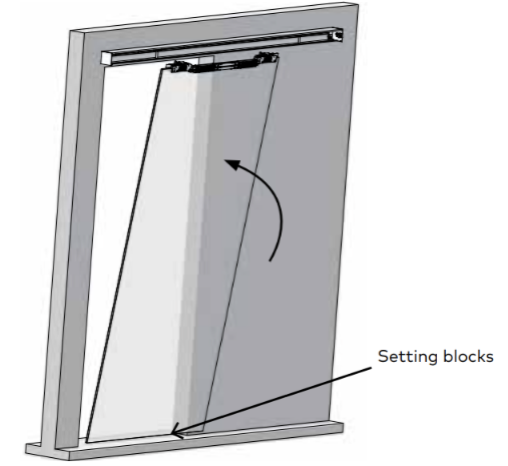

9. Install glass/rollers in track
*If installing/hanging tempered laminated glass panels, ensure carrier adhesive has cured for 48 hours. See Specifications for more information on cure time.*
ENSURE ROLLERS AND TRACK ARE FREE OF DEBRIS.
| 1 | Place glass on setting blocks on floor for stability |
| 2 | Tip glass and rollers upward and rest rollers on track. |

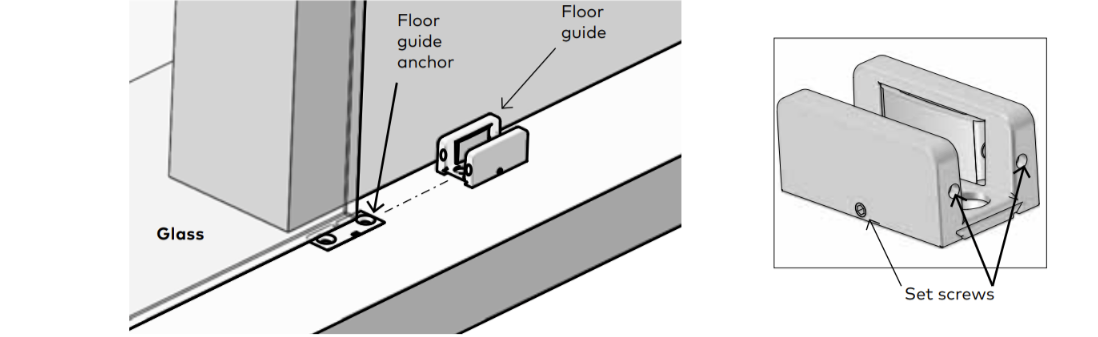

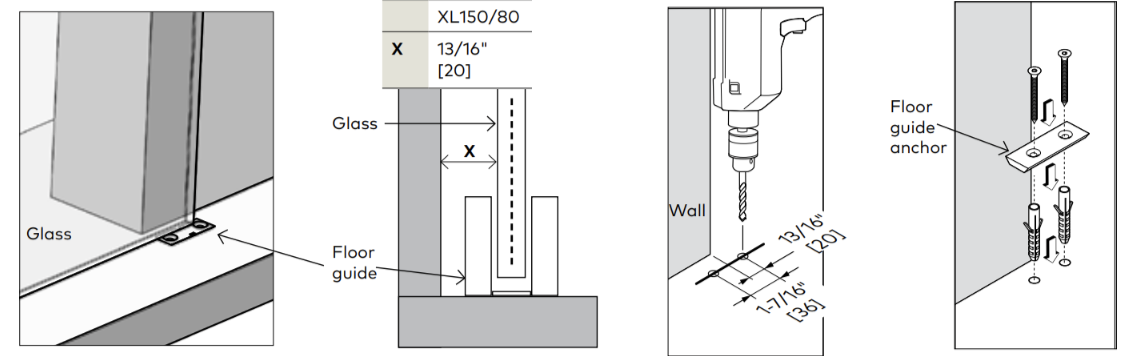

10. Install floor guide
ANTI-JUMP IS DISENGAGED!
| 1 | Align centerline of glass with centerline of floor guide |
| 2 | Be sure the glass is plumb. |
| 3 | Mark appropriate floor guide measurements. |
| 4 | TEMPORARILY REMOVE GLASS AND ROLLERS FROM TRACK (TO ALLOW FOR DRILLING SPACE) |
| 5 | Pre-drill into mounting surface using a 5/16" drill bit. |
| 6 | Secure floor guide anchor with included fasteners. |
11. Install floor guide: contiued
| 1 | SET GLASS AND ROLLERS BACK ONTO TRACK. |
| 2 | Slide floor guide over floor guide anchor and tighten with set screws. |
| 3 | Remove setting blocks. NOTE: Be sure glass is centered in floor guide. |
| 4 | Adjust using set screws. |
12. Engaging anti-jump
| 1 | Engage anti-jump on roller carrier |
| 2 | Using appropriate-size hex key, push anti-jump adjustment screw IN and turn CLOCKWISE 90° to engage anti-jump. |

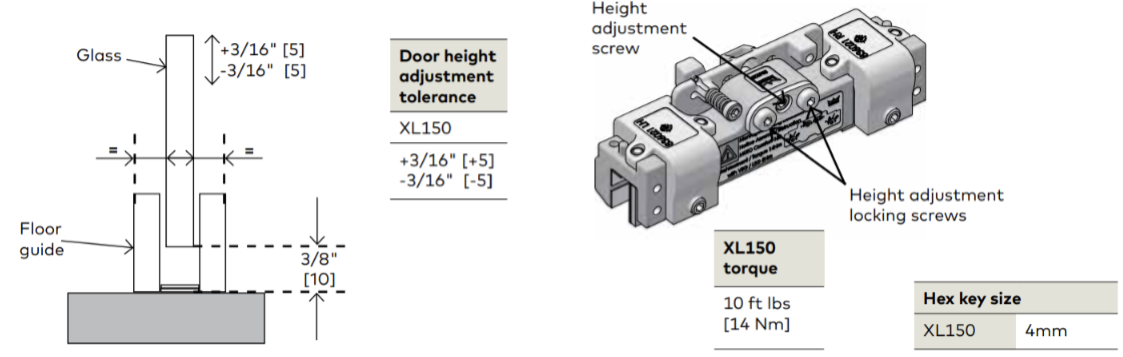

13. Adjustment door height
| 1 | Set height of glass door. |
| 2 | Loosen height adjustment locking screws of carrier. |
| 3 | Using appropriate-size hex key, turn height adjustment screw CLOCKWISE or COUNTERCLOCKWISE to raise or lower glass |
NOTE: Be sure glass is level during this adjustment.

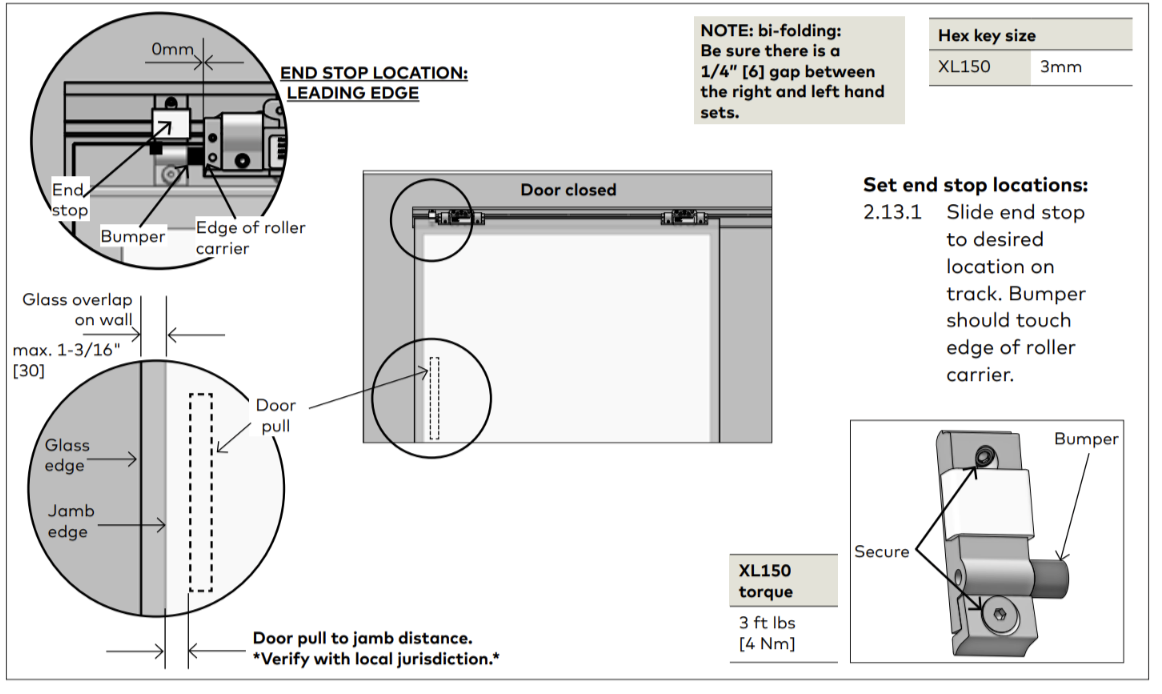

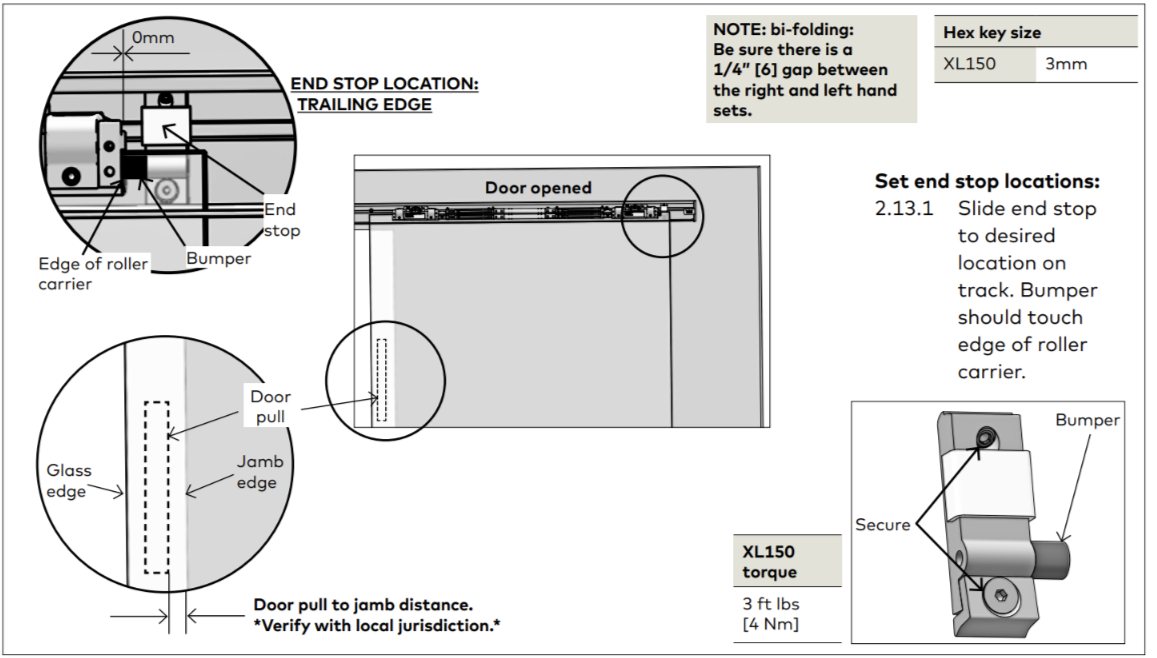

14. Adjustment end stop location: LEADING end stop
Adjustment end stop location: TRAILING end stop

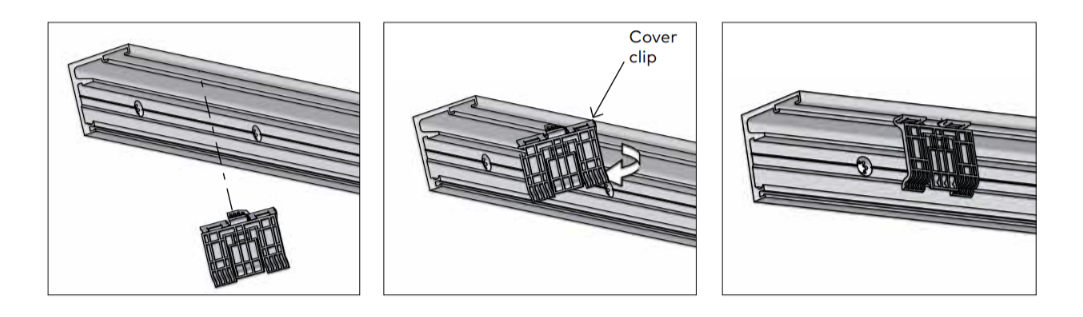

15. Cover clips
| 1 | Insert cover clips into track. (One clip per foot) |
| 2 | Insert perpendicular to track, and turn CLOCKWISE to snap into place. |

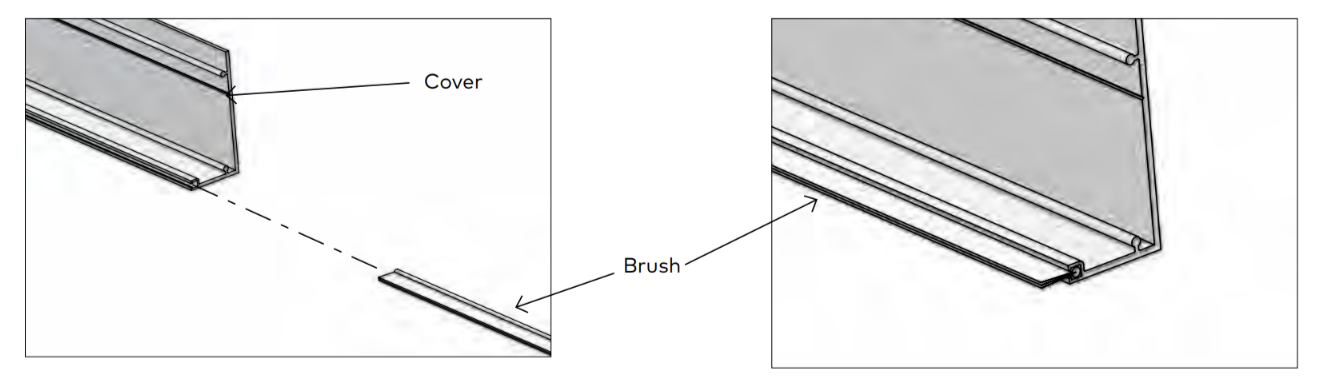

16. Install brush profile
| 1 | Measure and cut brush to appropriate length. |
| 2 | Slide brush into cover. |

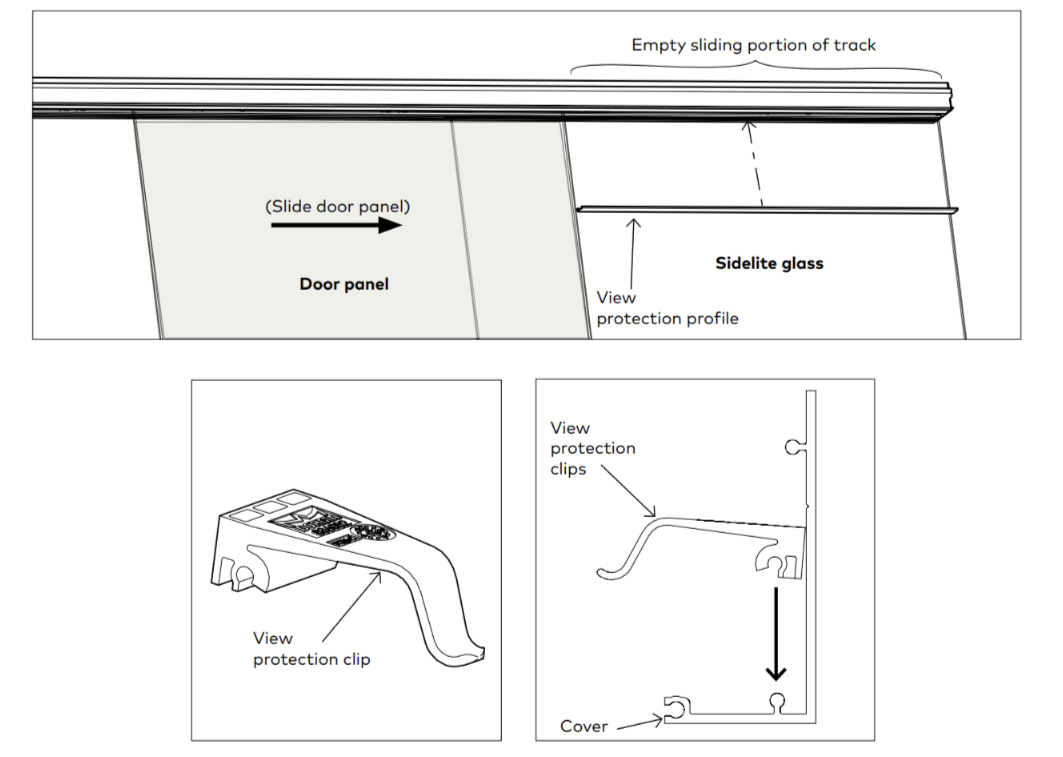

17. Install view protection clips
TO BE USED WITH ONE OR MULTIPLE SIDELITE APPLICATIONS.
| 1 | Slide door open until it meets the end stop. |
| 2 | Measure and cut view protection profile to fit into empty sliding portion of track - 3/16" [5]. |
| 3 | Snap view protection clips onto inside of cover as shown. |
| 4 | Use minimum 1 clip per foot of profile. Exception: If profile is minimum of 1 foot in length, use 2 clips. |

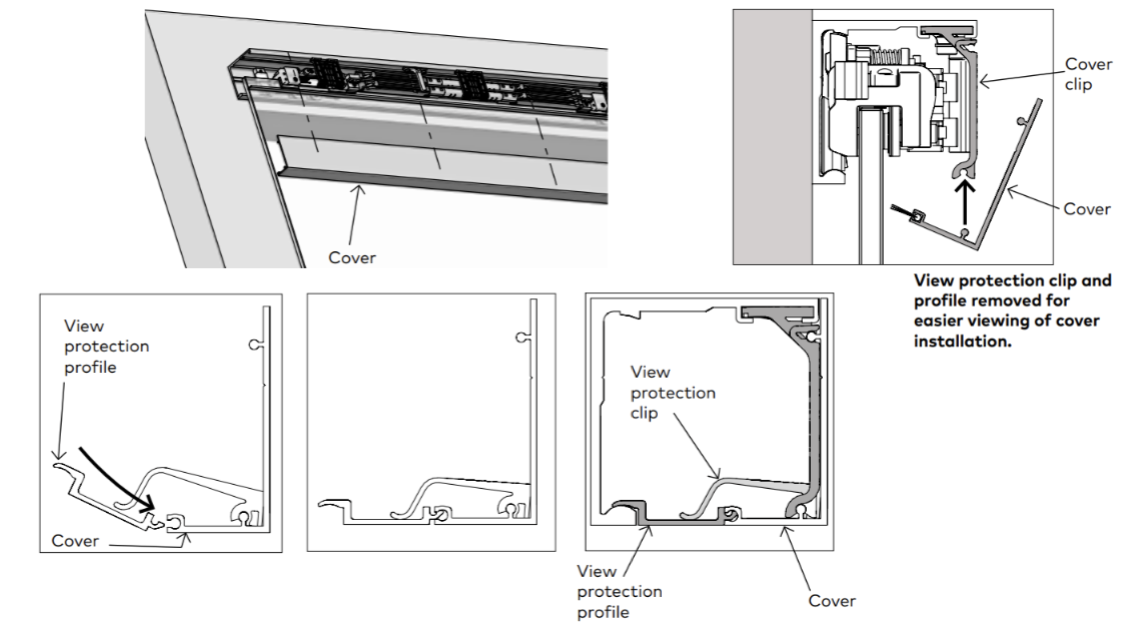

18. Install cover and view protection profile
| 1 | Secure cover to clips and snap into place. NOTE: Roll cover from the bottom upwards. Ensure the bottom of the cover is supported by the groove in the cover clip. |
| 2 | Tip view protection profile up into track and snap down into cover and onto track as shown. |

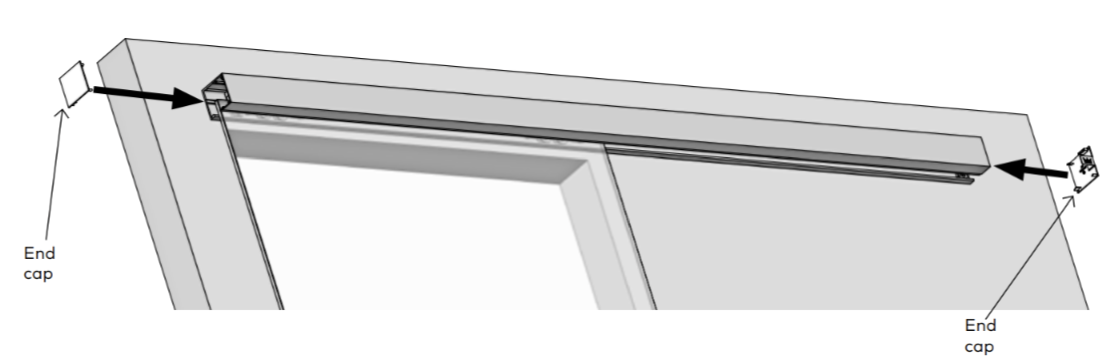

19. Install end caps
| 1 | Snap end caps onto track |
