1.Important information
1 = Component
1.;1.1;... = Installation sequence
All glass clamping areas have to be cleaned with standard glass cleaning products prior to installation.
Do not use thinners

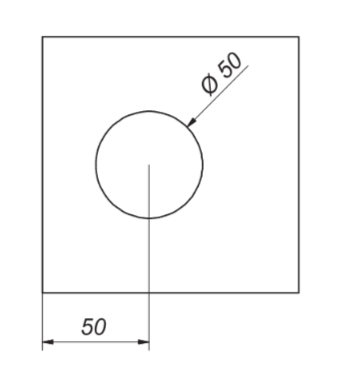

2. Glass preparation

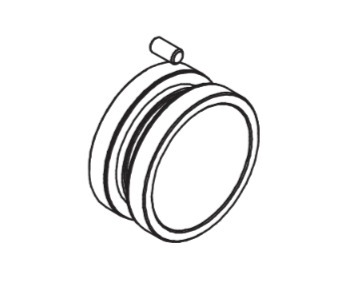

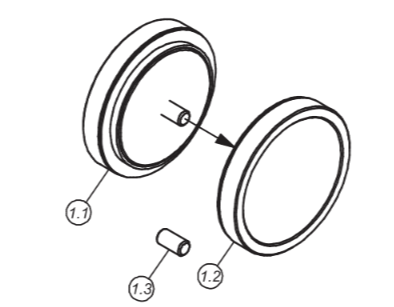

3. Scope of delivery of handle bar
Preassembled for 10/12mm glass. Setscrew for 8mm glass is enclosed!

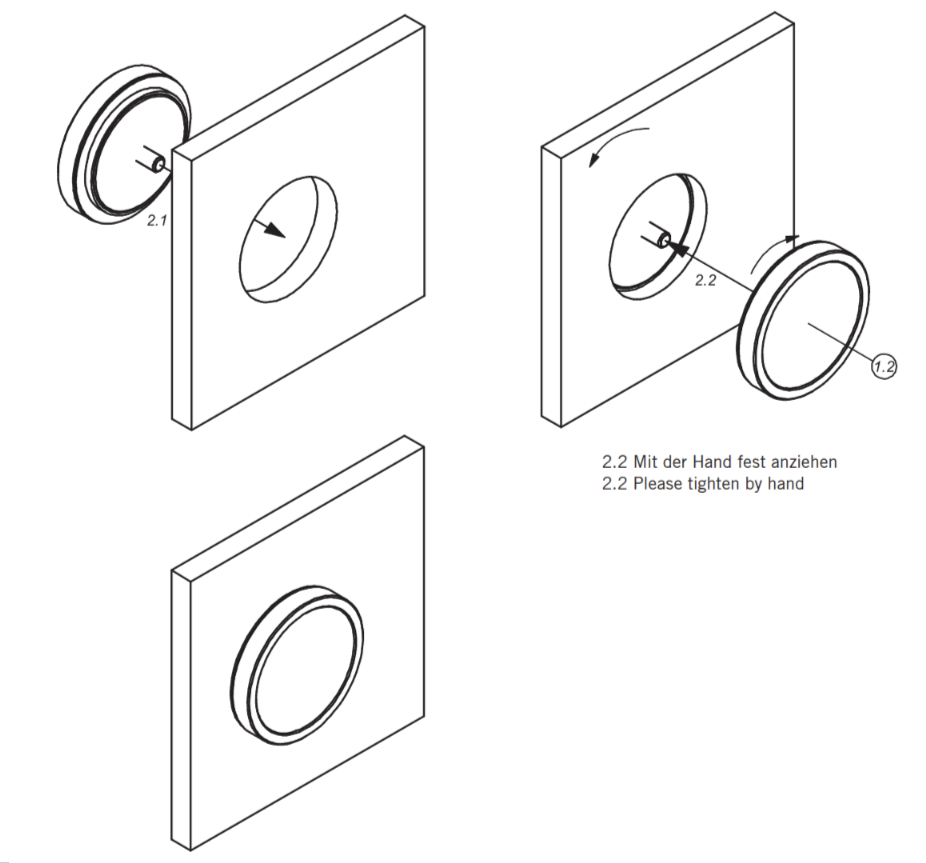

4. Preparation of the recessed pull grip
With 8mm of glass thickness, change the setscrew 1.3 !
