1.Important information
1 = Component
1.;1.1;... = Installation sequence
All glass clamping areas have to be cleaned with standard glass cleaning products prior to installation.
Do not use thinners

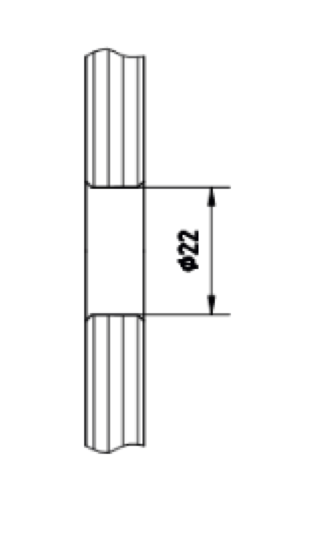

2. Glass preparation
General care instructions:
The surface finishes of the fittings are not maintenancefree and should be cleaned according to their material and texture.
– For metallic surfaces (anodised finishes, stainless steel) please only use appropriate cleaning agents without abrasive additives
– For varnished surfaces please only use appropriate solventfree cleaning agents
– To avoid tarnishing, brass surfaces (without surface protection) occasionally have to be treated with an
appropriate care product
Service and maintenance:
We recommend to check the function of the fitting all 500.000 movements by specialists.
3. Requisite tool:

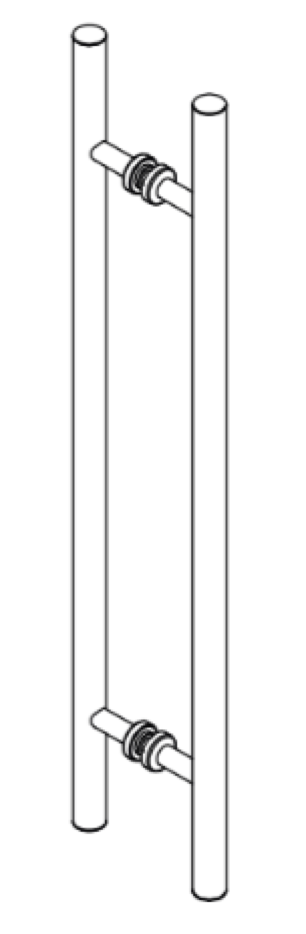

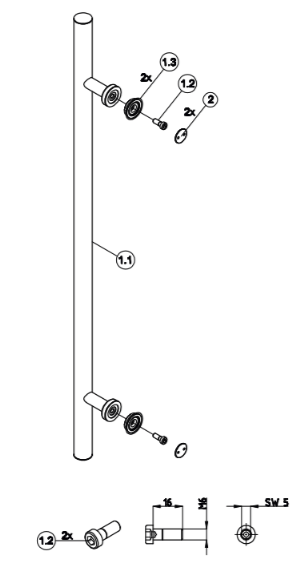

4. Scope of delivery of handle bar
a. Pair of handle bars delivered assembled!
Preassembled for 12mm glass thickness.
5. Scope of delivery of back to back door knob
a. Back to back door knob delivered assembled!
Preassembled for 12mm glass thickness.

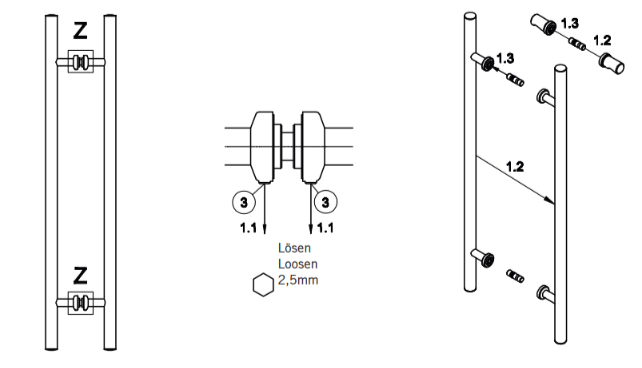

6. Preparing the base unit

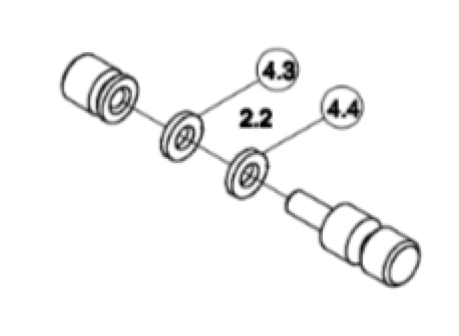

7. Glass thickness adaptation of the connecting bolt
8mm glass thickness = remove the plastic discs 4.3 und 4.4
10mm glass thickness = remove the plastic disc 4.3

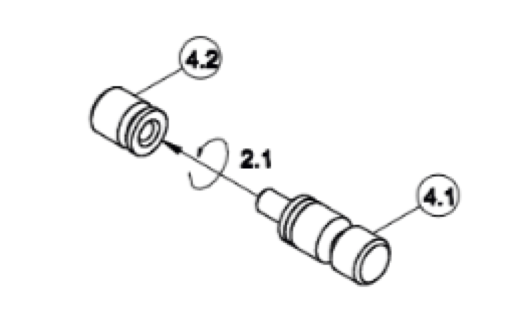

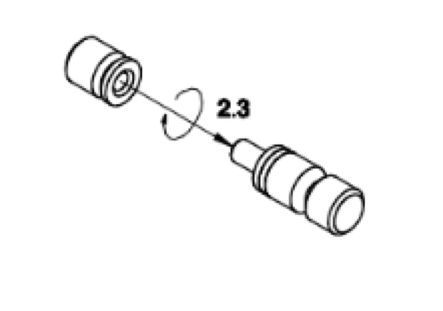

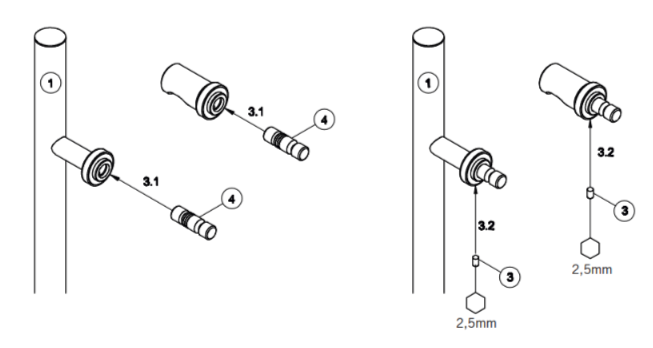

8. Assembly of the connection bolt

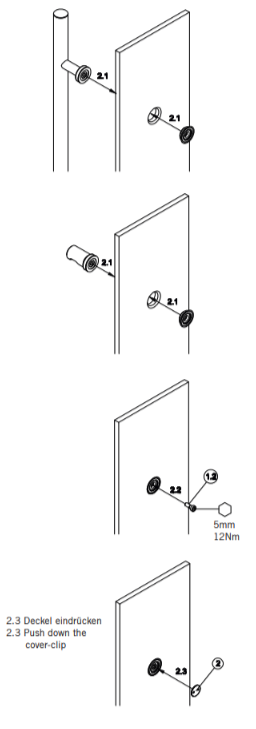

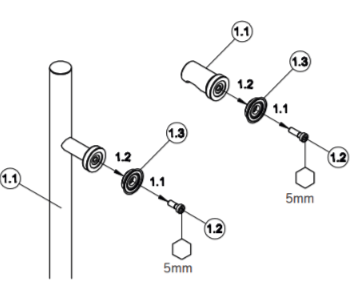

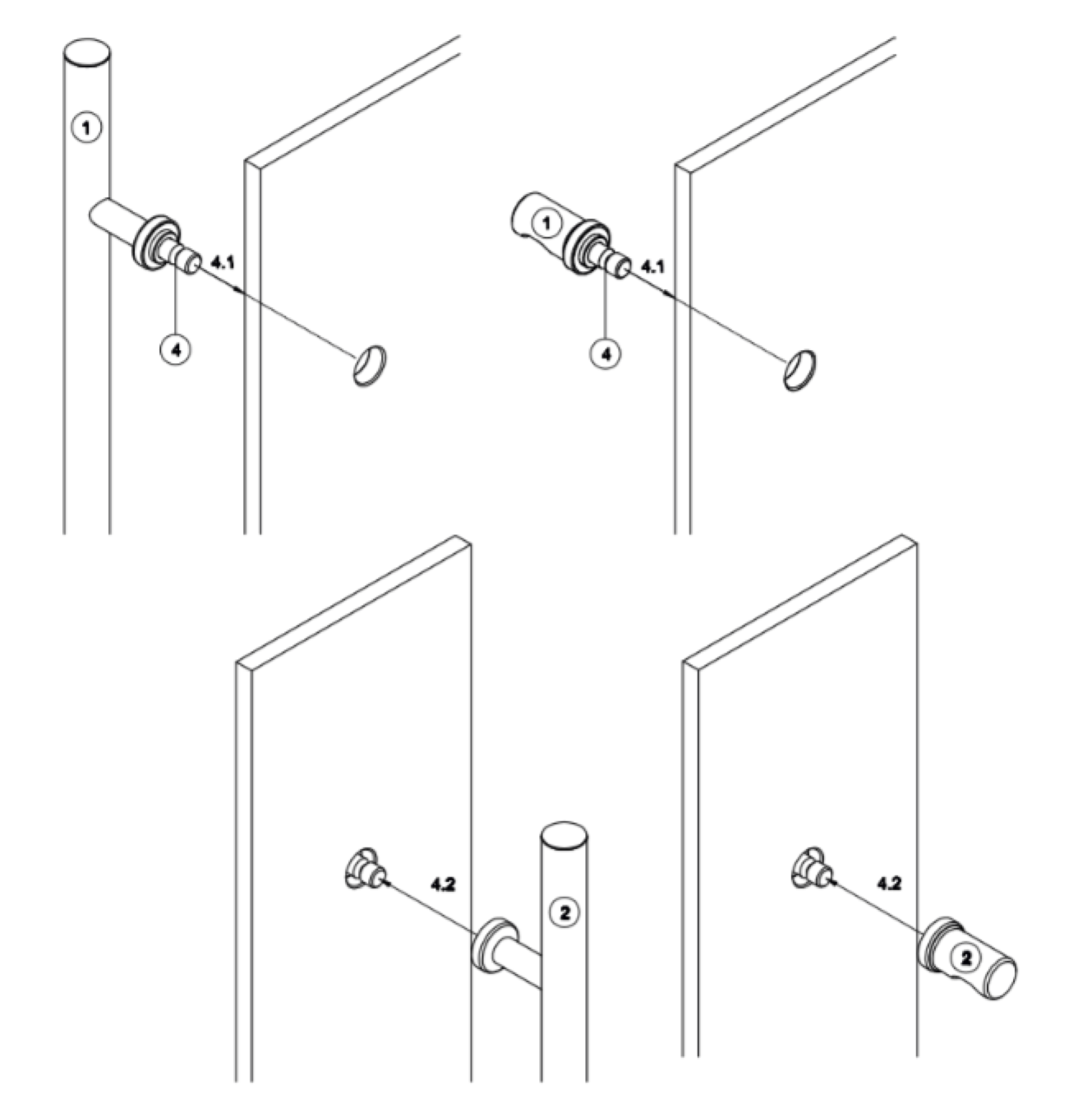

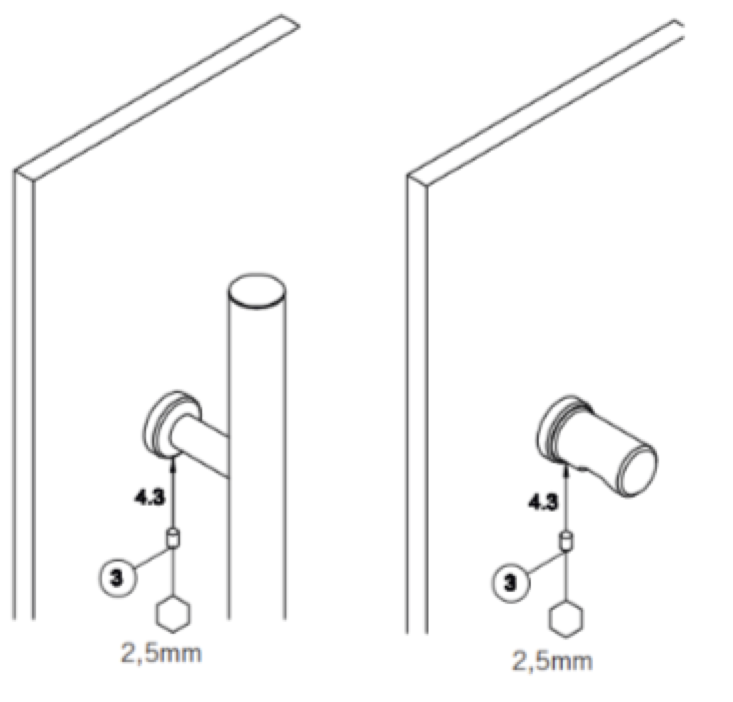

9. Installation of the handle bar / door knob

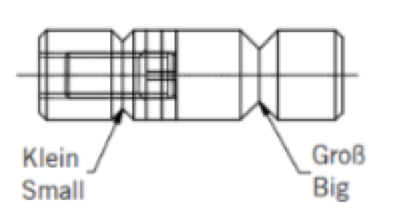

At first, fix the smaler chamfer and to clamp the handle bar, use the bigger chamfer!

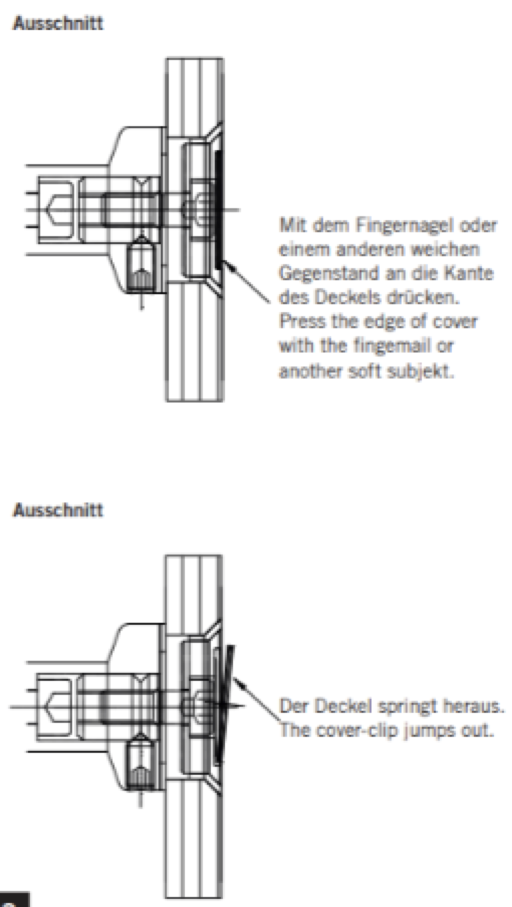

7. Fixing options
Fixing with clamping disc single-point fixing.
Fixing with countersunk single-point fixing.
