1.Important information
1 = Component
1.;1.1;... = Installation sequence
All glass clamping areas have to be cleaned with standard glass cleaning products prior to installation.
Do not use thinners

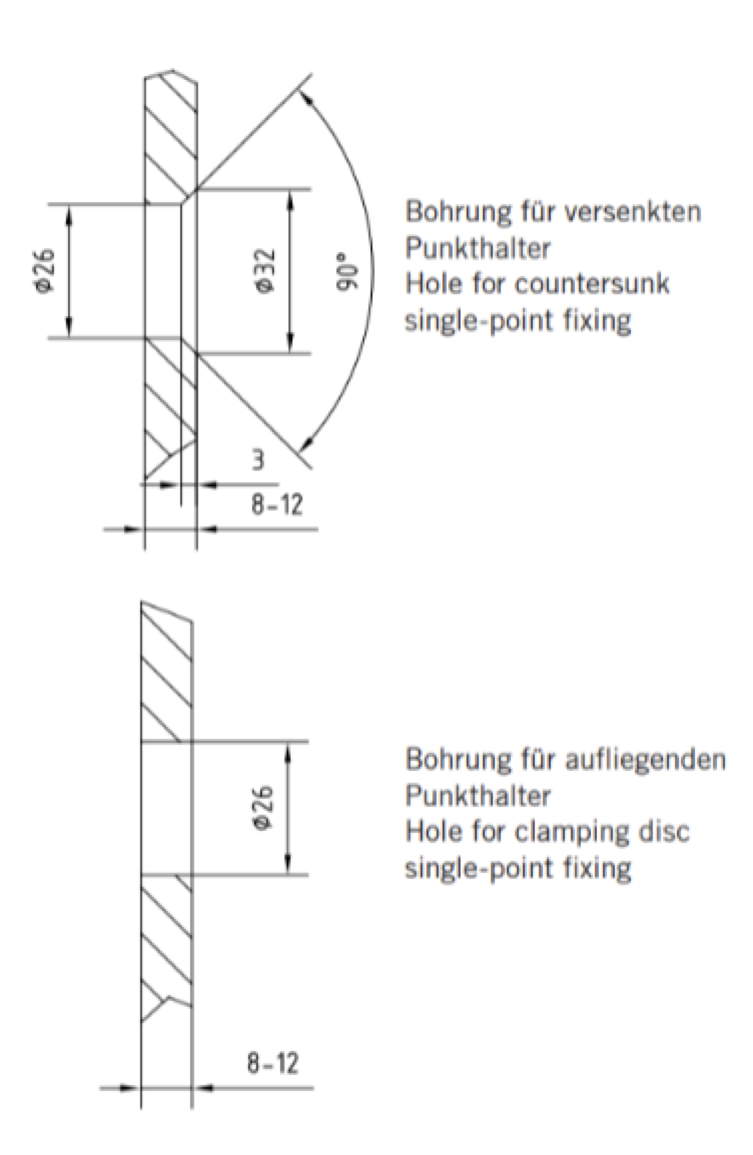

2. Glass preparation

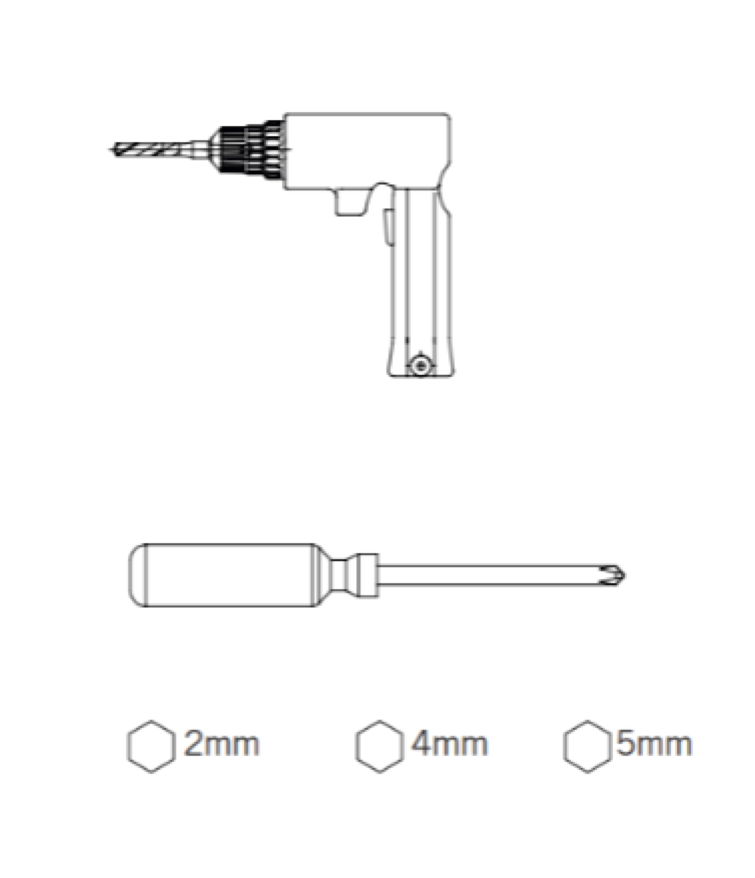

3. Installation tool
4. Options of system components

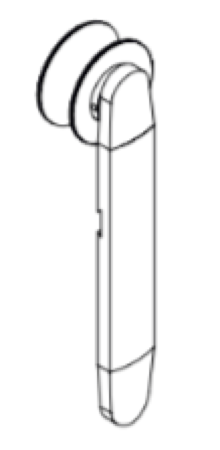

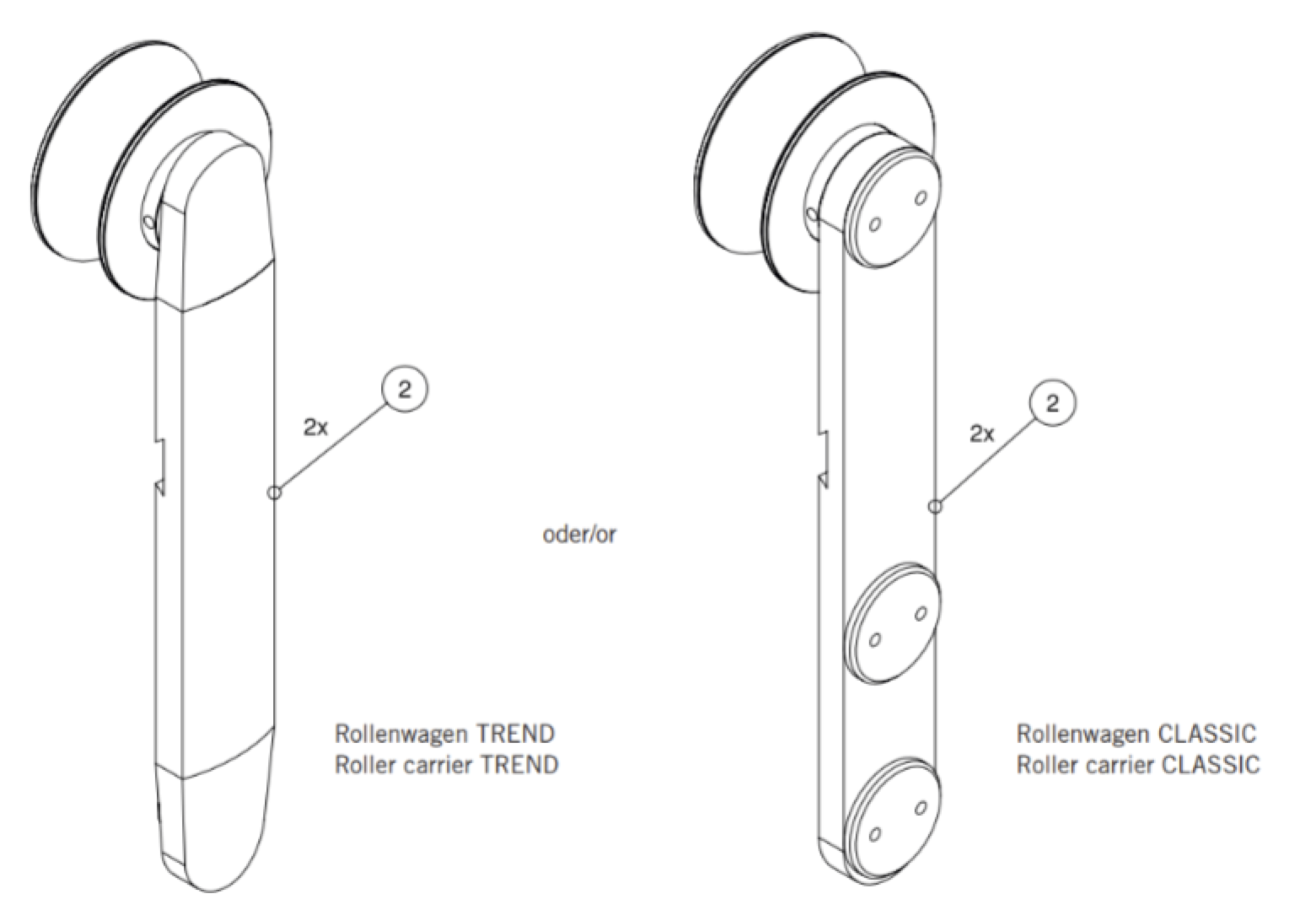

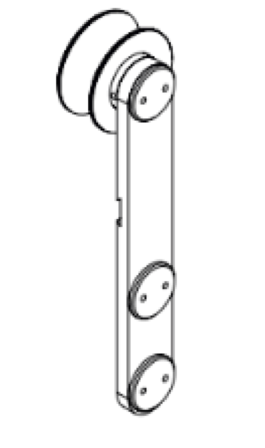

a. Sliding door roller carrier TREND
b. Sliding door roller carrier CLASSIC

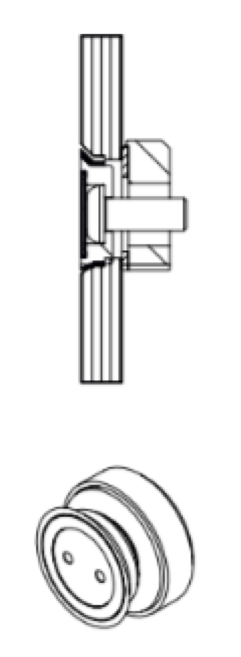

c. Countersunk single-point fixing

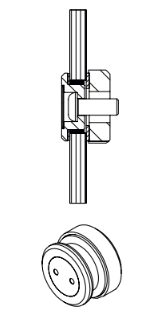

d. Clamping disc single-point fixing

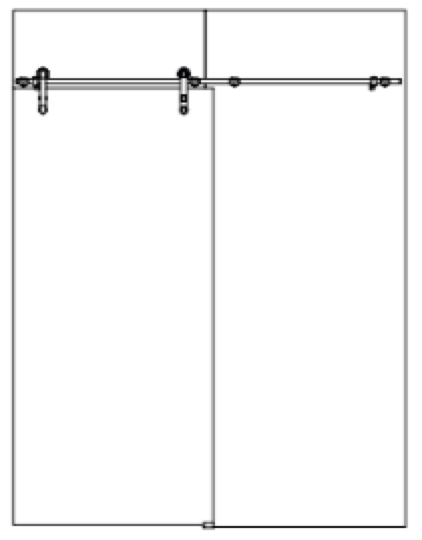

e. Installation glass/glass
f. Installation glass/wall

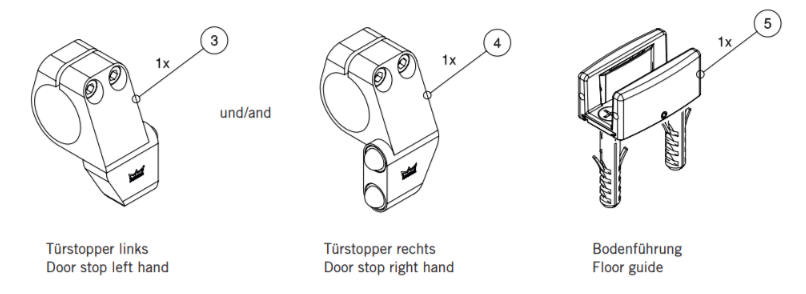

4. Scope of delivery

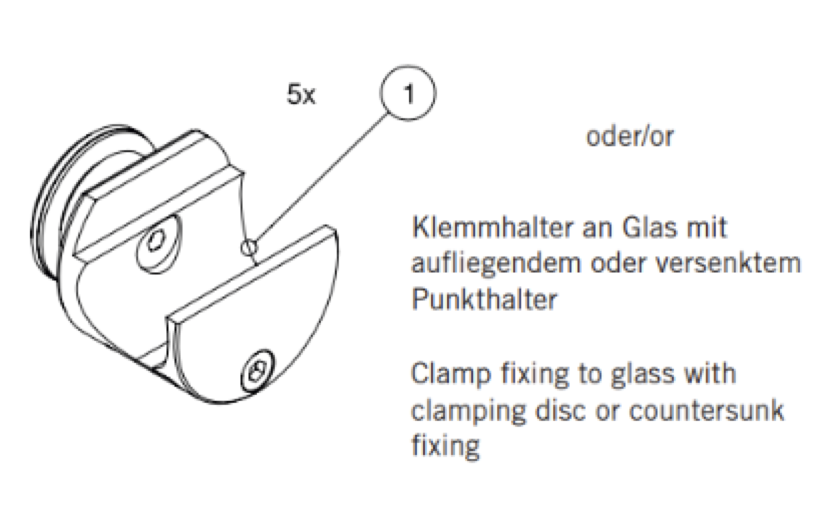

Clamp fixing to glass with clamping disc or countersunk fixing

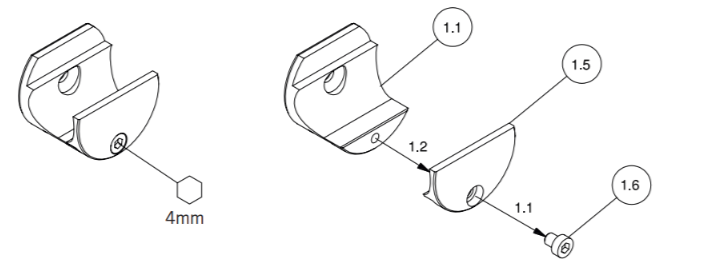

5. Preparation of clamp fixings
6. Installation onto wall

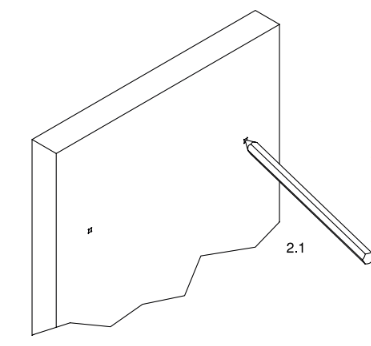

Note the recommended distance (technical manual) of holes and mark the holes for clamp fixing

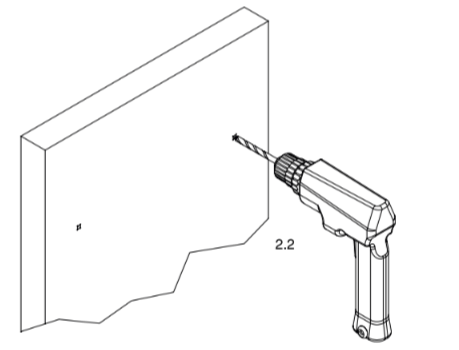

2. Drill attachment holes

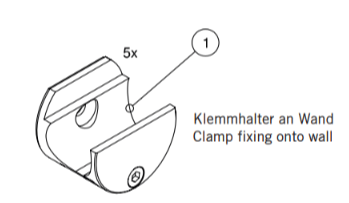

7. Installation of clamp fixing onto wall
1. Screws and plugs for wall connection are not part of delivery! Attachment according to wall state and kind of plug, e.g. countersunk screw M6x... or countersunk wood screw 6x...

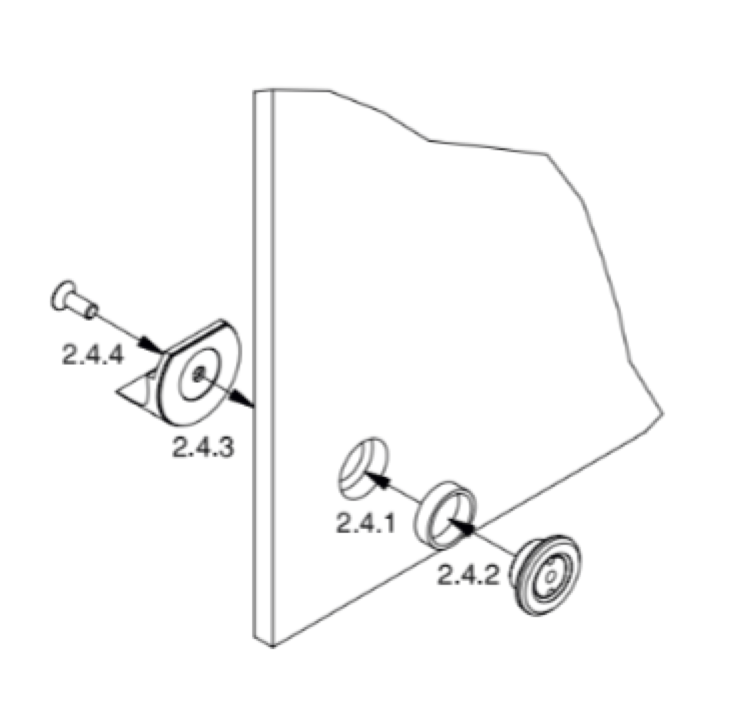

8. Installation of clamp fixing onto glass

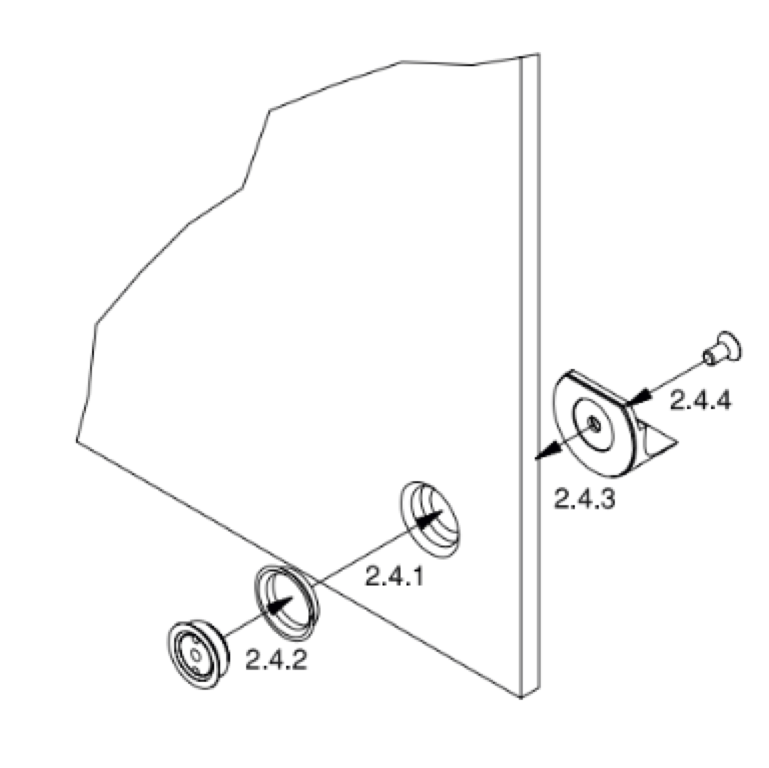

Countersunk single-point fixing to glass
Single-point fixing with clamping disc to glass

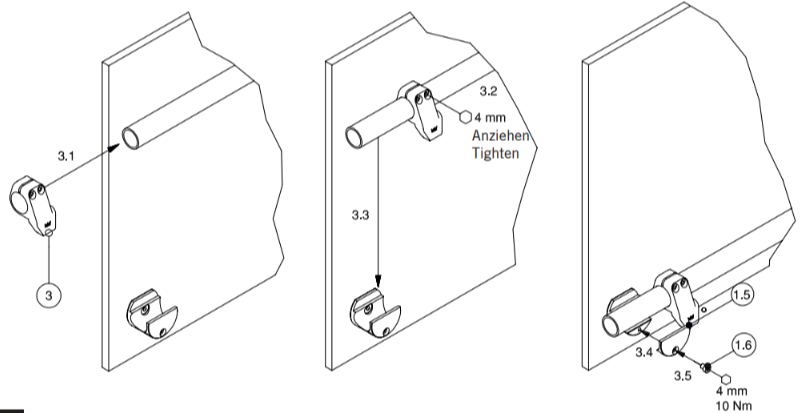

9. Installation of sliding track tube

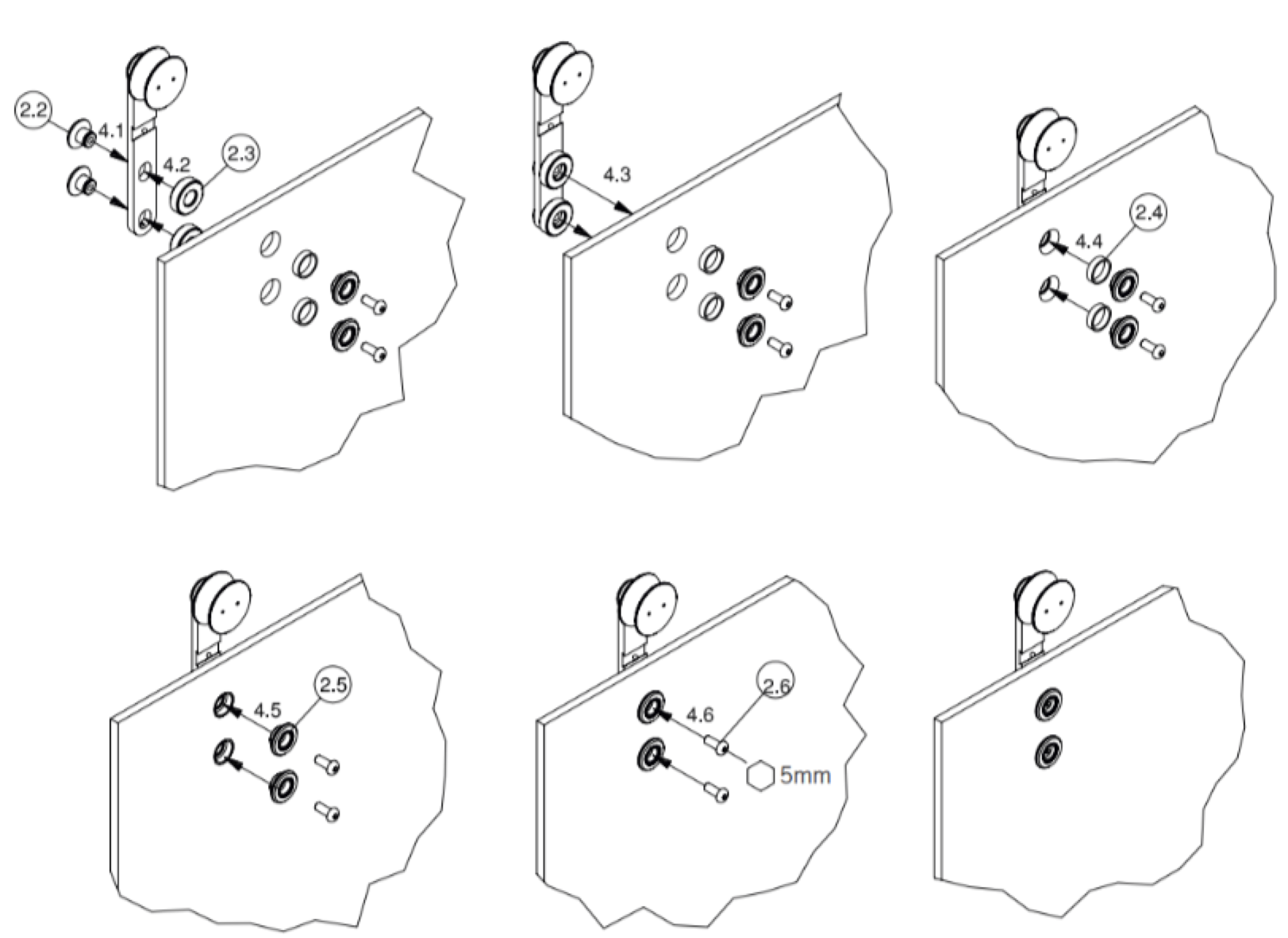

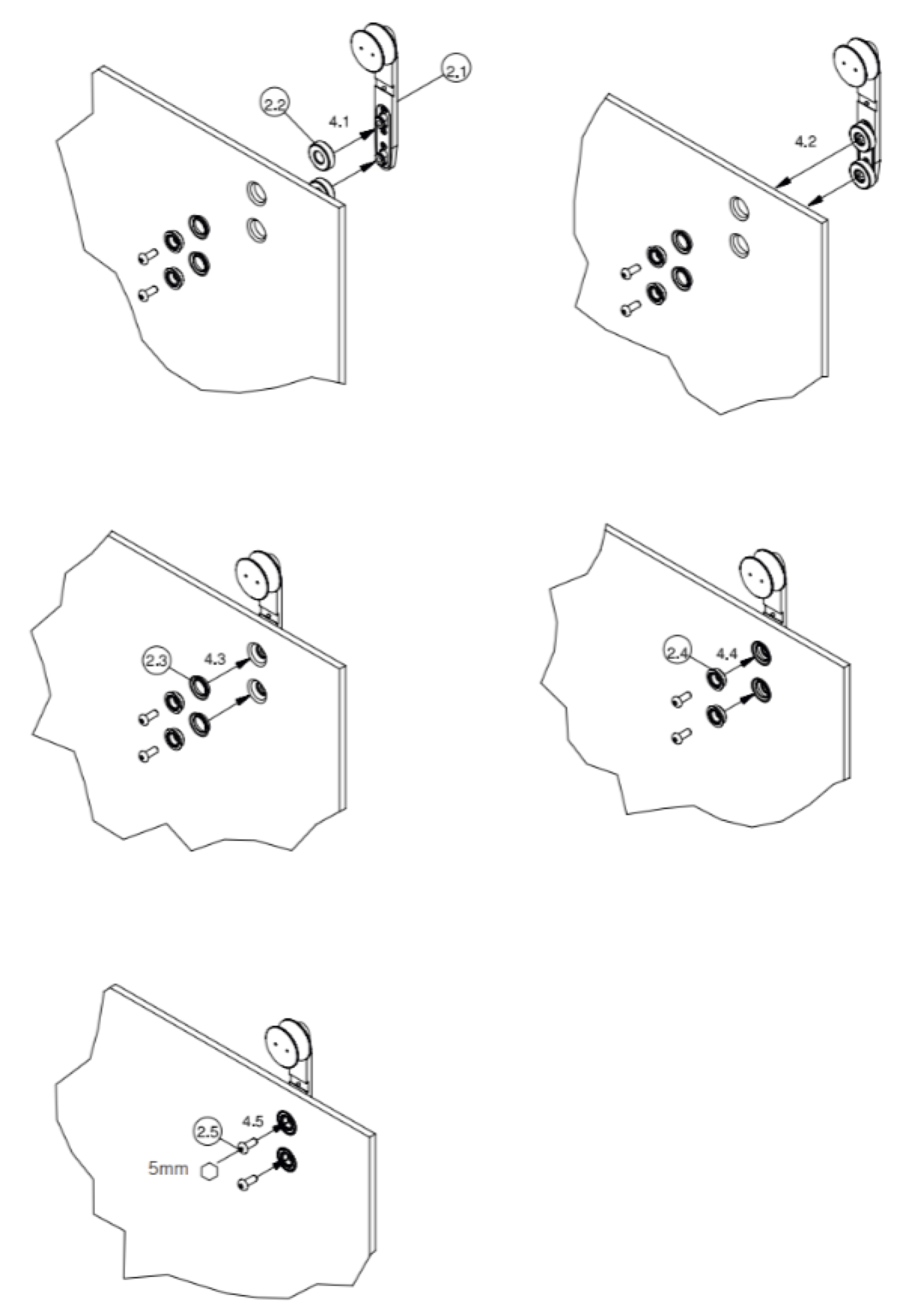

10. Installation of roller carrier CLASSIC onto sliding door

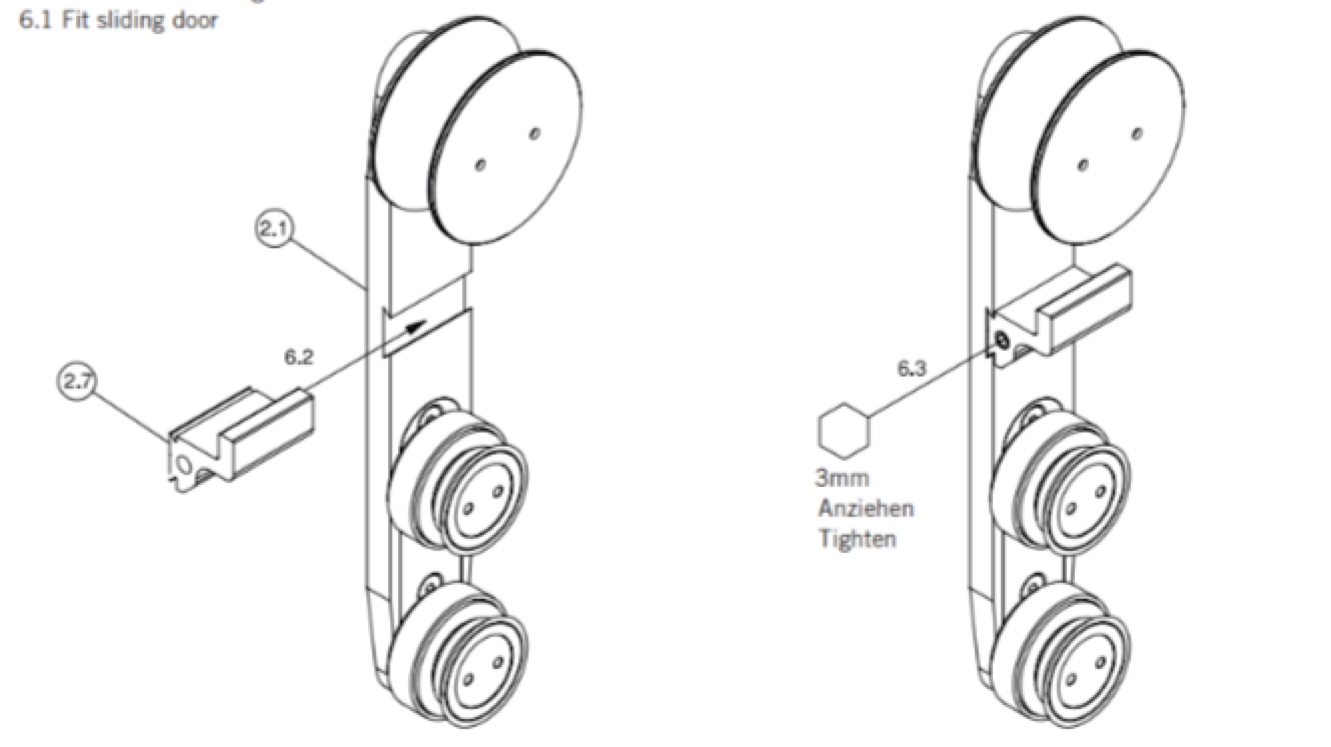

11. Installation of roller carrier TREND onto sliding door

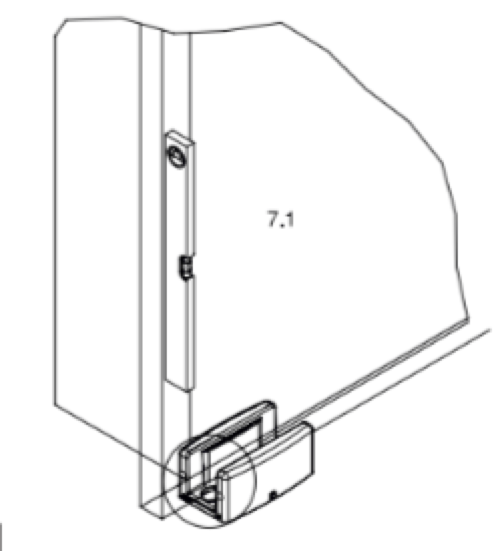

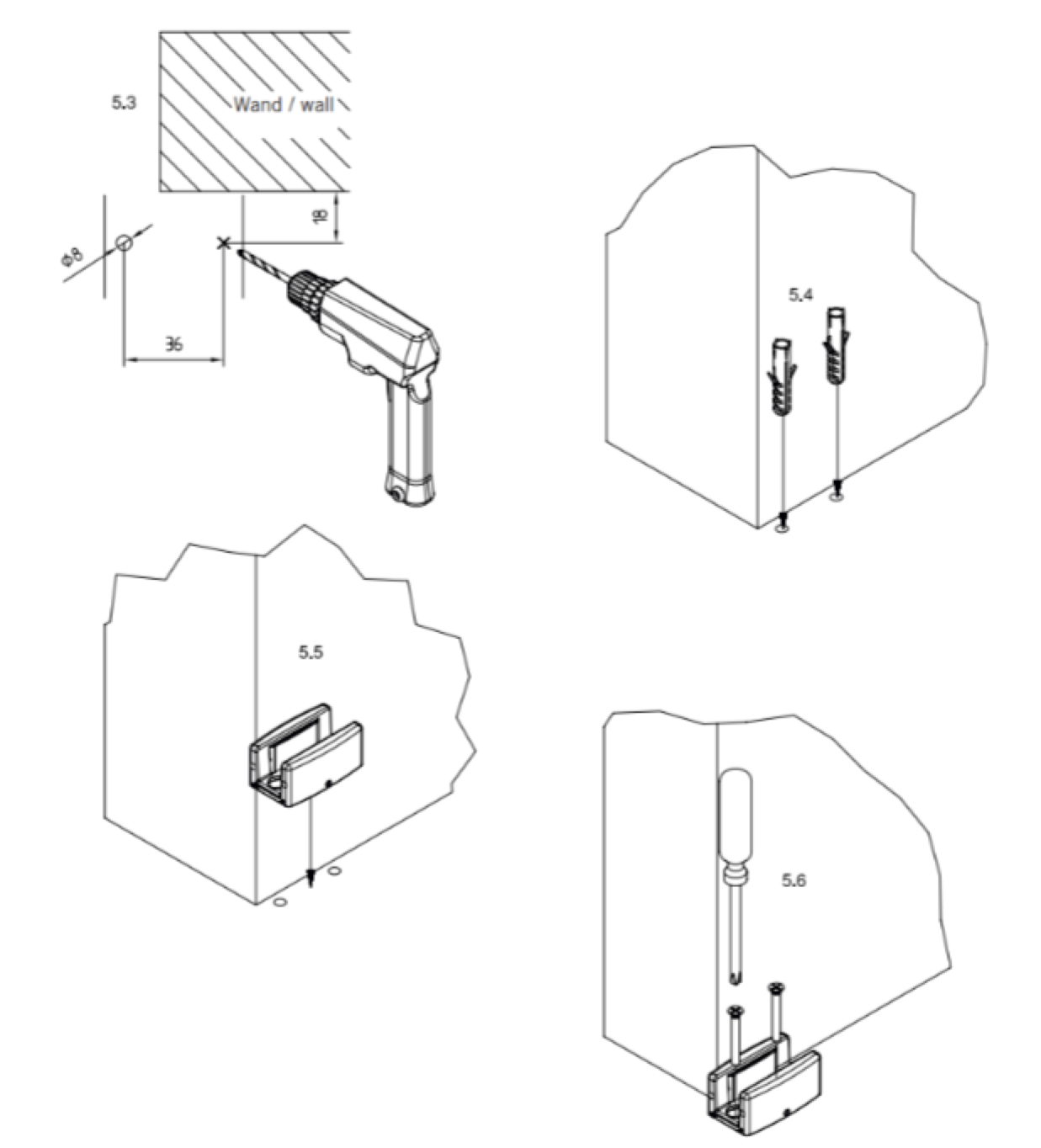

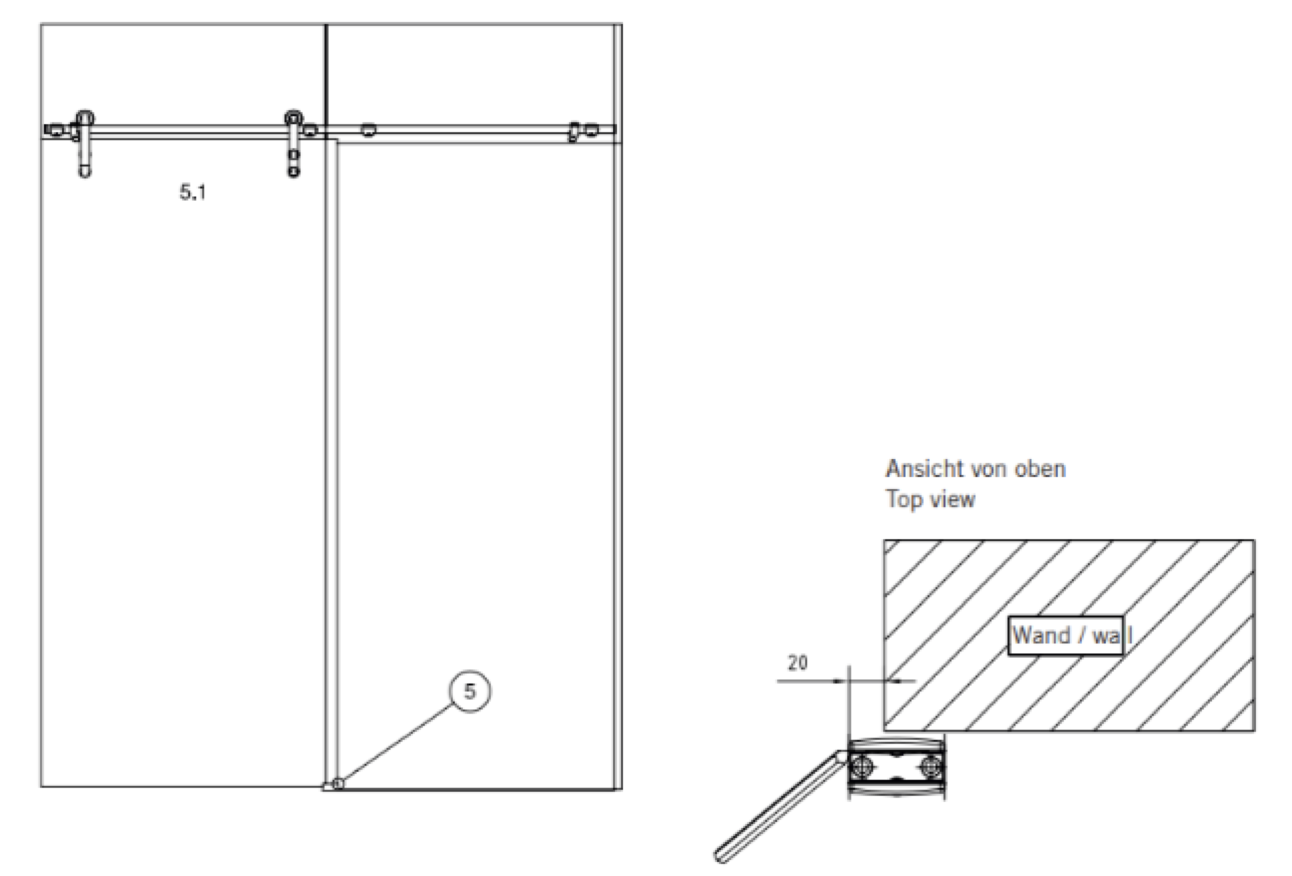

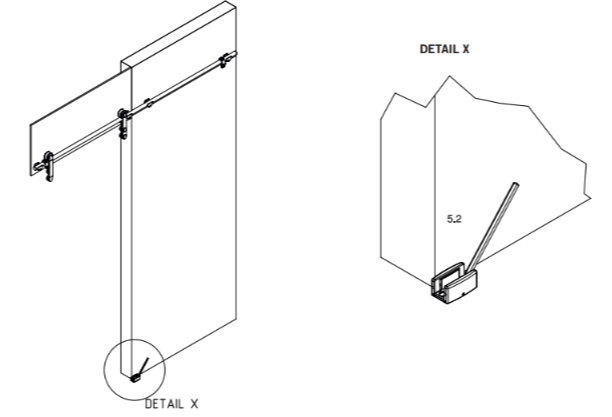

12. Installation of floor guide
1. Fit sliding door. Place, set up and mark the floor guide 5
2. Lift out sliding door and mark the holes
Delivered screws and plugs are not usable for all types of foundations. Please use suitable
fixing material according to foundation!

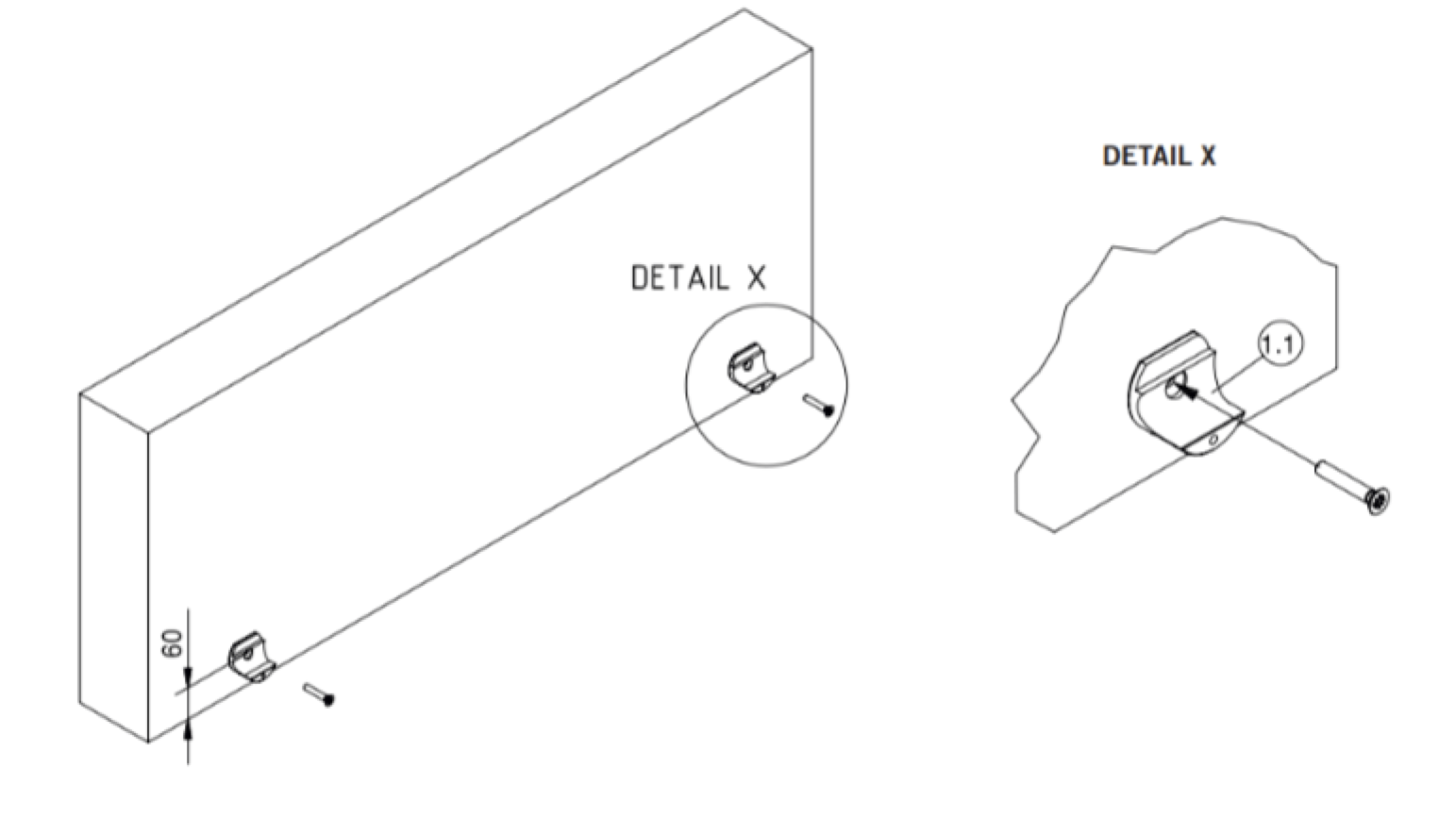

13. Installation of anti-jump device
All purpose for roller carrier TREND / CLASSIC

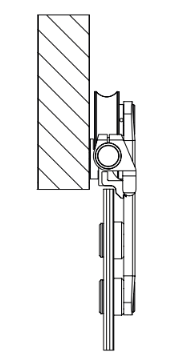

Anti-jump device for clamp fixing
- Fit sliding door
14. Adjustment of floor guide
- Adjustment of required glass thickness

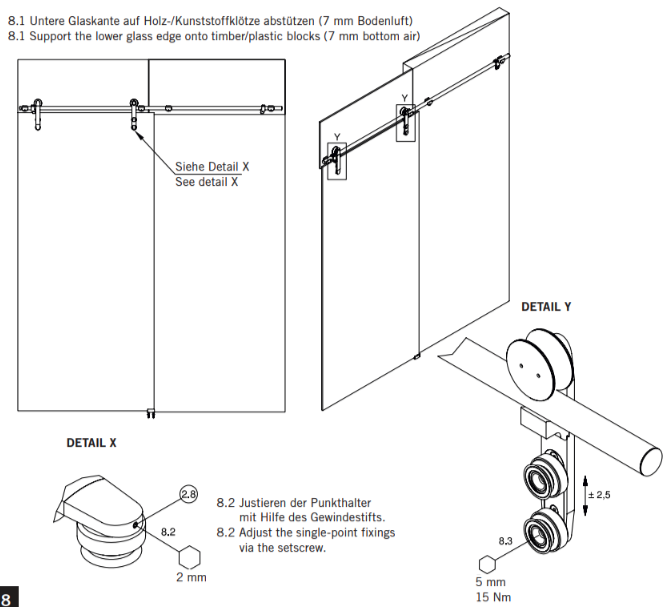

15. Adjustment of sliding door system

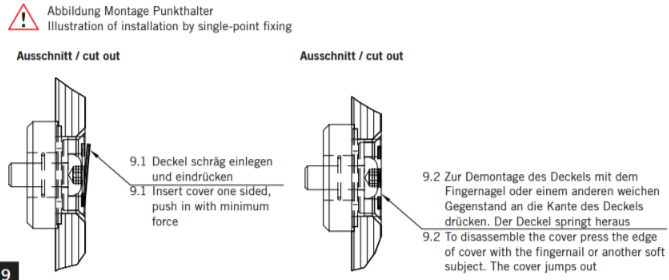

16. Installation of clip-on cover onto single-point fixing/clamp fixing

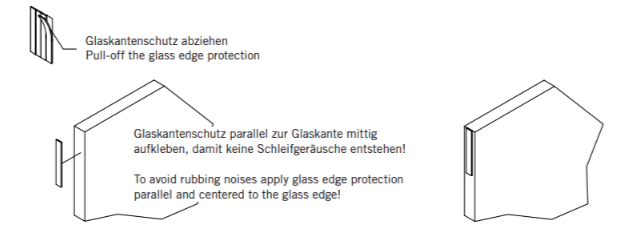

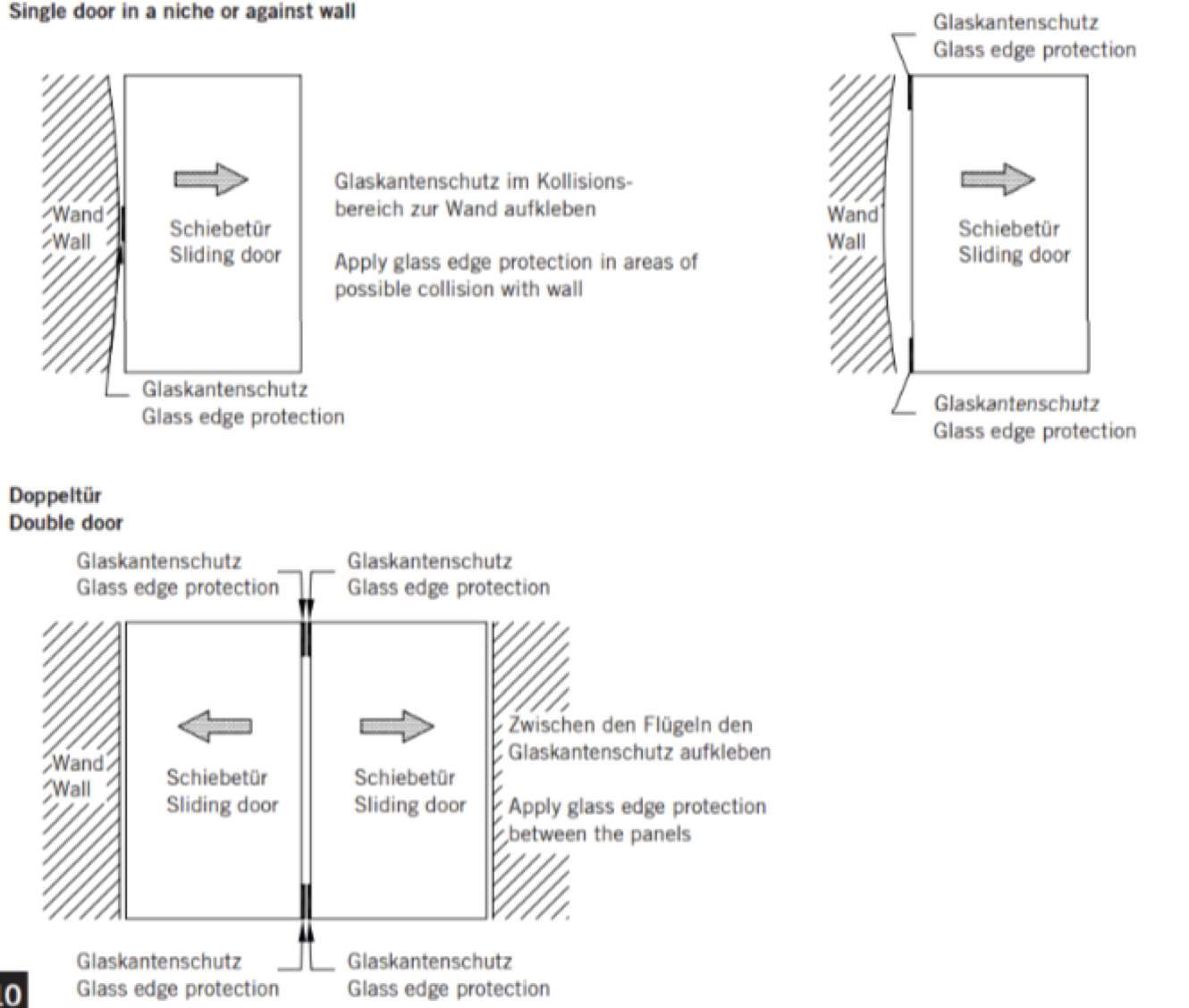

17. Glass edge protection
The glass edges have to be cleaned before applying glass edge protection. Only use glass cleaning products free from silicones and oils (e.g. acetone).
To attain the full adhesion, apply glass edge protection completely (without bubbles)!
