1. Opening the panels
TIPS AND RECOMMENDATIONS
The folding sliding wall’s panels are opened in pairs (folded). The interior panel pair is
always opened first. Afterwards, the remaining panel pairs are opened.
Requirements
• Operating personnel
Ensure:
• Panels are unlocked (Unlocking the panels).
TIPS AND RECOMMENDATIONS
Depending on the existing system type, the folding sliding wall can be opened in both
directions.
Caution!
Crushing hazard when moving the panels!
1. Carefully fold the inside panel pair (Fig. 1/1 or Fig. 2/1).

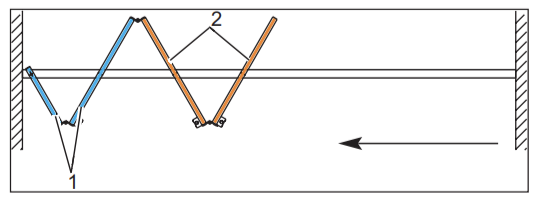

Fig. 1 Opening the inside panel pair – FSW EASY Safe

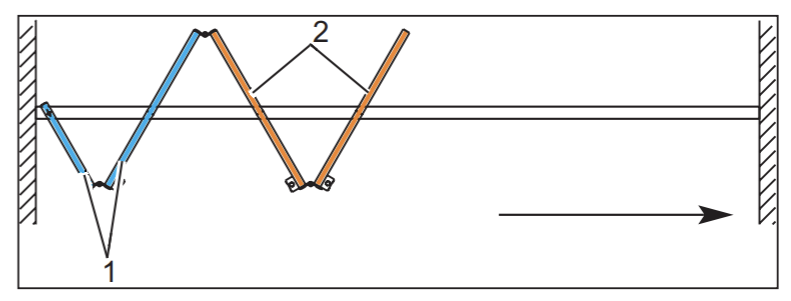

Fig. 2 Opening the panel – FSW EASY Safe-C/-C-Plus
2. When folding the FSW EASY Safe version, ensure that the outside panel pair (Fig. 1/2) remains
straight in the system configuration, until the inner panel pair is fully folded together.
For the FSW EASY Safe-C/-C-Plus variant, folding the inside panel pair (Fig. 2/1) also folds
the outside panel pair (Fig. 2/2).
Hold the panels steady when sliding.
→ The inside panel pair is folded (Fig. 3/1)

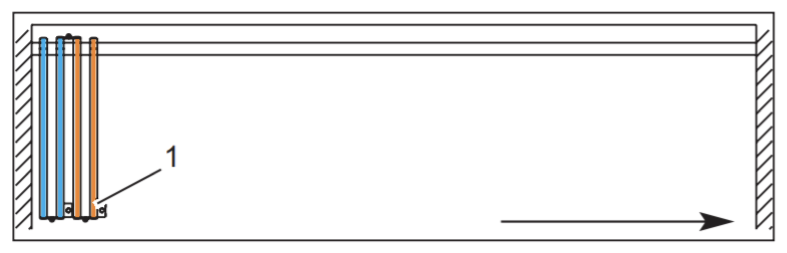

Fig. 3 Folded inside panel pair – FSW EASY Safe
→ The panels in the FSW EASY Safe-C/-C-Plus variant are opened (Fig. 4).

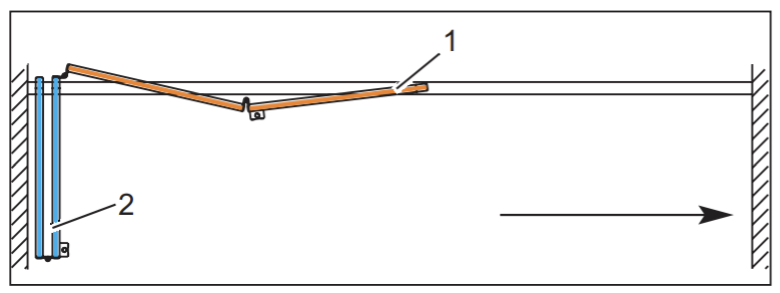

Fig. 4 Folded panel pair – FSW EASY Safe-C/-C-Plus
3. Carefully open and fold together the outside panel pair (Fig. 3/2). Hold the panel steady when
sliding.
4. If necessary, open additional panel pairs and carefully fold them in pairs over the track rail.
Hold the panel steady when sliding.
→ The folding sliding wall’s panels are opened (Fig. 5).
5. If necessary, secure the panels using the optional floor strikes

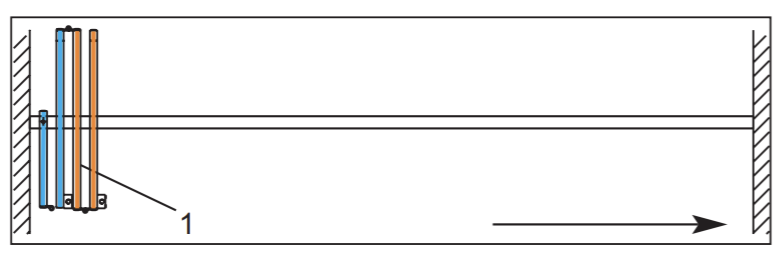

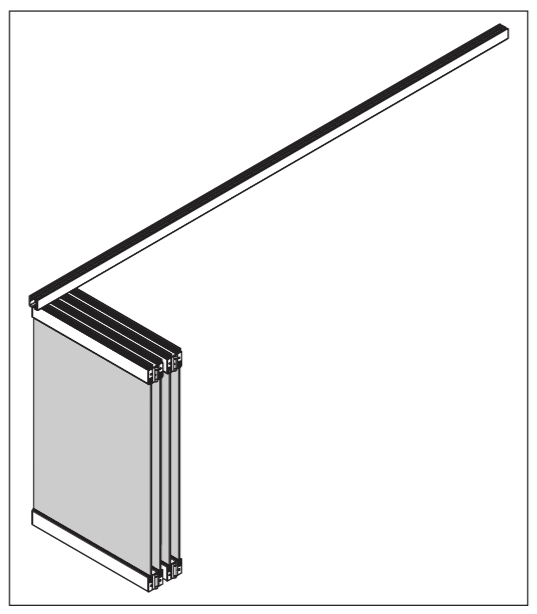

Fig. 5 Folded folding sliding wall (sample model) – FSW EASY Safe
2. Closing the panels
TIPS AND RECOMMENDATIONS
The folding sliding wall is closed by pushing back the panels in pairs to their starting
position.
Requirements
• Operating personnel
1. If necessary, unlock the panels from the floor strikes.
Caution!
Crushing hazard when moving the panels!
2. Carefully slide the outside panel pair (Fig. 17/1 or Fig. 18/1) until the panel pair in the
FSW EASY Safe variant is fully unfolded.
Hold the panel steady when sliding.

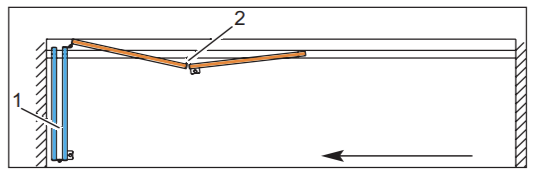

Fig. 6 Close panel pair – FSW EASY Safe
Fig. 7 Close panel pair – FSW EASY Safe-C/-C-Plus
→ The outside panel pair (Fig. 8/1) is unfolded in the FSW EASY Safe variant.

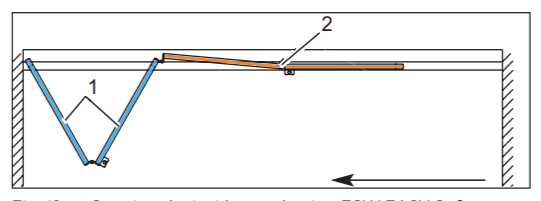

Fig. 8 Unfold panel pair – FSW EASY Safe
3. Carefully move the inside panel pair (Fig. 8/2) in the FSW EASY Safe variant until the panel pair is
fully unfolded. Hold the panels steady when sliding.
TIPS AND RECOMMENDATIONS
FSW EASY Safe-C/-C-Plus
In the FSW EASY Safe-C/-C-Plus variant (Fig. 20/1), the remaining panels follow
when sliding the outside panel pair (Fig. 20/2).
Fig. 9 Unfolding the panel pair – FSW EASY Safe-C/-C-Plus
4. If necessary, move and fold additional panel pairs. Hold the panels steady when sliding.
→ The folding sliding wall’s panels are closed (Fig. 10).
5. Lock the folding sliding wall if necessary (Locking the panels)

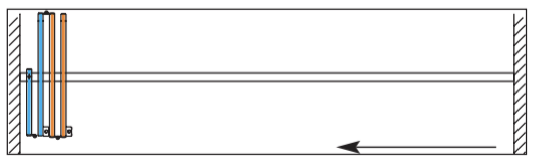

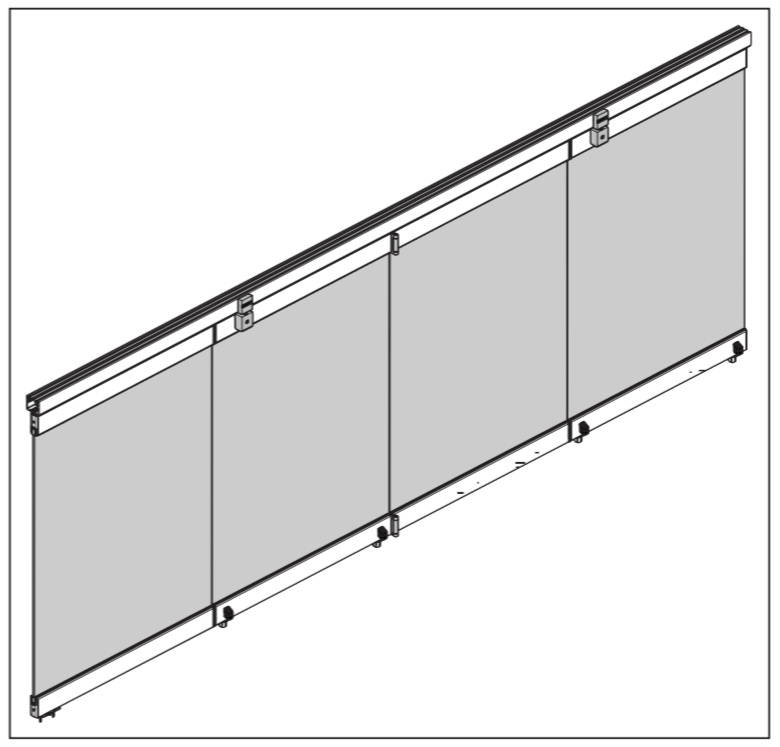

Fig. 10 Folding sliding wall closed (example illustration with FSW EASY Safe)
