1.Important information
Max. panel weight:
120kg with 2 roller carrier
Thickness of wood: 26mm-35mm
1 = Component
1.;1.1;... = Installation sequence

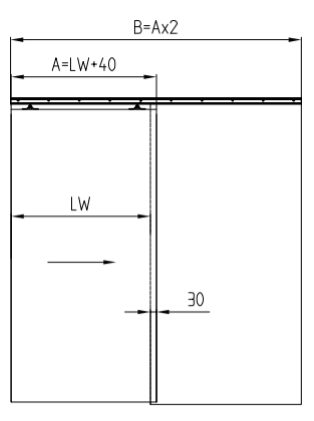

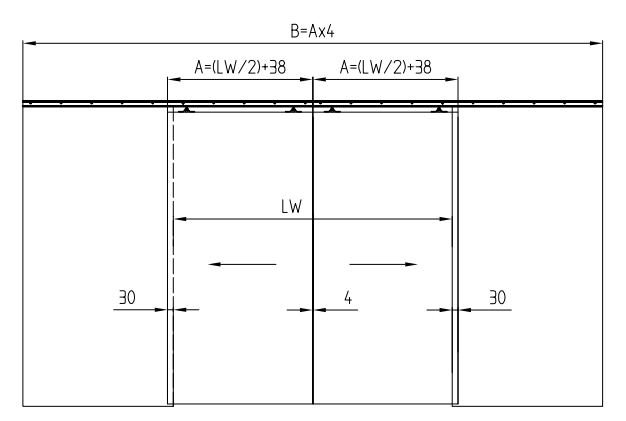

A = door width
B = length of track

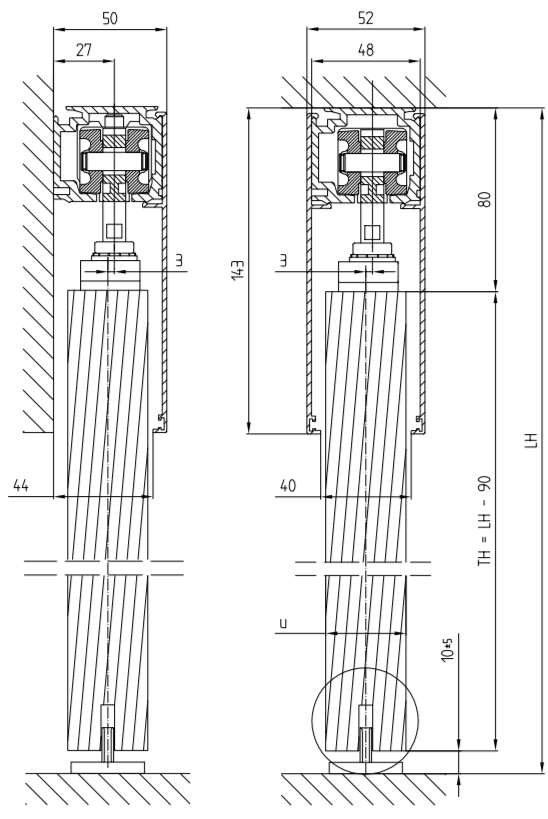

LW = clear opening width
LH = clear opening height
TH = door height
u = wooden thickness (26mm-35mm)
Precondition for installation of track is an aligned substructure or wall with a max. tolerance of 2mm per
meter.
A maintenance free period of min. 5 years is given with an appropriate handling and normal frequency of approx. 20 cycles per day. An appropriate handling means that the door is always guided by hand when moved.
For higher frequency we would recommend a maintenance contract between fitter and user for a yearly inspection.

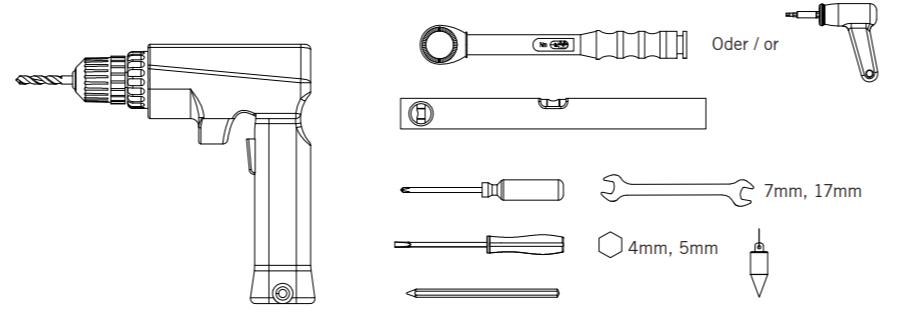

2. Requisite tool

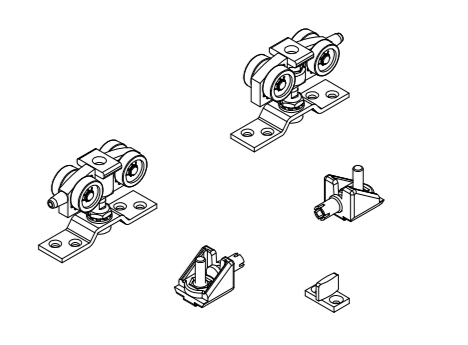

3. Scope of delivery
1 . . . . . . 2x Laufwagen Holztüranbindung / carrier wooden door application
2 . . . . . . 2x Endanschlag mit Fangvorrichtung / end stop with safty catch
3 . . . . . . 1x Bodenführung / floor guide

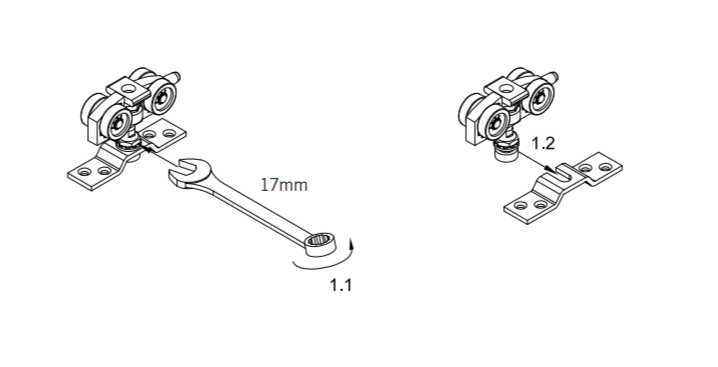

4. Preparation of roller carrier
Loosen locking nut

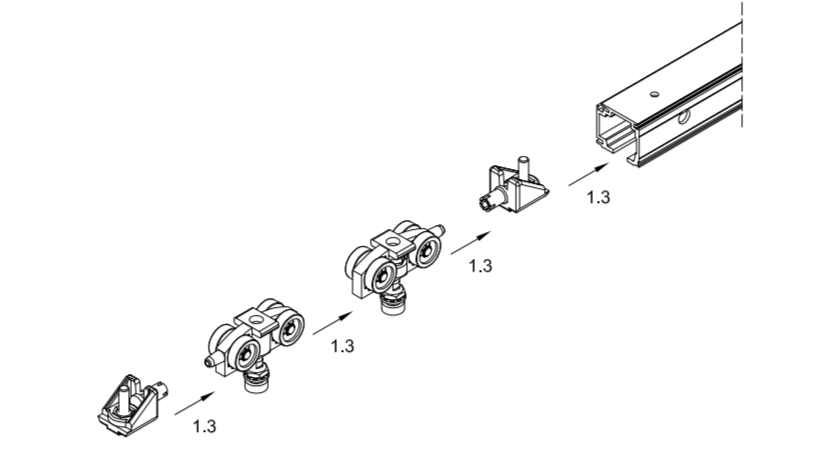

Insert carriers and end stops into the track
Observe the sequence of the parts!
5. Installation of track
Delivered screws and plugs are not usable for all types of foundation. Please use suitable fixing material according to foundation

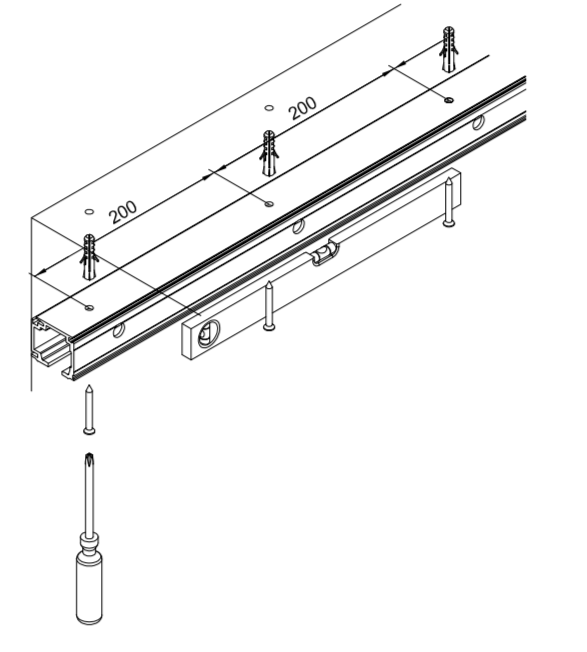

Installation to ceiling

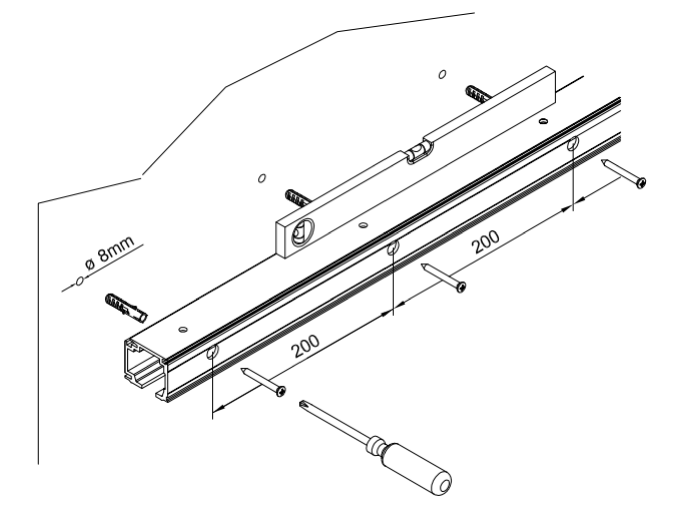

Installation to wall

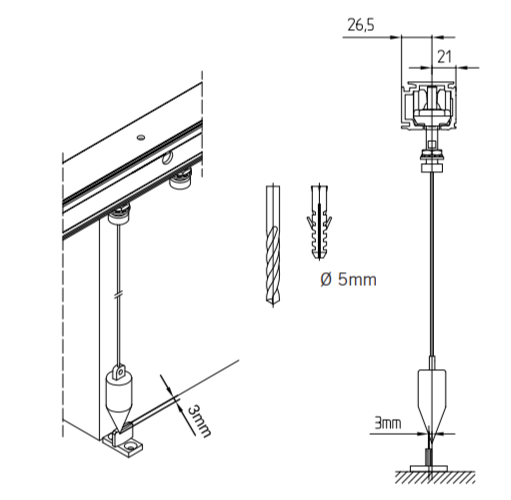

Installation of floor guide
Delivered screws and plugs are not usable for all types of foundation.
Please use suitable fixing material according to foundation
The position of floor guide is a result of form and position of pull handle

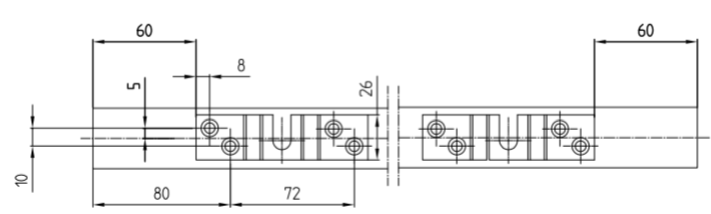

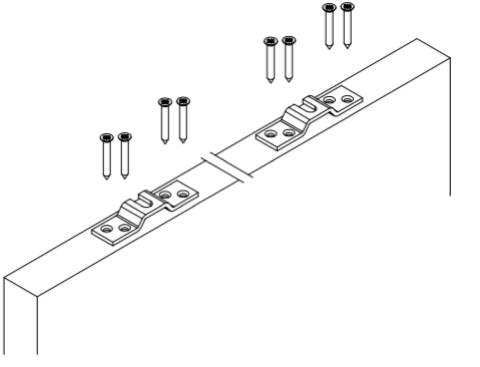

Installation of fixing plates
Delivered screws are not usable for all types of wooden doors. Screws are to be selected
according to type of door being installed!

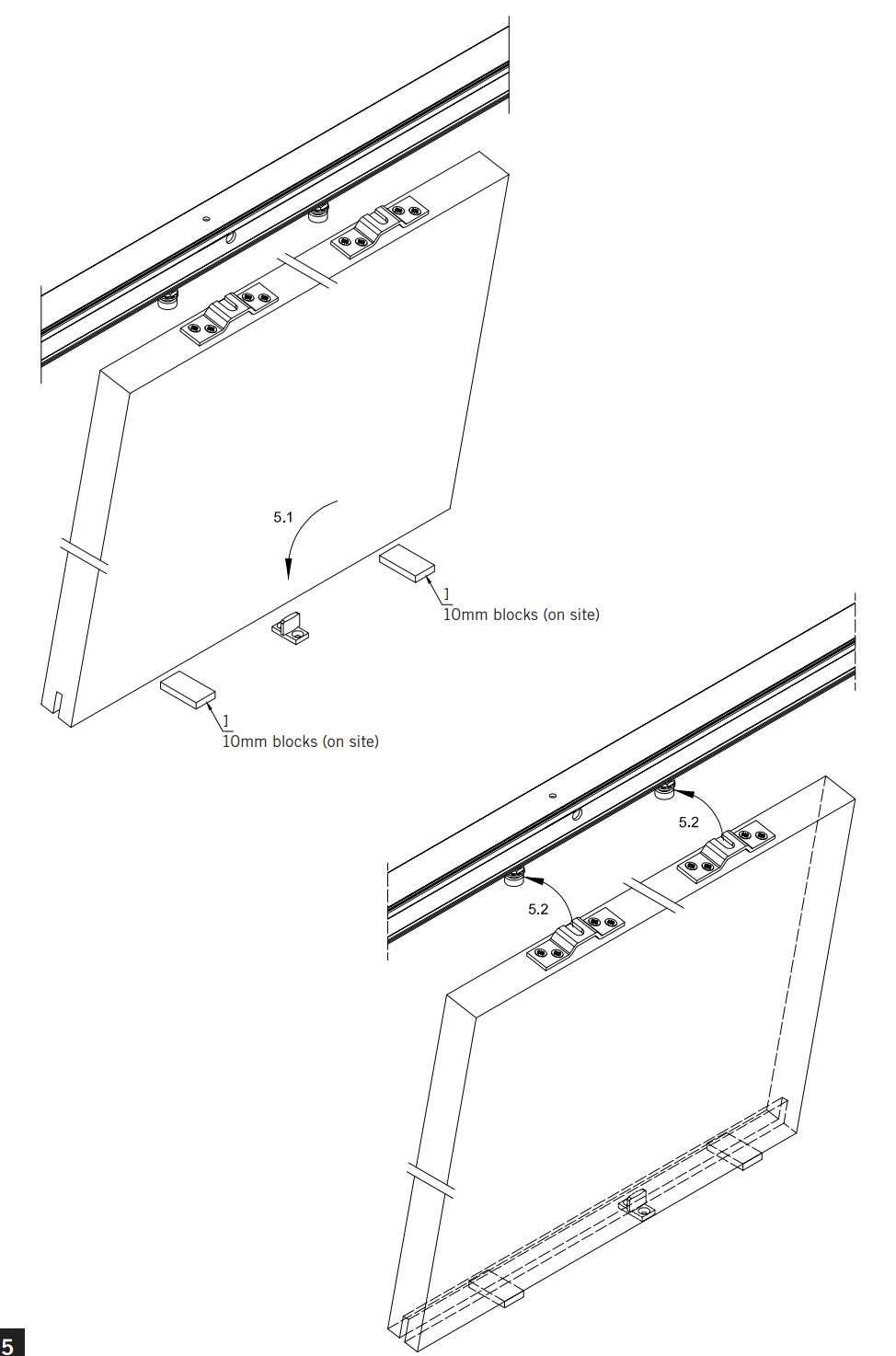

Installation of sliding door

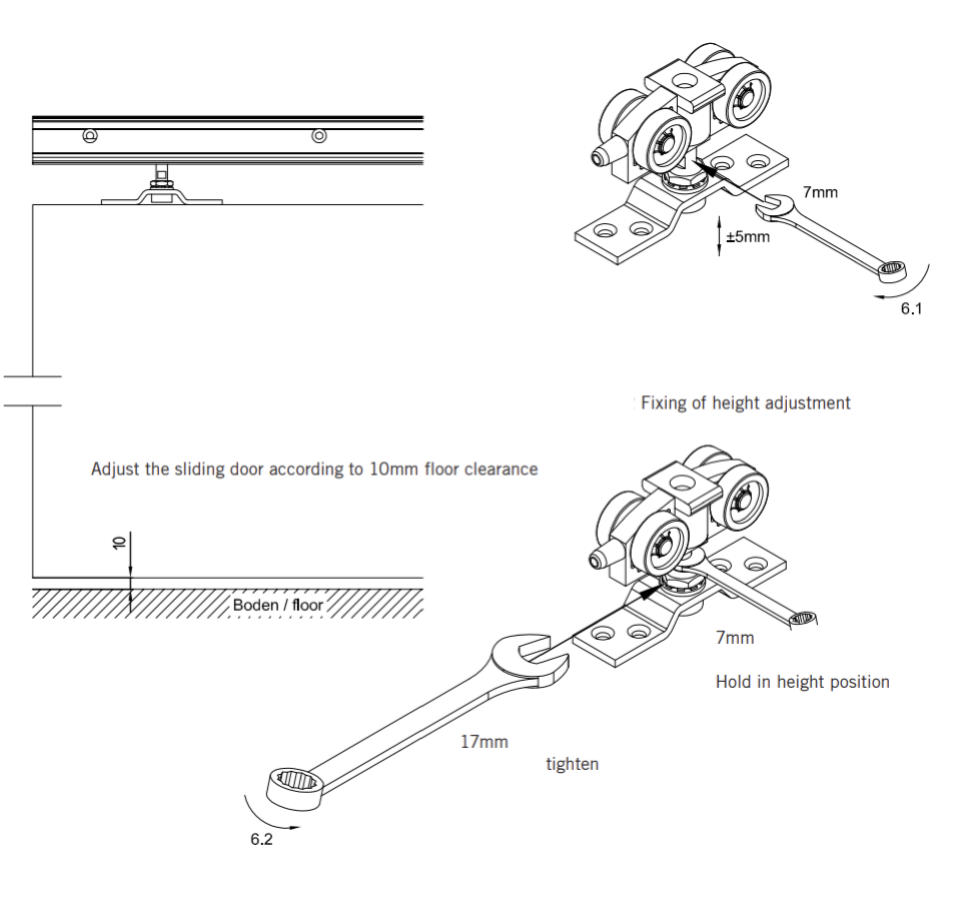

Height adjustment of sliding door

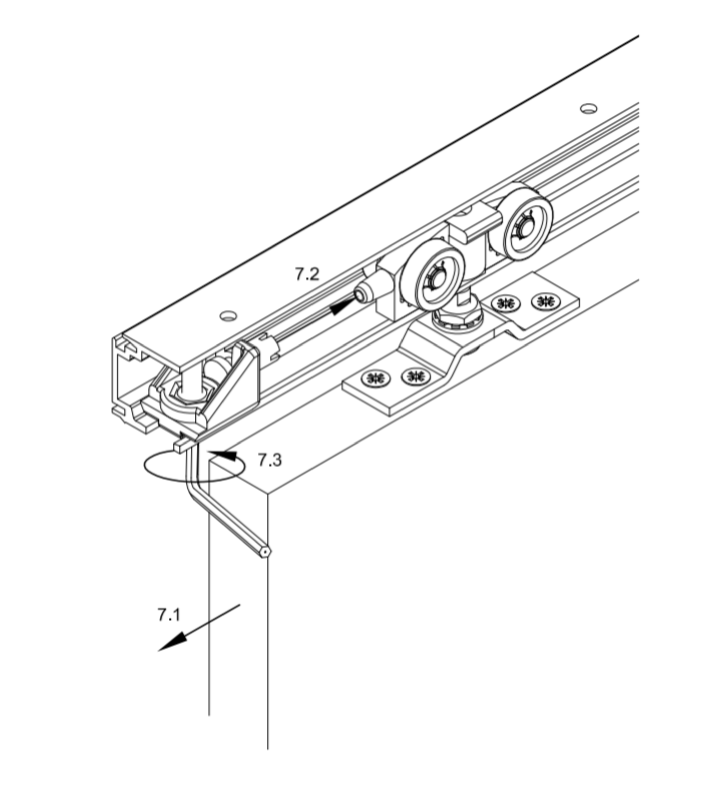

Adjustment of end stops with safety catch
Close and open the sliding door completely

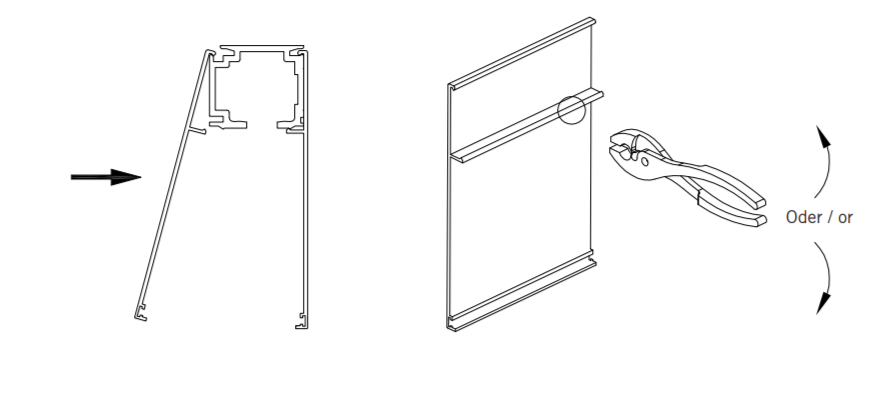

Attach cover profiles
Loose clip on:
Bent the middle clip with a pliers on 3-4 times upwards along total length of cover
Tight clip on:
Bent the middle clip with a pliers on 3-4 times downwards along total length of cover
