Important information:

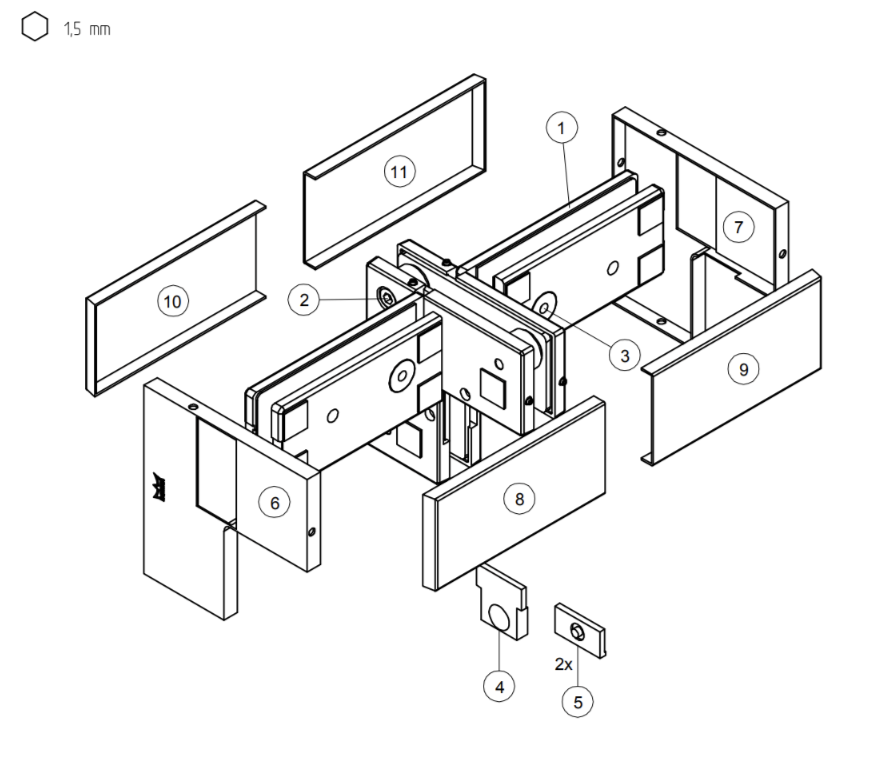

1 = Component
1. ; 1.1 ; ... = Mounting sequence
All glass clamping areas are to be cleaned with standard glass cleaning products prior to installation.
Do not use thinners

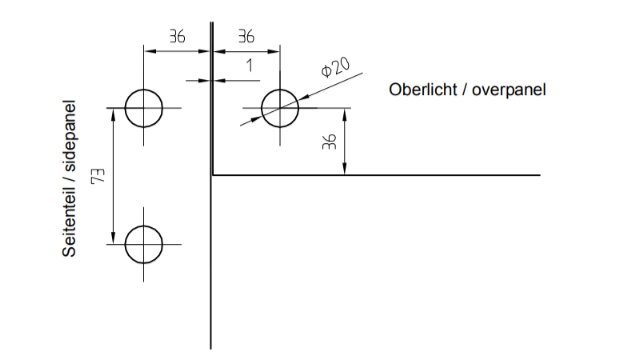

Glass preparation:
Requisite tools:

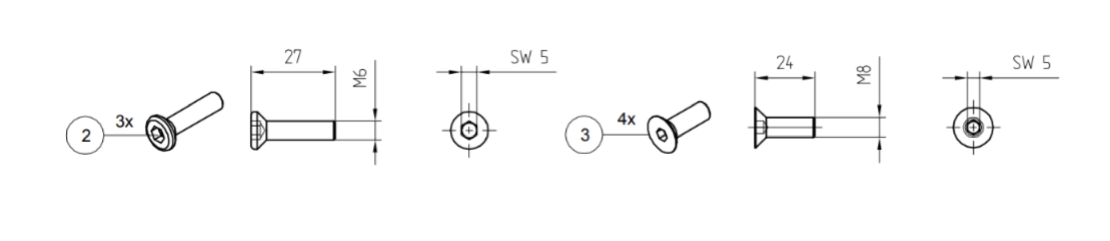

Scope of delivery:
Preparation of the base unit:
Dispose the spacer

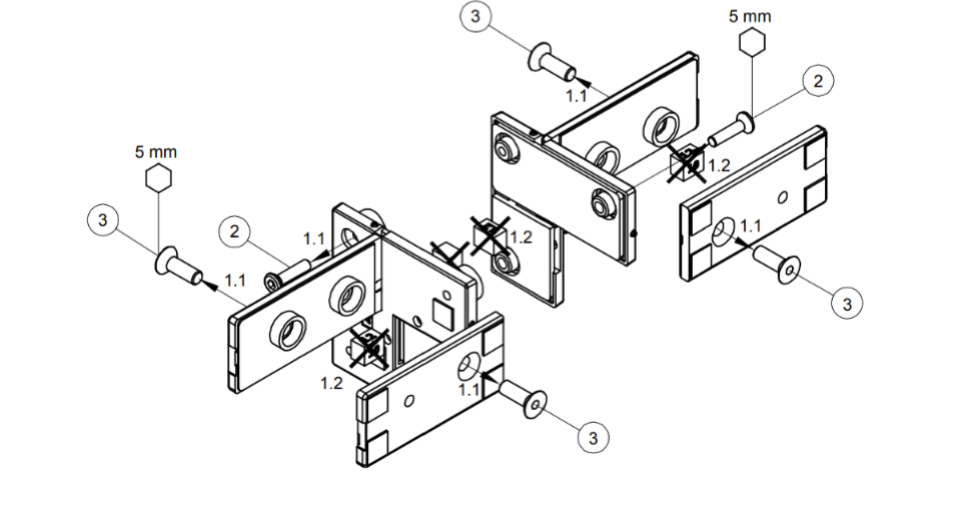

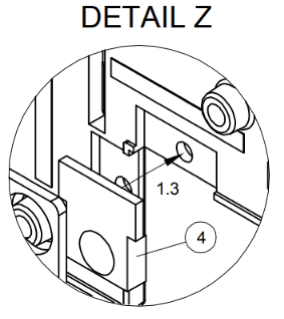

3 Before stick on the gasket, insert the applications 4 / 5 .

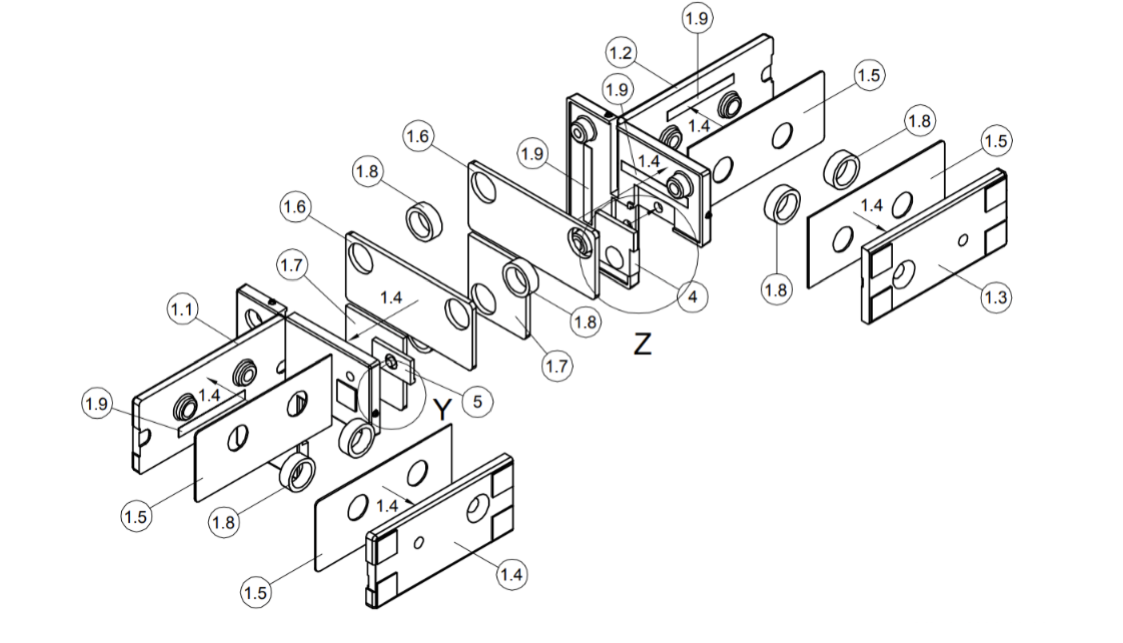

Pull off the backing tape 1.9 and stick on the gasket 1.5 / 1.6 / 1.7 into right place.

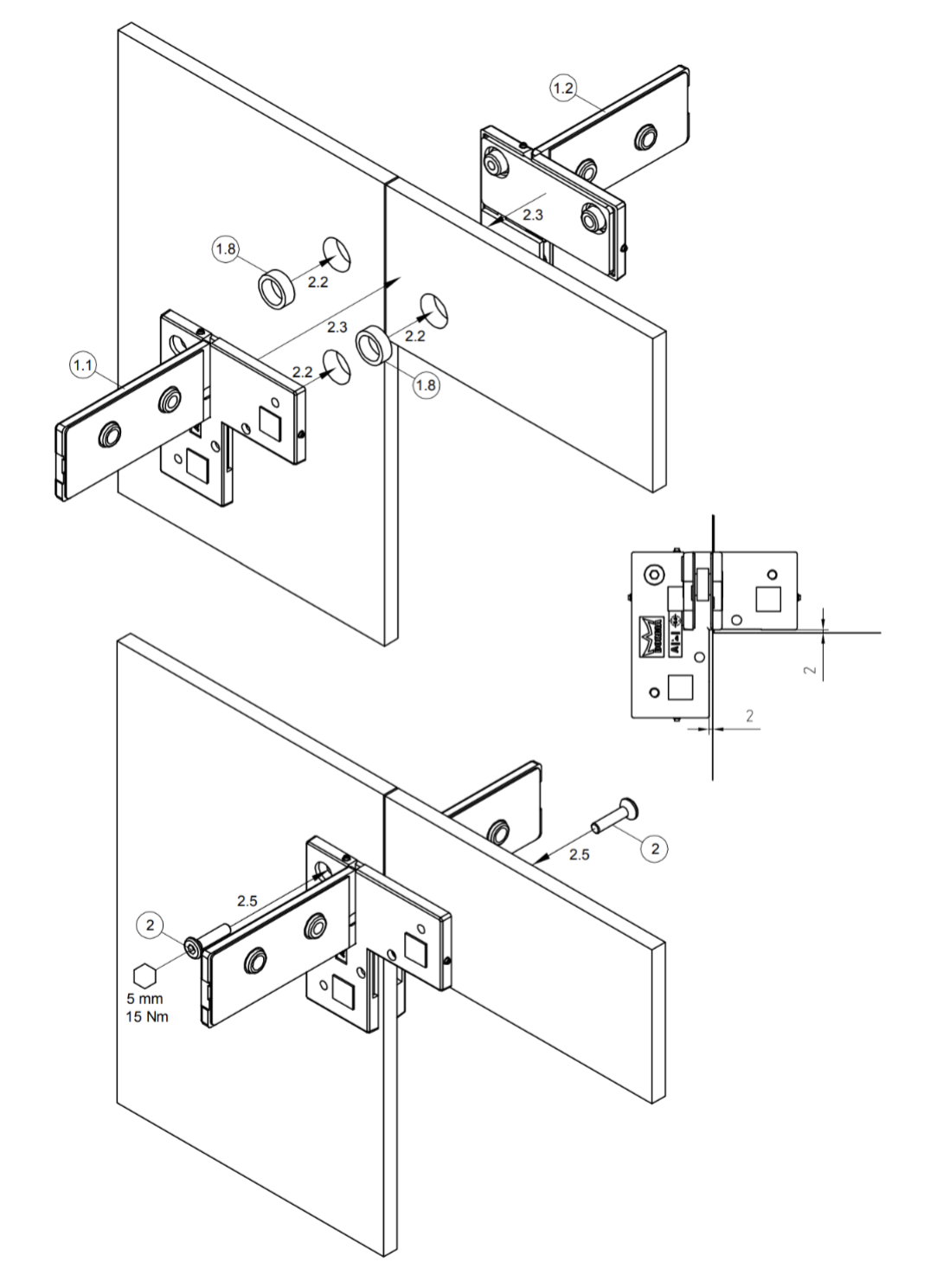

Installation of base unit:

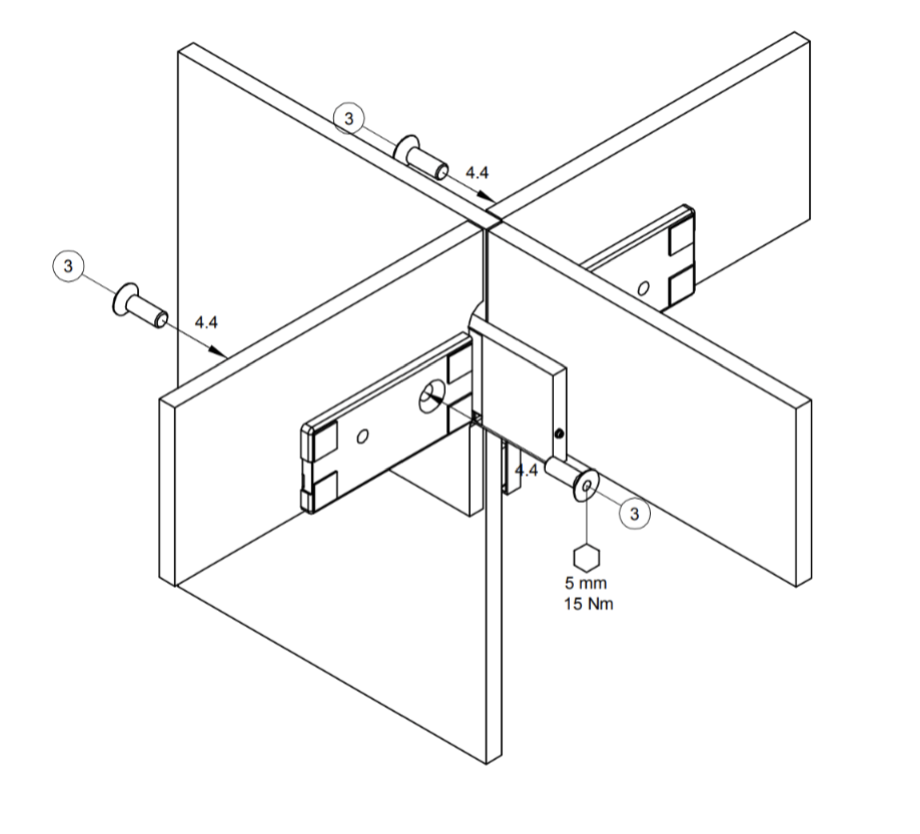

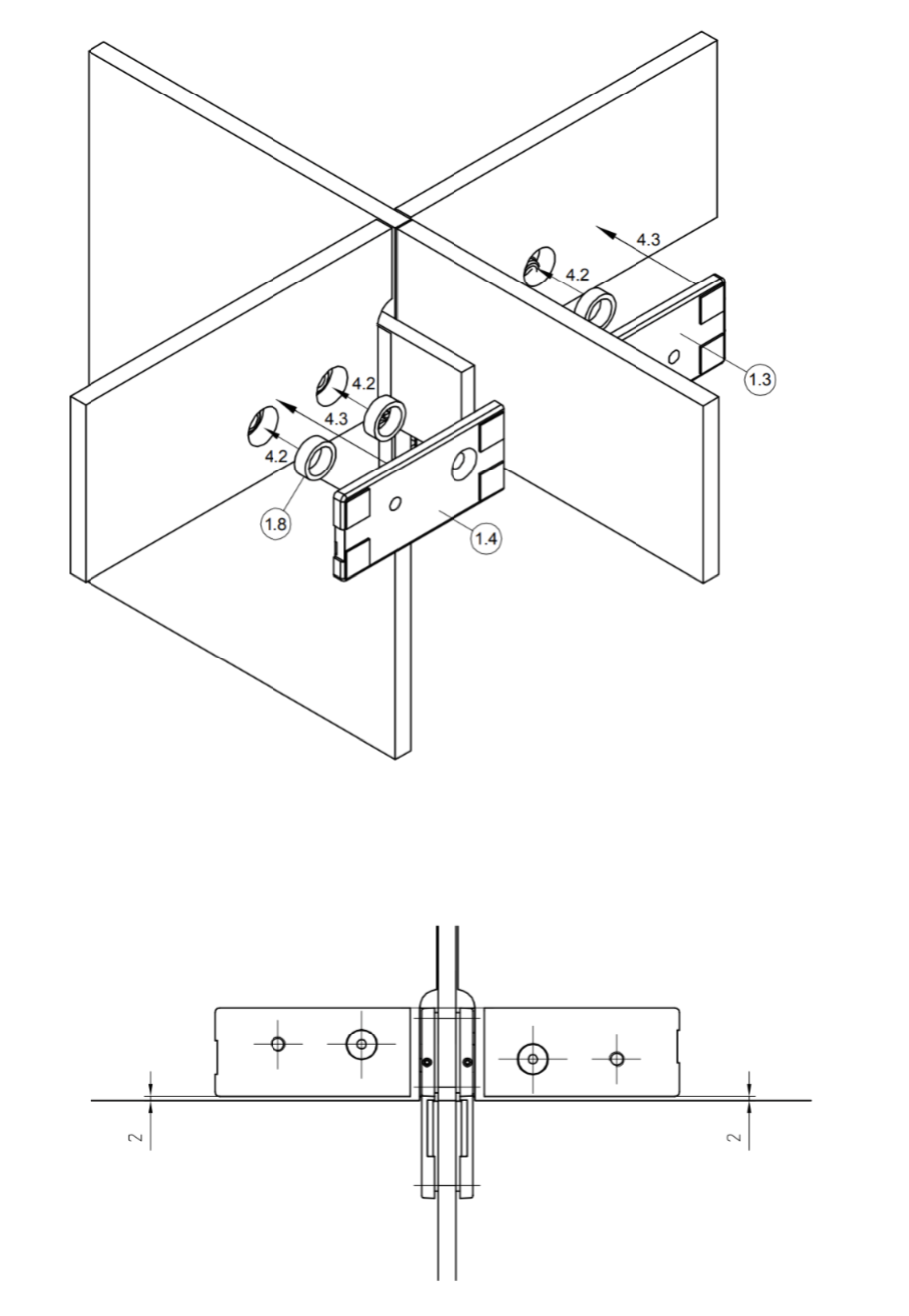

1. Fixing of overpanel and sidepanel (e.g. with wall connecting profil).
Installation of the cover caps:

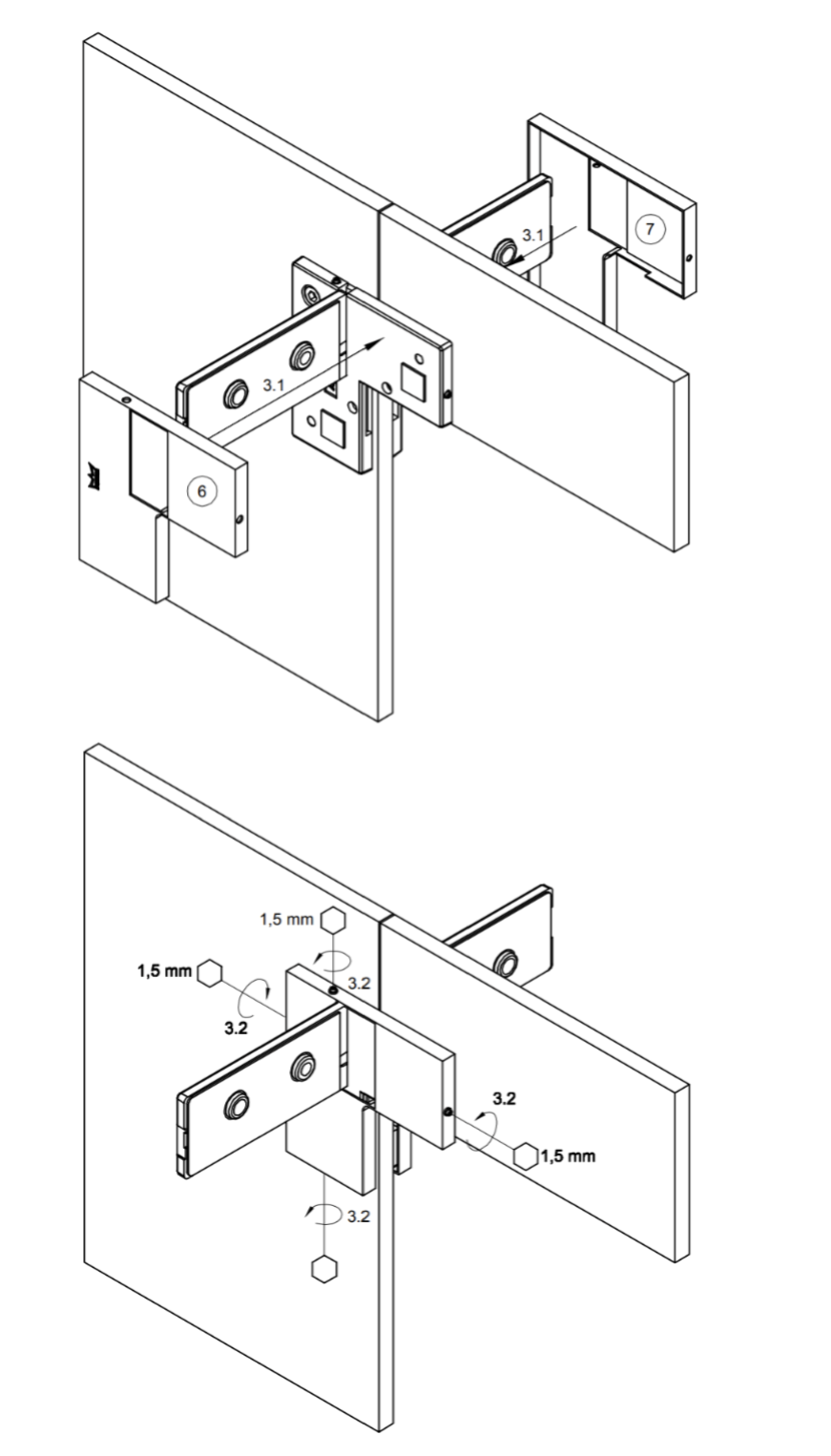

1. Loosen grub screws and fix the cover caps.
Installation of the counter plates:

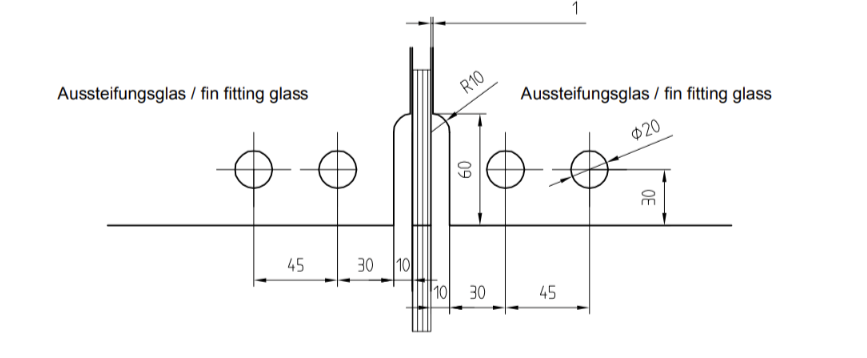

1. Attach the fin fitting glass (e.g. with wall connecting profile).

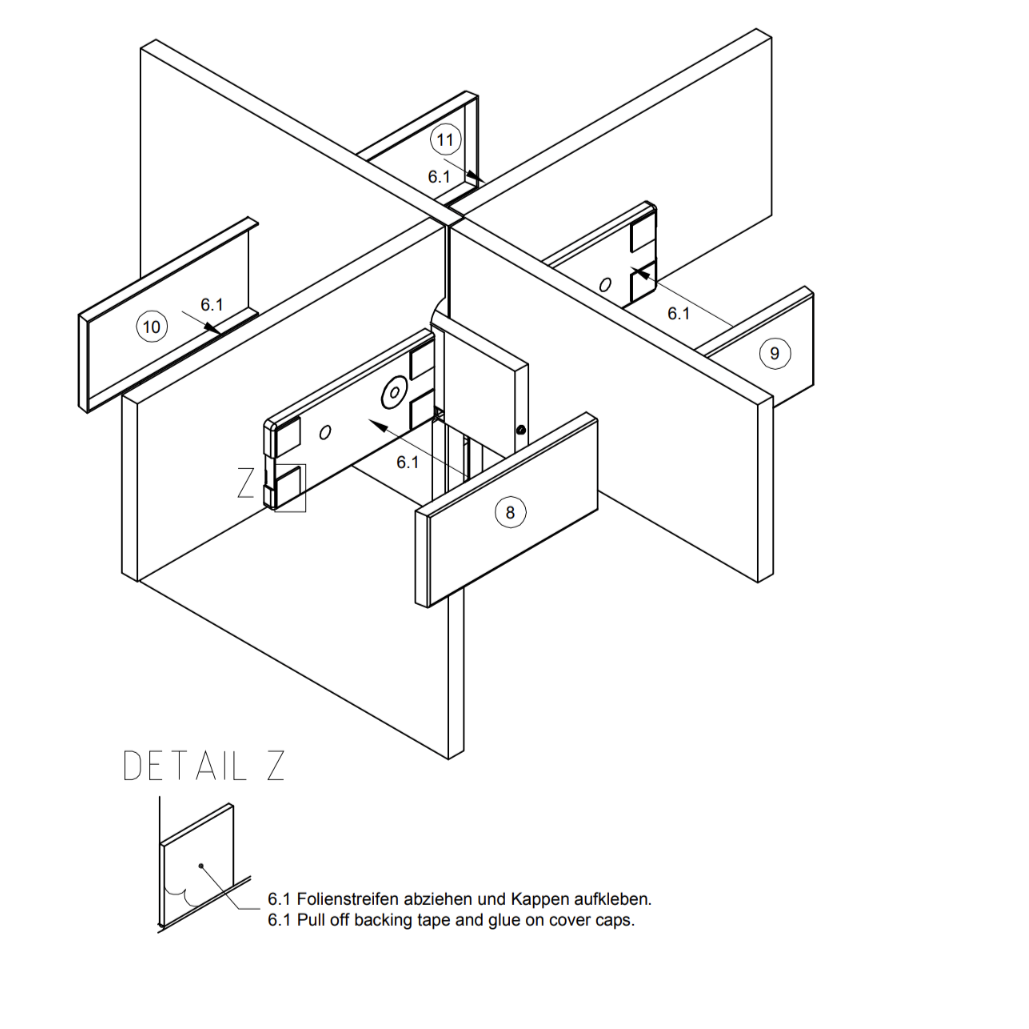

Installation of cover caps:
General care instructions:
The surface finishes of the fittings are not maintenance-free and should be cleaned according to
their material and design.
- For metallic surfaces (anodised finishes, stainless steel) please use appropriate cleaning
agents without abrasive additives only.
- For varnished surfaces please use appropriate solvent-free cleaning agents only.
- Brass surfaces (without surface protection) have to be treated with an appropriate maintenance agent
on occasoin , to avoid tarnishing.
Service and maintenance:
We recommend to check the function of the fitting all500.000 movements by specialists.
