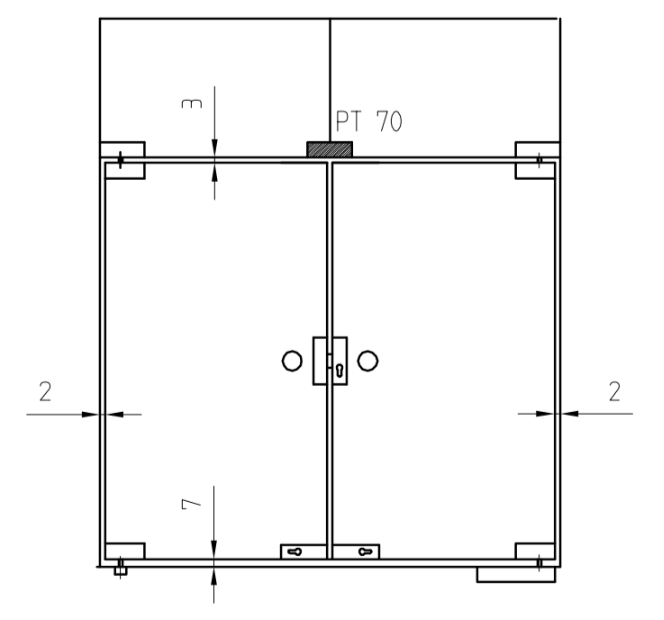

1. Important information:
| Component | |
| 1. ; 1.1 ; ... | Mounting sequence |
All glass clamping areas are to be cleaned with standard glass cleaning products prior to installation.
Do not use thinner.

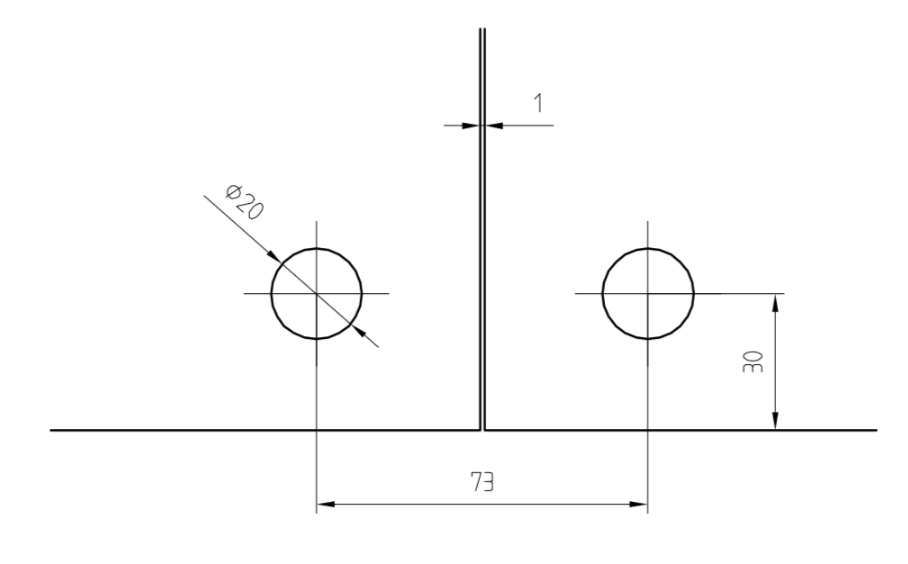

2. Glass preparation:

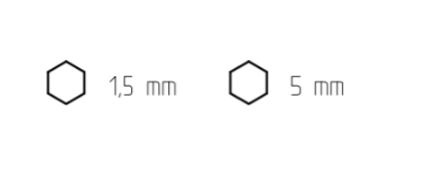

3. Requisite tools:

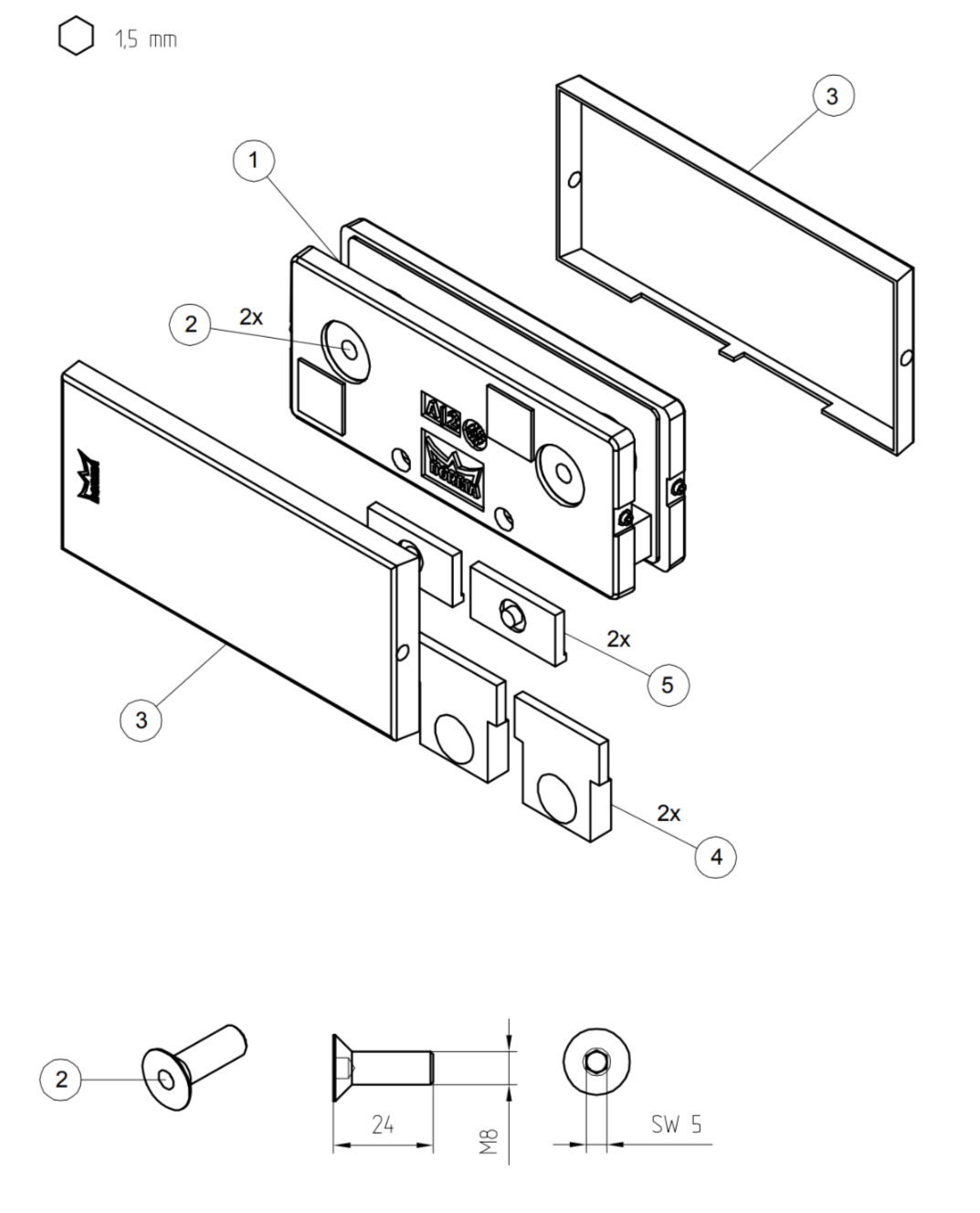

4. Scope of delivery:

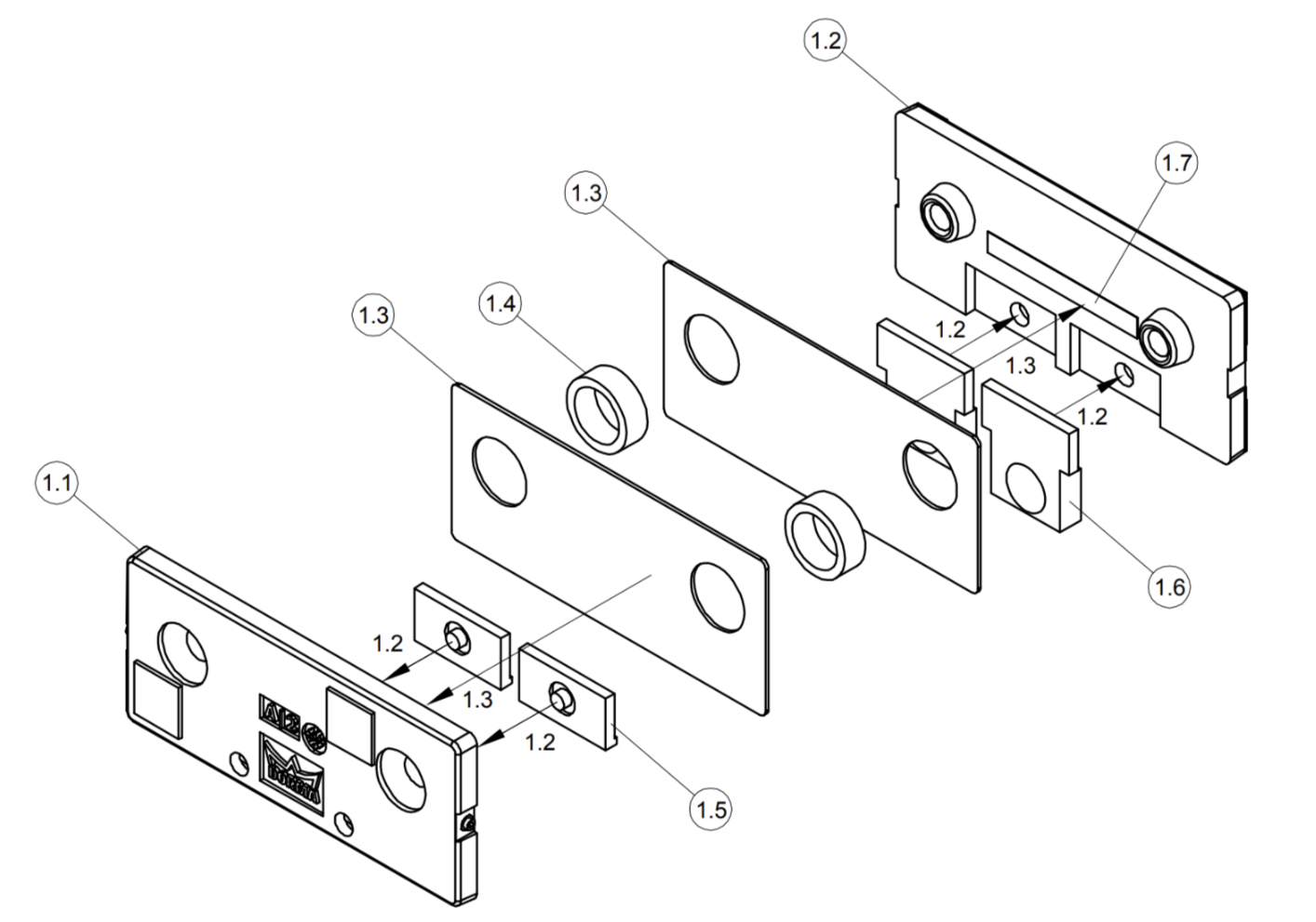

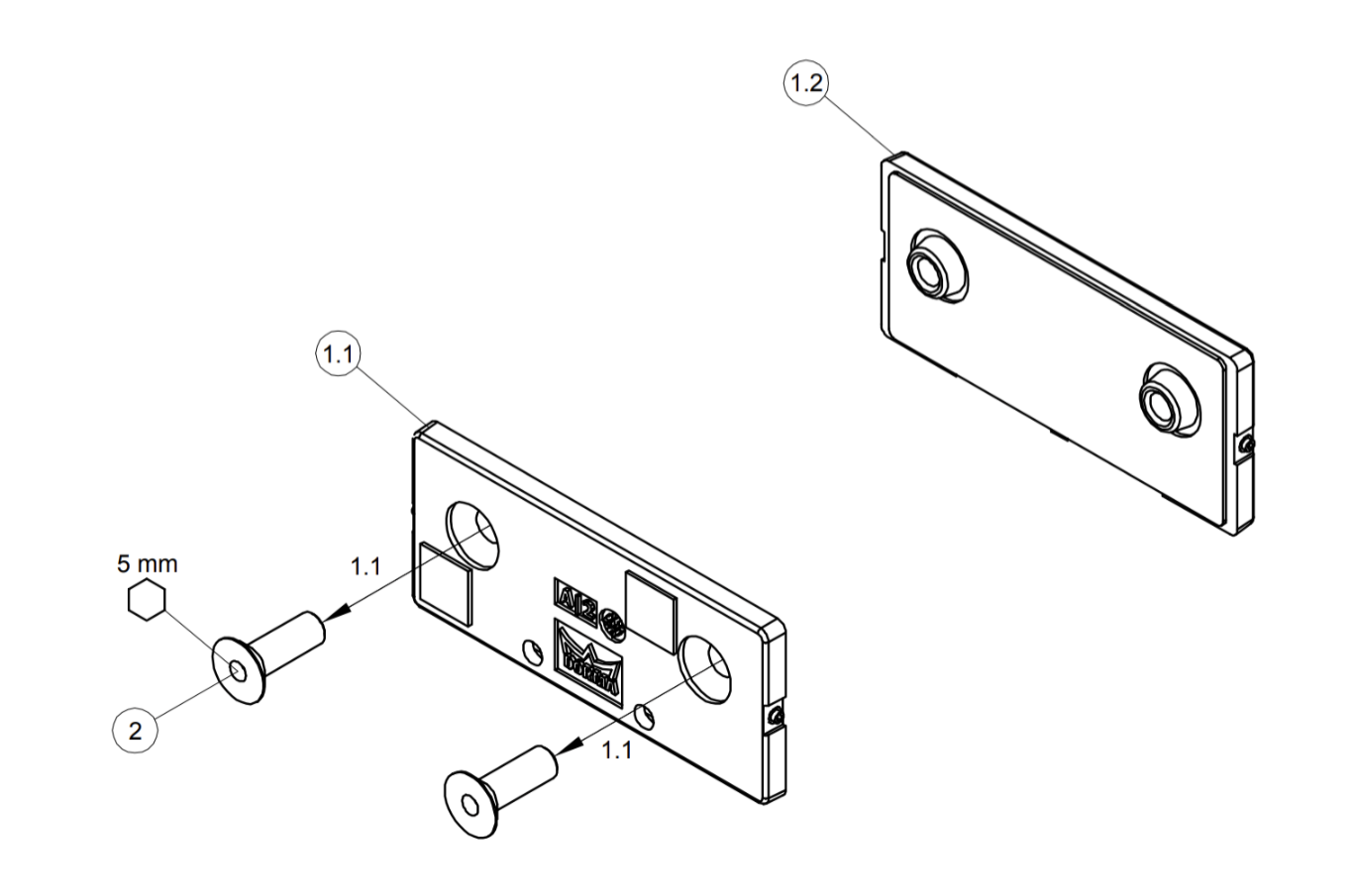

5. Preparing of the base unit:
- Positioning of blank insert 1.5 and stop insert 1.6
Pull off the backing tape 1.7 and stick on the gasket 1.3 into right place.

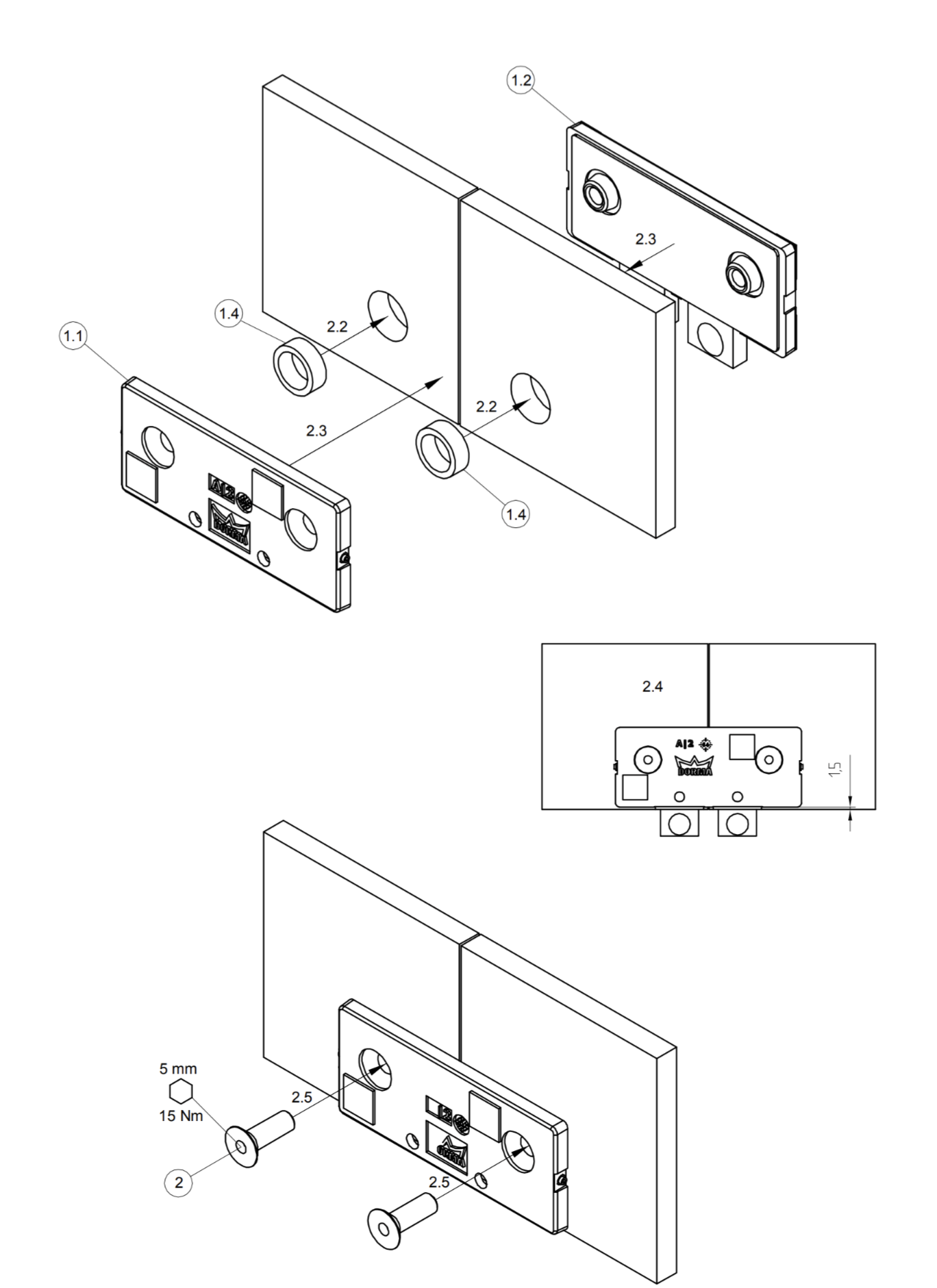

6. Installation of base unit:
Fix overpanel at ceiling(e.g. with wall connecting profil).

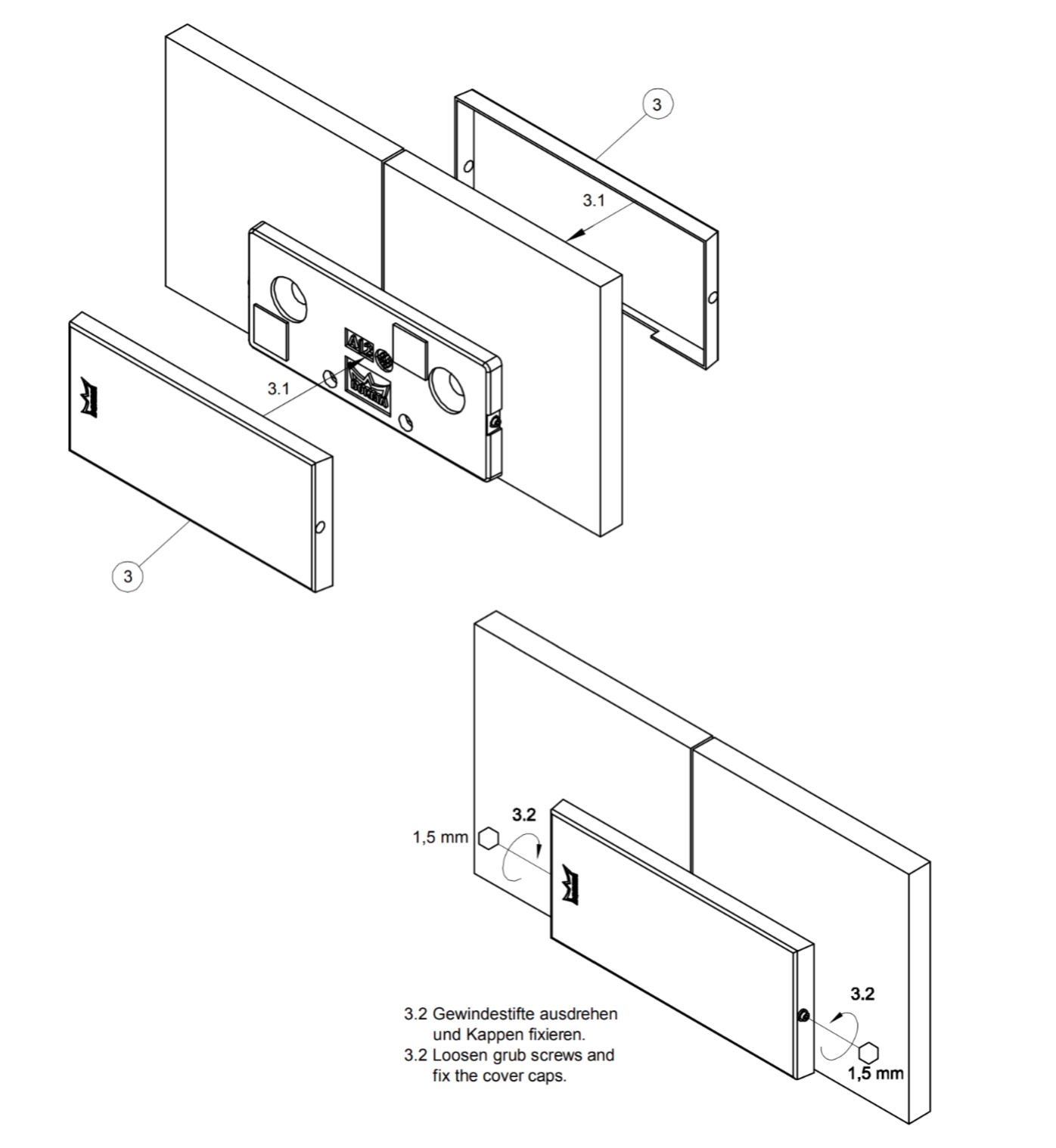

3. Installation the cover caps:
General care instructions:
The surface finishes of the fittings are not maintenance-free and should be cleaned according to their material and design.
- For metallic surfaces (anodised finishes, stainless steel) please use appropriate cleaning agents without abrasive additives only.
- For varnished surfaces please use appropriate solvent-free cleaning agents only.
- Brass surfaces (without surface protection) have to be treated with an appropriate maintenance agent on occasoin, to avoid tarnishing.
Service and maintenance:
We recommend to check the function of the fitting all 500.000 movements by specialists.
