The installation is shown with the bottom patch fitting as example. It is analog for all listed patch fittings in the chart below.
| Art.-No | Description | rebate depth | door strap | glass thickness |
| 02.100/101 | bottom patch fitting | - | 36mm | 10/12mm |
| 02.110/101 | top patch fitting | - | 36mm | 10/12mm |
| 02.102/103 | bottom patch fitting with counter-plate shortened at side | 24mm | 42mm | 10mm |
| 02.104/105 | bottom patch fitting with counter-plate shortened at bottom and side | 24mm | 42mm | 10mm |
| 02.112/113 | top patch fitting with counter-plate shortened at side | 24mm | 42mm | 10mm |
| 02.114/115 | top patch fitting with counter-plate shortened at top and side | 24mm | 42mm | 10mm |
| 02.160/161 | bottom patch fitting with counter-plate shortened at side | 24mm | 40mm | 12mm |
| 02.162/163 | bottom patch fitting with counter-plate shortened at bottom and side | 24mm | 40mm | 12mm |
| 02.164/165 | top patch fitting with counter-plate shortened at side | 24mm | 40mm | 12mm |
| 02.166/167 | top patch fitting with counter-plate shortened at top and side | 24mm | 40mm | 12mm |
| 02.106/107 | bottom patch fitting with counter-plate shortened at side | 15-23mm 25-40mm | 33-41mm 43-58mm | 10mm |
| 02.108/109 | bottom patch fitting with counter-plate shortened at bottom and side | 15-23mm 25-40mm | 33-41mm 43-58mm | 10mm |
| 02.116/117 | top patch fitting with counter-plate shortened at side | 15-23mm 25-40mm | 33-41mm 43-58mm | 10mm |
| 02.118/119 | top patch fitting with counter-plate shortened at bottom and side | 15-23mm 25-40mm | 33-41mm 43-58mm | 10mm |
Important information:

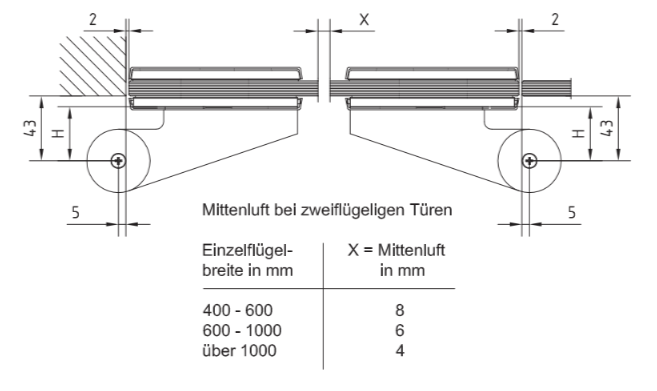

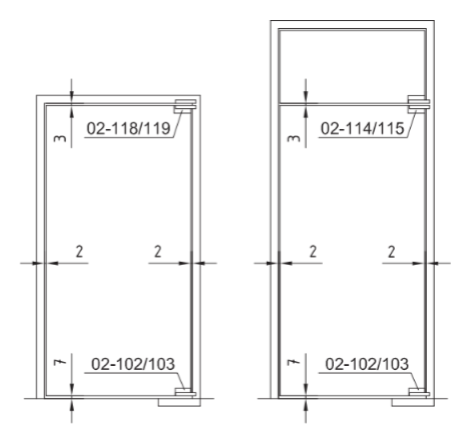

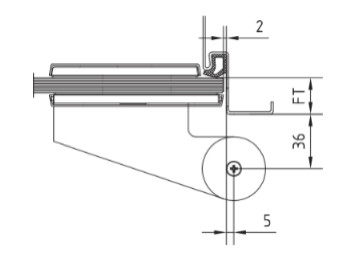

Offset hung doors in rebated frames

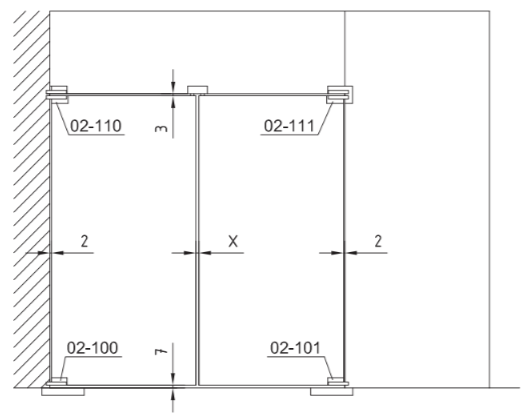

Offset hung doors in toughened glass assemblies

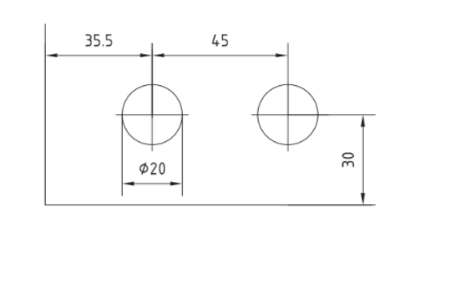

Glass preparation:
1 = Component
1.1 ; 1.2 ; ... = Mounting sequence
All glass clamping areas are to be cleaned prior to Installation. Only use glass cleaning products, free from silicones and oil(e.g. acetone)
Do not use thinners

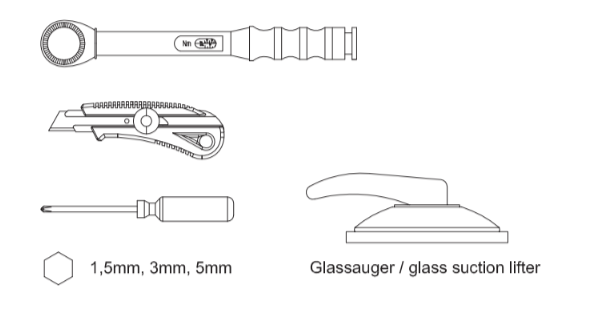

Requiste tool:

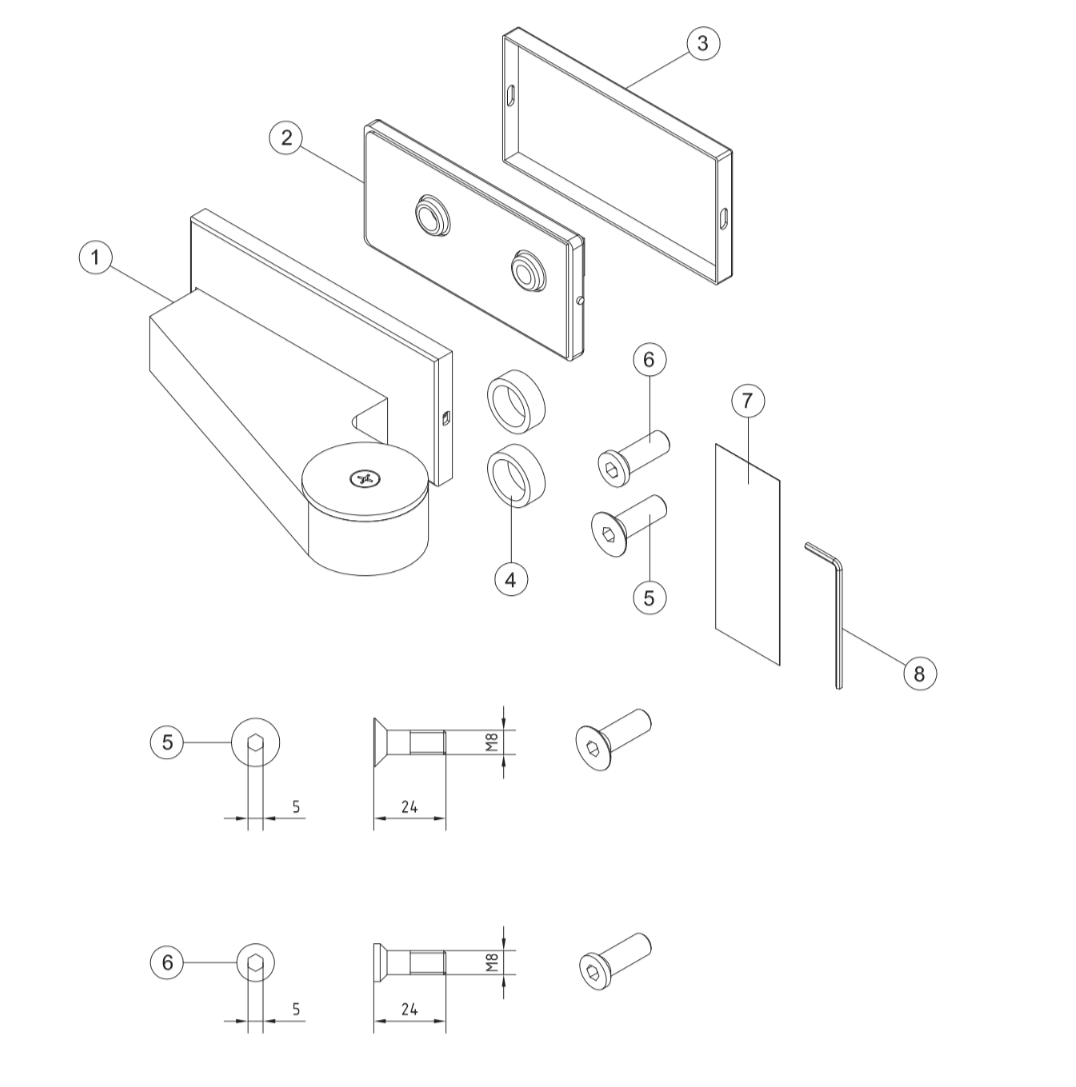

Scope of delivery bottom patch fitting:

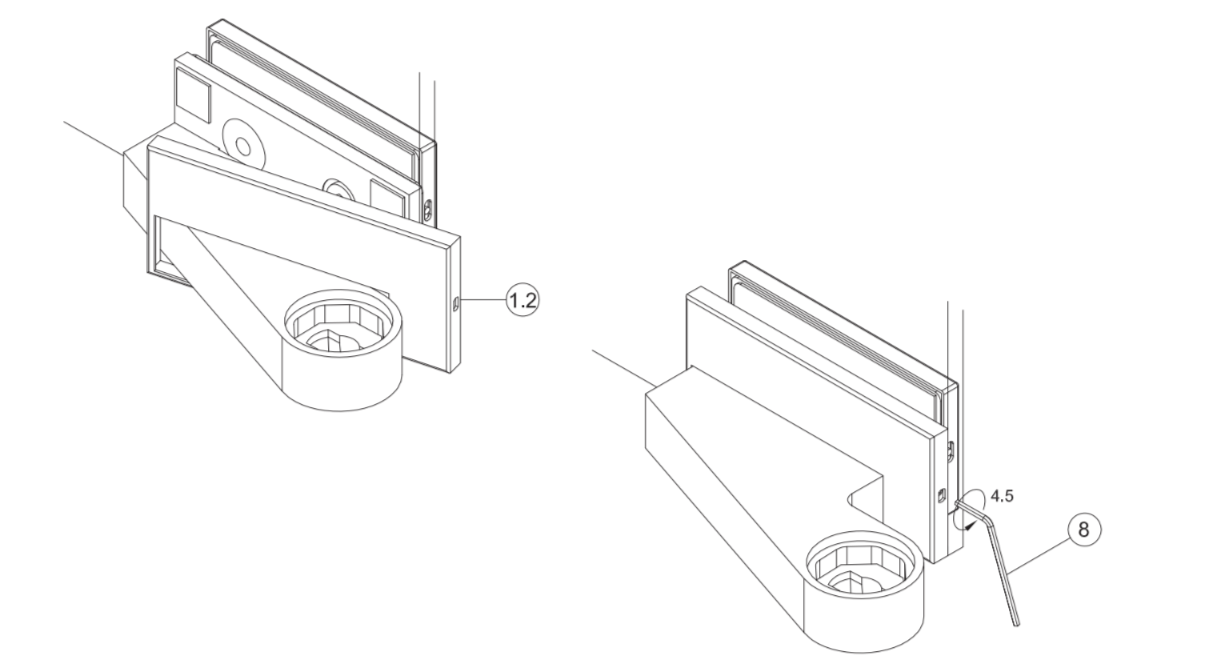

Preparation of fittings:

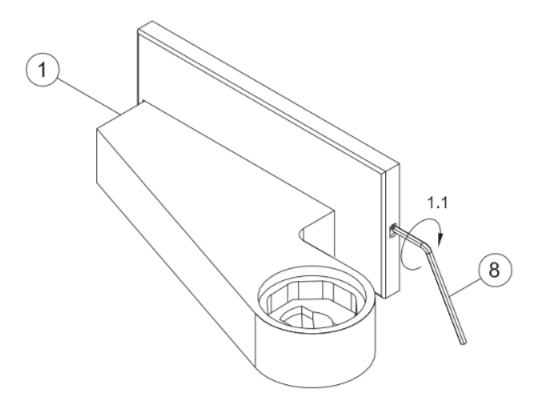

Screw in the grub screws on both sides.
Remove the cover cap carefully.

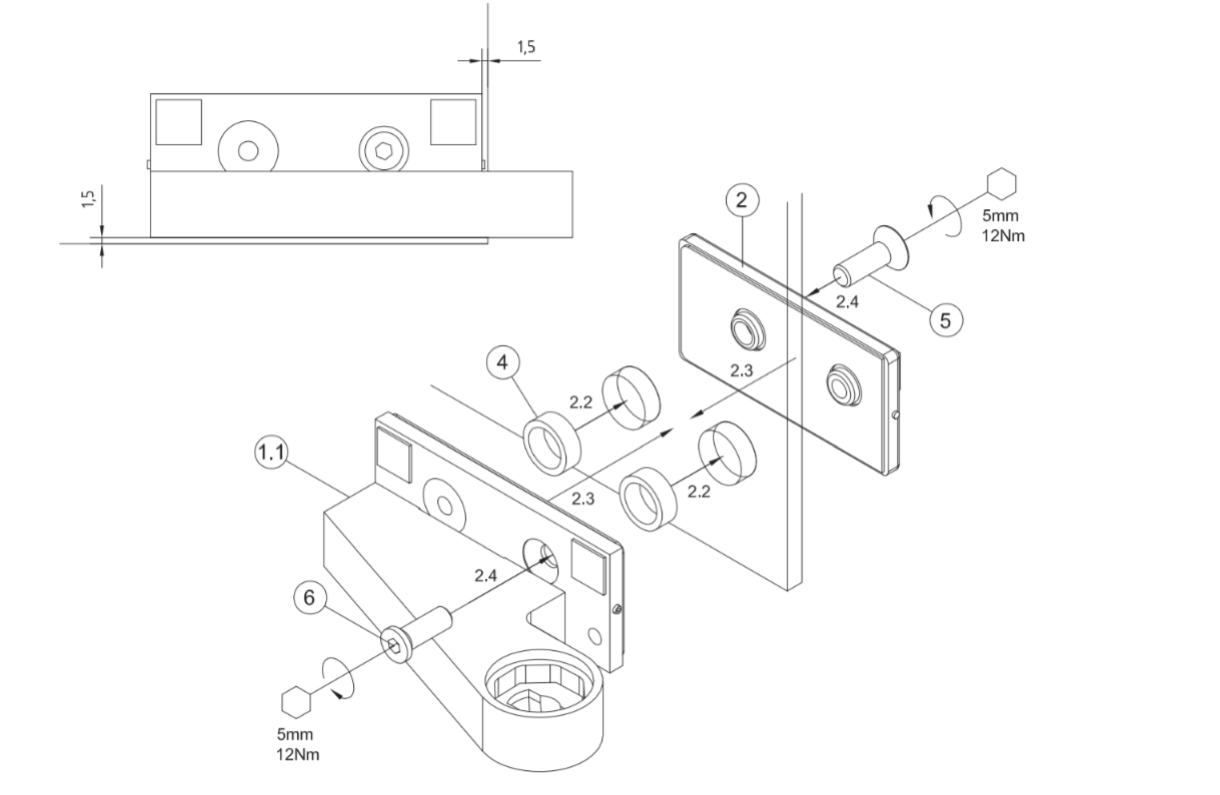

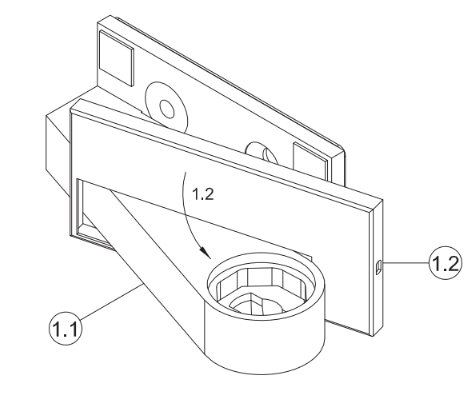

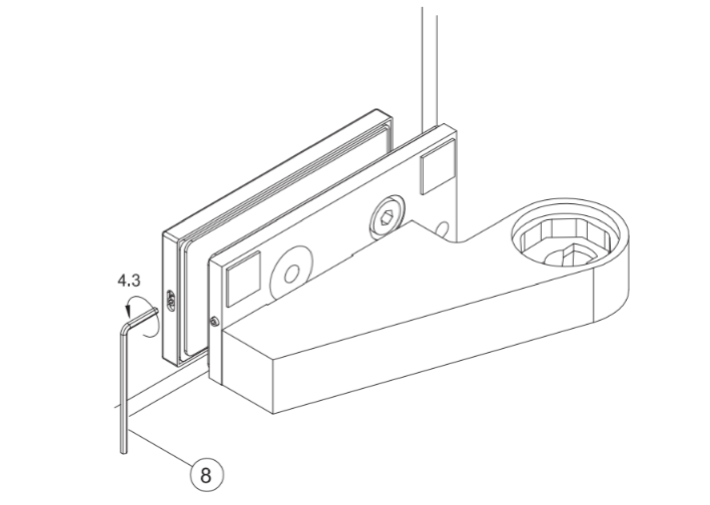

Installation of the fittings:
All glass clamping areas are to be cleaned prior to installation. Only use glass cleaning products, free from silicones and oil (e.g. acetone)

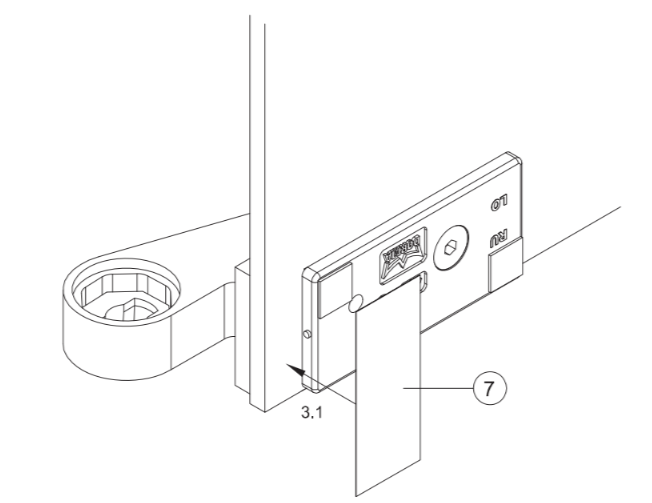

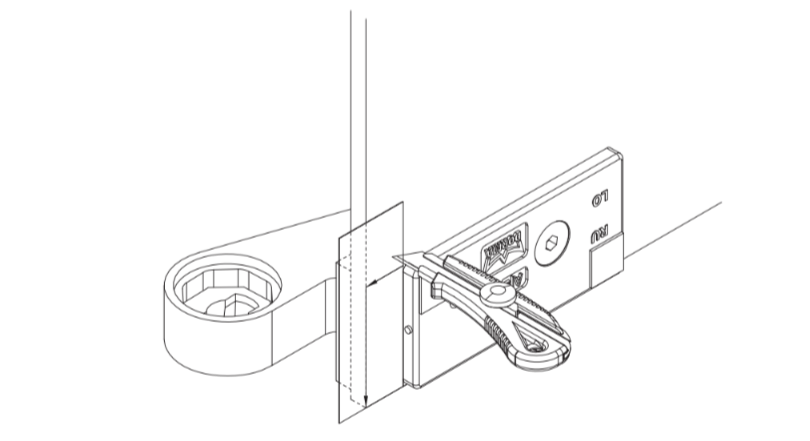

Installation of film strip:
- Glue on the film strip.

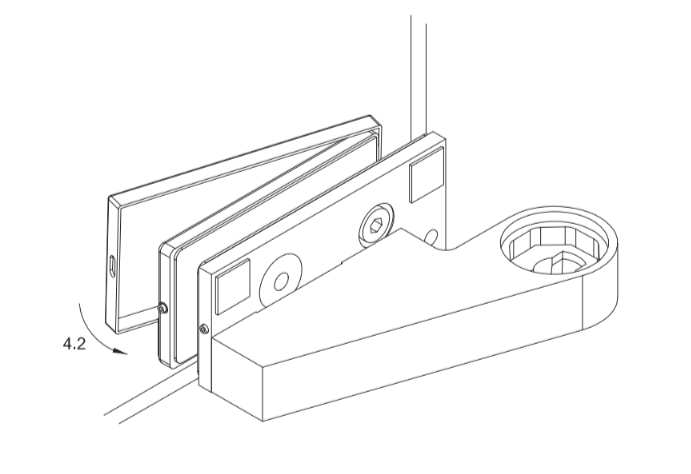

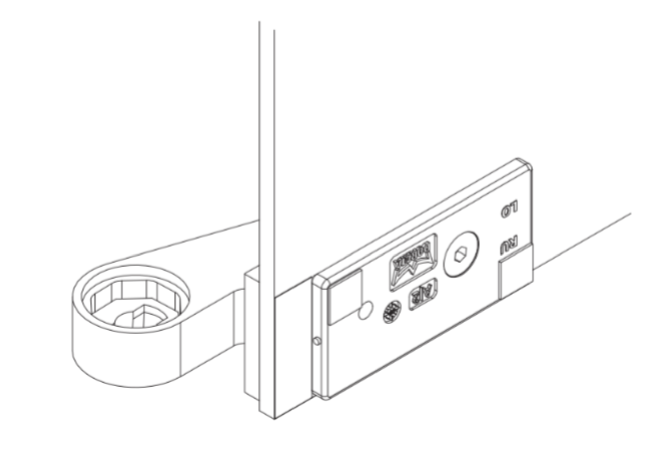

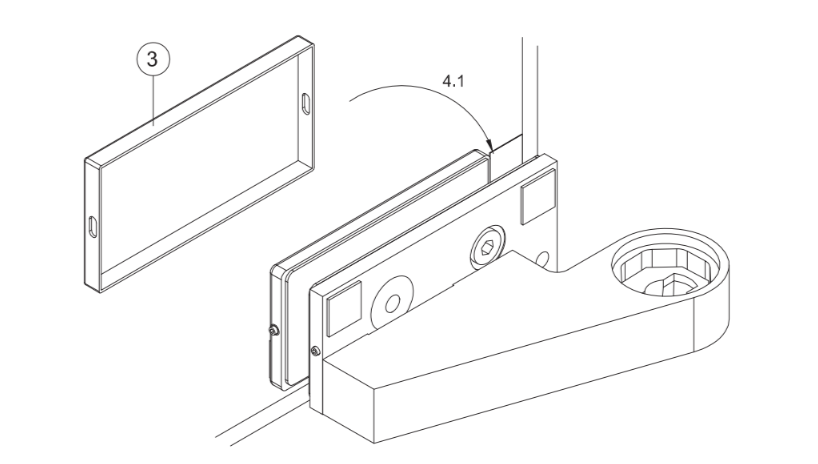

Installation of cover caps:
Installation of cover caps:
Attach the cover cap carefully

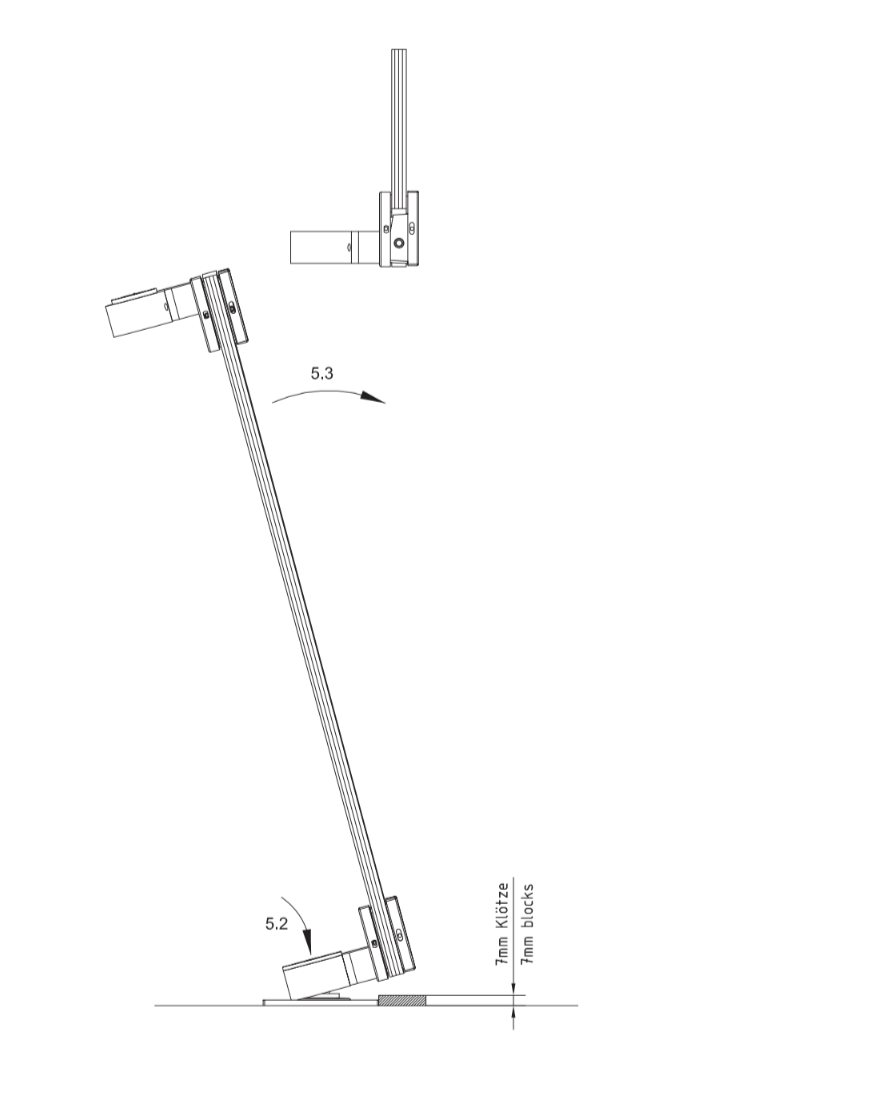

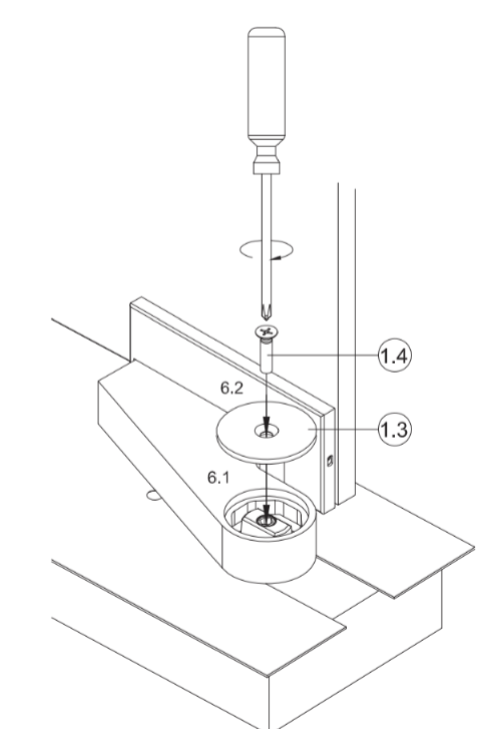

Installation of the door:

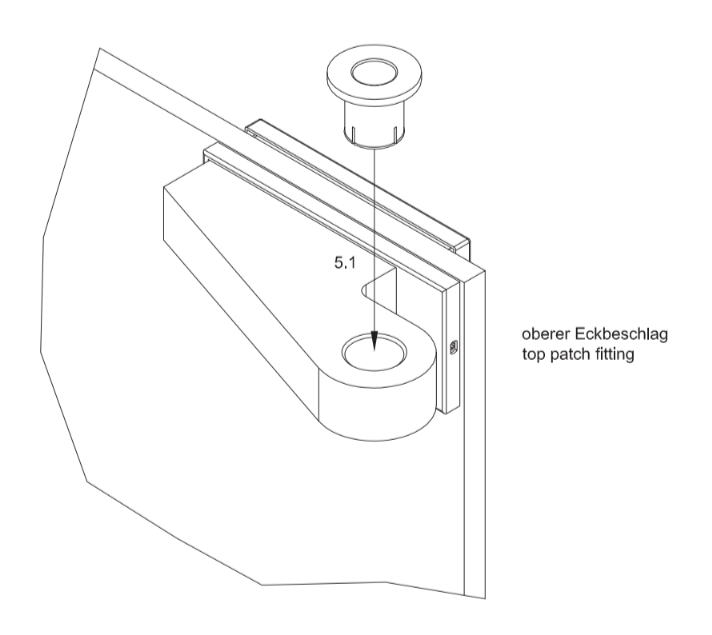

The bushing is included in scope of delivery of overpanel patch fitting.

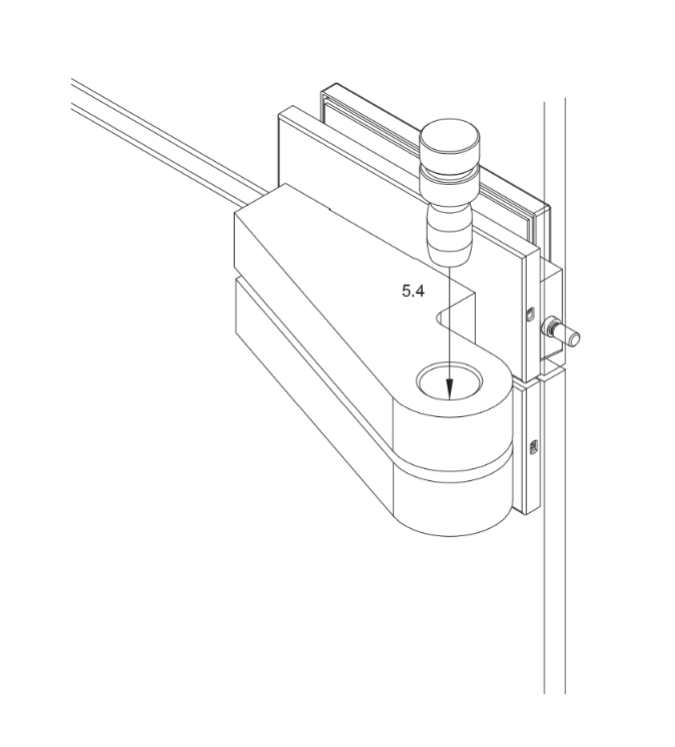

- To overcome the rim in the bushing (top patch fitting), the bolt should be pressed slightly with small force. This creates antifall guard protection if glass should break.
Note: The bolt is included in scope of delivery of overpanel patch fitting.
2. Connect the operpanel patch fitting and the top patch fitting with the bolt.

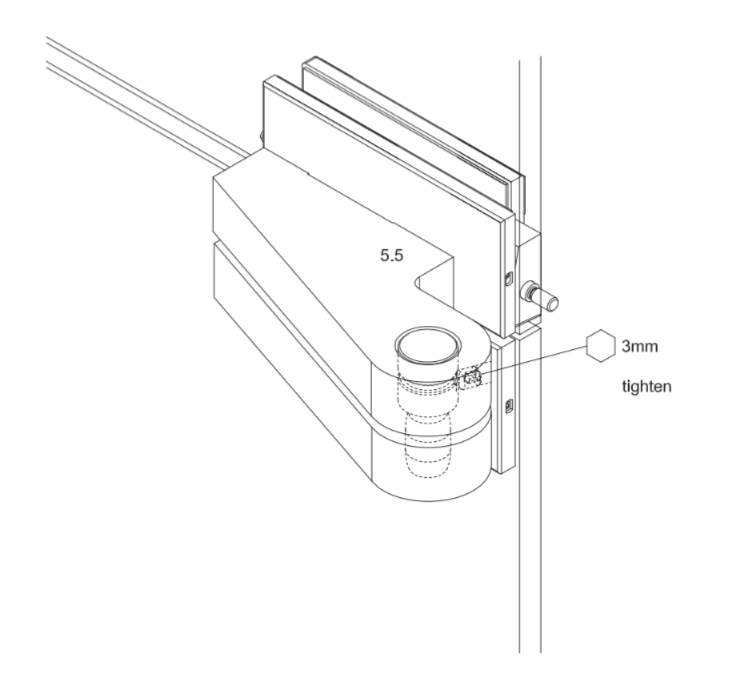

3. Fix the bolt with the grub screw!
4. Final installation.
