Necessary tools for mounting:
Allan key 5 mm
Crosstip screwdriver
You receive a completely assembled patch fitting for overhead panel and side panel

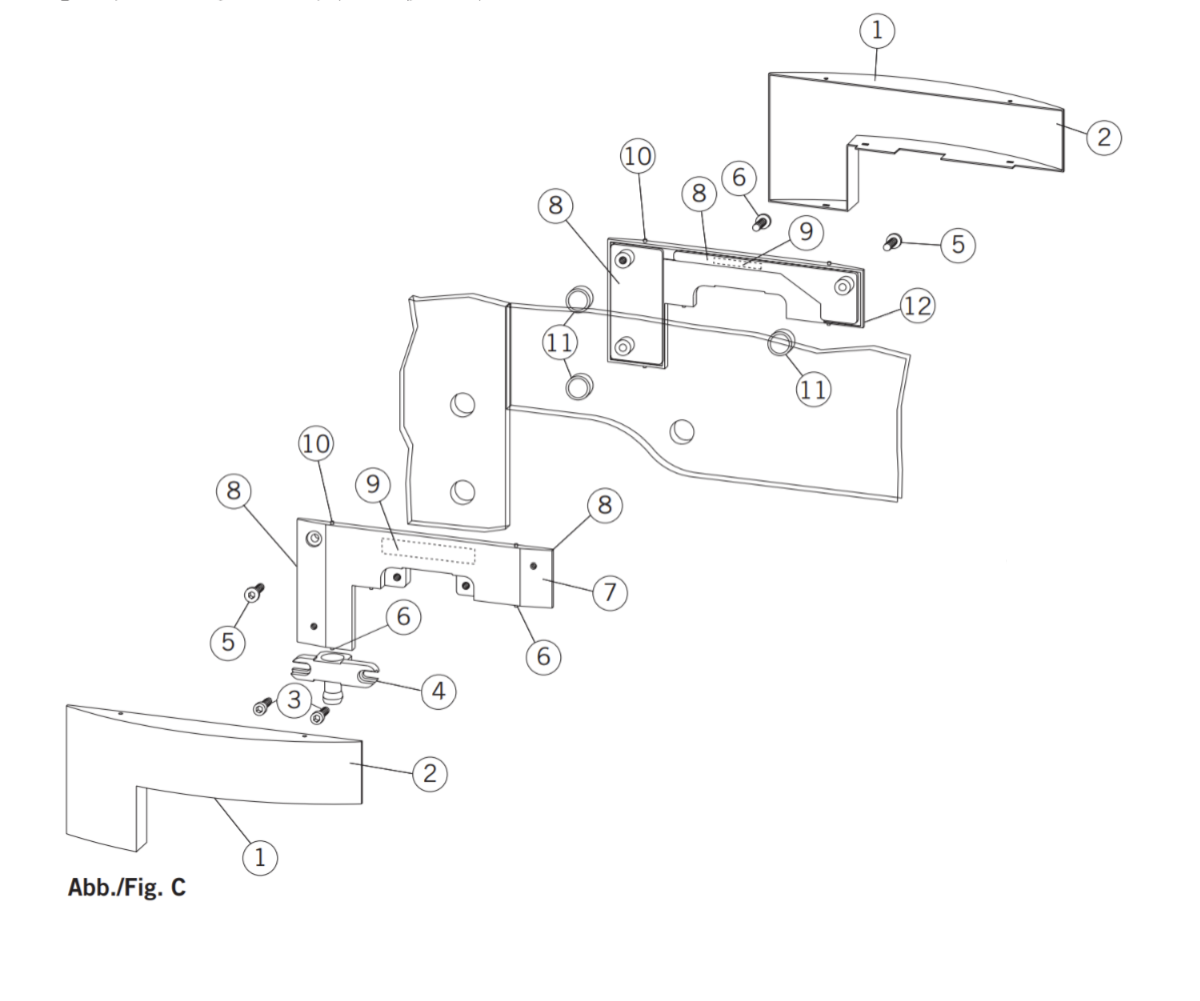

(Fig. C) Mounting steps:
Fix side panel on wall and overhead panel at ceiling (e.g. with wall connecting profile). Unscrew base plates (7) and (12). Pull off safety foil from double-sided adhesive tape (9) on both base plates and press intermediate gaskets (8) into place. Insert hose section (11) through hole in glass. Align
base plates (7) and (12) so that they are 2 mm apart from both edges of the glass. Fix with 3 countersunk
screws (5) (with 5 mm Allan key).
(see fig. B)
Tightening torque = 15 Nm
For fixing and dismantling the caps afterwards it is necessary to provide at least a 3 mm space between
PT 40-cap and PT 20-cap.
(Cover caps are flush with glass edges)

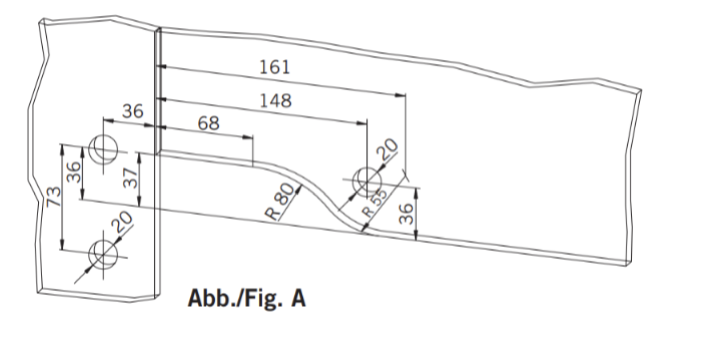

Fig. A shows glass preparation

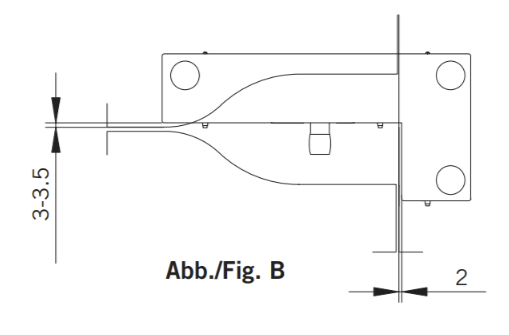

Fig. B shows the PT 40 with the necessary distance to the glass

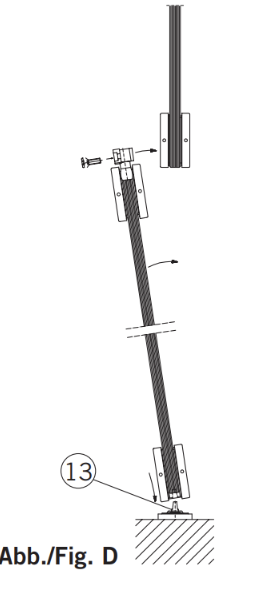

(Fig. D) Fitting the glass door
Fit top insert with pin (4) into bushing of the upper patch fitting of the door. To overcome the rim in the PT 20 bushing the insert should be pressed slightly with small force. This creates protection if glass should break. Fit door on BTS spindle (or bottom floor bearing spindle) (13). (see fig. D) Lift the door and tighten insert with cylinder head screws (3) evenly into overhead panel patch fitting, tightening torque = 12 Nm. Screws should always face into the inside of the room.
65 mm pivot point
= longer insert body part for fastening facing towards glass edge
55 mm pivot point
= shorter insert body part for fastening facing towards glass edge

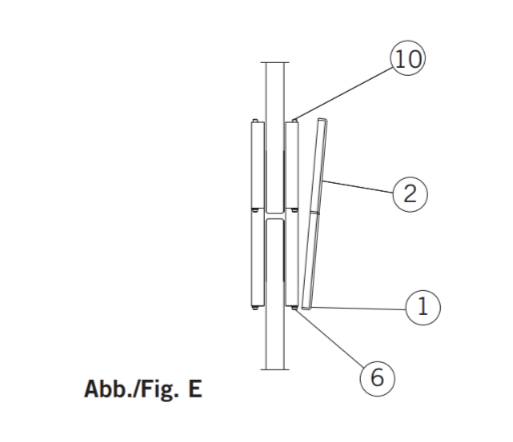

(Fig. E) Securing the cover caps
Hook the unpunched side (1) of the cover caps (2) into the spring pins (6), press spring pins down and
engage other side into pins (10). (see fig. C)
General care instructions
The surface finishes of the fittings are not maintenance-free and should be cleaned according to
their material and design.
- For metallic surfaces (anodised finishes, stainless steel) please use appropriate cleaning agents without abrasive additives only.
- For varnished surfaces please use appropriate solvent-free cleaning agents only.
- Brass surfaces (without surface protection) have to be treated with an appropriate maintenance agent
on occasion, to avoid tarnishing.
