Necessary tools for mounting:
Drilling machine for wall connection
Allan key 5 mm
Crosstip screwdriver
You receive a completely assembled overhead panel patch.
Important!
Please make sure that the PT 30 is not mistaken for the PT 20. If the PT 20 is mounted at the overhead panel, the cover caps can not be mounted.

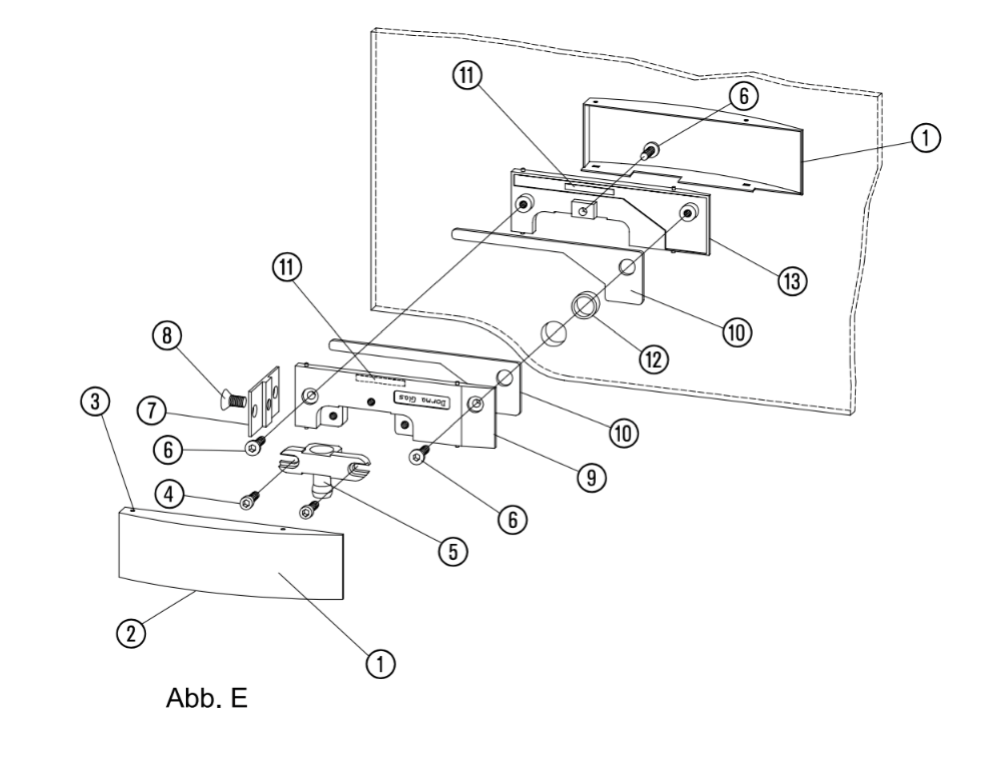

(Illustr. E) Overhead panel PT 30 with fixing plate
(Fixing plate is not included in delivery of PT 30)
Connect and fasten overhead-glass to ceiling. Unscrew base plates (9) and (13). Pull off safety foil from
double-sided adhesive tape (11) on both base plates and press intermediate gaskets (10) into place. Screw fixing plate (7) with screw (8) onto base plate (9). Insert hose section (12) through hole in glass. Put base
plate (9) on glass preparation and screw together loosely with plate (13) using 3 countersunk screws M6 (6). (5 mm Allan key)
Align base plates so that they are 3 mm apart from both glass edges. (illustr. B)
Align overpanel vertically and mark holes for fixing plate. Dismantle base plates, drill holes, and set wall plugs. Loosen overpanel at ceiling slightly and push sideways for
drilling if necessary. Fix base plates as above. Tighten countersunk screws (6),
tightening torque 15 Nm. Fix overpanel again at ceiling. Final setting of fixing plate at wall.
For fixing and dismantling the caps afterwards it is necessary to provide at least a 3 mm space between
PT 30-cap and PT 20-cap. (Cover caps are flush with glass edges)

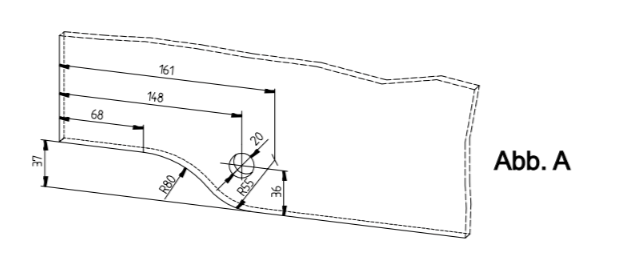

Illustr. A shows glass preparation

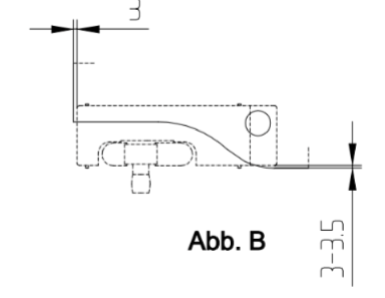

Illustr. B shows the PT 30 without wall fixing (glass at side e.g. in wall connecting profile)

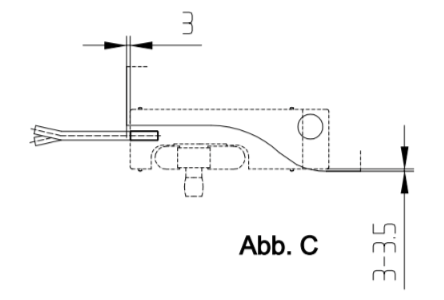

Illustr. C shows the PT 30 with wall anchor (wall anchor is not included in delivery of PT 30)

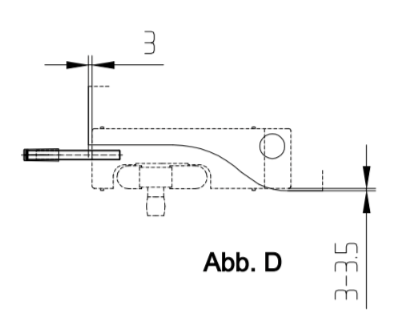

Illustr. D shows the PT 30 with threaded rod with wall plug (threaded rod with wall plug is not included in delivery of PT 30)
Illustr. E shows the PT 30 with fixing plate (fixing plate is not included in delivery of PT 30)

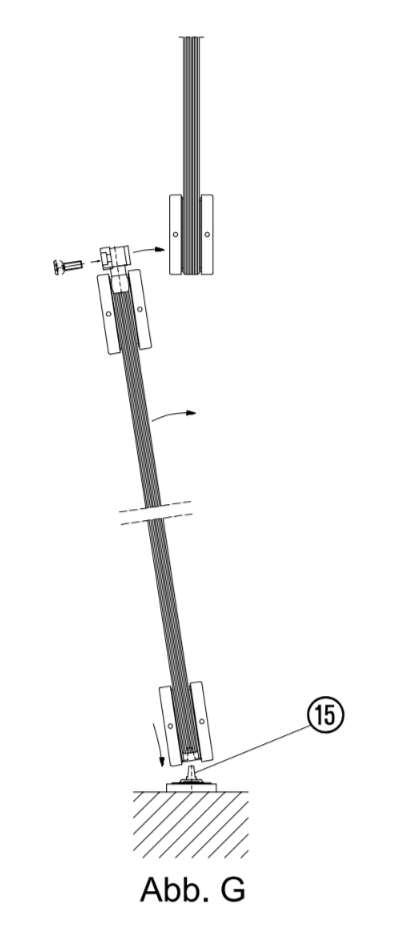

(Illustr. G) Fitting the glass door
Fit door on BTS spindle (or bottom floor bearing spindle)(15). Fit top pivot insert with pin (5) into bushing of the top corner hinge. Lift the door and tighten insert with cylinder head screws (4) evenly into overhead panel patch fitting, tightening torque = 12 Nm. To overcome the rim in the PT 20 bushing, the insert should
be pressed slightly with small force. This creates protection if glass should break.
Screws should always face into the inside of the room. 65 mm pivot point = longer insert body part for fastening facing towards glass edge
55 mm pivot point = shorter insert body part for fastening facing towards glass edge

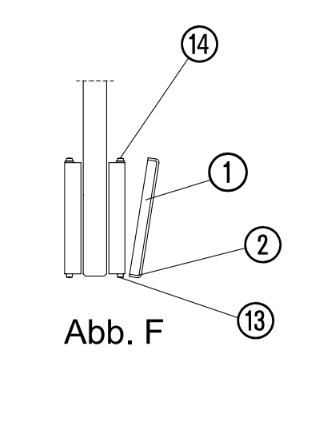

(Illustr. F) Securing the cover caps
Hook the unpunched side (2) of the cover caps (1) into the spring pins (13), press spring pins down and engage other side into pins (14).
