1. Important information:
| Component | |
| 1. ; 1.1 ; ... | Mounting sequence |
All glass clamping areas are to be cleaned with standard glass cleaning products prior to installation.
Do not use thinner.

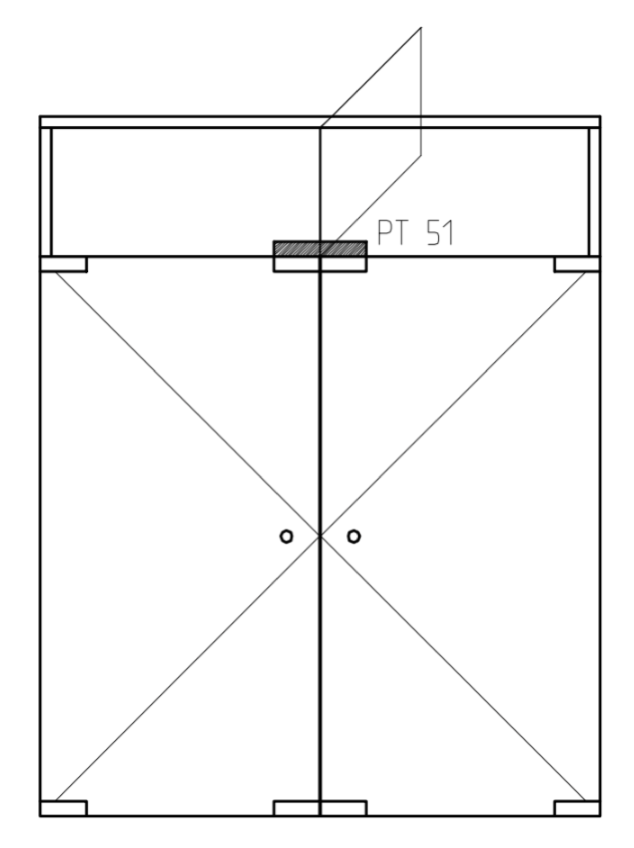

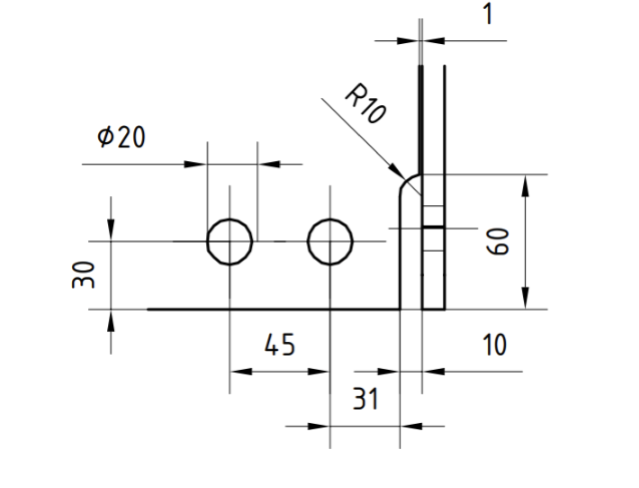

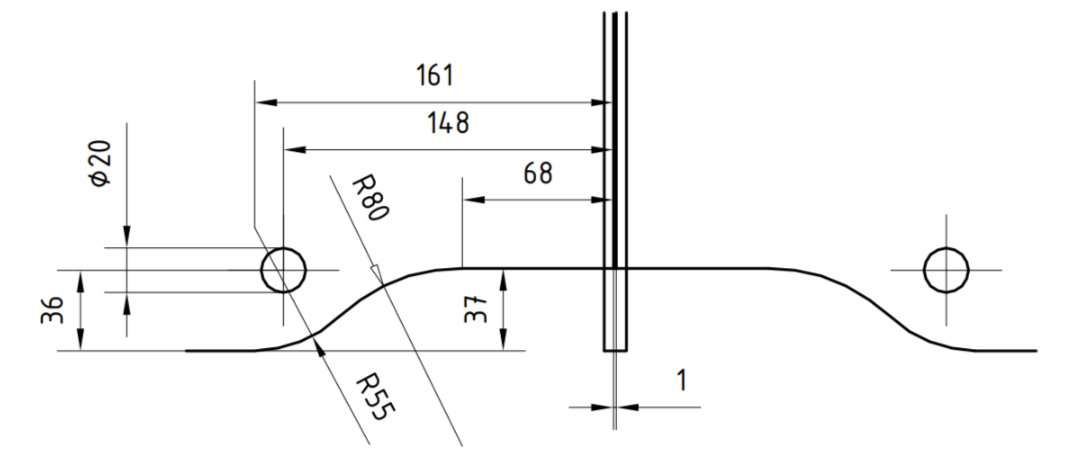

2. Glass preparation:
3. Requisite tools:

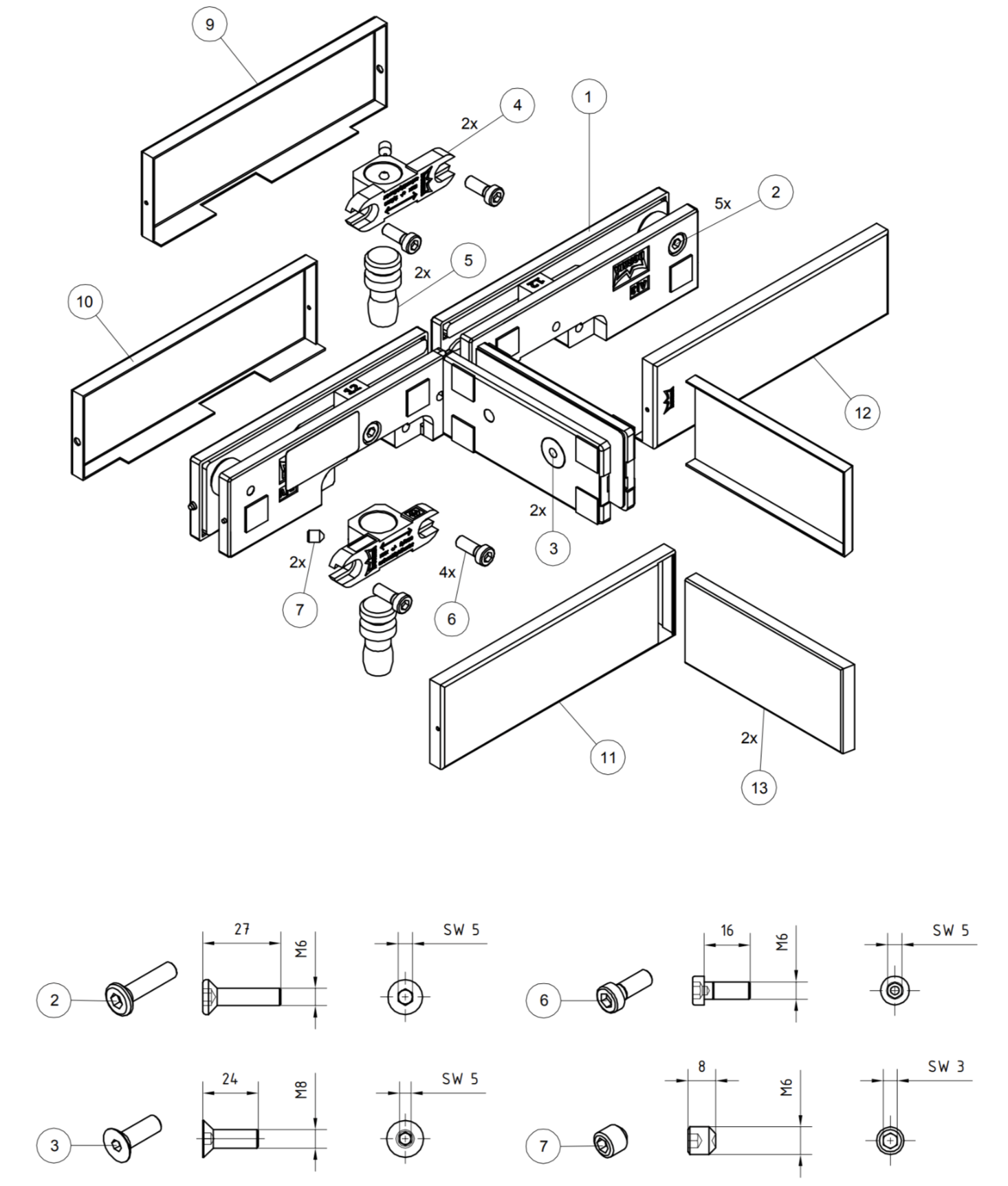

4. Scope of delivery:

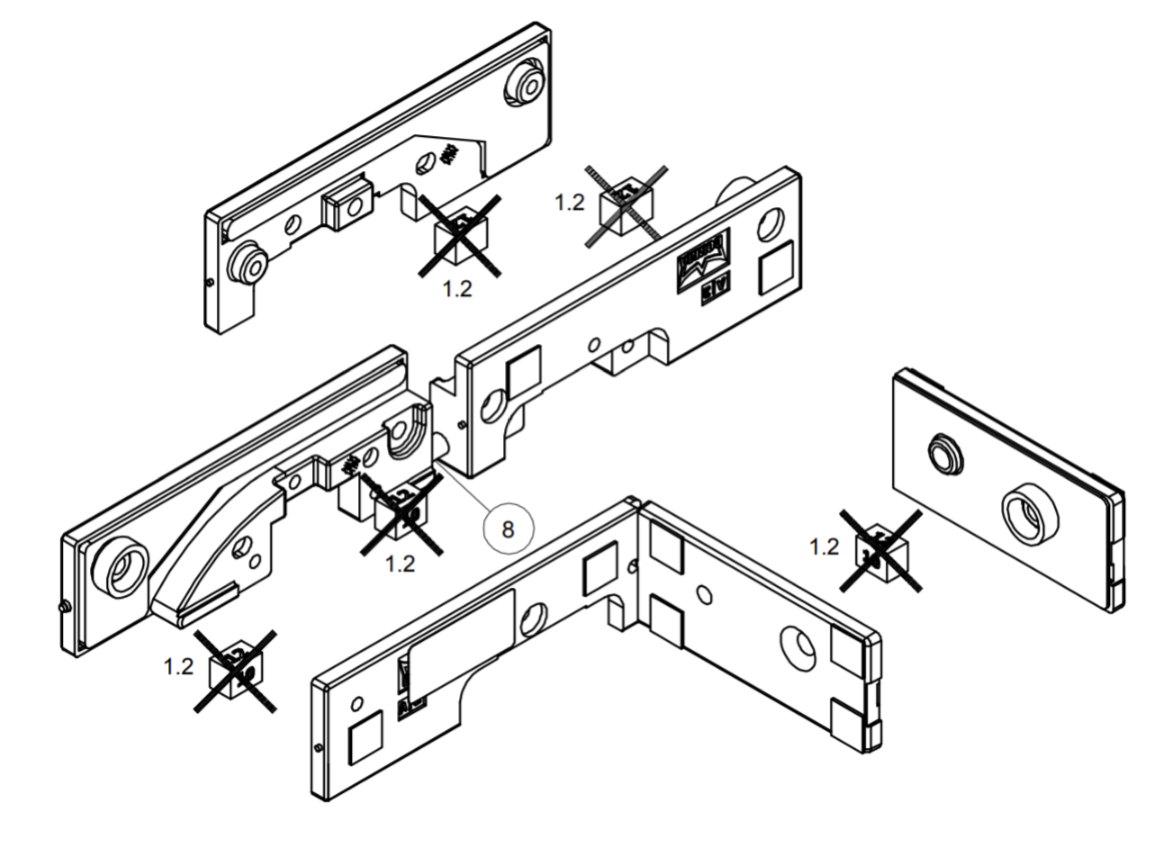

5. Preparing of the base unit:
- Dispose the spacer

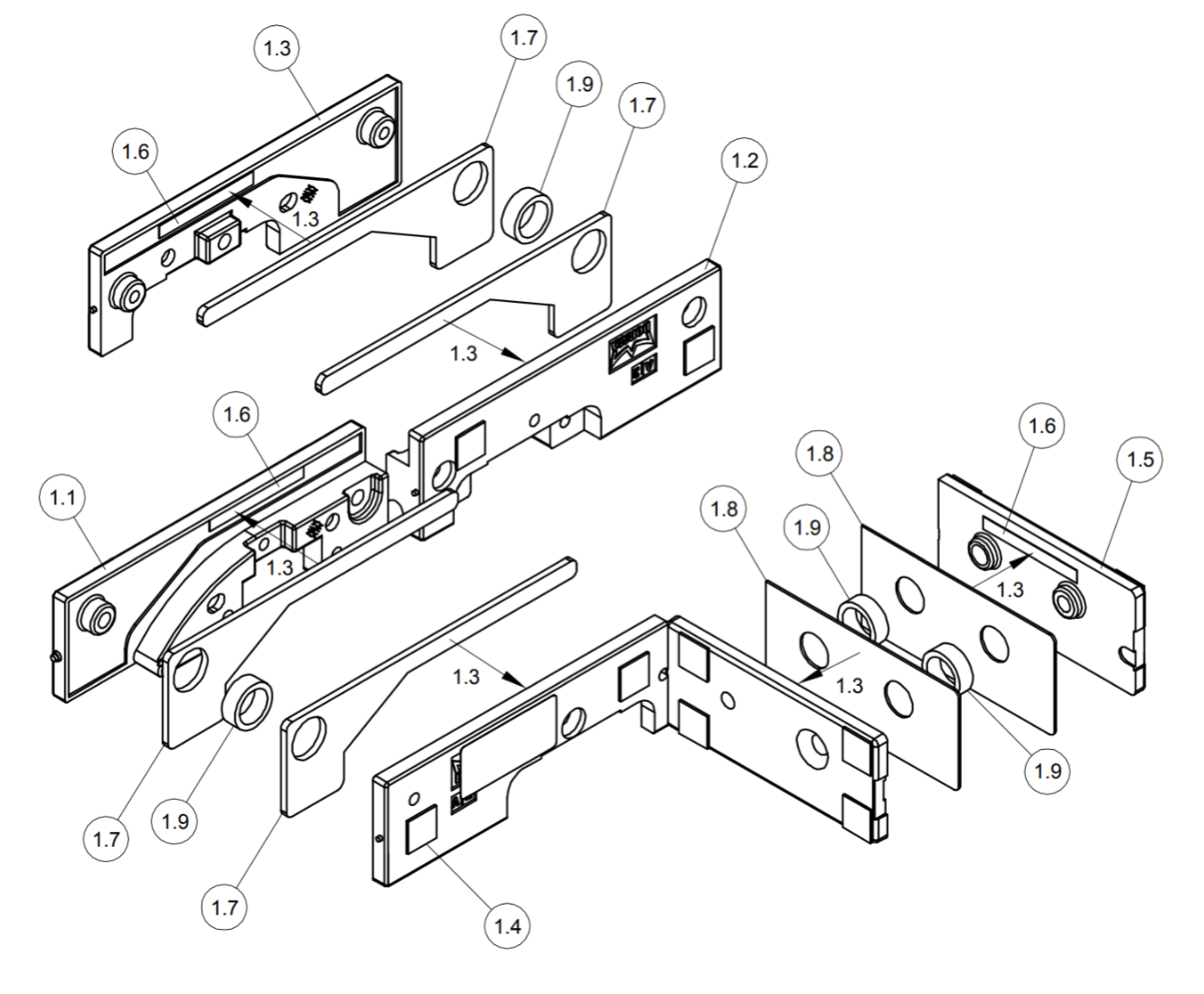

Pull off the backing tape 1.6 and stick on the gasket 1.7 / 1.8 into right place.

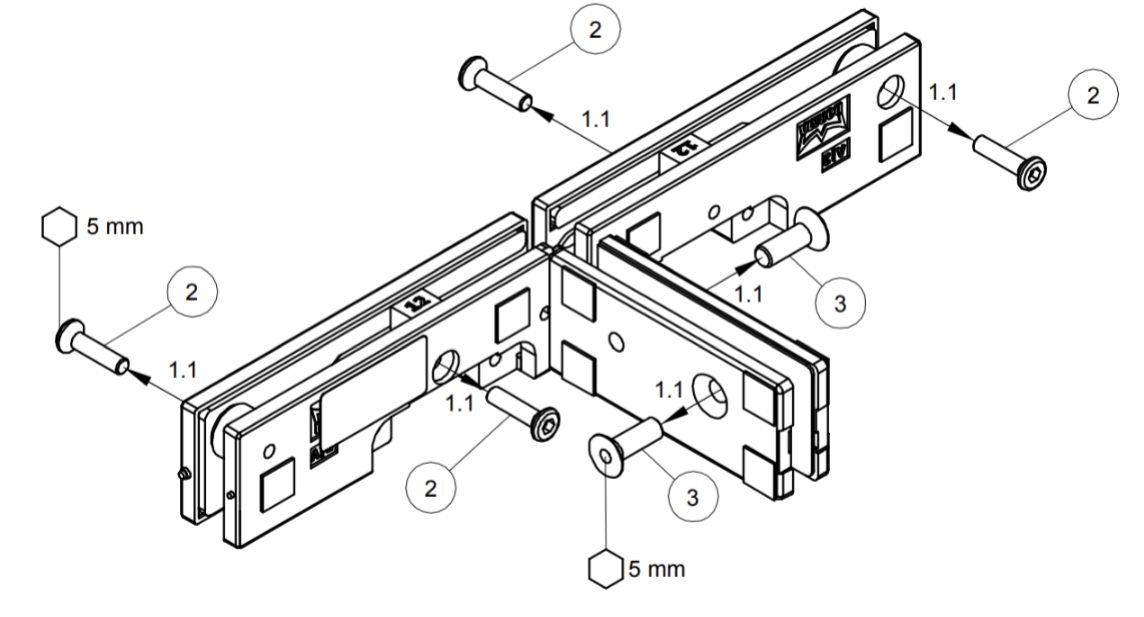

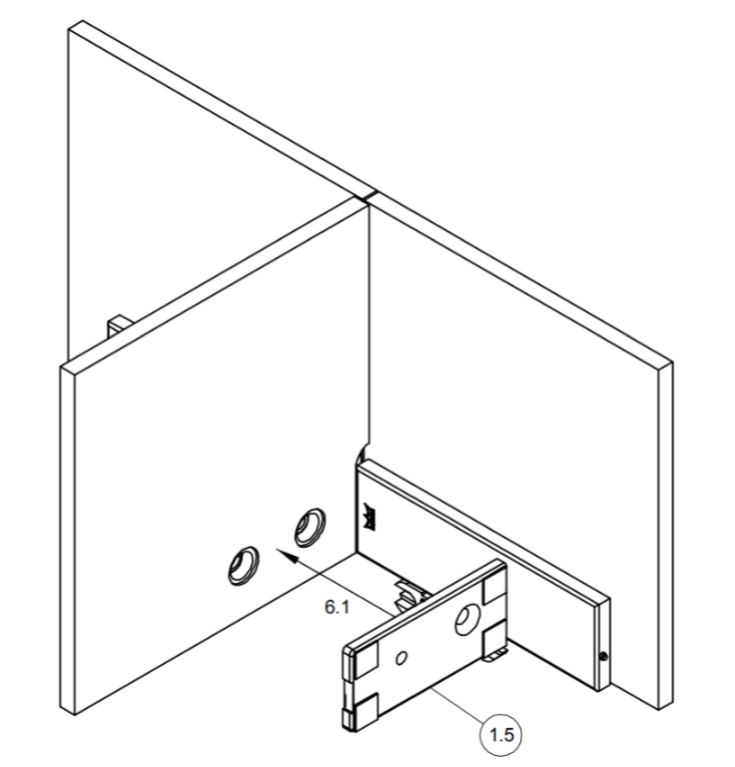

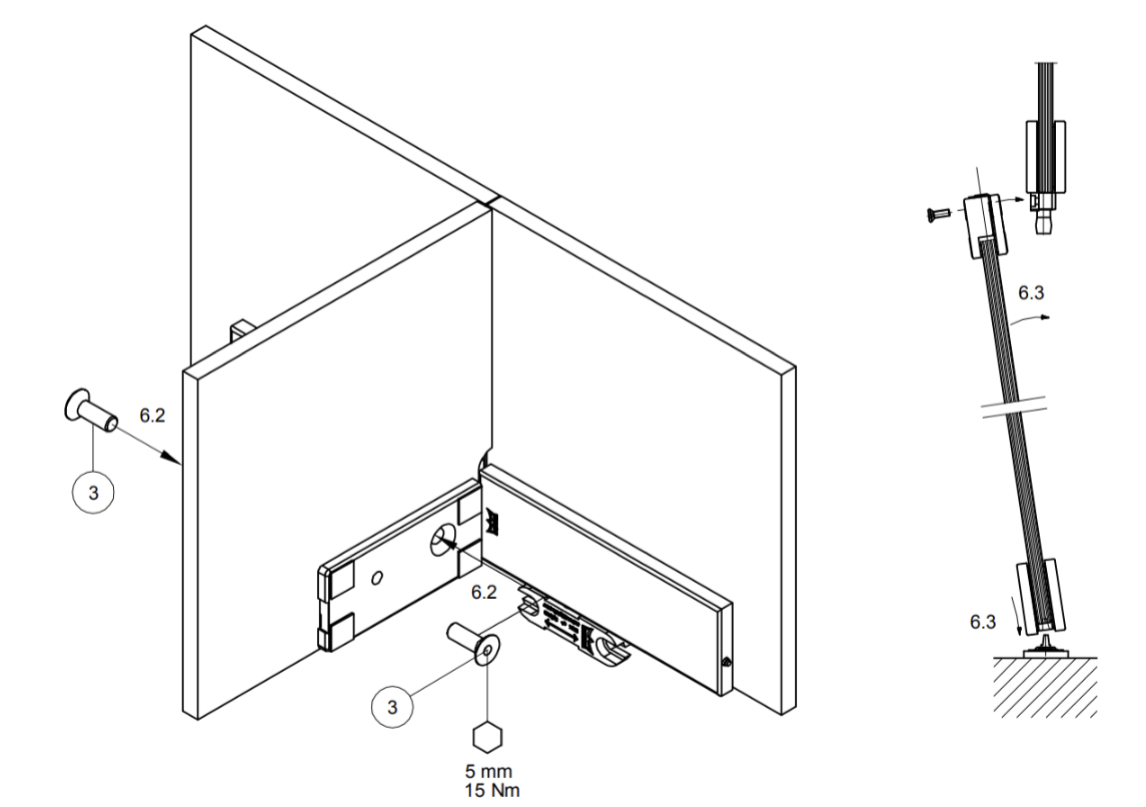

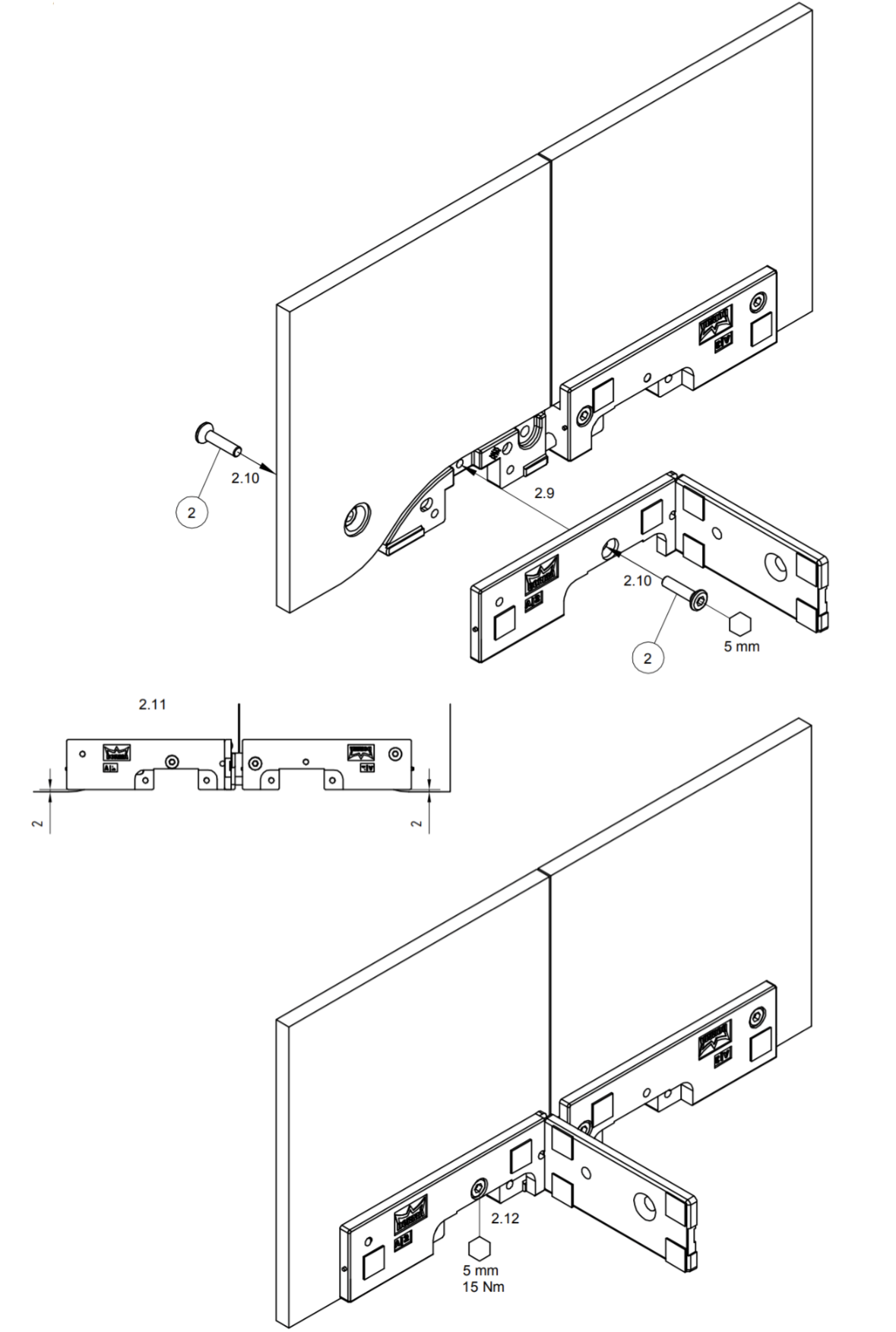

6. Installation of base unit:

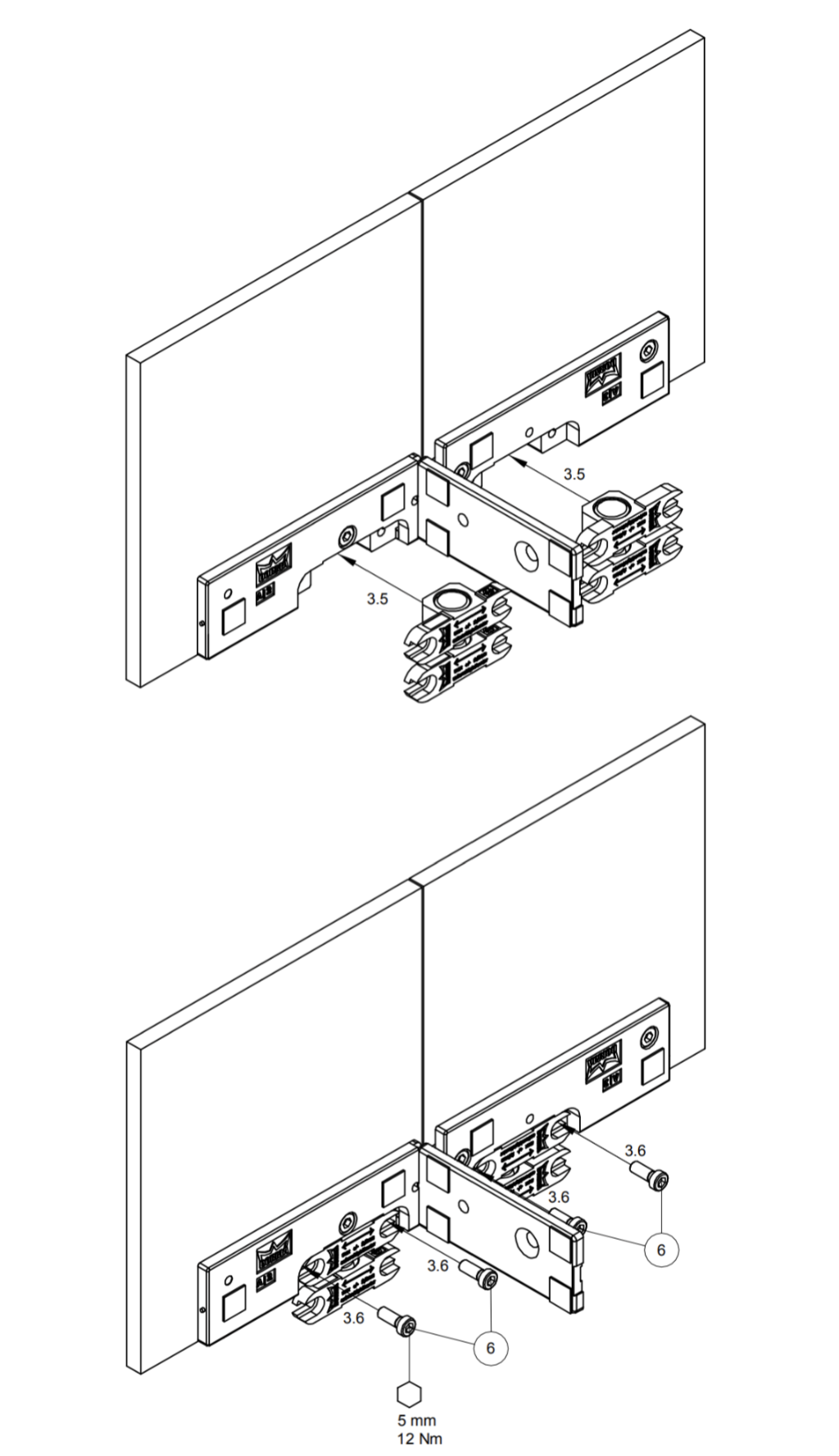

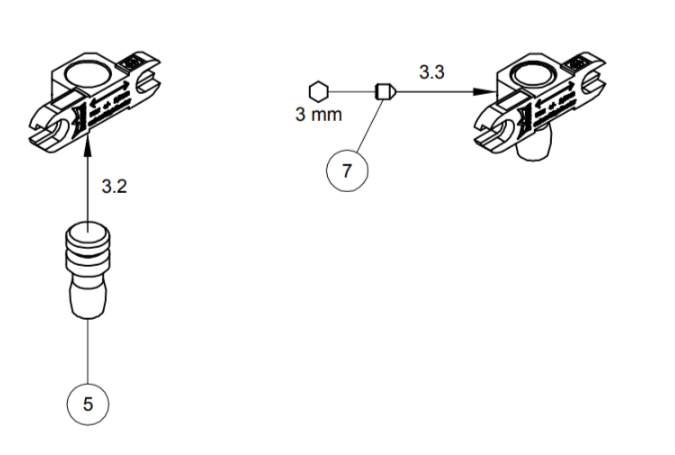

3. Installation of the insert:

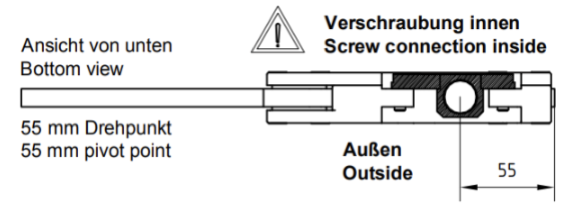

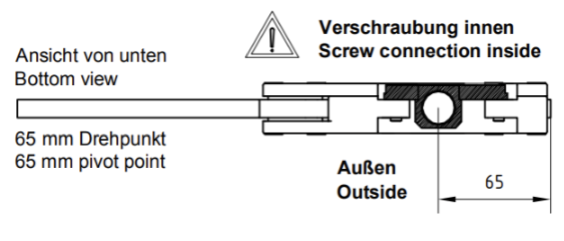

3.1 Determination of pivot point by means of insert:

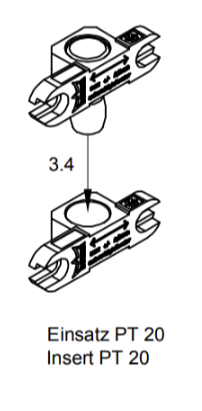

3.4 To overcome the rim in the bushing (PT 20), the insert should be
pressed slightly with small force. This creates antifall guard protection if
glass should break.

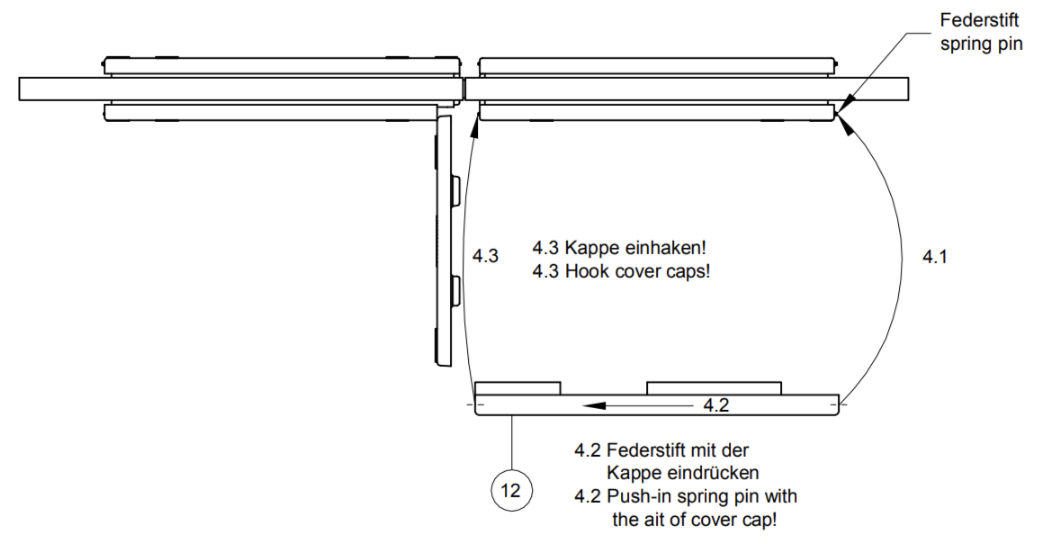

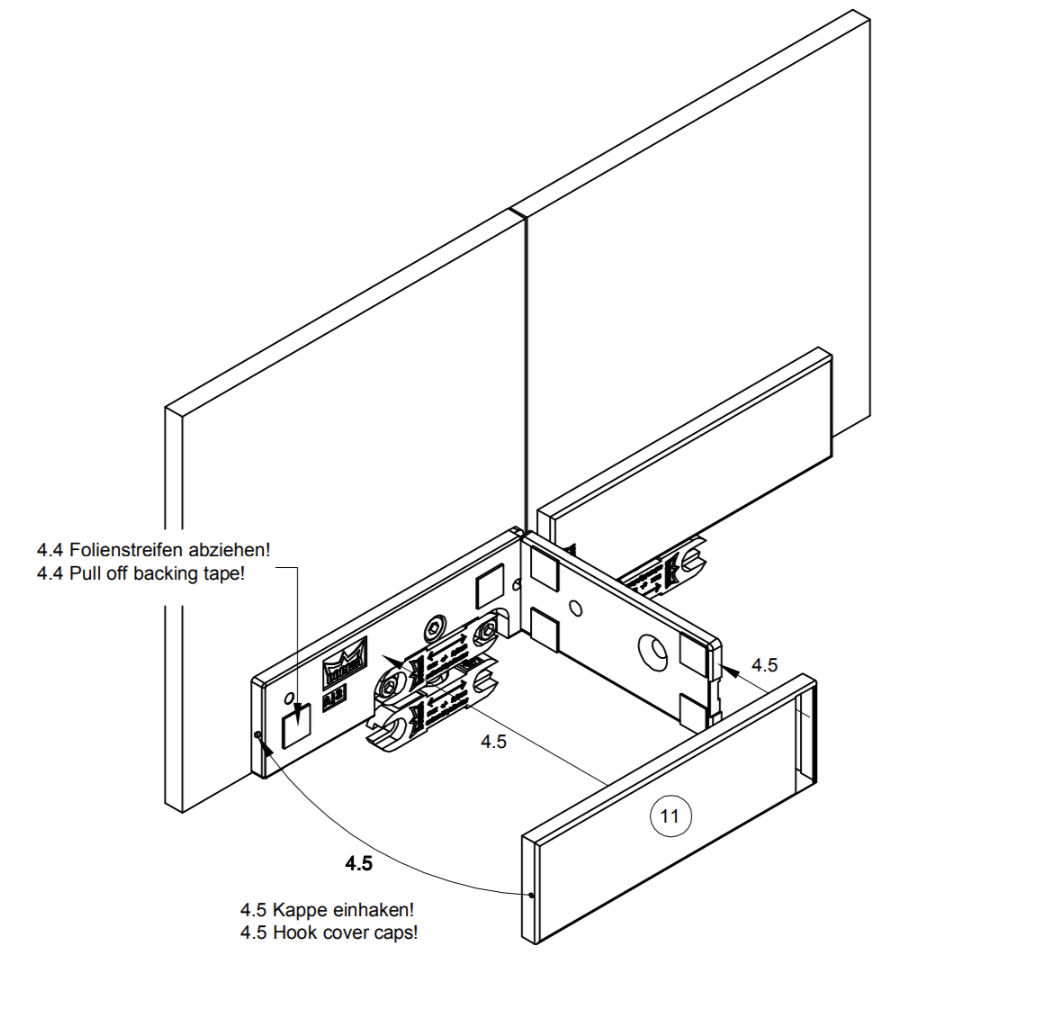

4. Installation of cover cap:

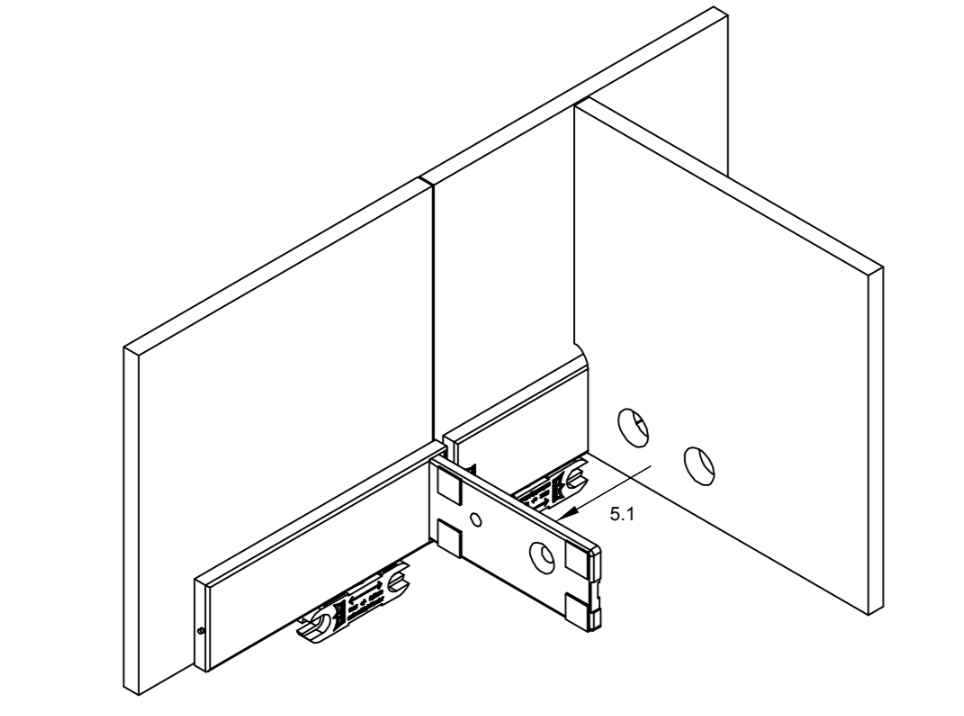

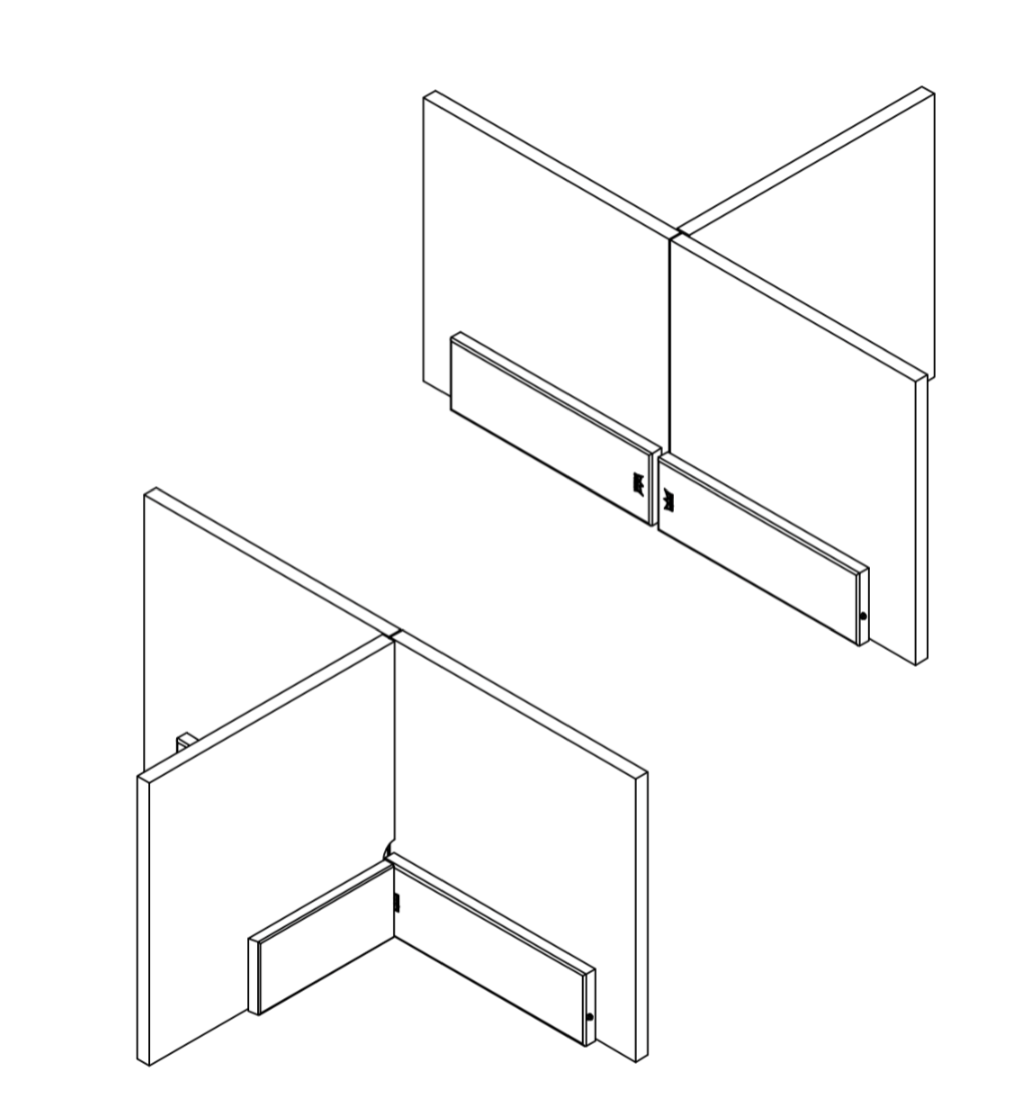

5. Installation of the fin fitting glass:
- Connect and align fin glass (e.g. with wall connecting profil).
6. Final installation of base unit:

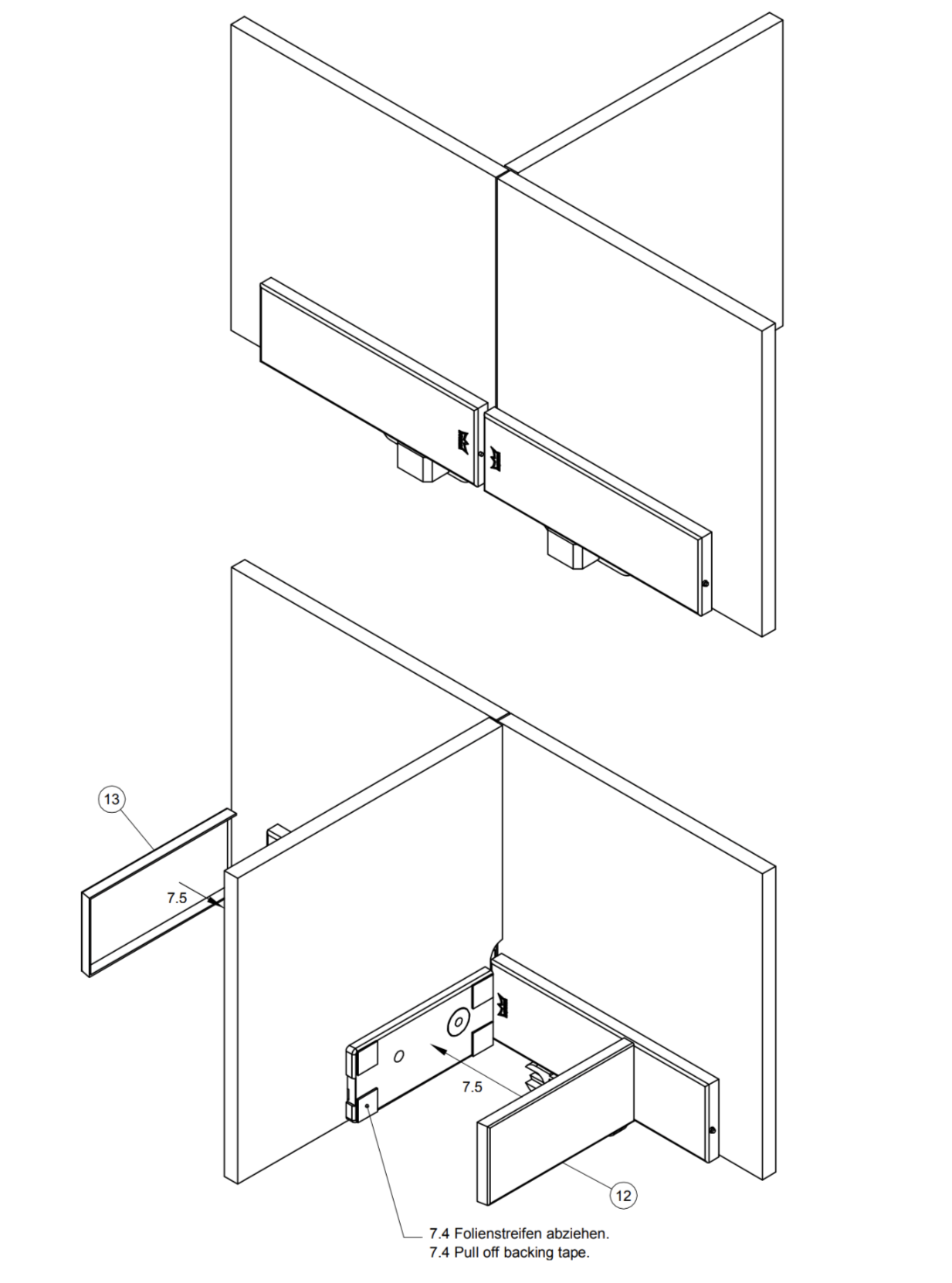

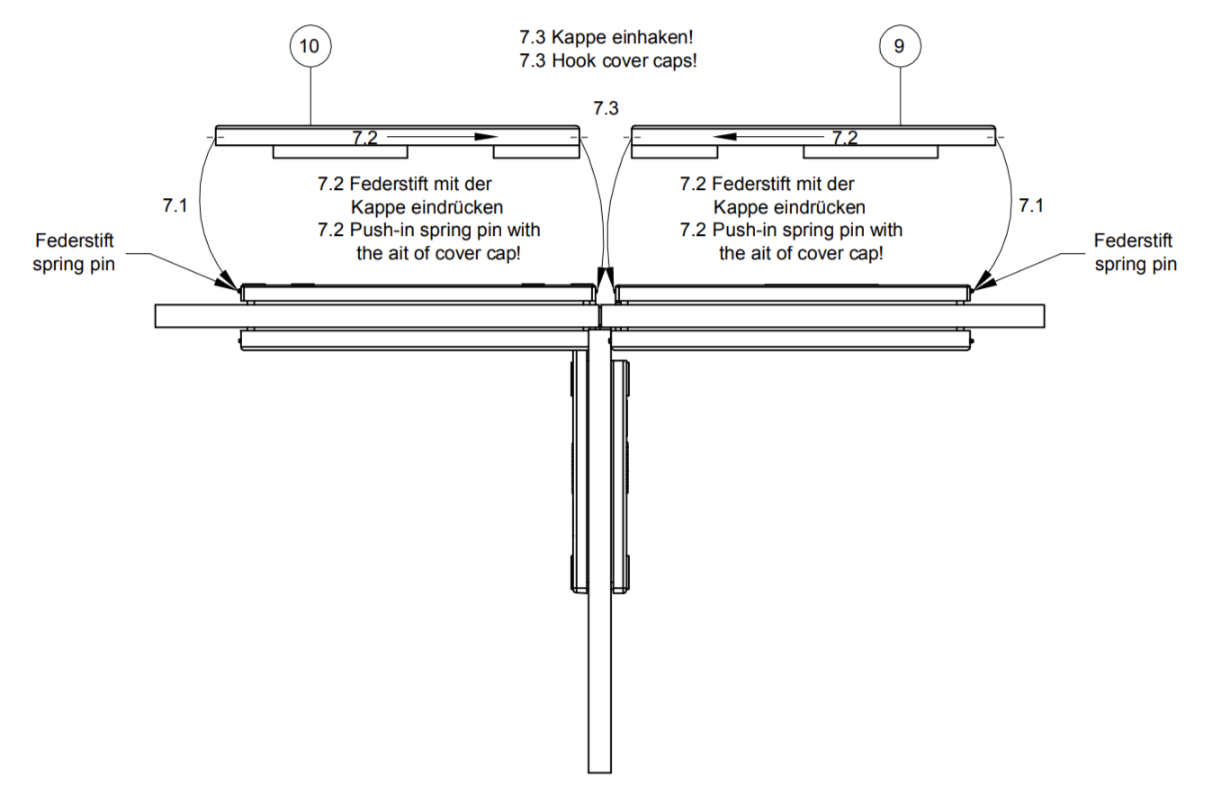

7. Installation of the cover caps:
General care instructions:
The surface finishes of the fittings are not maintenance-free and should be cleaned according to their material and design.
- For metallic surfaces (anodised finishes, stainless steel) please use appropriate cleaning agents without abrasive additives only.
- For varnished surfaces please use appropriate solvent-free cleaning agents only.
- Brass surfaces (without surface protection) have to be treated with an appropriate maintenance agent on occasoin, to avoid tarnishing.
Service and maintenance:
We recommend to check the function of the fitting all 500.000 movements by specialists.
