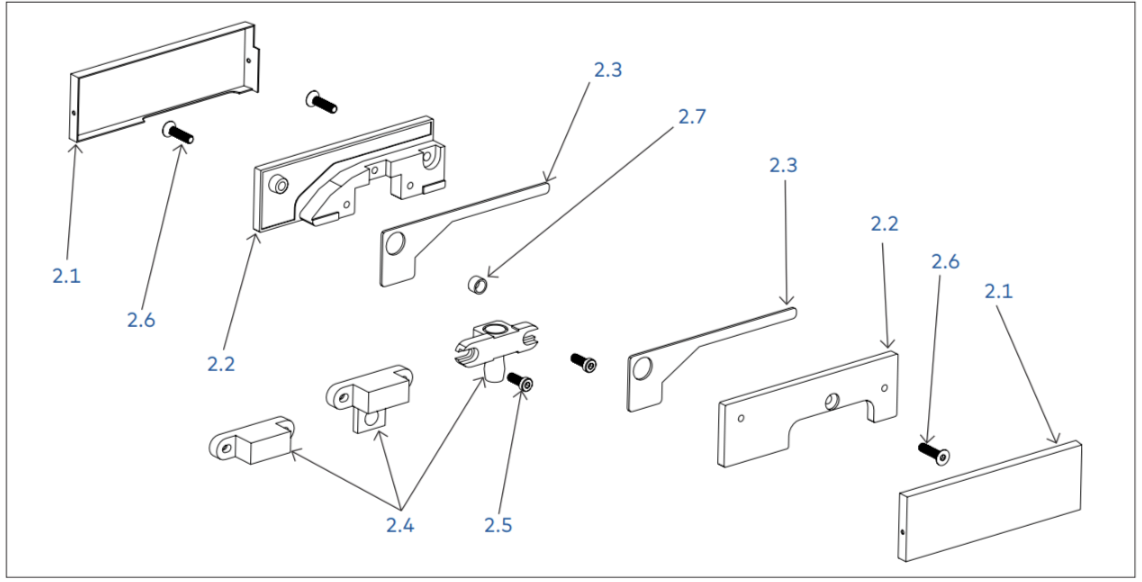

1. Overall
| 2.1 | Covers |
| 2.2 | Patch plates/fitting |
| 2.3 | Gaskets |
| 2.4 | Pivot/blank/stop(application dependent) |
| 2.5 | Insert fasteners (2x included) |
| 2.6 | Patch fasteners (3x included) |
| 2.7 | Glass grommets (3x included) |

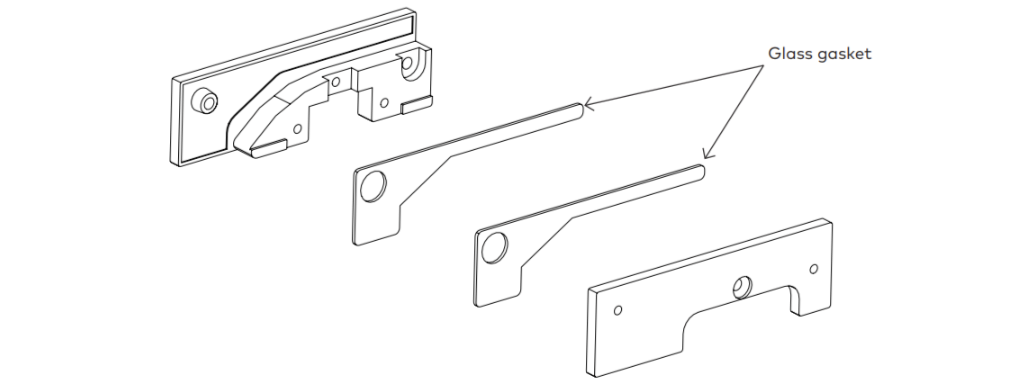

2. Install the gaskets
| 1 | If have 1/2” [13] or 3/4” [19] glass: • Fittings will come with 2mm [3/32”] glass gaskets pre-secured. |
| 2 | If have 3/8” [9] or 5/8” [15] glass: • Fittings will come with 2mm [3/32”] glass gaskets. • PLUS additional (2) 3mm [1/8”] glass gaskets. • Remove 2mm gaskets and replace with 3mm gaskets. |

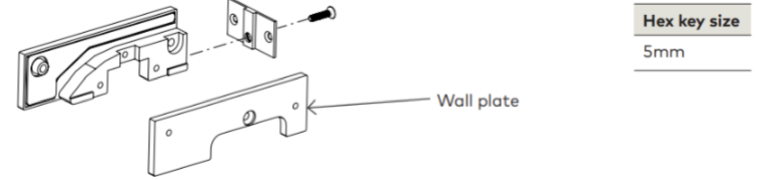

3. Secure wall plate to fitting
| 1 | Secure wall plate to fitting shown above. • Hand tighten using 5mm hex key |

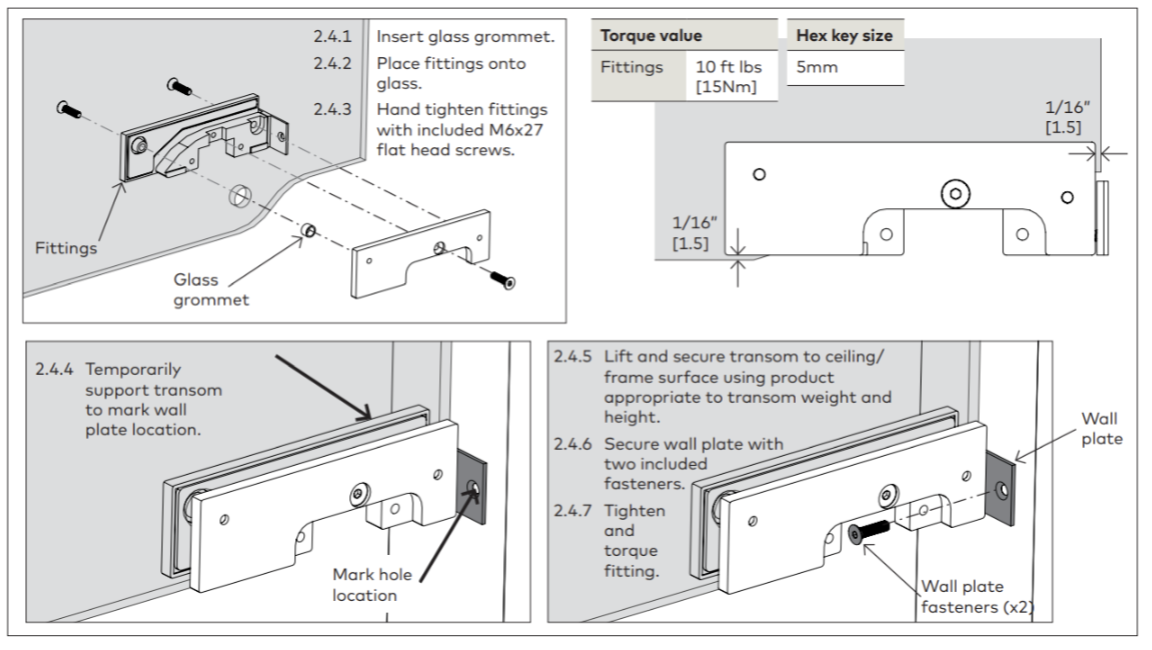

4. Install fittings on glass
| 1 | Insert glass grommet. |
| 2 | Place fittings onto glass. |
| 3 | Hand tighten fittings with included M6x27 flat head screws. |
| 4 | Temporarily support transom to mark wall plate location. |
| 5 | Lift and secure transom to ceiling frame surface using product appropriate to transom weight and height. |
| 6 | Secure wall plate with two included fasteners. |
| 7 | Tighten and torque fitting. |

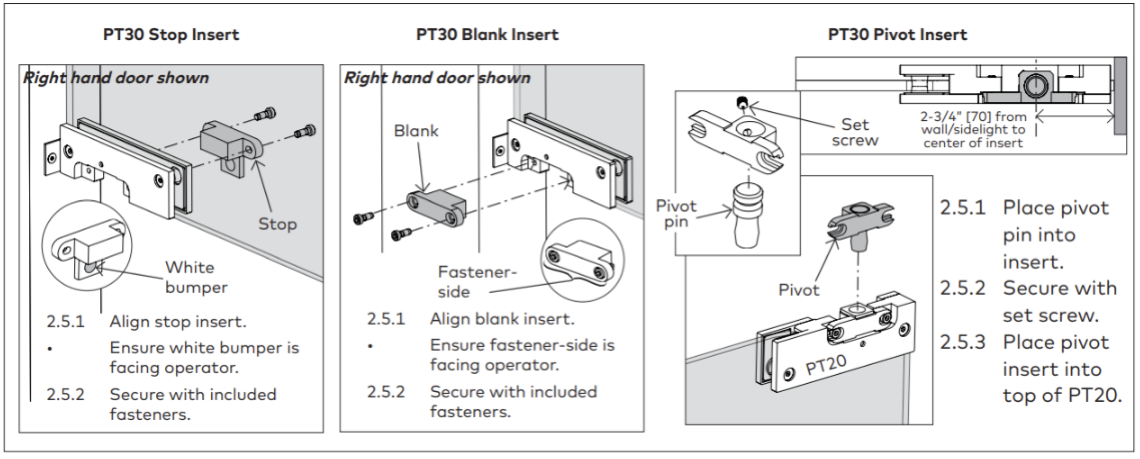

5. Install inserts
| PT30 Stop Insert |
| 1.Align stop insert. • Ensure white bumper is facing operator. |
| 2. Secure with included fasteners. |
| PT30 Blank Insert |
| 1.Align blank insert. • Ensure fastener-side is facing operator. |
| 2. Secure with included fasteners. |
| PT30 Pivot Insert |
| 1.Place pivot pin into insert |
| 2. Secure with set screw. |
| 3. Place pivot insert into top of PT20. |

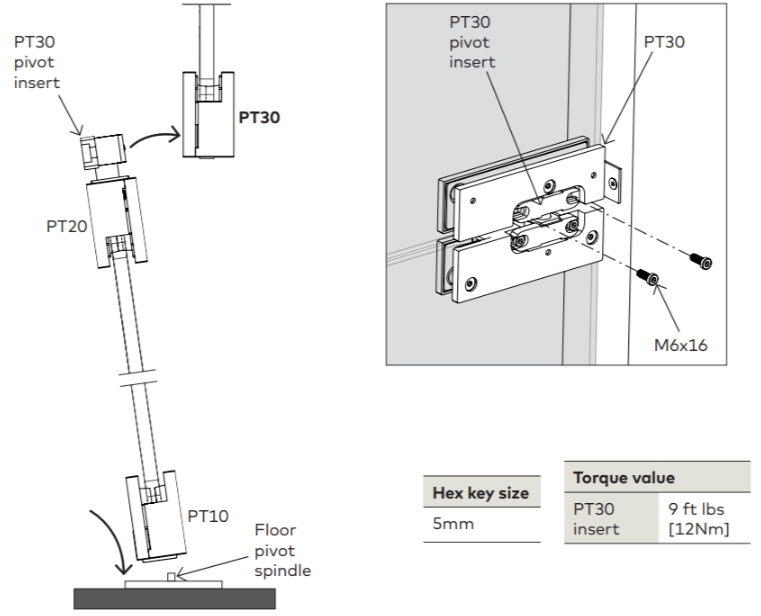

6. Install door (for pivot insert only)
| 1 | Place bottom patch fitting onto floor pivot spindle. |
| 2 | Tip glass panel up and align PT30 pivot insert with PT30 patch fitting. |
| 3 | Secure insert with included M6x16 socket head screws. |

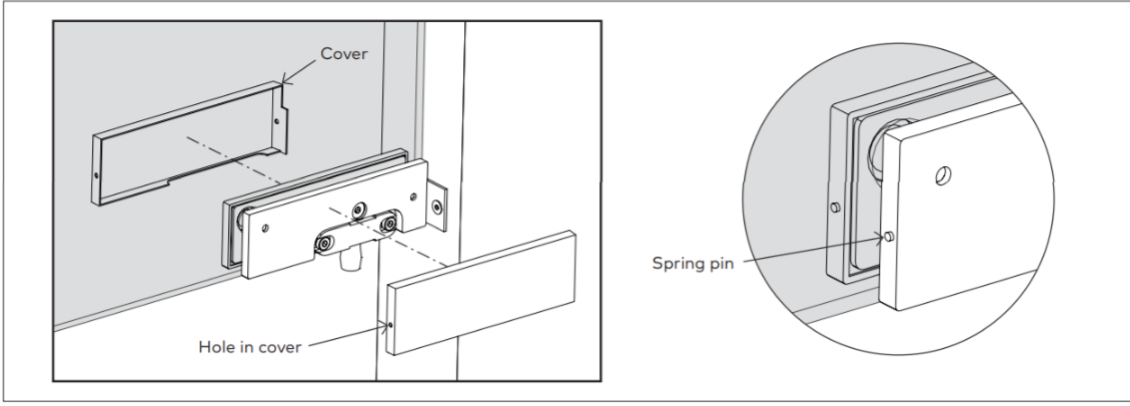

7. Install covers
| 1 | Aligh hole in cover with spring pin on end of fitting. |
| 2 | Snap covers onto patch fittings. |
| 3 | To remove: • Depress spring pin and pop cover off. |
