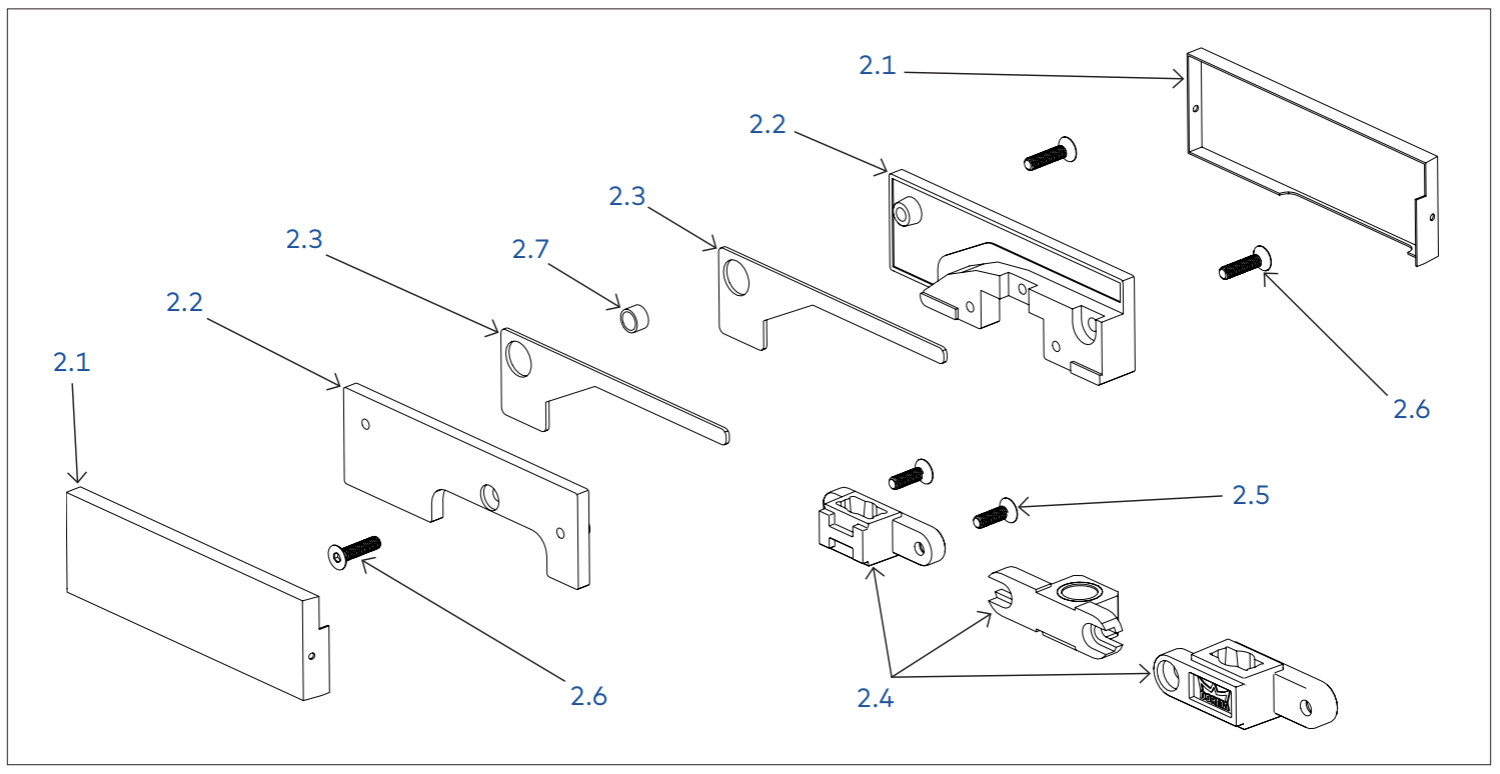

1. Overall
| 2.1 | Covers |
| 2.2 | Patch plates |
| 2.3 | Gaskets |
| 2.4 | Insert |
| 2.5 | Insert fasteners (2x included) |
| 2.6 | Patch fasteners (3x included) |
| 2.7 | Glass grommets (3x included) |

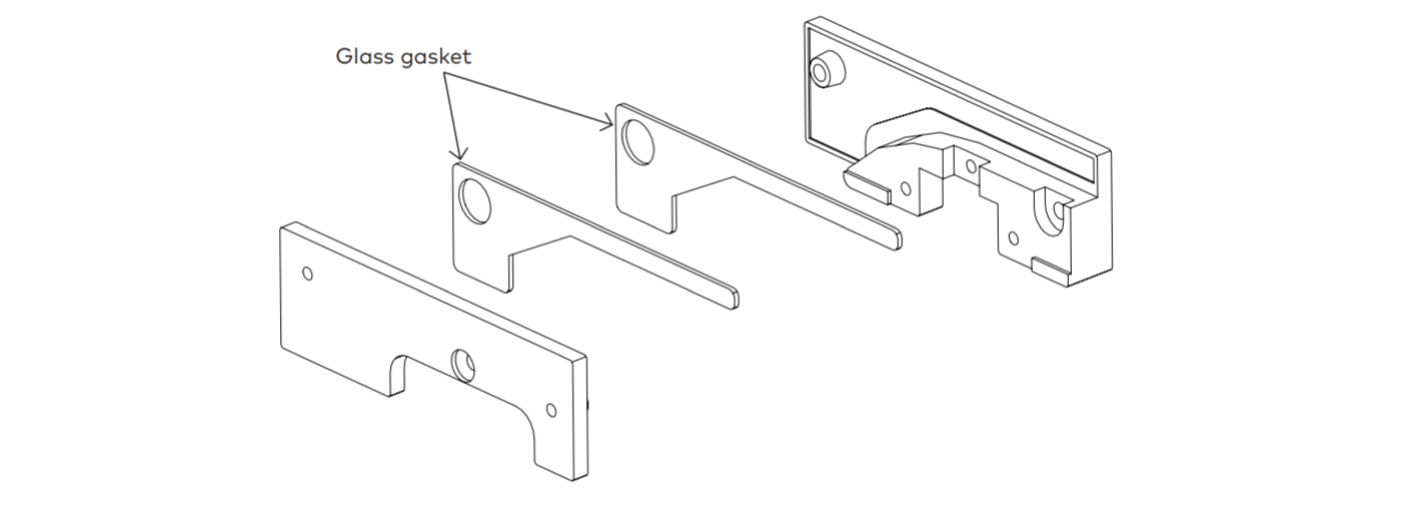

2. Install the gaskets
| 1 | If have 1/2” [13] or 3/4” [19] glass: • Fittings will come with 2mm [3/32”] glass gaskets pre-secured. |
| 2 | If have 3/8” [9] or 5/8” [15] glass: • Fittings will come with 2mm [3/32”] glass gaskets. • PLUS additional (2) 3mm [1/8”] glass gaskets. • Remove 2mm gaskets and replace with 3mm gaskets. |

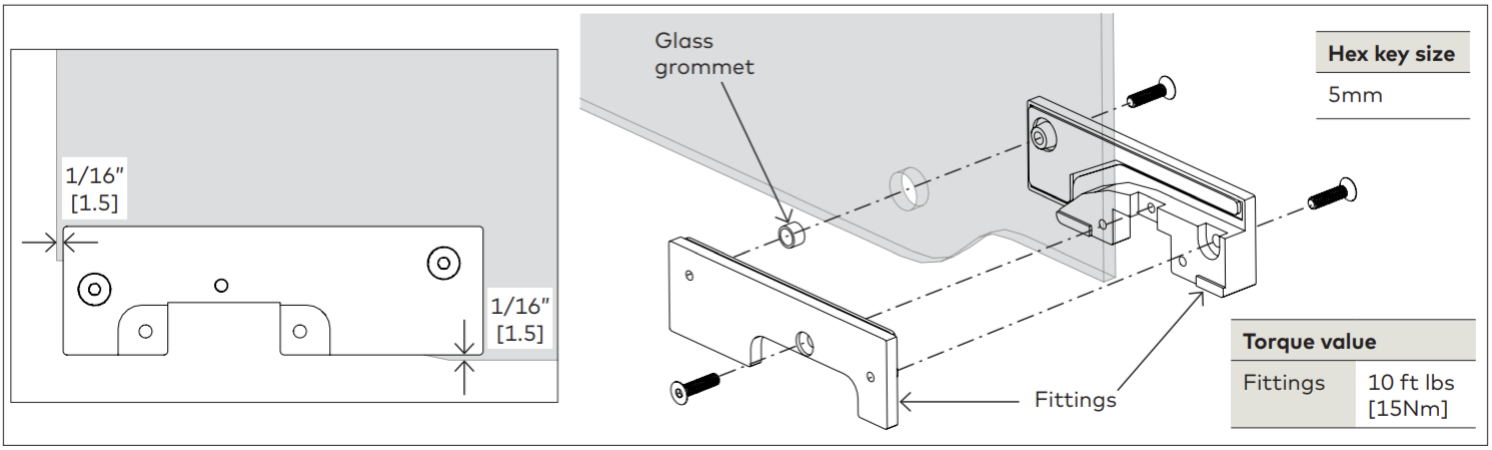

3. Install fittings on glass
| 1 | Insert glass grommet. |
| 2 | Place fittings onto glass. |
| 3 | Secure fittings with included fasteners. • Tighten using a 5mm hex key. |

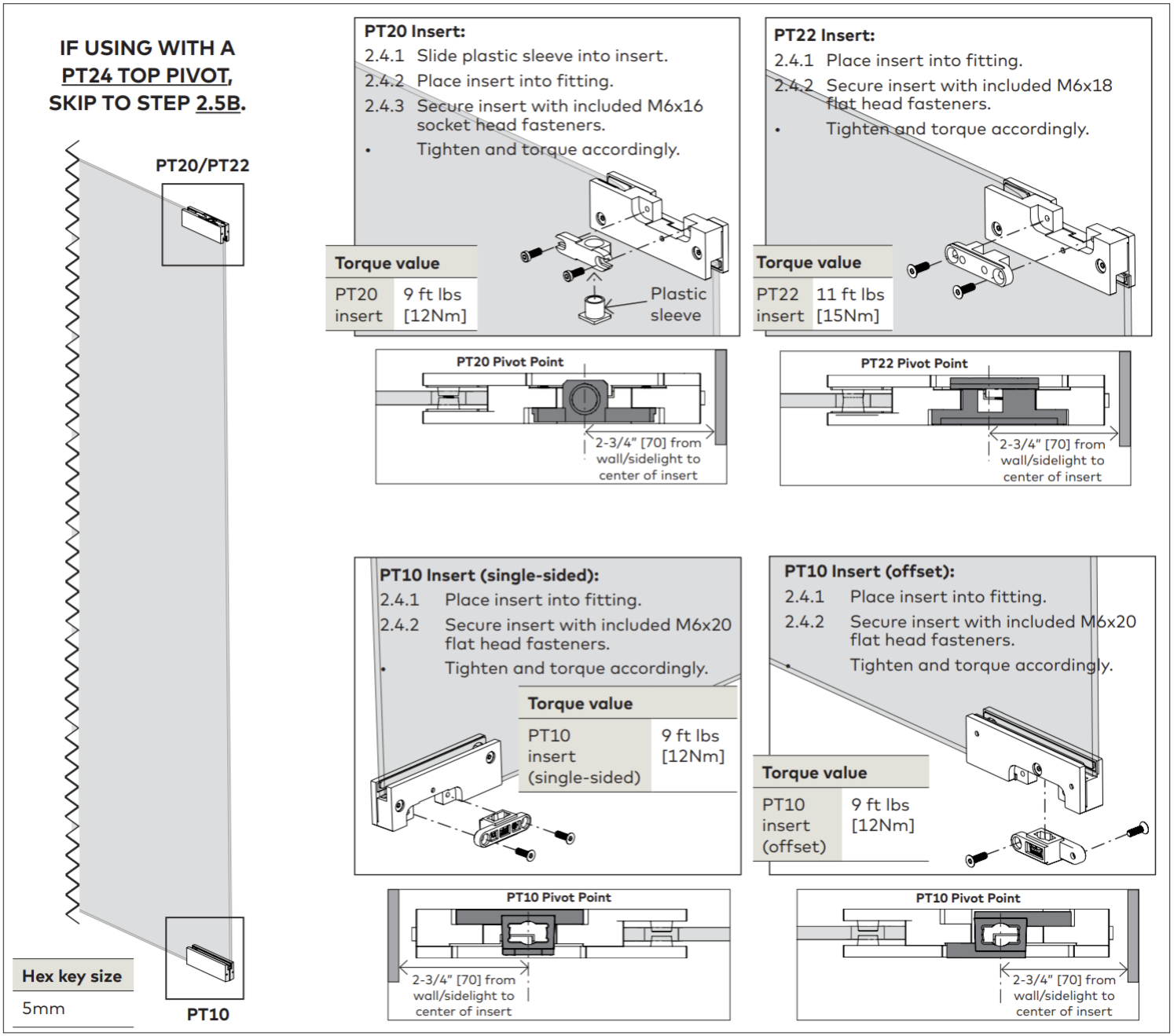

4. Install inserts

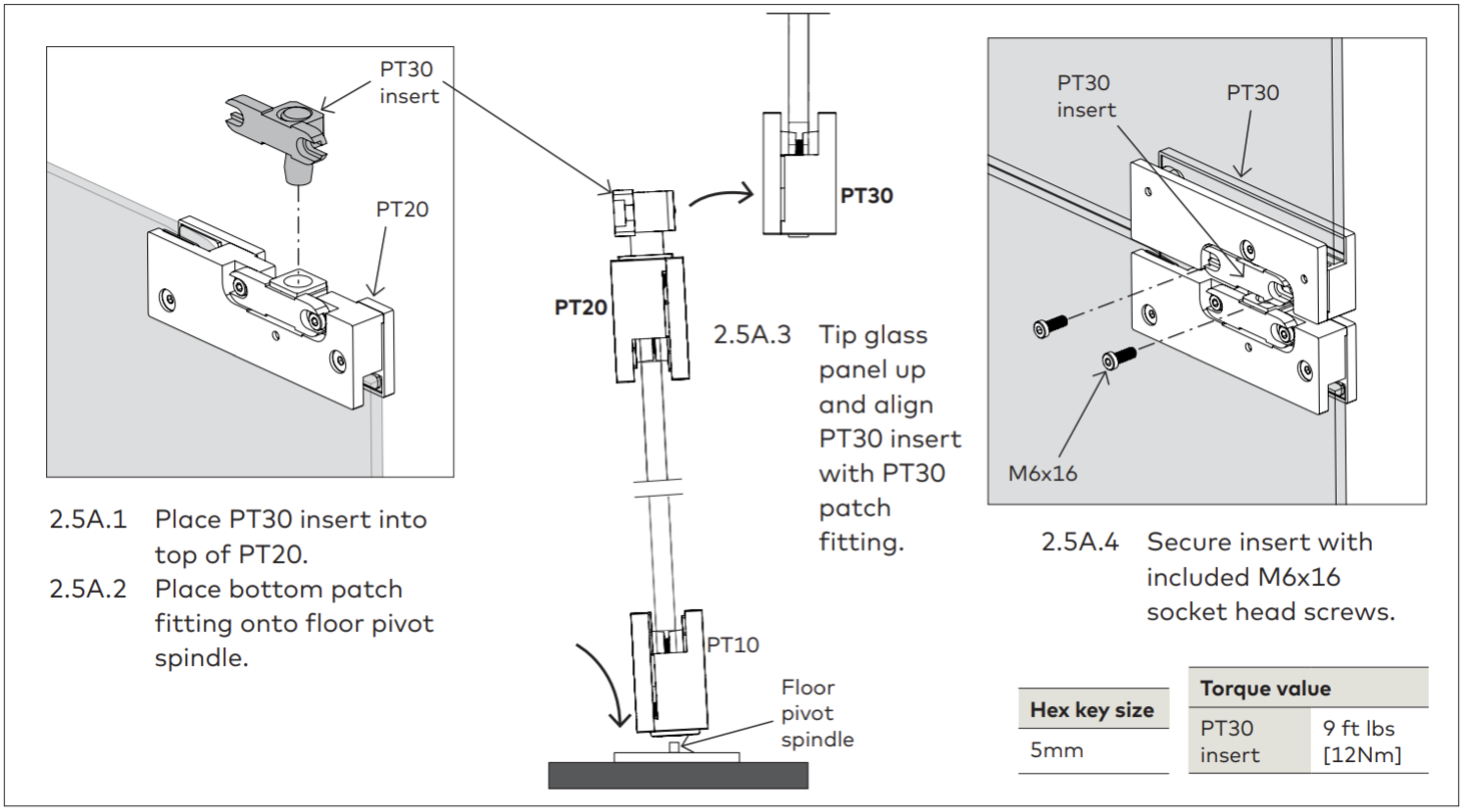

5.1 Option 1: Install door panel (with PT20/PT30)

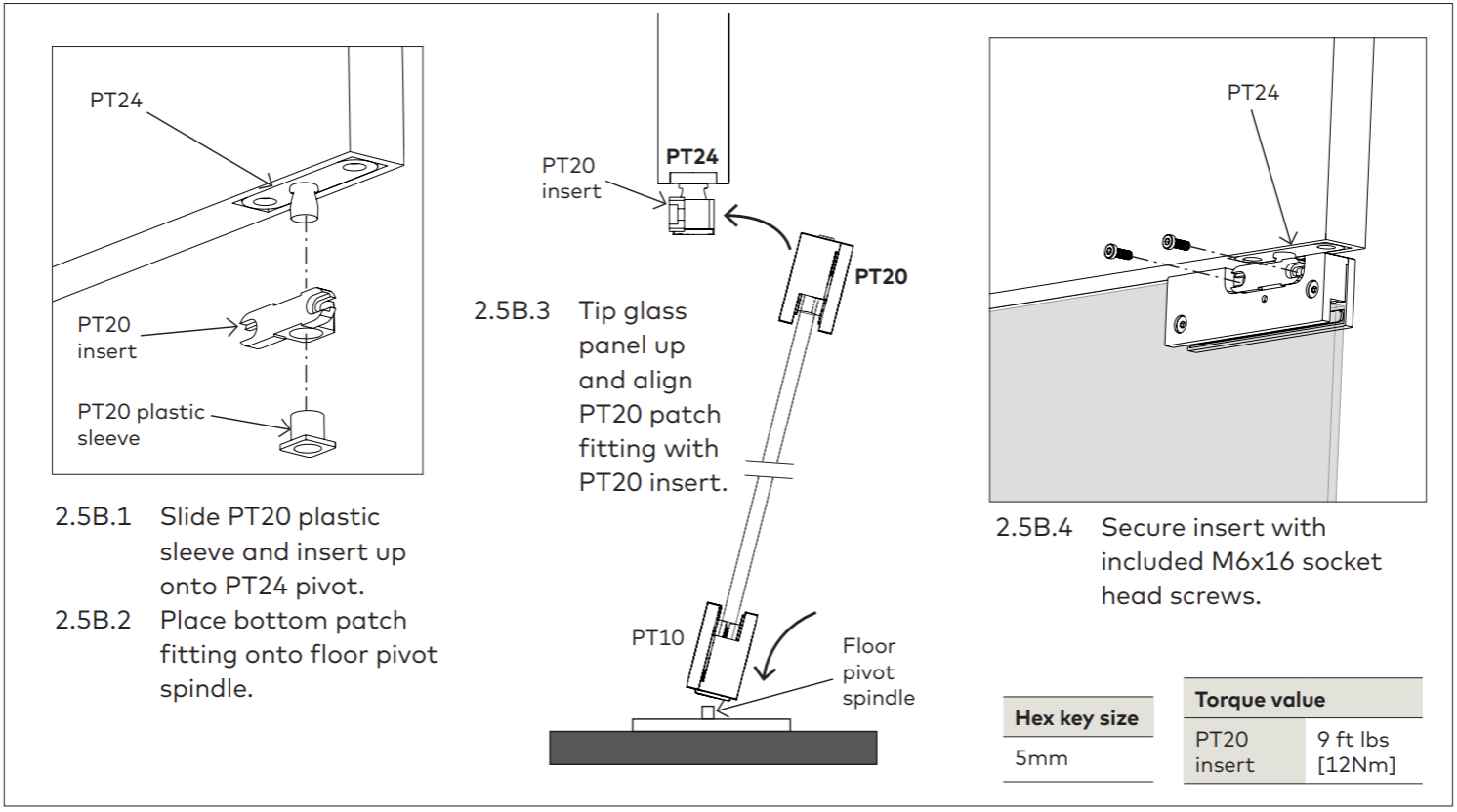

5.2 Option 2: Install door panel (with PT20/PT24)

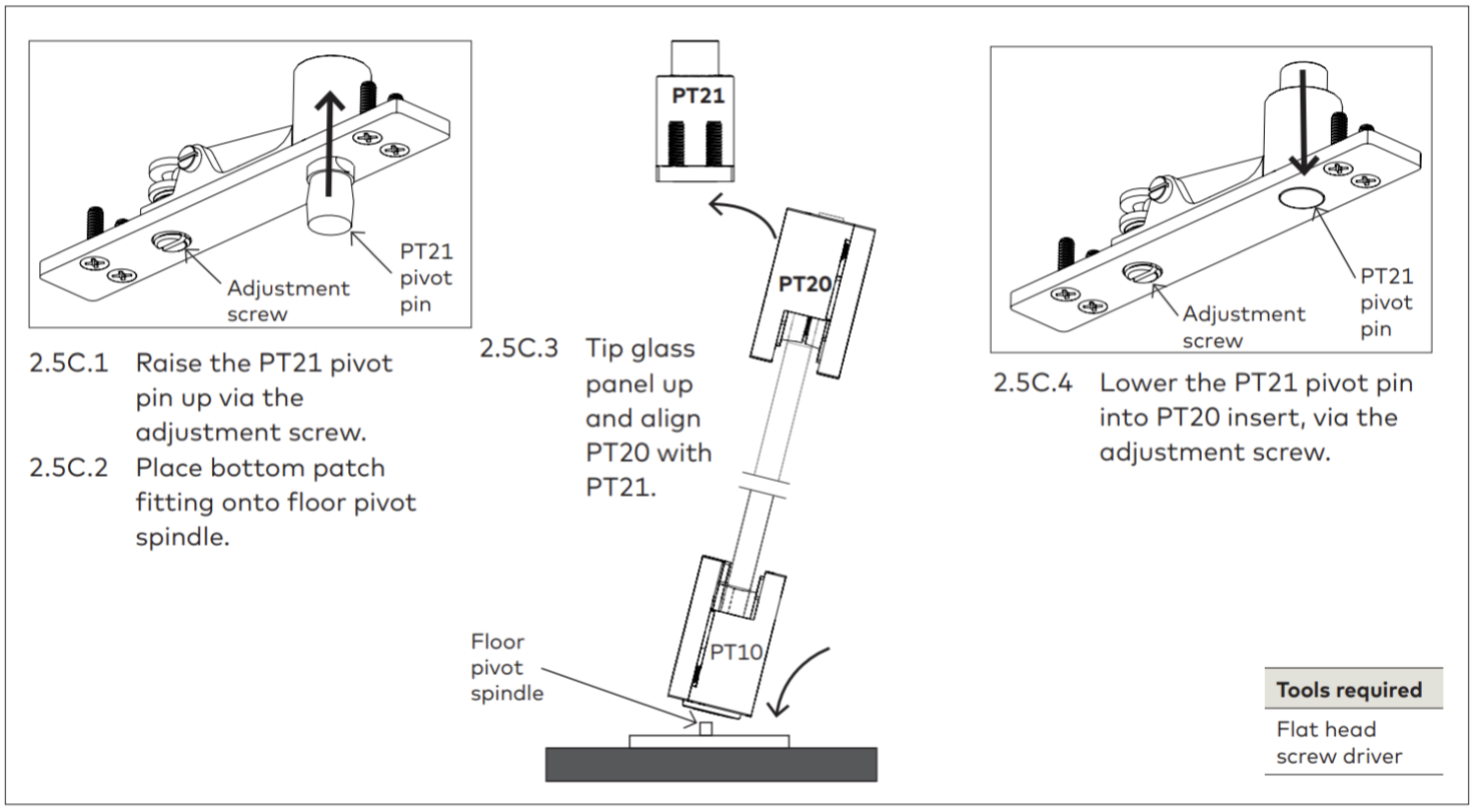

5.3 Option 3: Install door panel (with PT20/PT21)

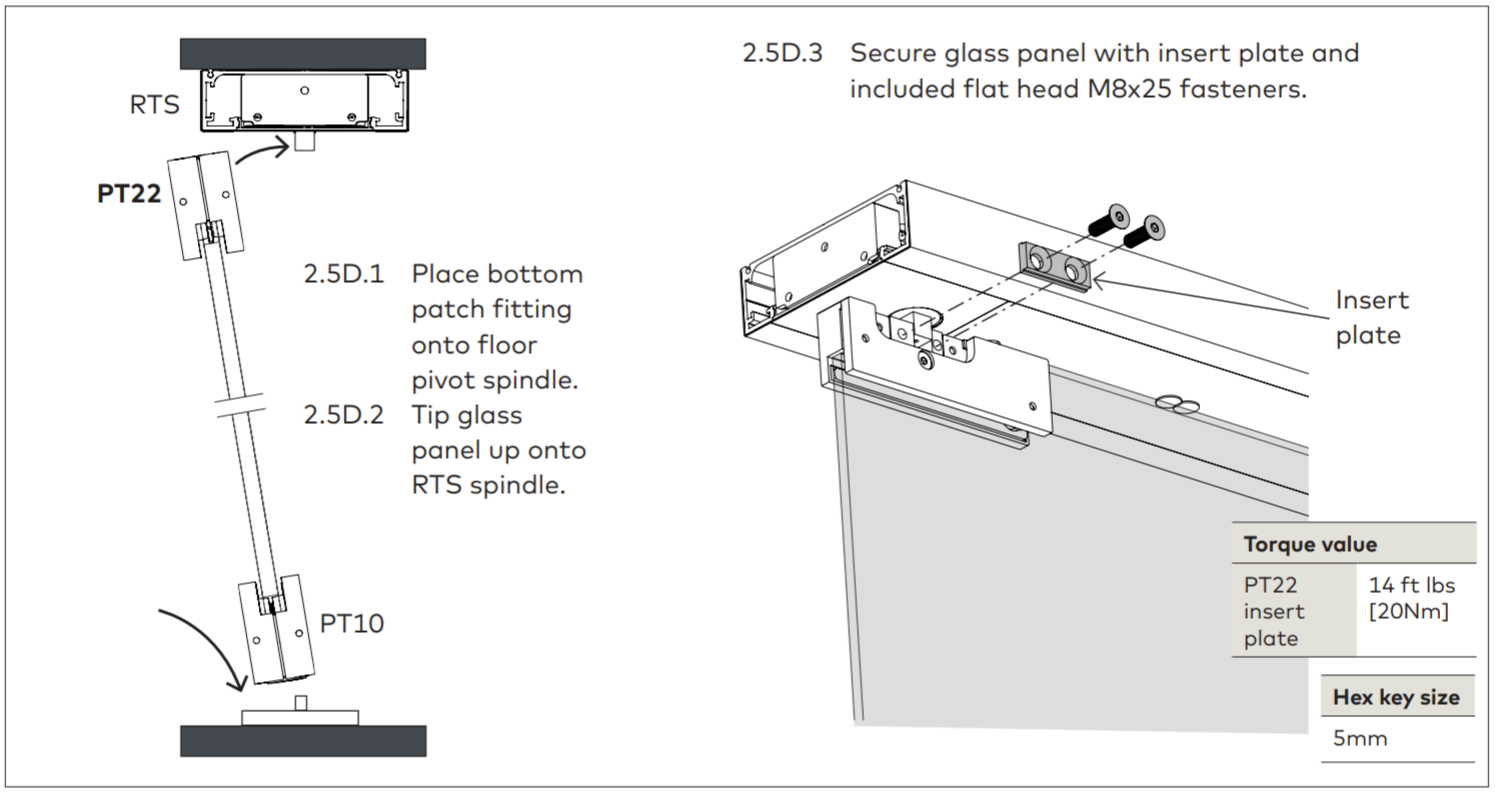

5.4 Option 4: Install door panel (with PT22/RTS)

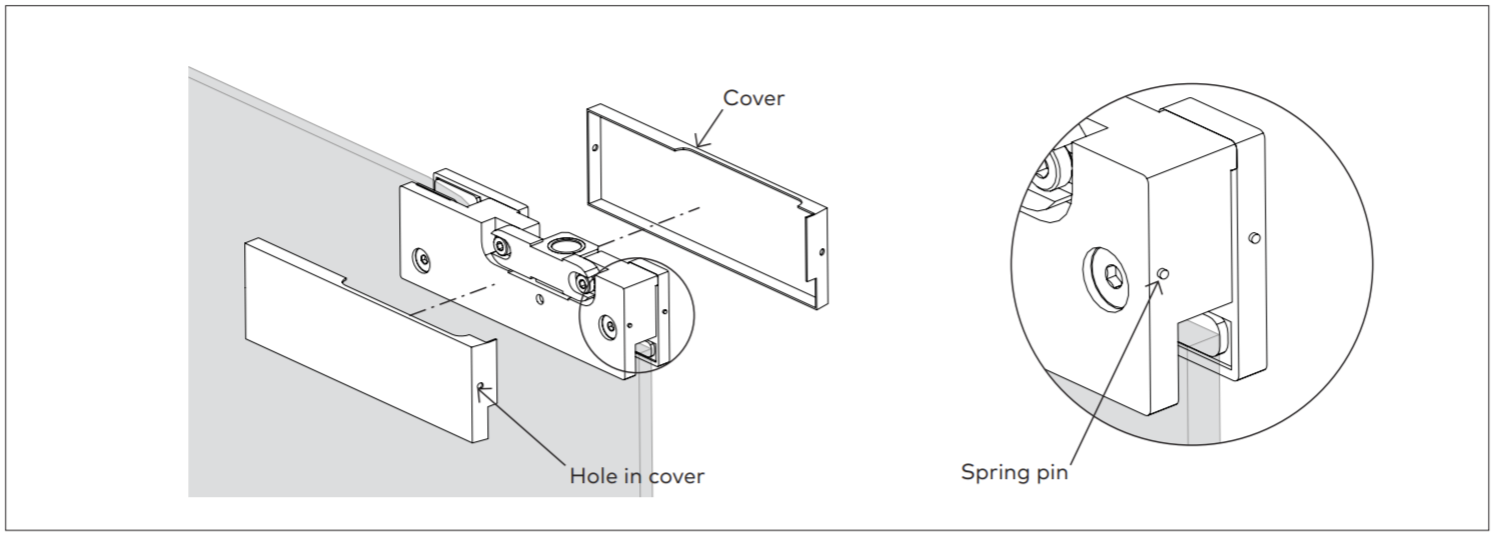

6. Install covers
| 1 | Aligh hole in cover with spring pin on end of fitting. |
| 2 | Snap covers onto patch fittings. |
| 3 | To remove: • Depress spring pin and pop cover off. |
