Installation Instructions Wood Door: Single-sided non-locking pull (without rose)

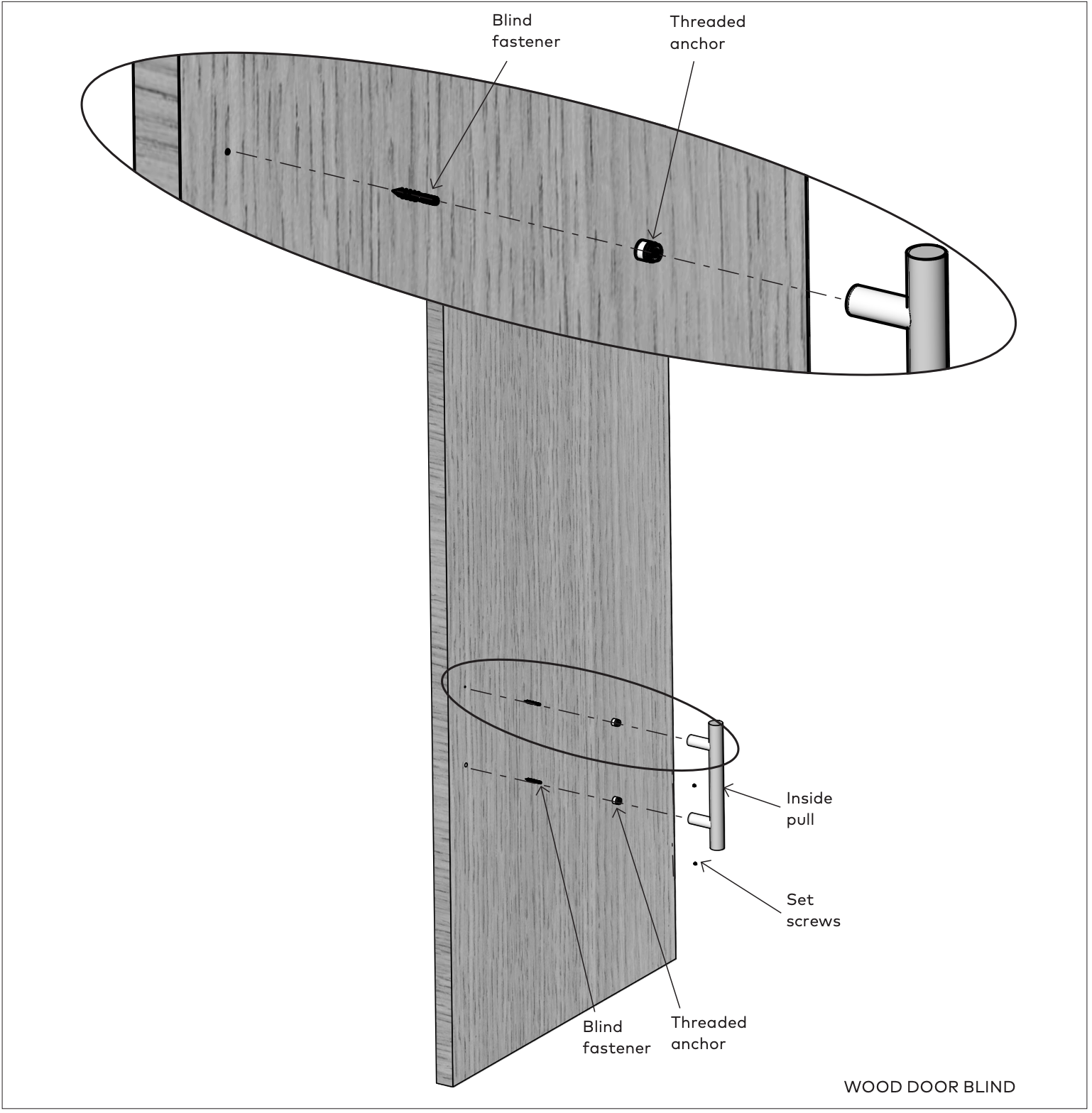

1. Assemble inside pull (without rose)

1. Lay the ladder pull on a flat surface.
2. Thread the following parts into each other:
   • blind fastener
   • threaded anchor
   NOTE: The tapered side of the anchor should face the pull.
3. Twist the blind fastener through pilot hole in the wood door.
4. Slide the inside pull onto the anchors.
5. Tighten the set screw on each post of the inside pull.
