Installation Instructions Wood Door: B2B non-locking pull

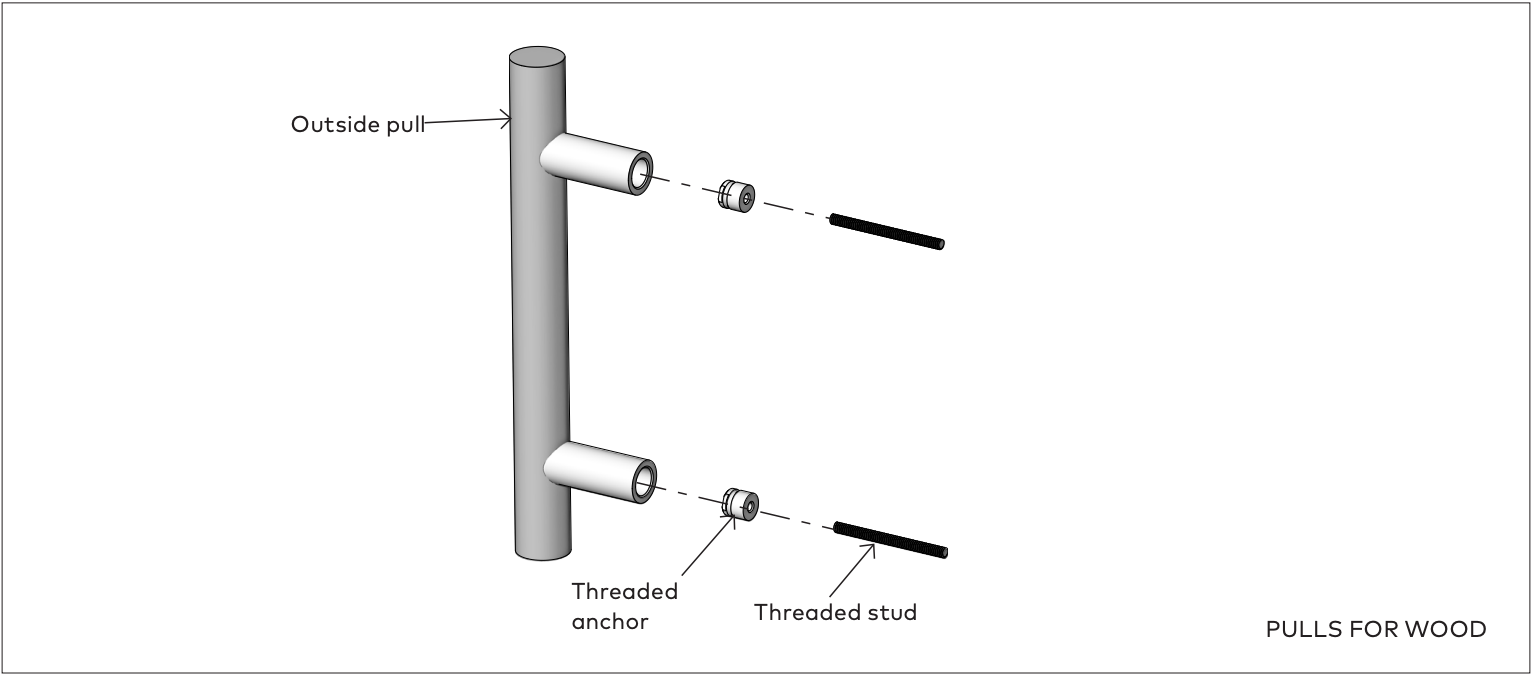

1. Assemble outside pull

NOTE: Be sure to use the appropriately sized screw pack dependent upon the size and type of door         being used.

1. Thread the following parts into the threaded stud:
   • threaded anchor

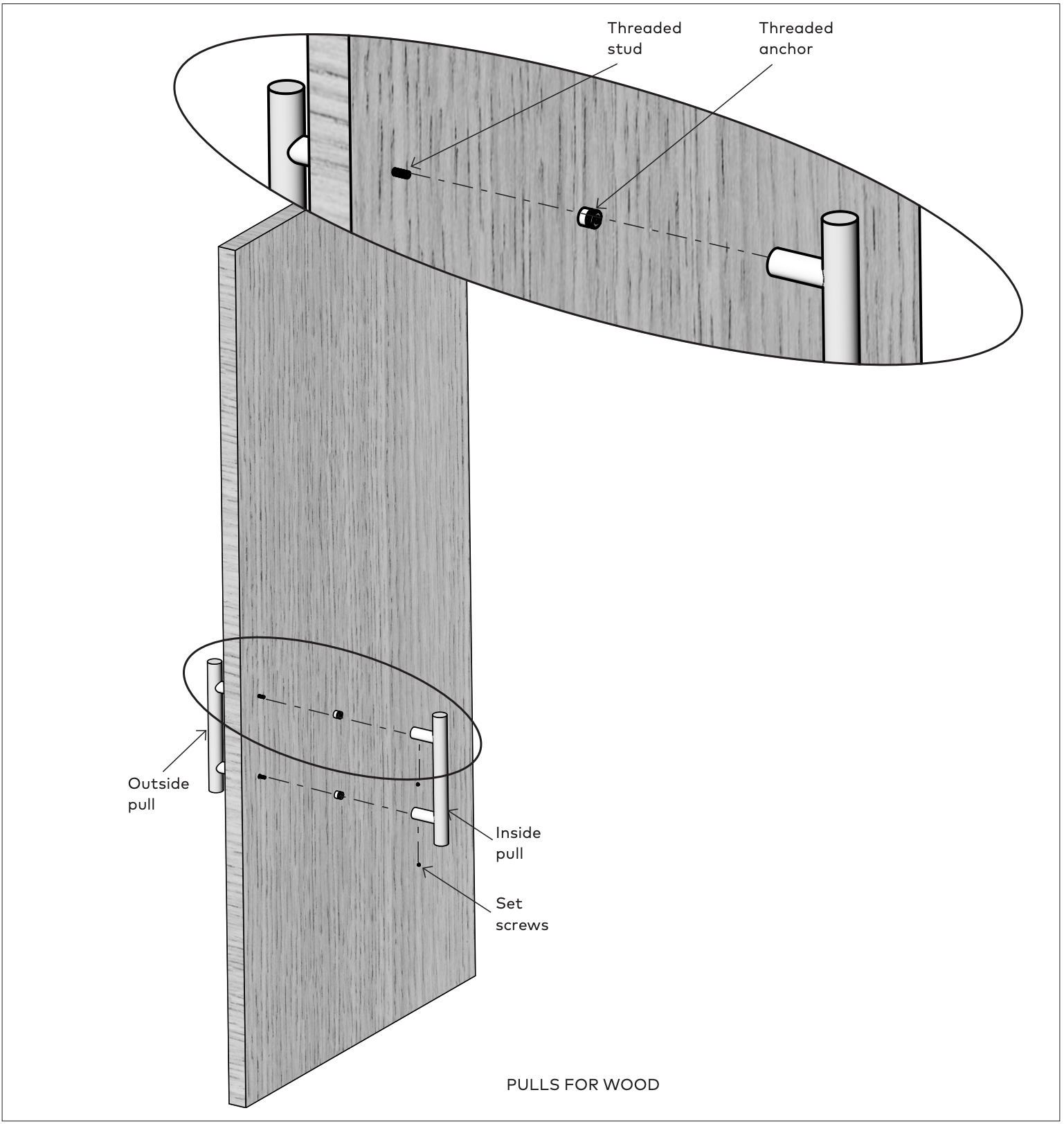

2. Assemble Inside pull

1. Place the outside pull through the door. NOTE: BE SURE TO SUPPORT THE PULL IN THE DOOR WITH YOUR HAND.
2. To secure the posts, thread the following parts onto the threaded stud:
   • threaded anchor
3. Slide the inside pull onto the anchors.
4. Tighten the set screw on each post of the inside pull.
