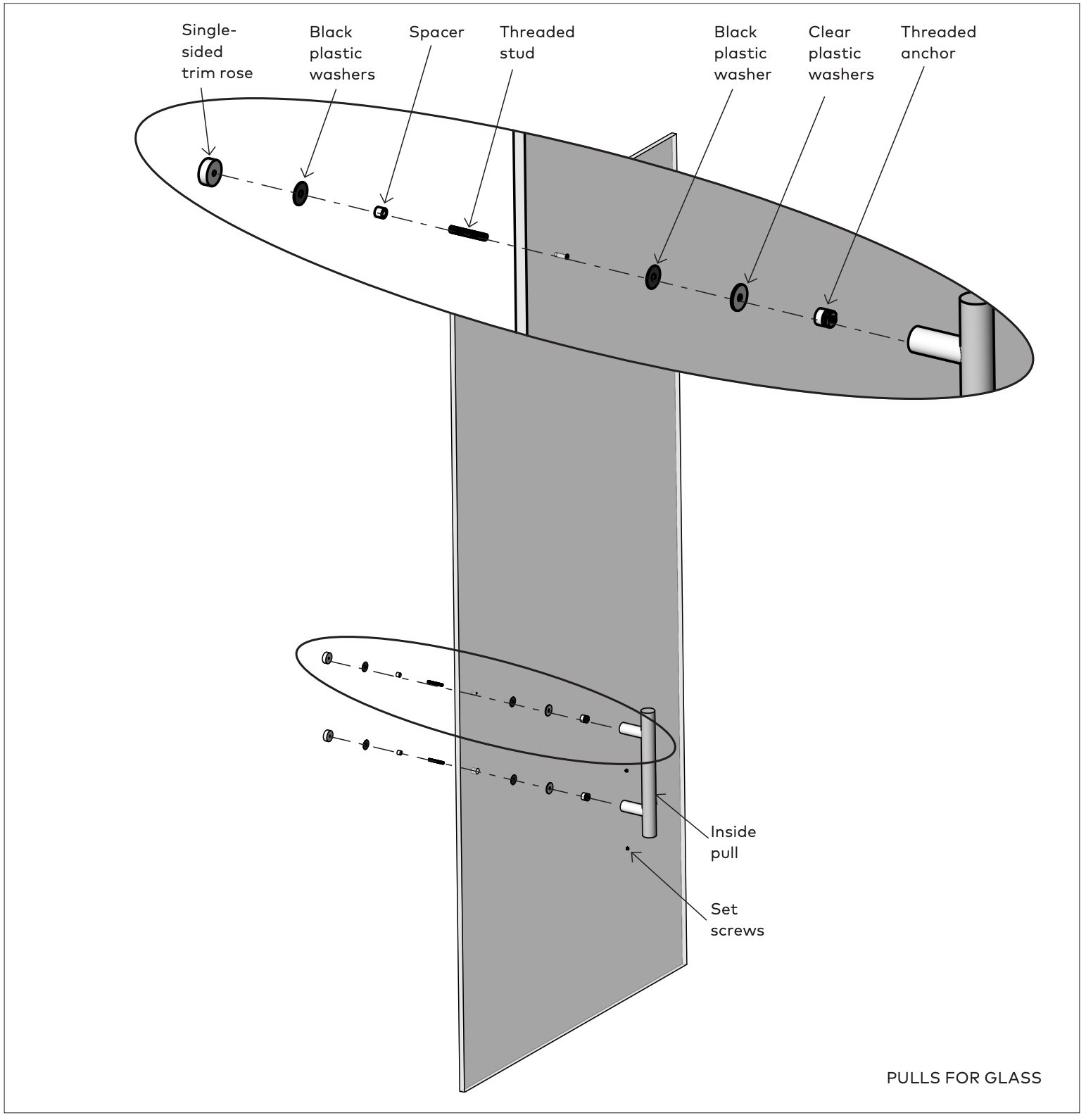

1. Assemble inside pull (with rose)
NOTE: Be sure to use the appropriately sized screw pack dependent upon the size and type of door being used.
- Lay the ladder pull on a flat surface.
- Thread the following parts into each other:
• single-sided trim rose
• clear plastic washer
• threaded stud
• spacer - Feed the stud, spacer and rose assemblies through the glass door.
- To secure the post, thread the following parts onto the threaded stud:
• clear plastic washer
• black plastic washer
• threaded anchor
NOTE: The tapered side of the anchor should face the pull. - Slide the inside pull onto the anchors.
- Tighten the set screw on each post of the inside pull.
