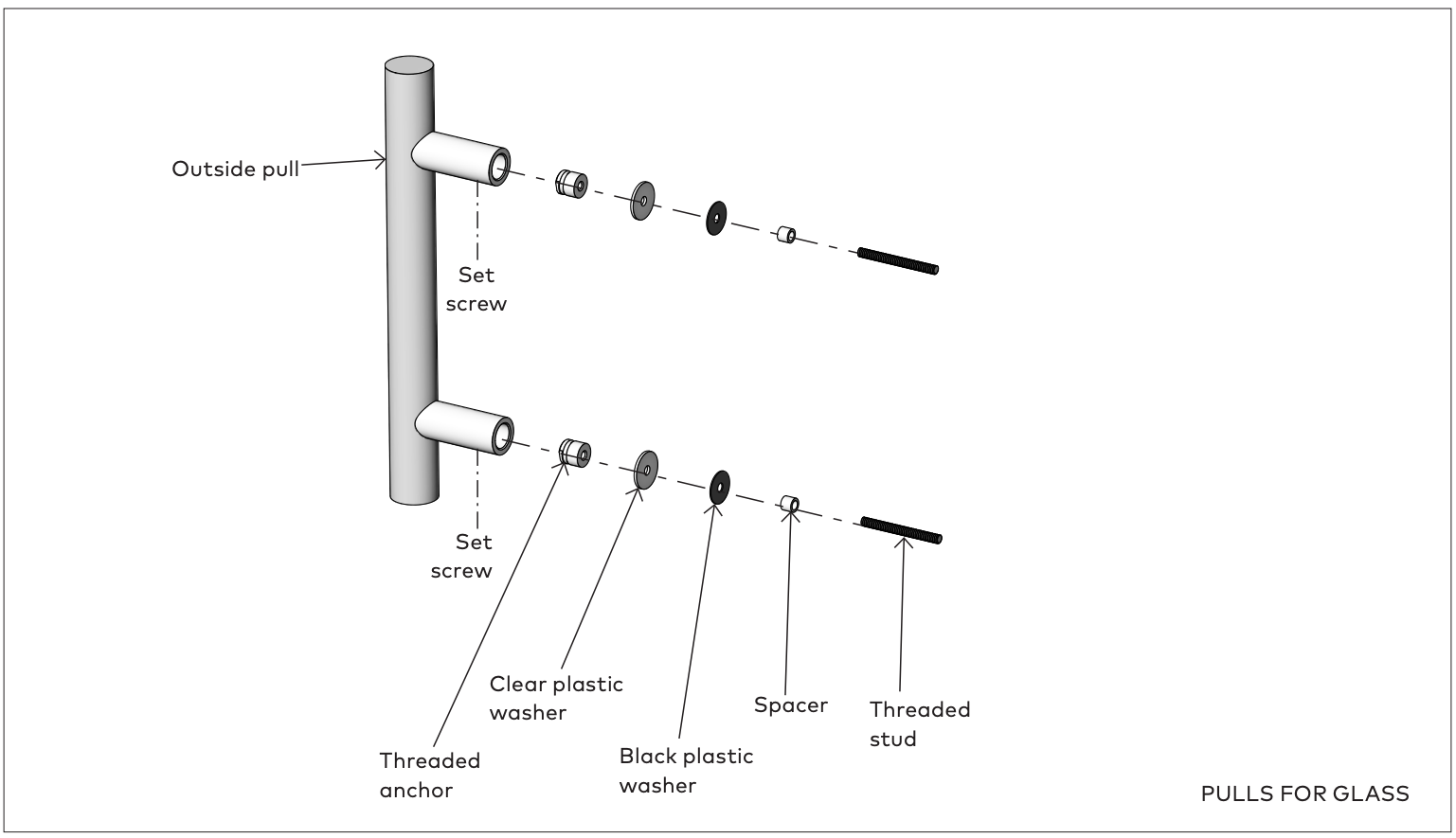

1. Assemble outside pull
NOTE: Be sure to use the appropriately sized screw pack dependent upon the size and type of door being used.
- Thread the following parts into the threaded stud:
• threaded anchor (reference part number 905.390)
• clear plastic washer (qty: 1 per post)
• black plastic washer
• spacer - Insert the anchor and parts into the outside pull posts.
- Tighten the set screw on each post of the outside pull.

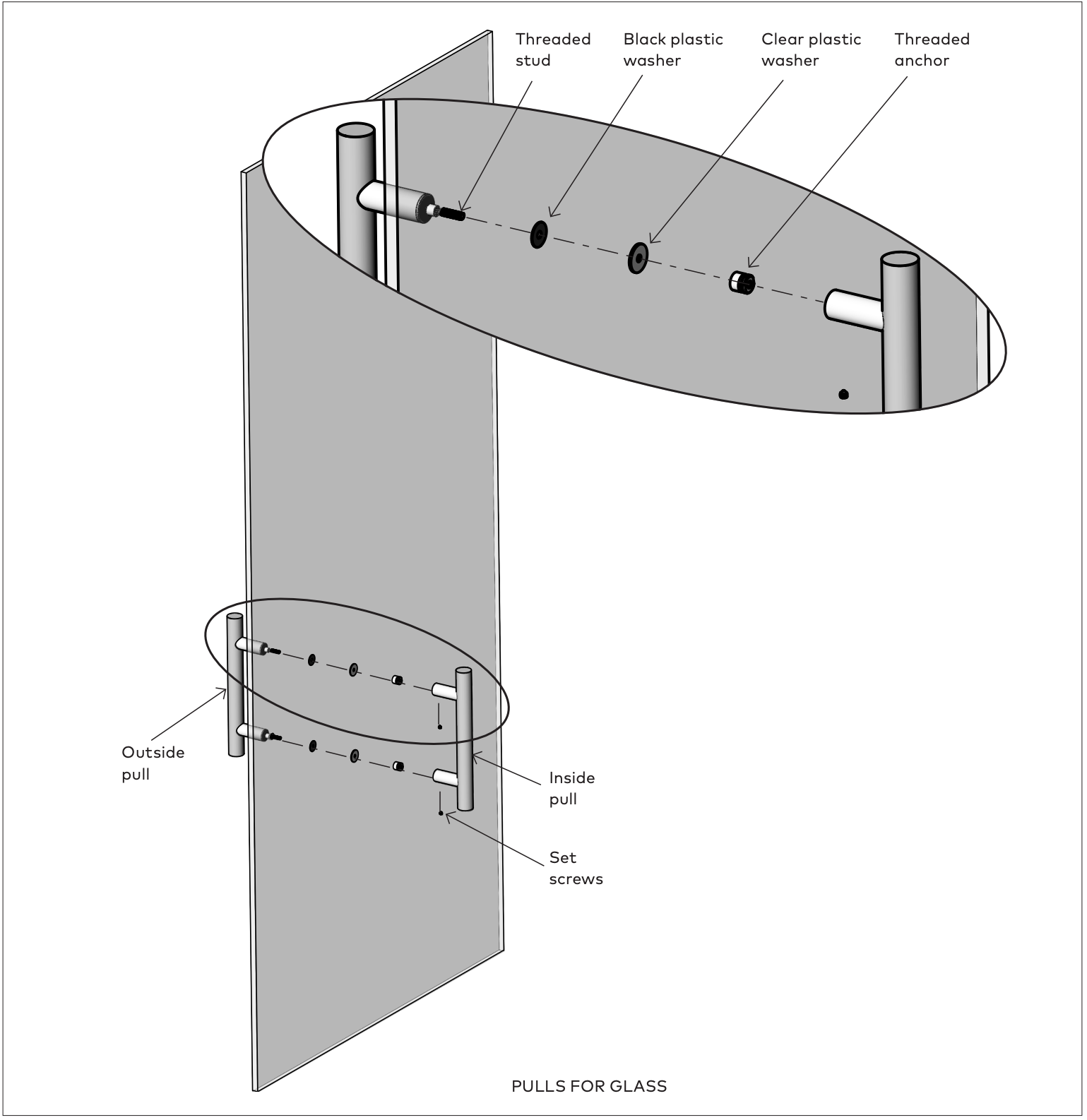

2. Assemble Inside pull
- Place the outside pull through the door. NOTE: BE SURE TO SUPPORT THE PULL IN THE DOOR WITH YOUR HAND.
- To secure the posts, thread the following parts onto the threaded stud:
• black plastic washer
• clear plastic washer
• threaded anchor - Slide the inside pull onto the anchors.
- Tighten the set screw on each post of the inside pull.
