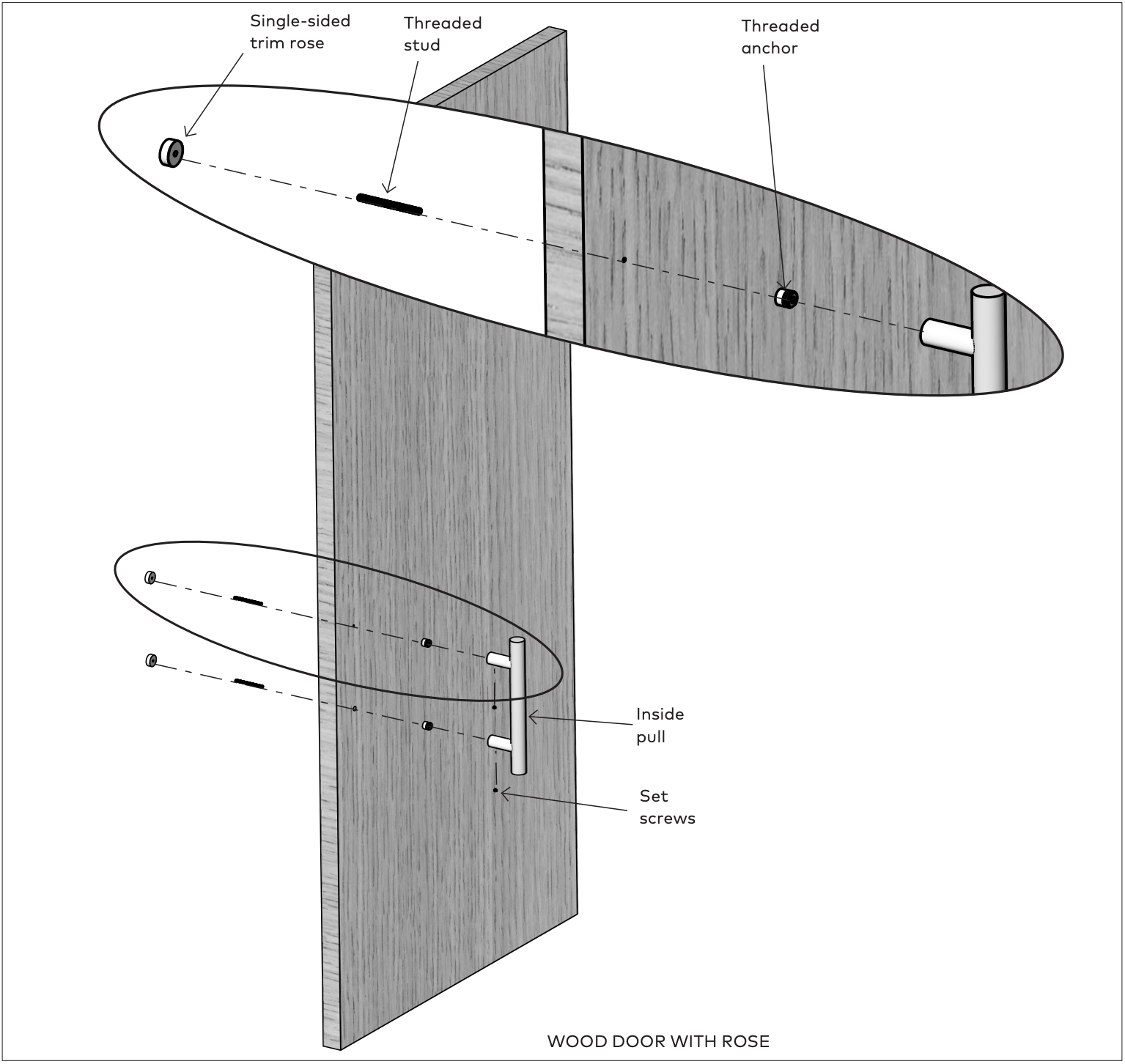

1. Assemble inside pull (with rose)
- Lay the ladder pull on a flat surface.
- Thread the following parts into each other:
• single-sided trim rose
• threaded stud - Feed the rose and stud through the wood door.
- To secure the post, thread the following parts onto the threaded stud:
• threaded anchor
NOTE: The tapered side of the anchor should face the pull. - Slide the inside pull onto the anchors.
- Tighten the set screw on each post of the inside pull.
