RCI 903 Audible Alert Installation Instructions
Instructions
1. Slide the colored leads onto the switch terminals (shown below).

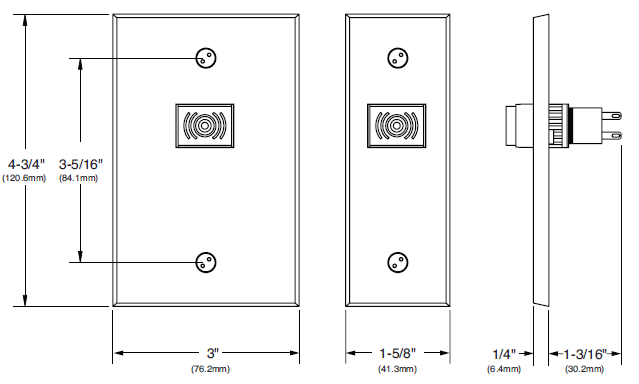

NOTE: ‘N’ version is compatible with 1-3/4” (44.4mm) (or larger) narrow-frame profiles.
Specifications
| Voltage | 10 to 26VDC |
| Current Consumption | ≤ 20mA |
| Sound Pressure Level | 80-96dB @ 0.1m |
| Tone Frequency | 2.0 kHz |
| For Intermittent Tone | Positive (+) on A terminal; Negative (-) on B terminal |
| For Constant Tone | Positive (+) on B terminal; Negative (-) on A terminal |
*Specifications are subject to change without notice.
