Instructions

1. Place the mortise cylinder through the 1-3/16” hole in the center of the aluminum faceplate.
2. Mount the cylinder/switch bracket on the reverse side of the faceplate as shown in the profile photos below. Make sure that the teeth are positioned inside the grooves along the cylinder.
   Attach the cylinder nut to fasten.
3. Insert the switch(es) into the 1/2” holes located on the bracket below the cylinder. For ideal installation thread the
   top nut an 1/8” down and tighten bottom nut using a 9/16” wrench.
4. Make wire connections per illustrations below.
5. Fasten keyswitch to electrical box with the tamperproof 6-32 machine screws and spanner hand tool supplied.

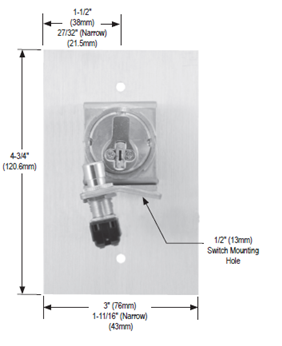

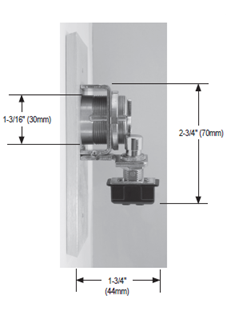

Rear Profile	Side Profile
SPDT Wire Connection	Optional DPDT Switch Connection
