RCI 972TD Illuminated Pushbuttons with Integrated Timer Installation Instructions

Updated

Instructions

  1. A 2-1/4” (57mm) deep back box is required. Match your message color with lens cap color and snap into the housing. Timer and pushbutton connections are already wired as shown.
  2. To change the LED voltage, slightly turn the white lamp holder in a counterclockwise direction to release from the black housing and pull it out. Change LED cluster as desired and re-turn the lamp holder back into place.

NOTE: If LED doesn’t light, reverse bulb in socket.

Connect appropriate 12 or 24 VDC supply voltage to the red (+) and black (–) harness leads.

NOTE: Overheated / melted components caused by incorrect input voltage will not be covered under warranty.

To change the message tag, remove the lamp holder as described above and then pinch the white tabs to release the lens cap. Be careful not to lose the spring. Insert your thumbnail between the corner of the lens cap and white extension and then slide it along the edge to separate the cap. Tap the cap to remove the message tag.

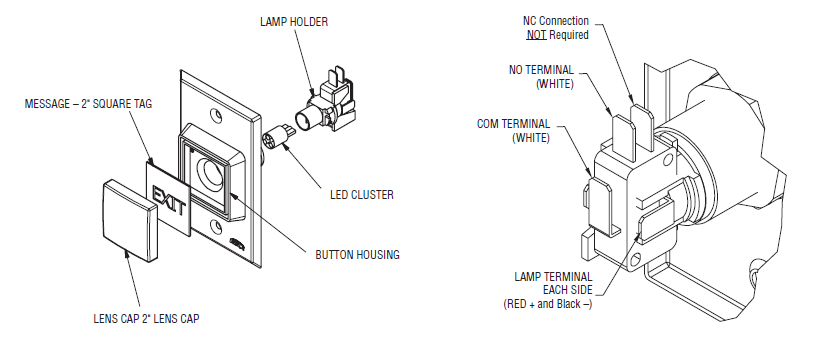

Exploded and rear view diagrams of the RCI 972TD illuminated pushbutton showing lamp holder, LED cluster, lens cap, message tag, button housing, and labeled COM, NO, NC, and lamp terminals.



BulbVoltageLED Current DrawSwitch Rating
LED12VDC20mACycle Rating: 10,000
LED24VDC10mAContacts Rated 16 amps @ 125VAC





Typical Installation for 972-TD30A ADJUSTABLE RELOCK TIMER with Fail Secure Strikes
The integrated timer is adjustable from 0.1 - 30 seconds

Typical wiring diagram for RCI 972-TD30 adjustable relock timer with fail secure strike, showing 12–24 VDC input, push-to-exit button, timer module, and field wiring connections.
  • Both timers are powered continuously
  • Voltage for both timers is 12 to 24 VDC
  • Each push on exit button will restart the delay period.
  • The trigger is connected to a N/O push button
  • Double sided tape is provided to position the timer inside the switch junction box.
  • Timer SPDT relay rating 2Amp@30VDC



Typical Installation for 972-TD30 FIXED RELOCK TIMER with Electromagnetic Lock for Access Controlled Egress Doors with 30 Second Minimum Unlock Requirement

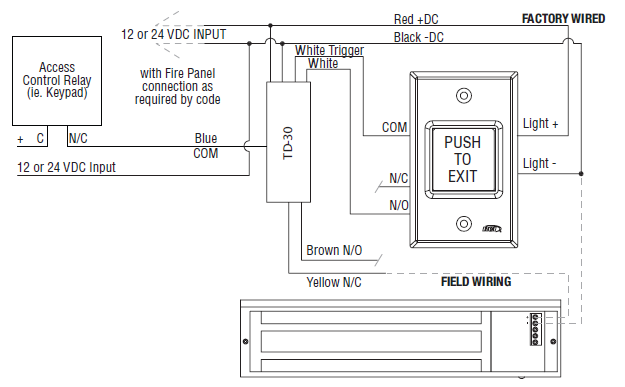

Typical wiring diagram for RCI 972-TD30 fixed relock timer with electromagnetic lock for access-controlled egress doors, showing access control relay, timer, push-to-exit button, and lock wiring.

NOTE: Connect to + and – per electromagnetic lock instructions
