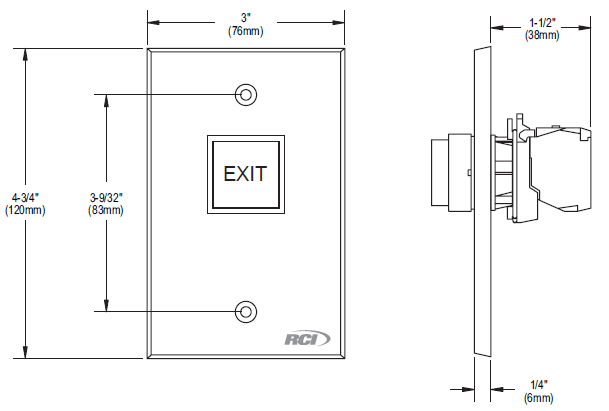

Instructions
1. Connect device to be controlled to N/O or N/C terminals as required.
2. Connect appropriate supply voltage to LED power terminals (optional)
3. Insert excess wiring into electrical box (not provided) and install switch cover plate to box.
NOTE: Contact and LED modules may be different than shown, based on model ordered. See back of Switch for configuration details.
| Switch Specifications | LED Specifications | ||
|---|---|---|---|
| Voltage | Current Rating | LED Voltage | LED Current |
| 24VAC | 4A Max | 12VAC/DC | 18mA |
| 120 VAC | 3A Max | 24VAC/DC | 18mA |
| 24VDC | .05A Max | ||
| Electrical Cycle Rating of Switch: Operating Temperature: -13°F to 158° (-25°C to 70°C) | |||
