Instructions
- Solder the leads to the switch according to the diagram below.
- Ensure that all connections are properly attached to the terminals according to the mode of the electrical device.
- Connect leads to the electric locking device and check for proper operation, then fasten the faceplate/mounting plate to a utility box (supplied by others).

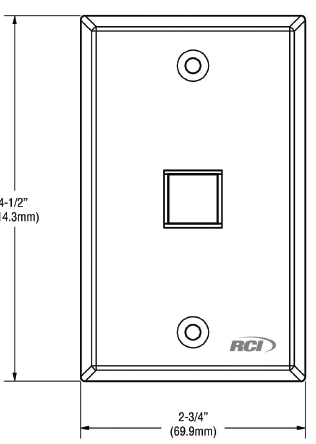

Switch Terminals a & b Lamp (Not provided) 3 & 4 normally open 1 & 2 normally closed | ||
| Description | Switch Mode | Switch Configuration | Switch Rating | Standard Finish |
|---|---|---|---|---|
| 980-MO Pushbutton | Momentary Action | 2-SPST | 5A @ 250V | 32D |
