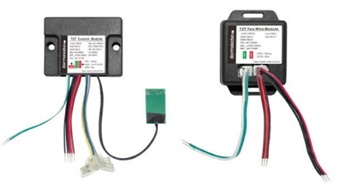

| 2 Wire installation:This installation requires both the RCM (Remote Control Module) and TWM (Two-Wire Module). Together, these modules combine power and signal transmission over a two-wire connection. |
| When applying the wave-to-open applique to the surface of the button, ensure the applique does not block the button mounting holes. |
Installation Instructions:
1. Remove switch plate from wall.
2. Disconnect existing wires.
3. Remove adhesive back on antenna and attach to back mounting plate of the switch.
4. Connect 3 switch wires to switch.
5. Connect white LB and green LA to existing 2 wires.
Remember the color wires used as polarity is critical.
6. Cap off all remaining wires.
7. Re-install switch to wall. (see applique note)
8. Locate opposite end of the 2 wires from the RCM and locate 2 wire module there.
9. Disconnect the 2 wires from the RCM and attach to the LB and LA wires of the TWM. Polarity is important.
10. Connect proper voltage to the red and black power wires of the TWM.
11. Connect appropriate relay output to signal input.
NOTES: As the white LB and green LA wires transmit both power and signal, the Relay Output below can only be used as a dry output signal. The mechanical switch will still activate in the event of power loss to the module. Sounder can be enabled/ disabled with three consecutive activations and one continuous activation (the sounder will acknowledge).
