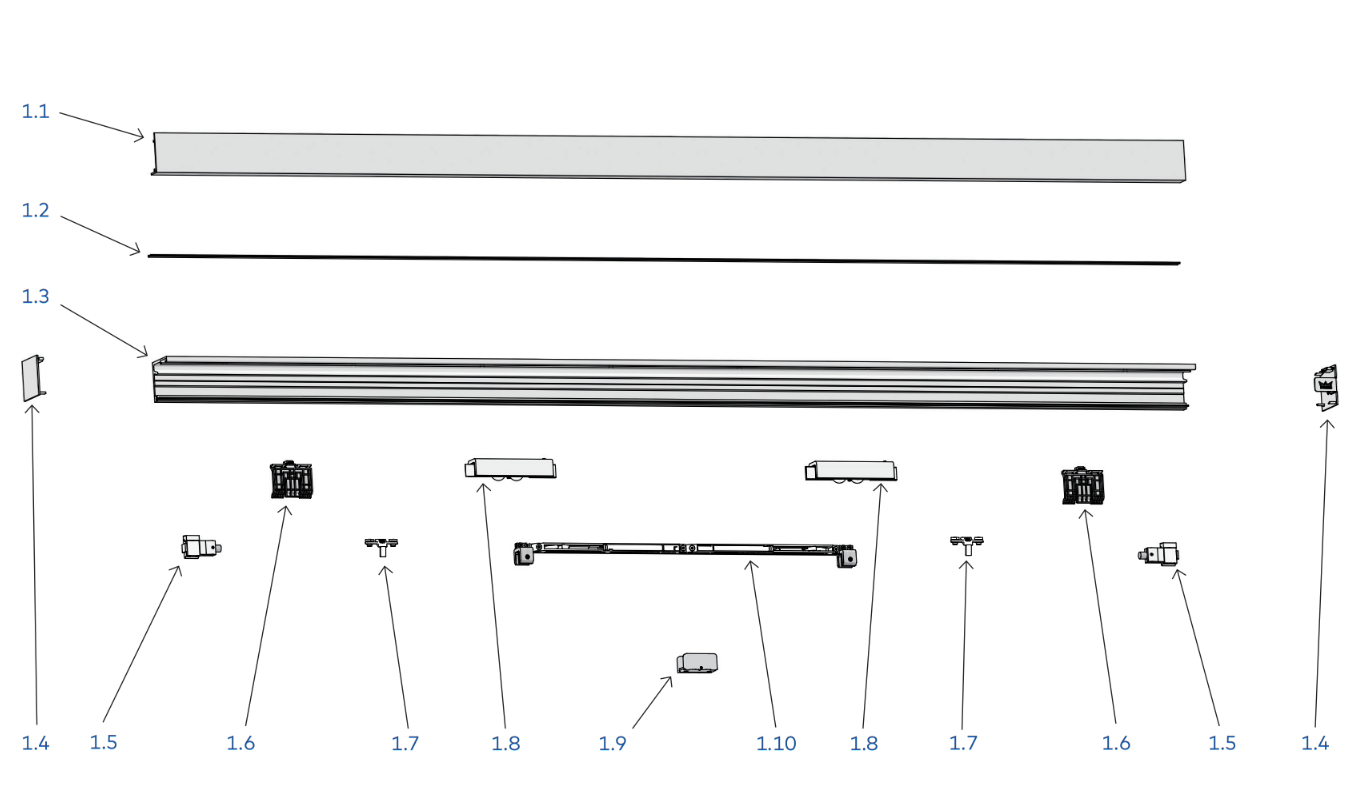

1. Installation instructions
| 1 | Cover |
| 2 | Brush strip |
| 3 | Track |
| 4 | End cap |
| 5 | End stop |
| 6 | Cover clips |
| 7 | Start/stop guides |
| 8 | Roller carrier |
| 9 | Floor guide |
| 10 | Dormotion unit |
2. Securing track to mounting surface

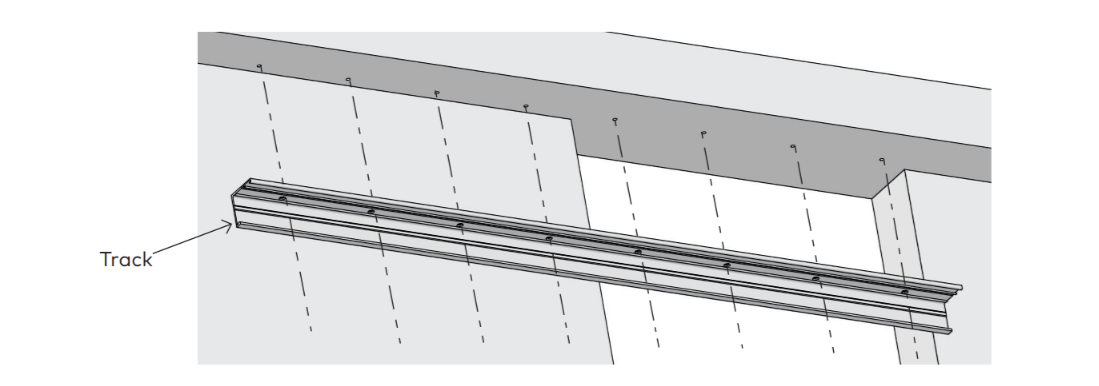

| 1 | Ensure the track is properly level and secure it to the ceiling per the appropriate measurements on the following page. |
| 2 | Use appropriate fasteners according to the following recommendations. |
NOTE: SEE DIMENSION INSTRUCTIONS ON NEXT PAGE FOR REFERENCE.
NOTE:
OVERHEAD REINFORCEMENT:
The overhead reinforcement must be a minimum of ¼” [6] x 3” [76] steel angle, 16 gauge metal stud, or two
pieces of 1 1/2” [38] thick wood blocking (double stacked), secured to studs or joists on a maximum 16”
[406] centers for the length of the track. The overhead reinforcement may be flush on the overhead surface or on the interior of this surface. Track mounting screws must fully penetrate the steel angle, metal stud, or at a minimum of 2” [51] into wood blocking, utilizing the predrilled holes in the MUTO track. Consult with a structural engineer to determine if reinforcement is adequate for your specific application or to meet specific codes in your location.

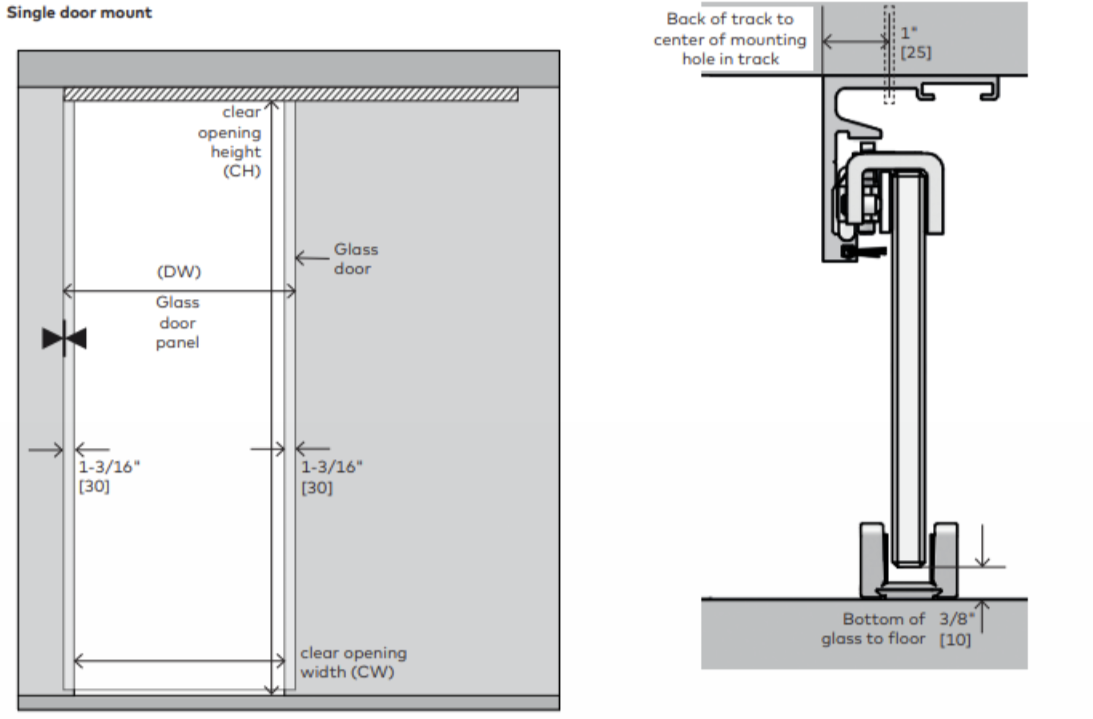

3. Door/wall dimensions

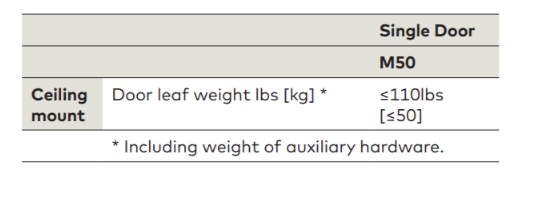

4. Specifications - technical data

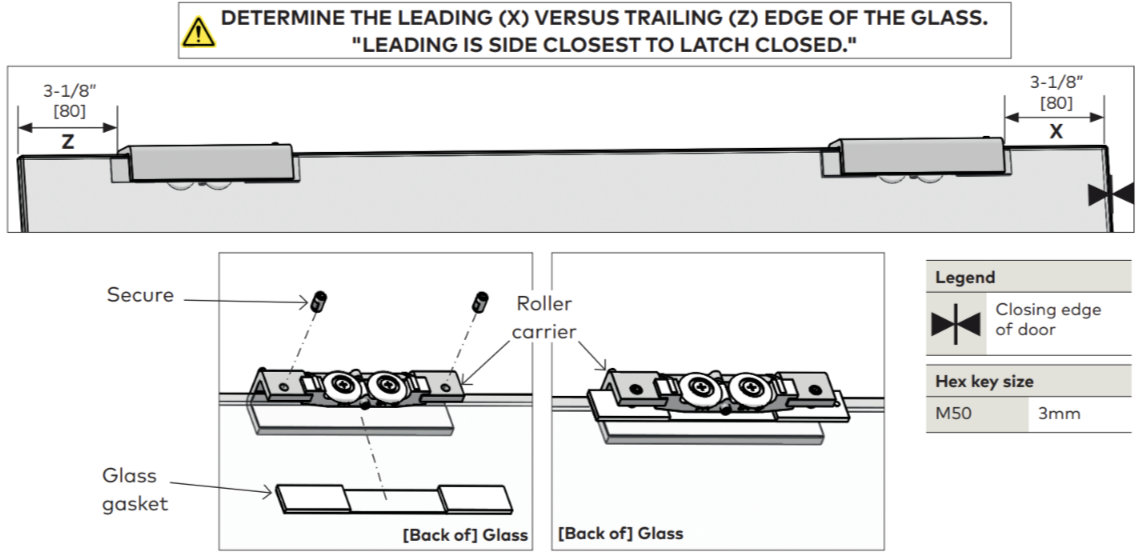

5. Installing roller carriers: on monolithic glass ONLY
NOTE: FULLY CLEAN SURFACE OF GLASS WITH AN ALCOHOL-BASED MILD GLASS AND SURFACE
CLEANER. ENSURE GASKET IS FREE OF DEBRIS.
ENSURE ROLLER CARRIER WHEELS ARE FREE OF DEBRIS.
| 1 | Slide roller carriers onto glass. |
| 2 | Slide glass gasket and metal shim between glass and roller carrier. NOTE: Orient gasket with rubber side facing the glass. |
| 3 | Secure roller carriers to glass using appropriatesize hex key at 10 ft lbs [14 Nm]. |
6. Installing DORMOTION
| 1 | Slide DORMOTION dampener onto glass. NOTE: Oriented with triggers facing outward. |
| 2 | Dampener must be centered on glass. |
| 3 | Secure dampener to glass using appropriate size hex key. |
| 4 | Engage triggers: push out towards end of DORMOTION unit. |

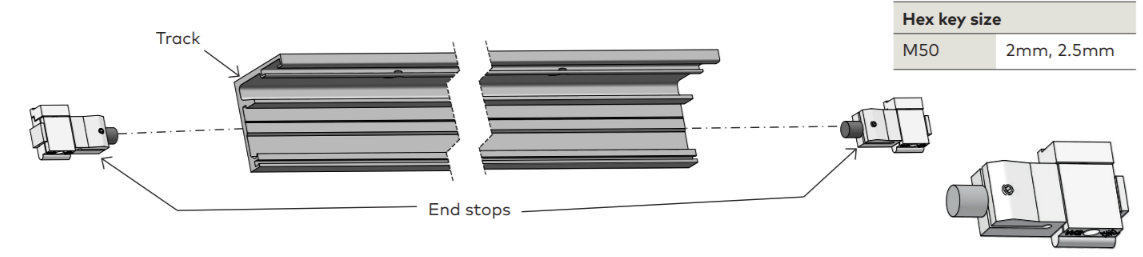

7. Installing end stops
| 1 | Slide end stops into each end of the track. |
NOTE: DO NOT FULLY TIGHTEN.
NOTE: Exact location/adjustments will be determined in “Adjustment End Stop Location” step.

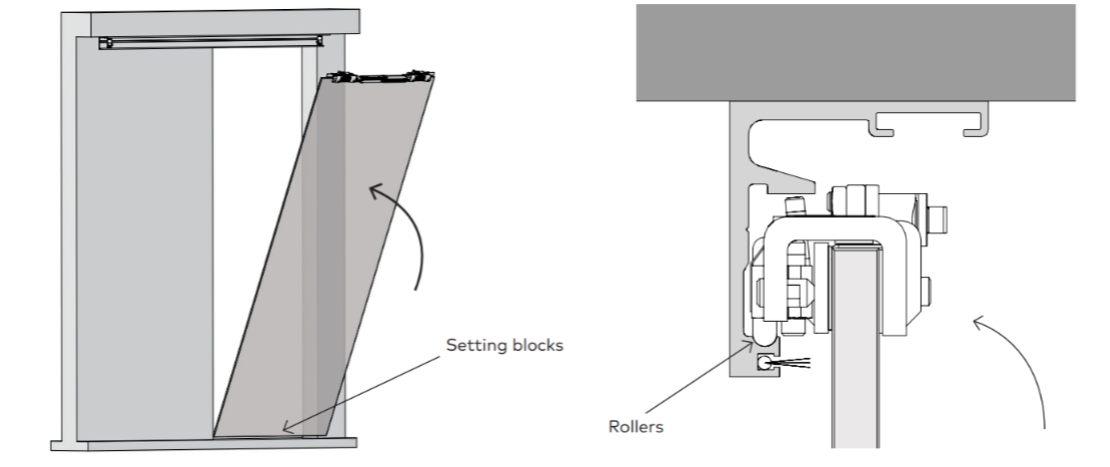

8. Install glass/rollers in track
ENSURE ROLLERS AND TRACK ARE FREE OF DEBRIS.
| 1 | Place glass on setting blocks on floor for stability. |
| 2 | Tip glass and rollers upward and rest rollers on track. |

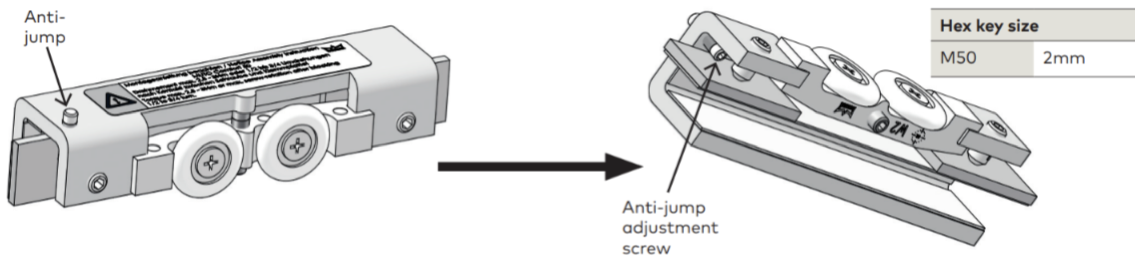

9. Engaging anti-jump
| 1 | Temporarily engage anti-jump on roller carrier. |
| 2 | Using appropriate-size ball-end hex key, turn adjustment screw CLOCKWISE to engage anti-jump. |

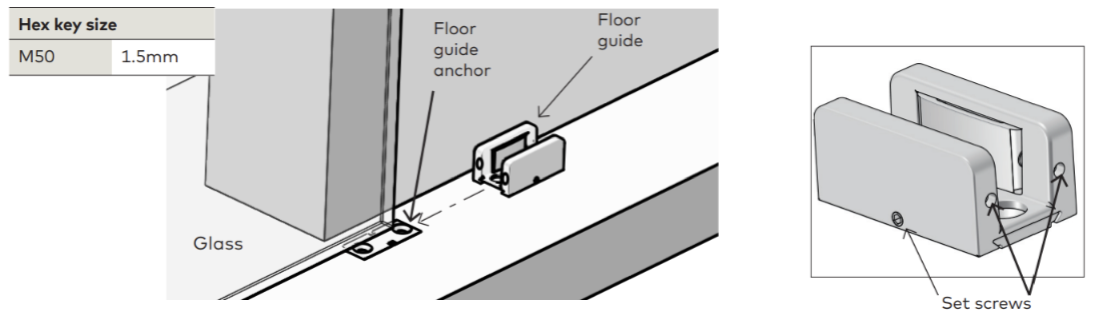

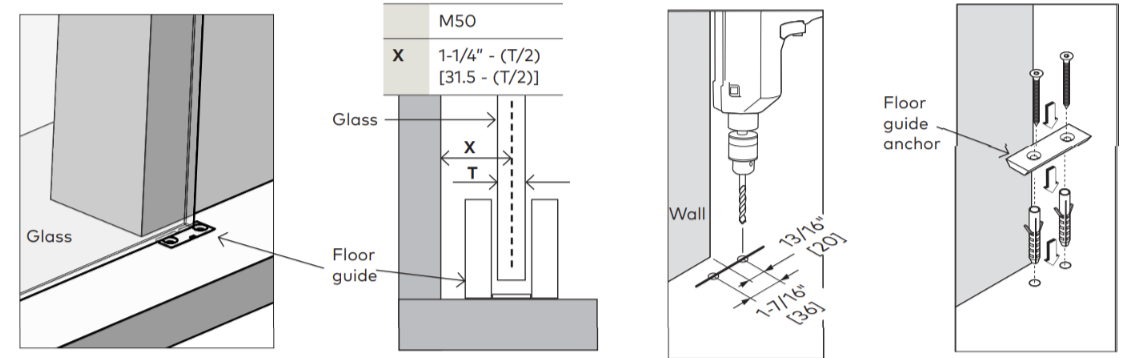

10. Install floor guide
| 1 | Align centerline of glass with centerline of floor guide. |
| 2 | Be sure the glass is plumb. |
| 3 | Mark appropriate floor guide measurements. |
| 4 | DISENGAGE ANTI-JUMP. |
| 5 | TEMPORARILY REMOVE GLASS AND ROLLERS FROM TRACK. |
| 6 | Pre-drill into mounting surface using a 5/16" drill bit. |
| 7 | Secure floor guide anchor with included fasteners. |
11. Install floor guide: continued
| 1 | SET GLASS AND ROLLERS BACK ONTO TRACK. |
| 2 | Slide floor guide over floor guide anchor and tighten with set screws. |
| 3 | Remove setting blocks. NOTE: Be sure glass is centered in floor guide. |
| 4 | Adjust using set screws |

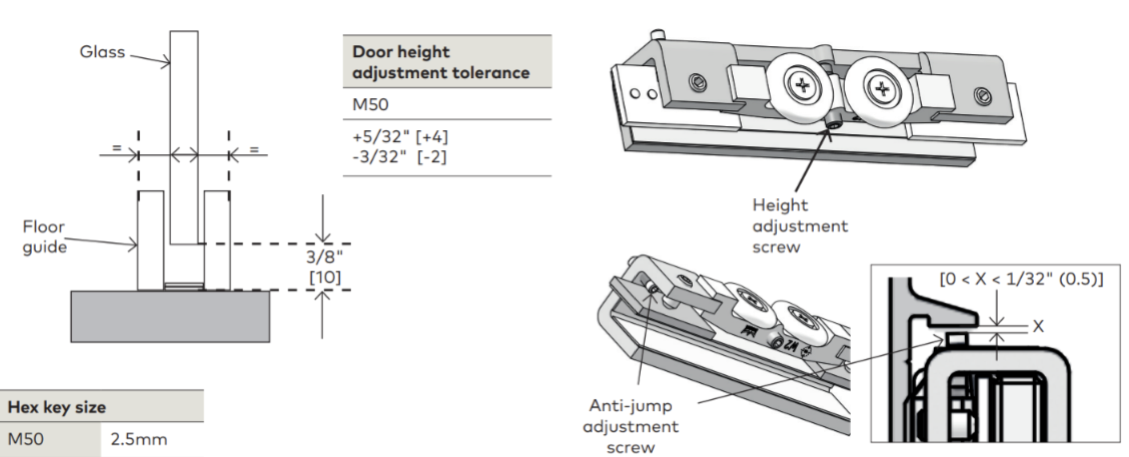

12. Adjustment door height
| 1 | Set height of glass door. |
| 2 | Using appropriate-size hex key, turn height adjustment screw CLOCKWISE or COUNTERCLOCKWISE to raise or lower glass NOTE: Be sure glass is level during this adjustment. |
| 3 | Re-engage anti-jump by turning anti-jump adjustment screw CLOCKWISE. NOTE: Anti-jump should NOT touch track. |

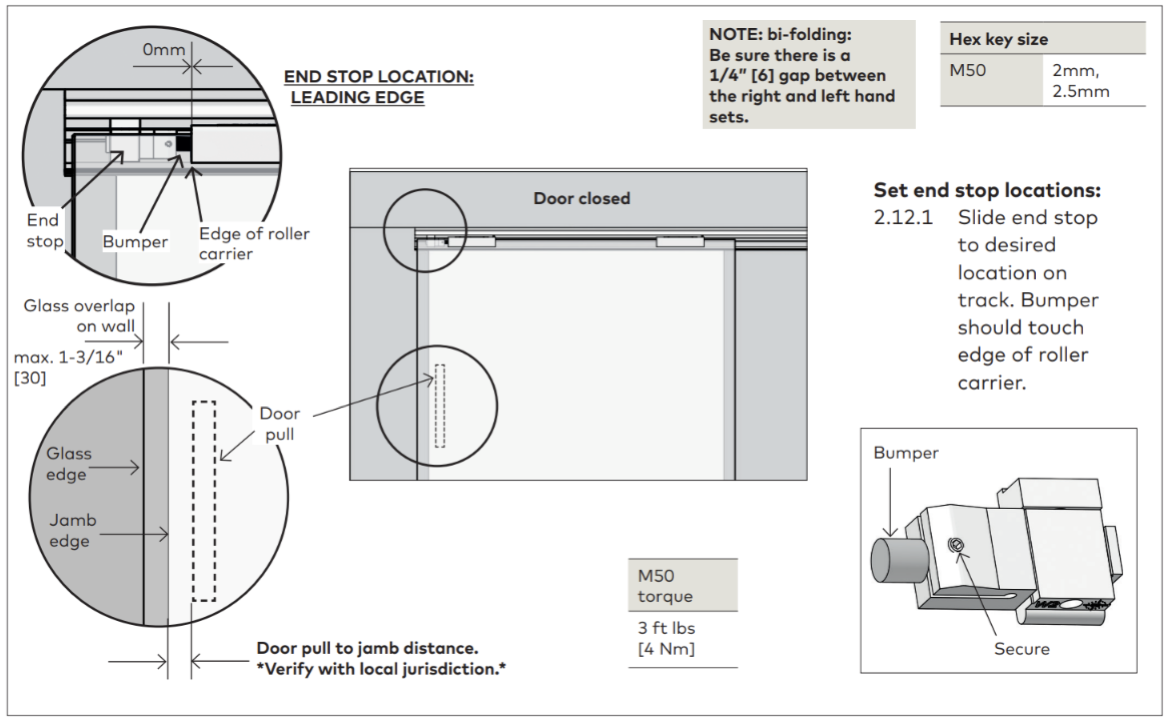

13. Adjustment end stop location: LEADING end stop

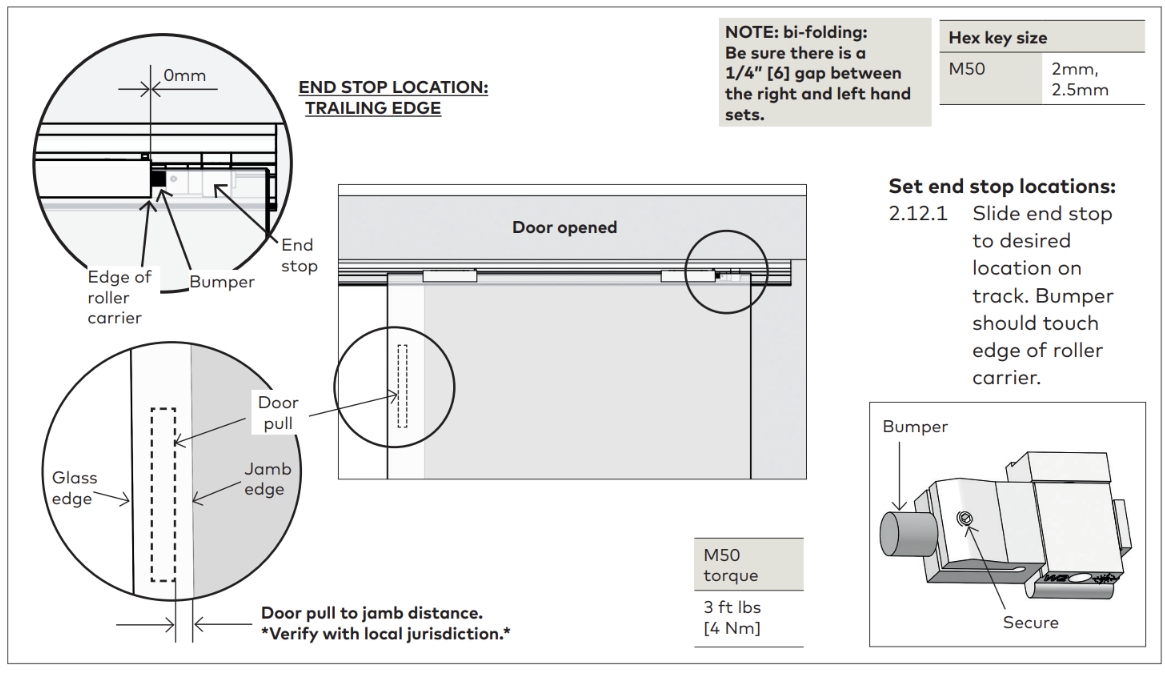

Adjustment end stop location: TRAILING end stop

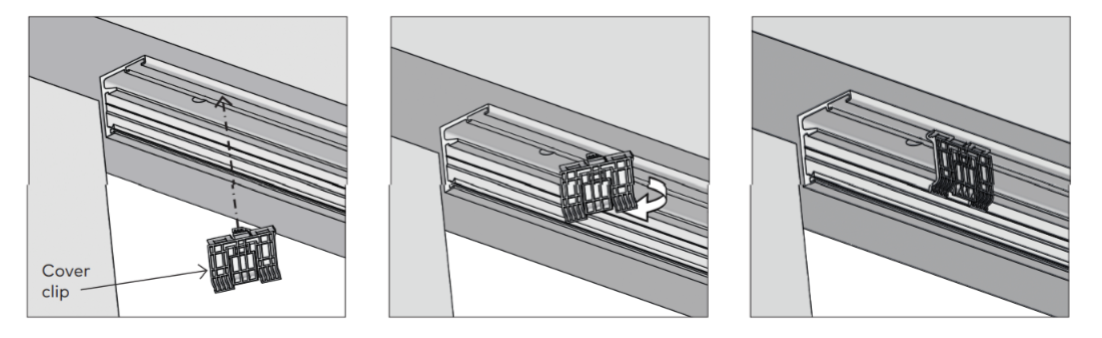

13. Cover clips
| 1 | Insert cover clips into track. (One clip per foot) |
| 2 | Insert perpendicular to track, and turn CLOCKWISE to snap into place. |

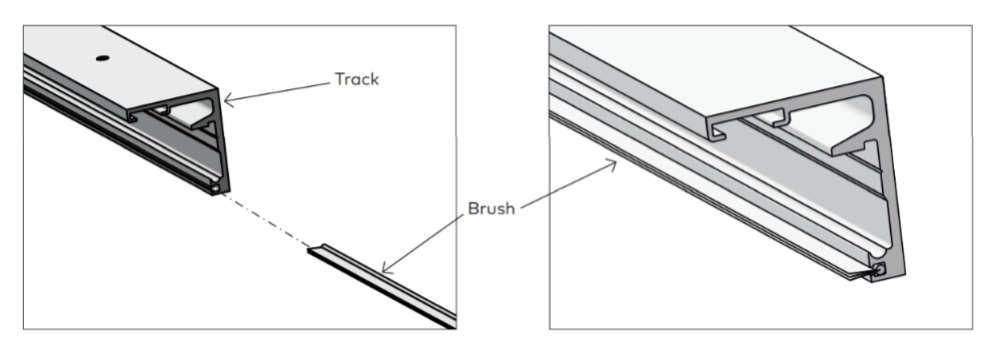

14. Install brush profile
| 1 | Measure and cut brush to appropriate length. |
| 2 | Slide brush into track. |

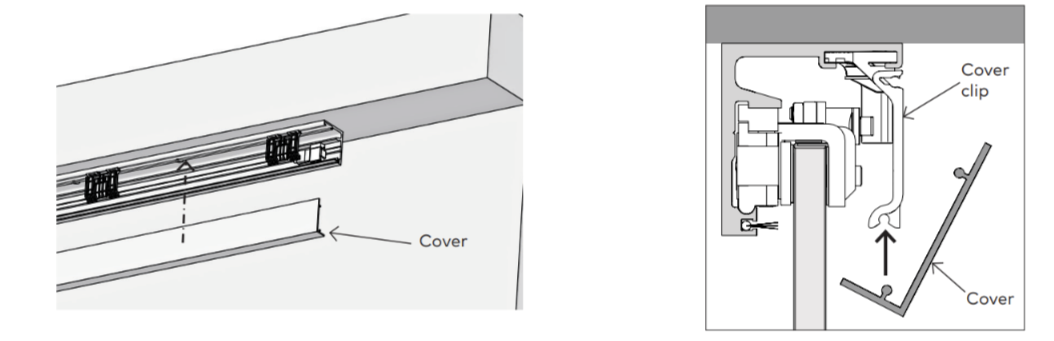

15. Install cover
| 1 | Secure cover to clips and snap into place. NOTE: Roll cover from the bottom upwards. Ensure the bottom of the cover is supported by the groove in the cover clip. |

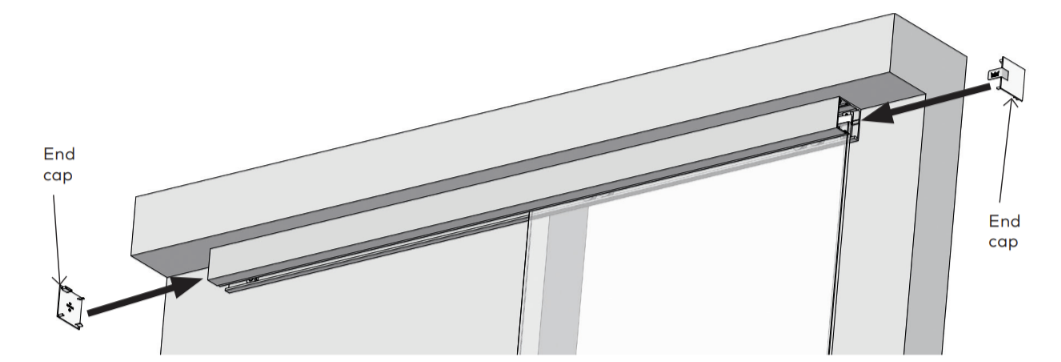

16. Install end caps
| 1 | Snap end caps onto track. |
