1.Important information
1 = Component
1 . ; 1 . 1 ; ... = Installation sequence
All glass clamping areas have to be cleaned with standard glass cleaning products prior to installation.
Do not use thinners!

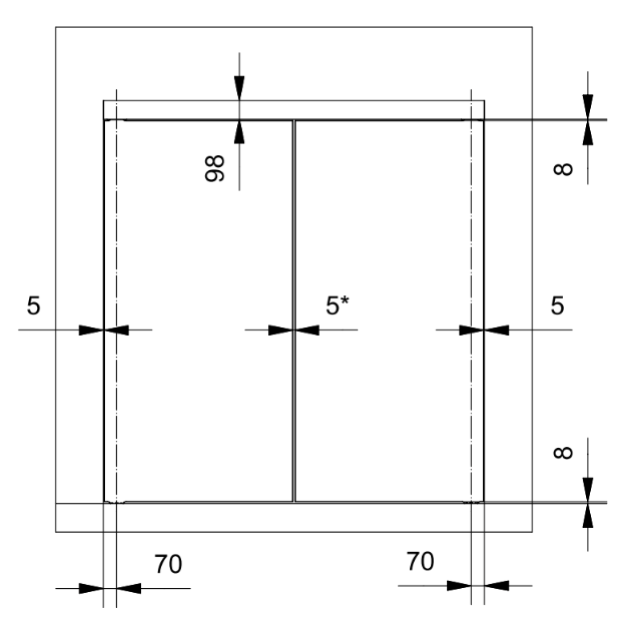

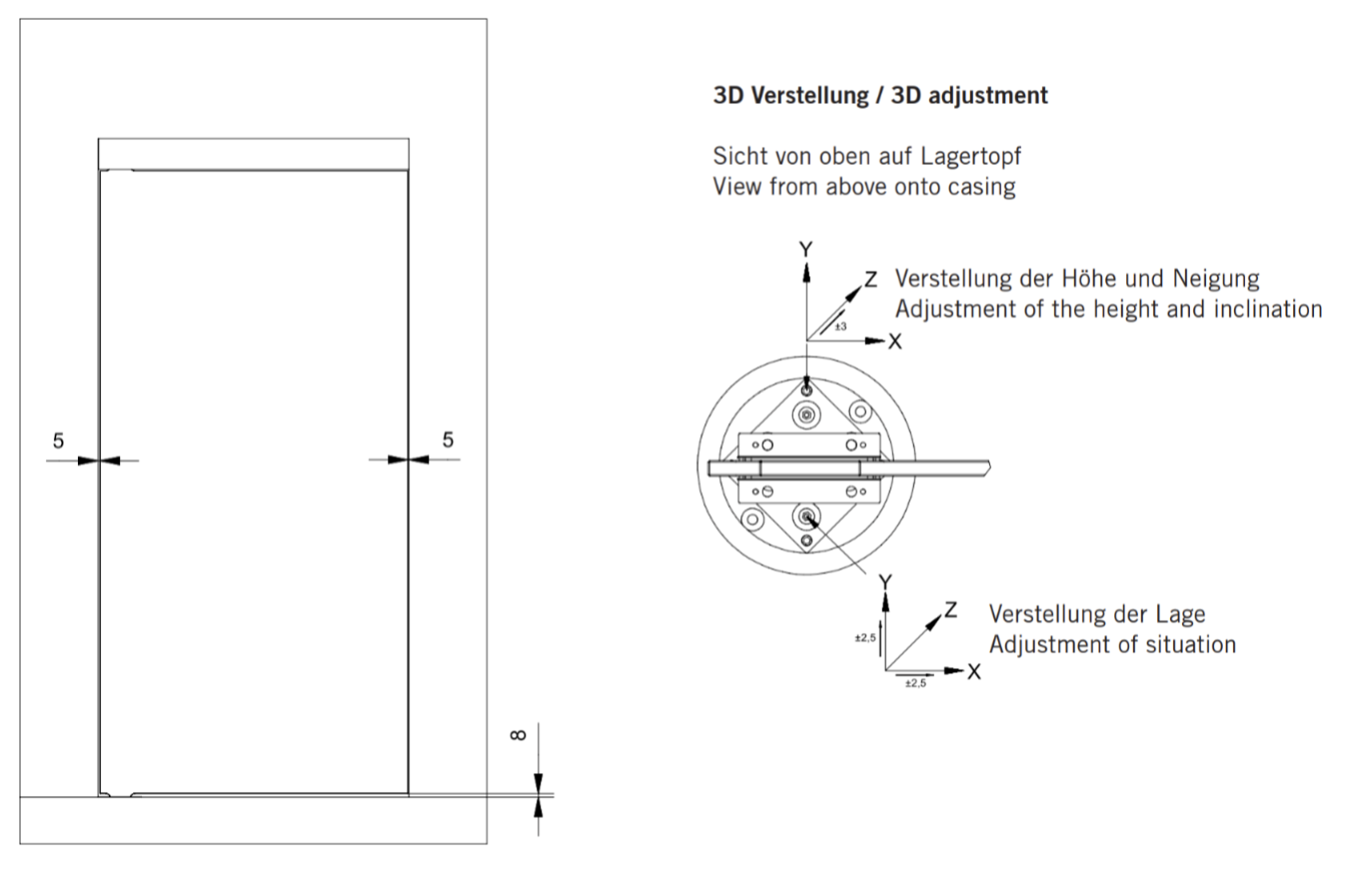

5mm glass/wall as well as glass/glass
2. Important points

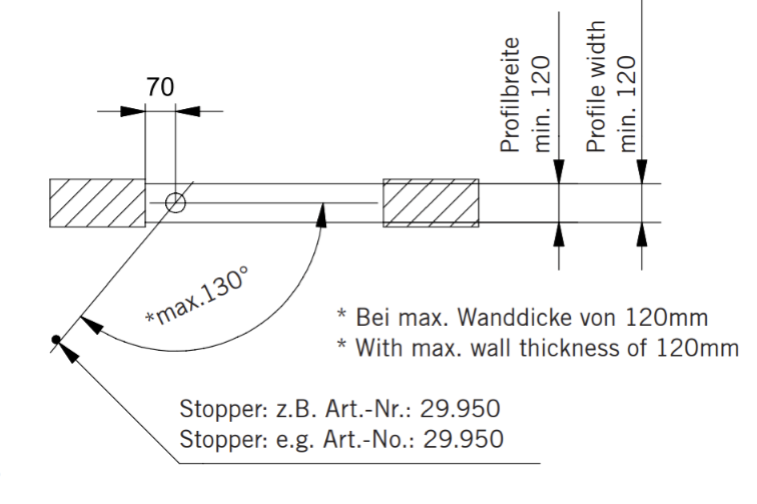

Prevent excessive opening of the door! Please use a stopper!
Please use suitable anchorsystems according to foundation!
The bearing is not protected against water intrusion!
The bearing is not protected against water intrusion!

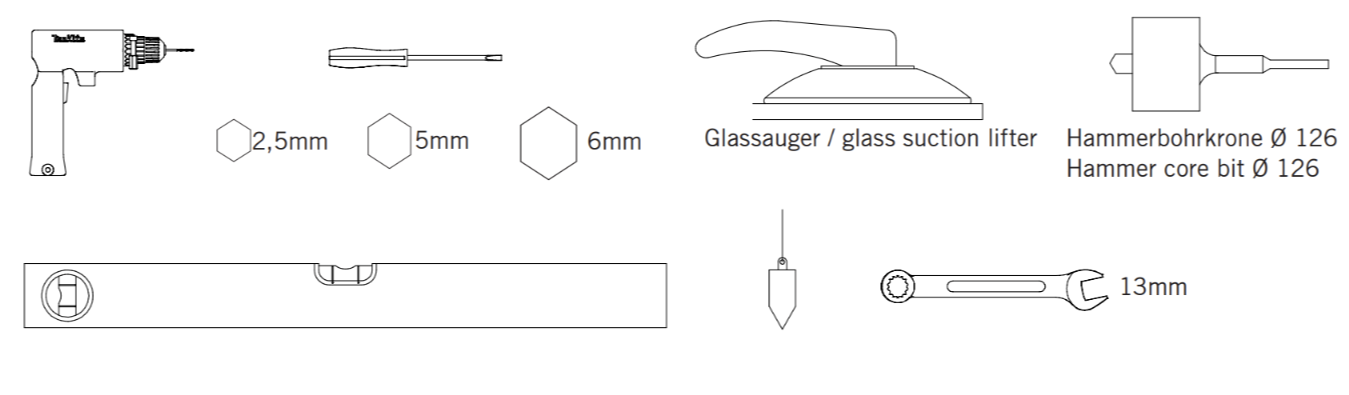

3. Requisite tool

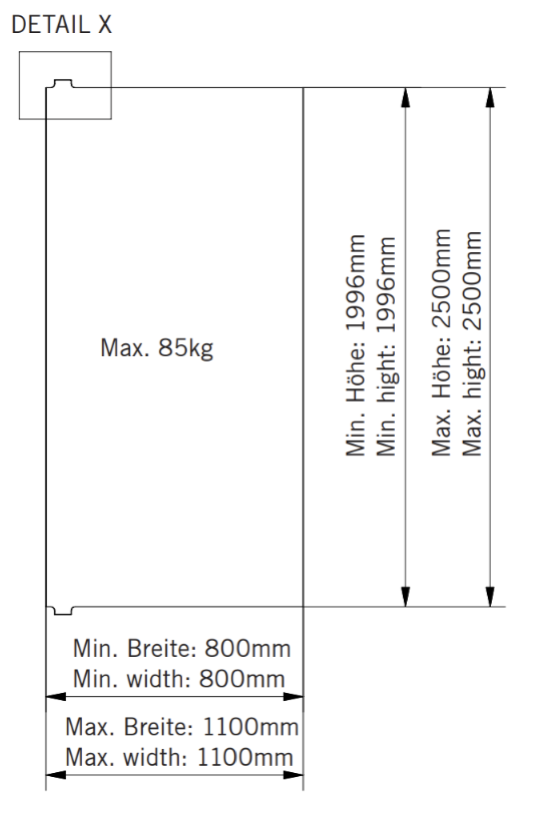

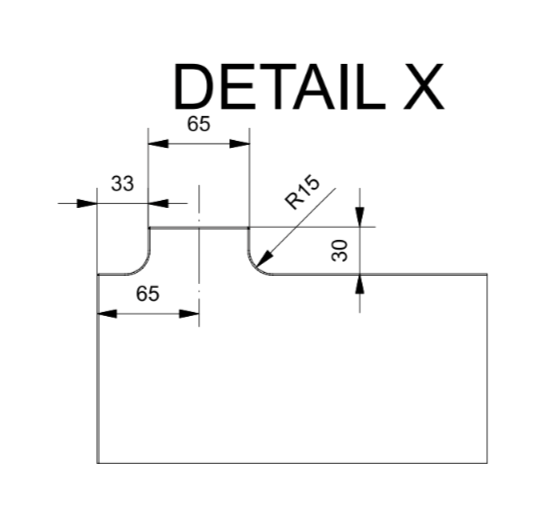

4. Glass preparation
Glass application: 10/12mm toughened safety glass
Top and bottom glass tongues of identical design

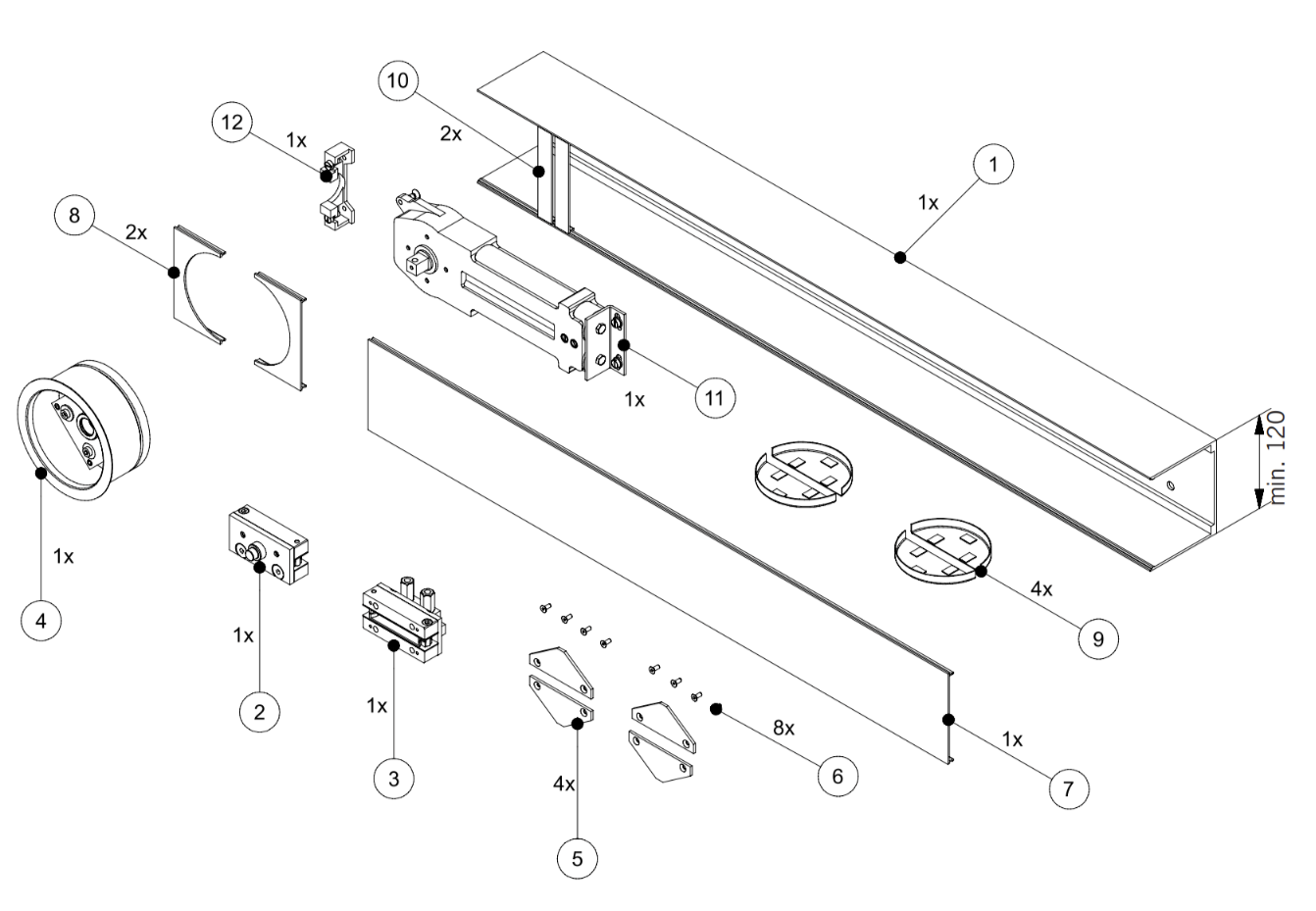

5. Scope of delivery

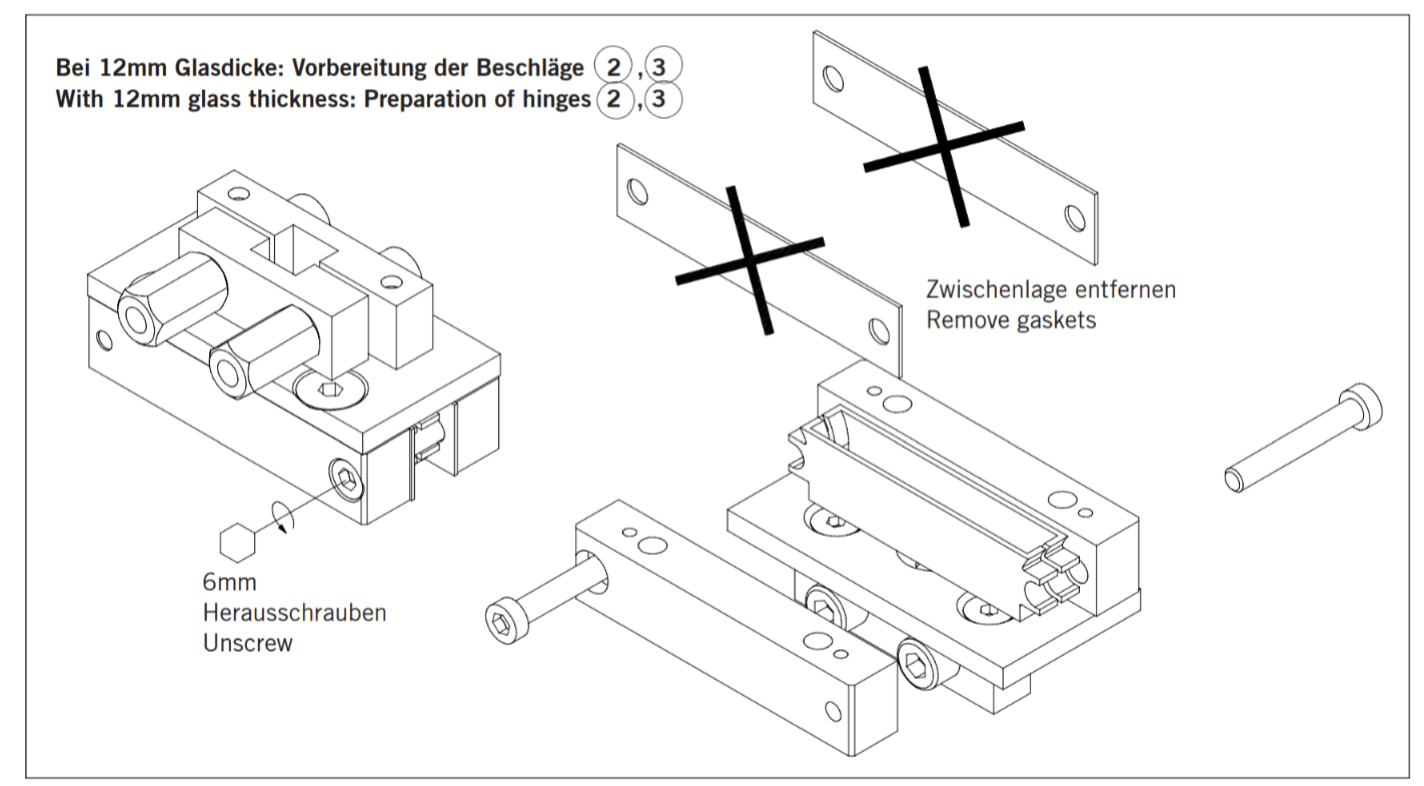

6. With 12mm glass thickness: Preparation of hinges 2 , 3

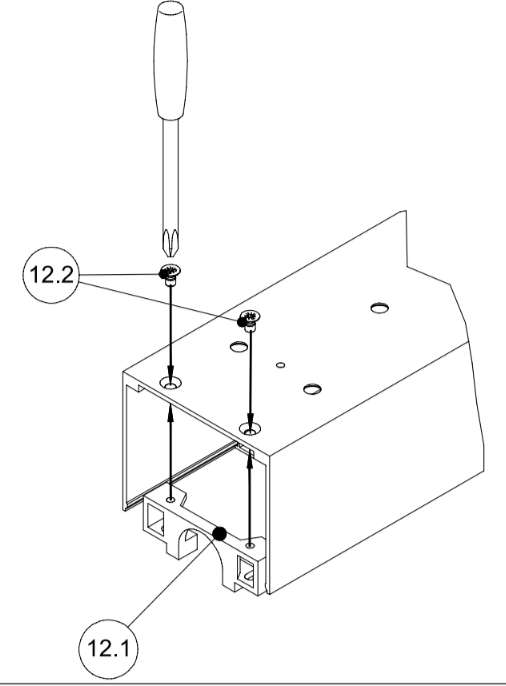

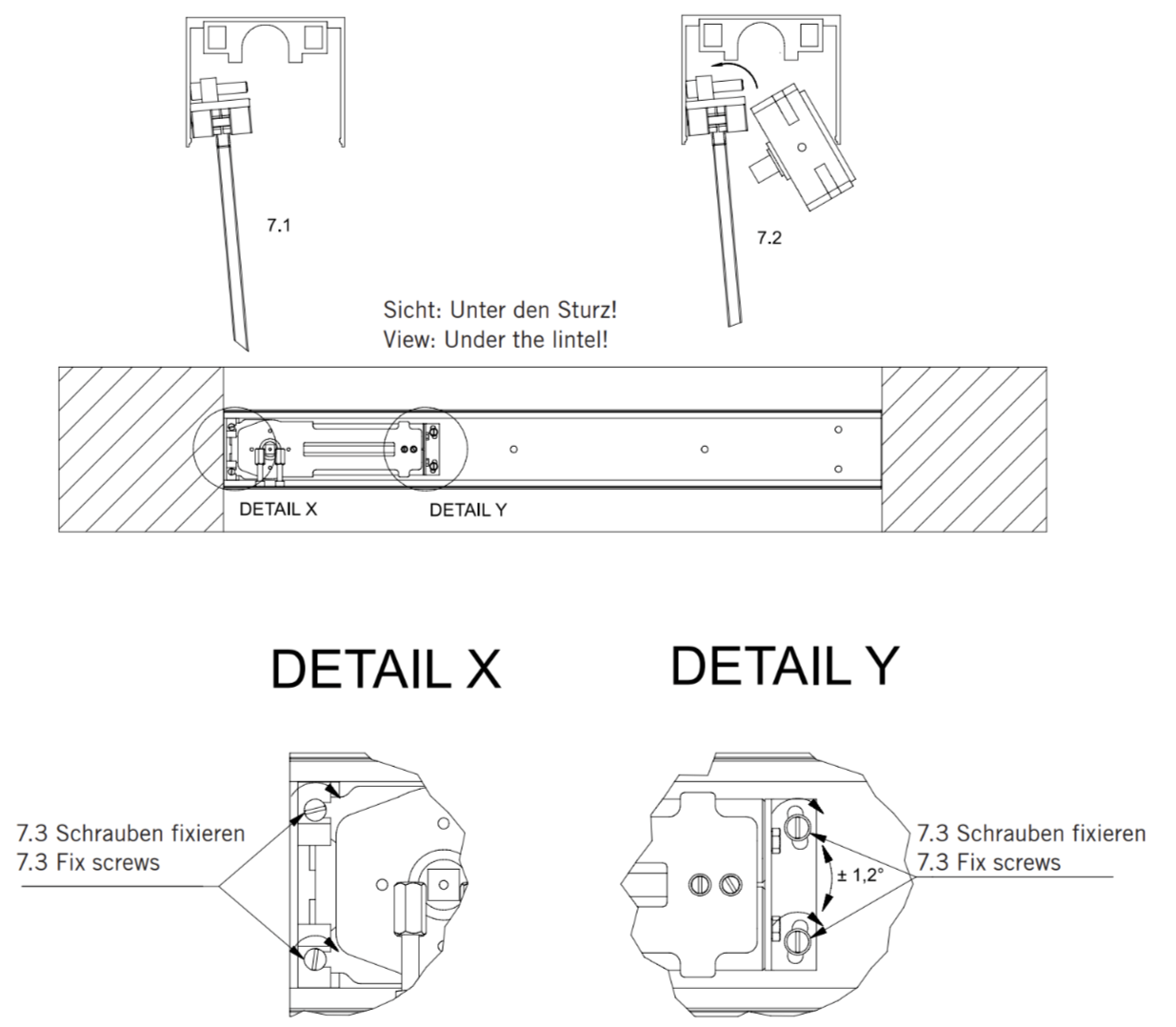

7. Assembly of mounting angle 12
In the complete set incl. transom box the mounting angle 12 ist already assembled!

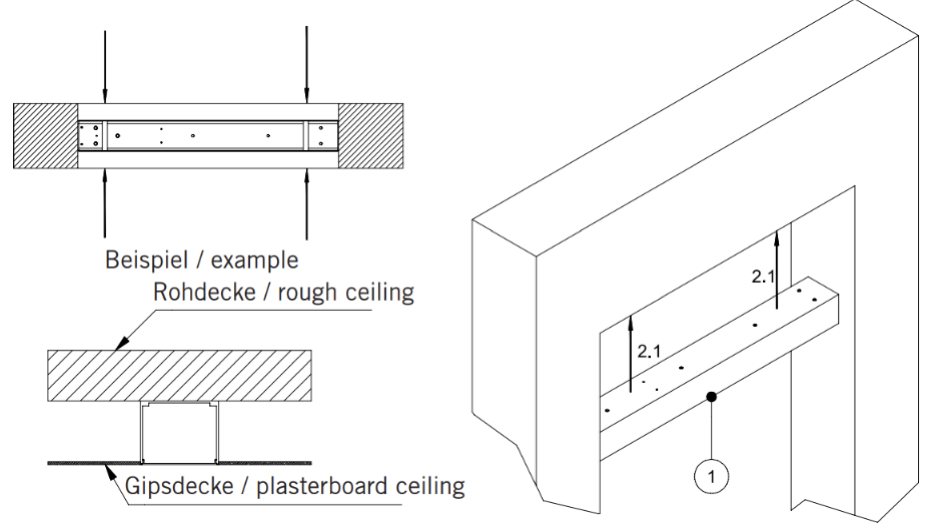

8. Installation of the transom box
Reinforcing spacer bars 10 to be used when transom box is flush with ceiling
Screws and plugs for connection are not part of delivery! Please use suitable anchorsystems according to foundation e.g. screws DIN 912 M8x... or DIN 7996 6x... Pre−condition for the assembly of transom box is an aligned and load−carrying substructure and/or wall with a max. tolerance of 2mm per meter!

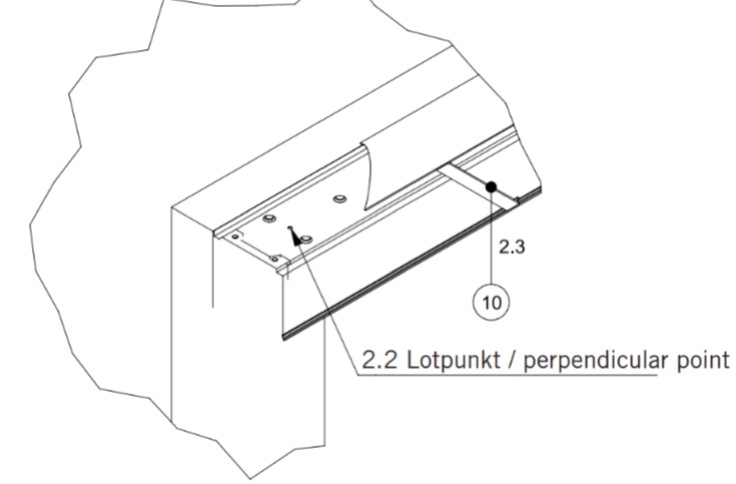

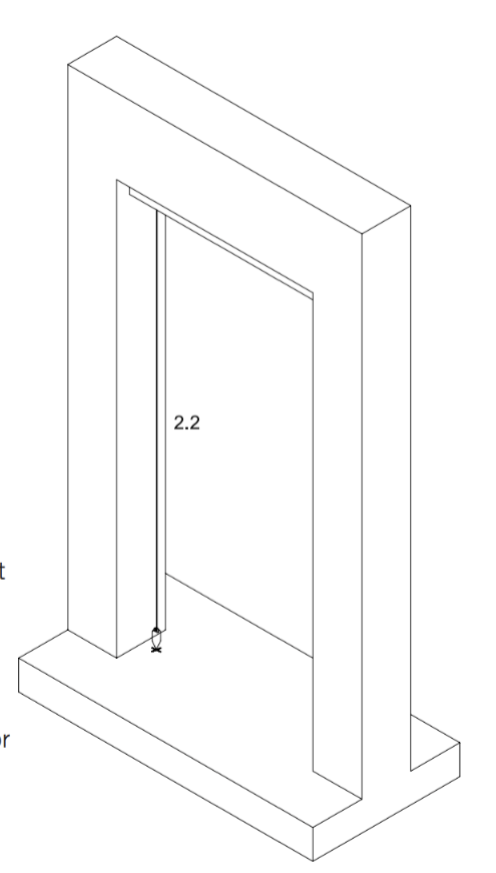

2.2 Transfer pivot point from transom box perpendicular to the floor
2.3 Dismount spacer bars 10

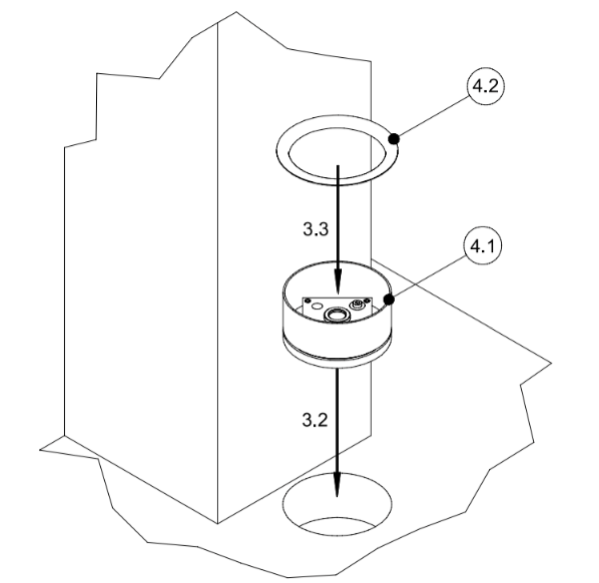

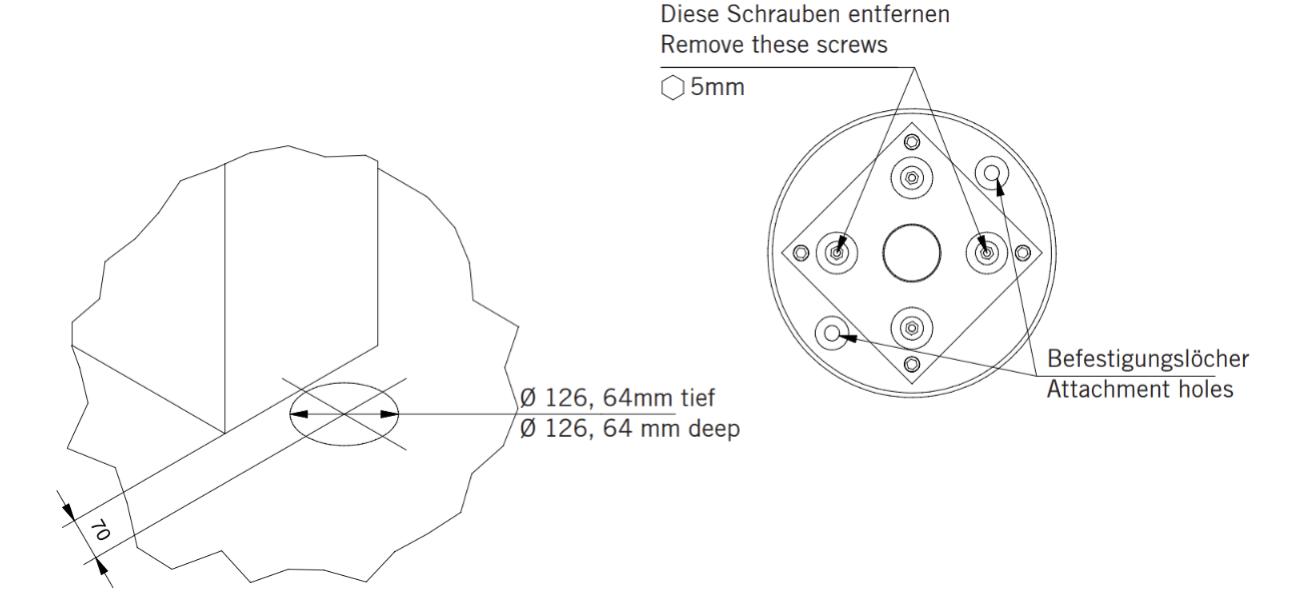

9. Installation of casing into floor
Please place the casing in exact this way!
Setting of bottom hole (Ø126) for casing. Hammer core bit, company HILTI (TE−Y−BK 125/430) Art.−No.: 00307066 (HILTI)
The foundation must be load−carrying. Please use suitable achorsystems according to foundation!

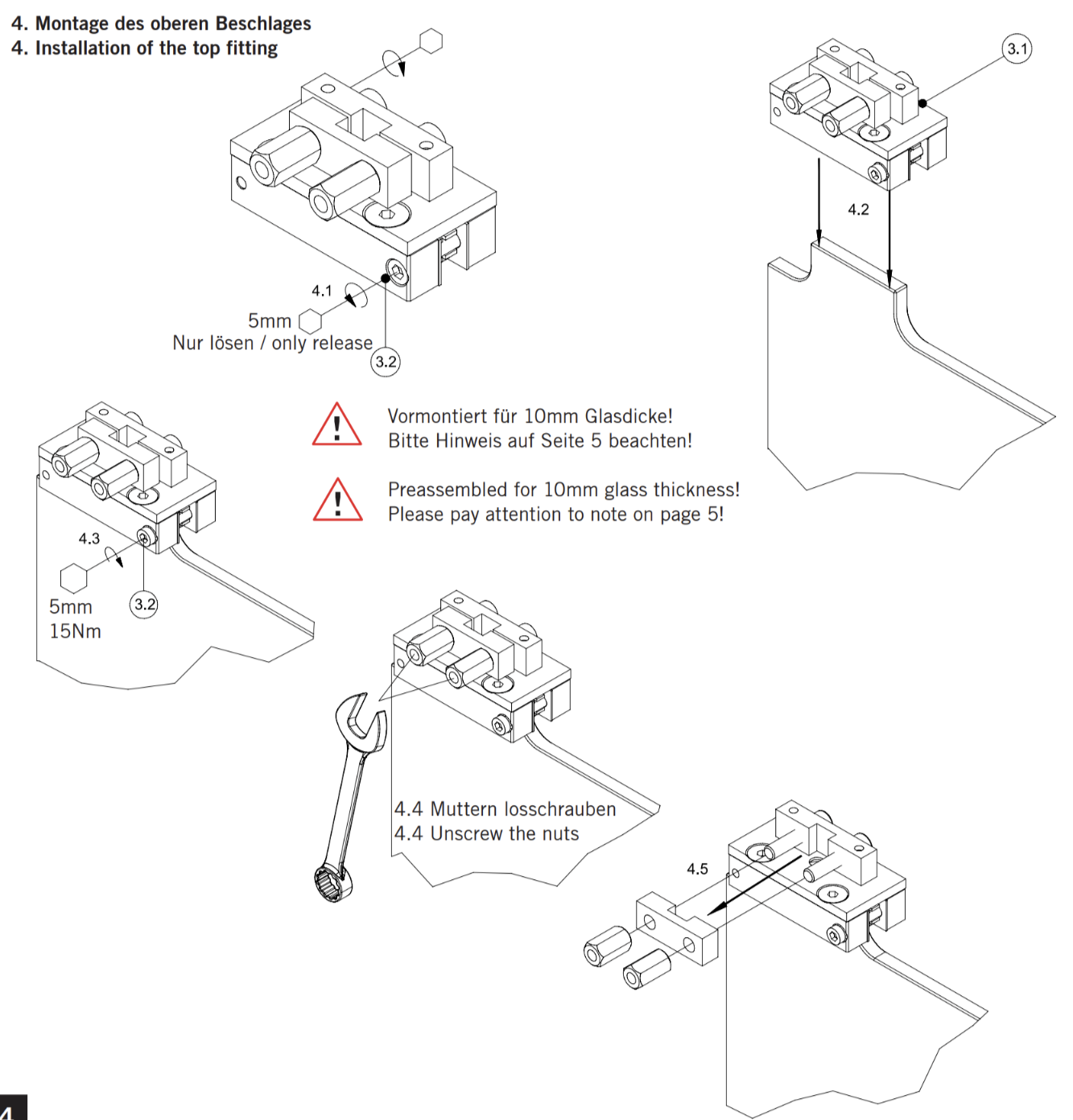

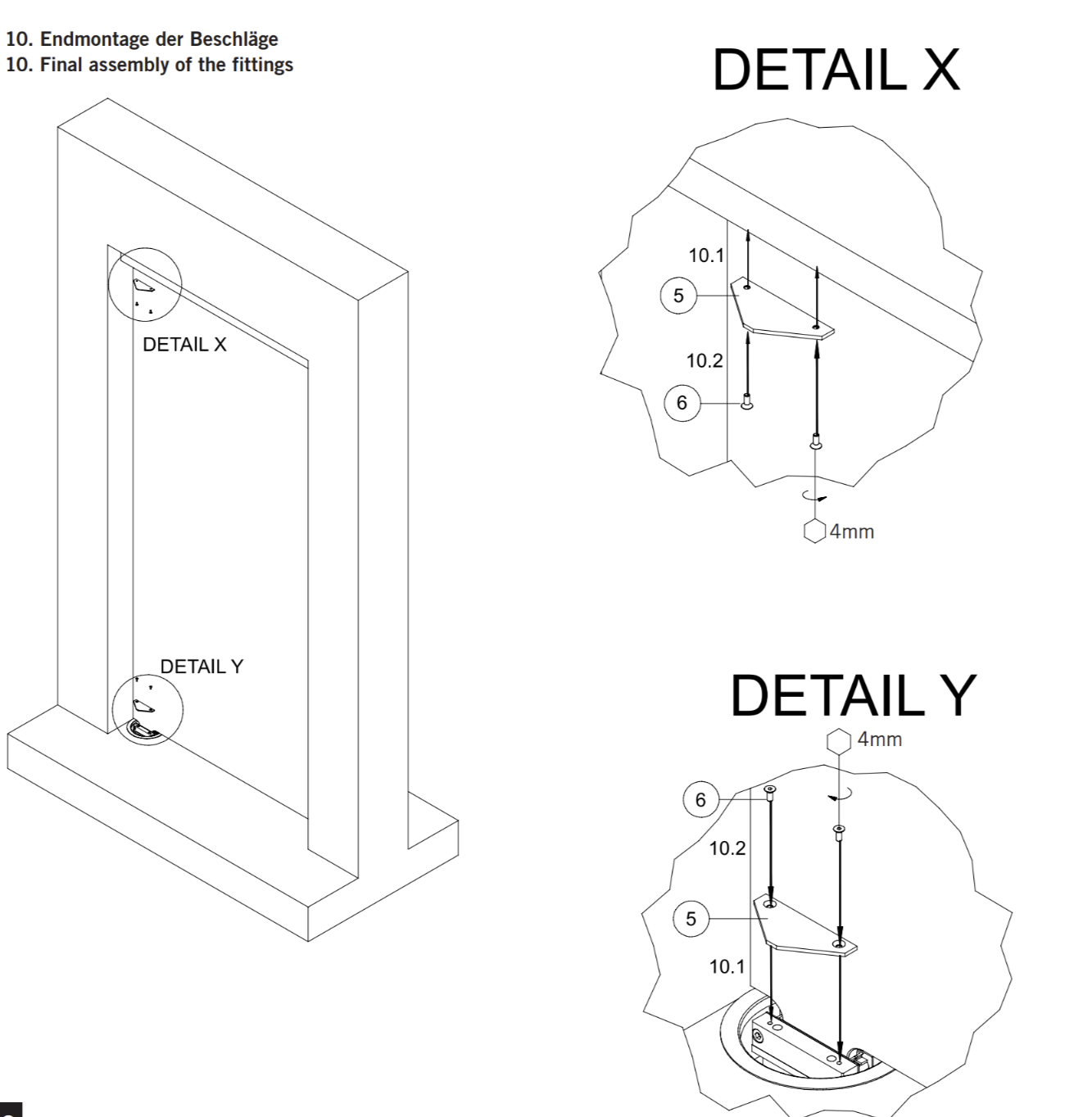

10. Installation of the top fitting

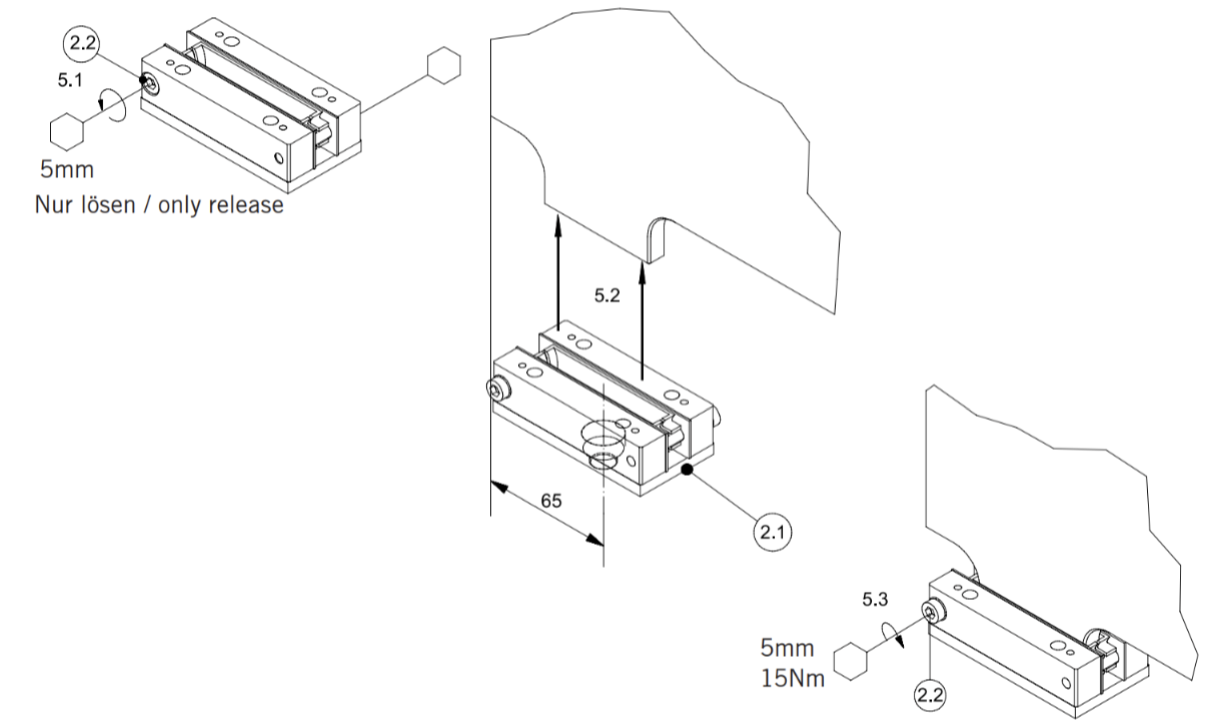

11. Installation of the bottom fitting

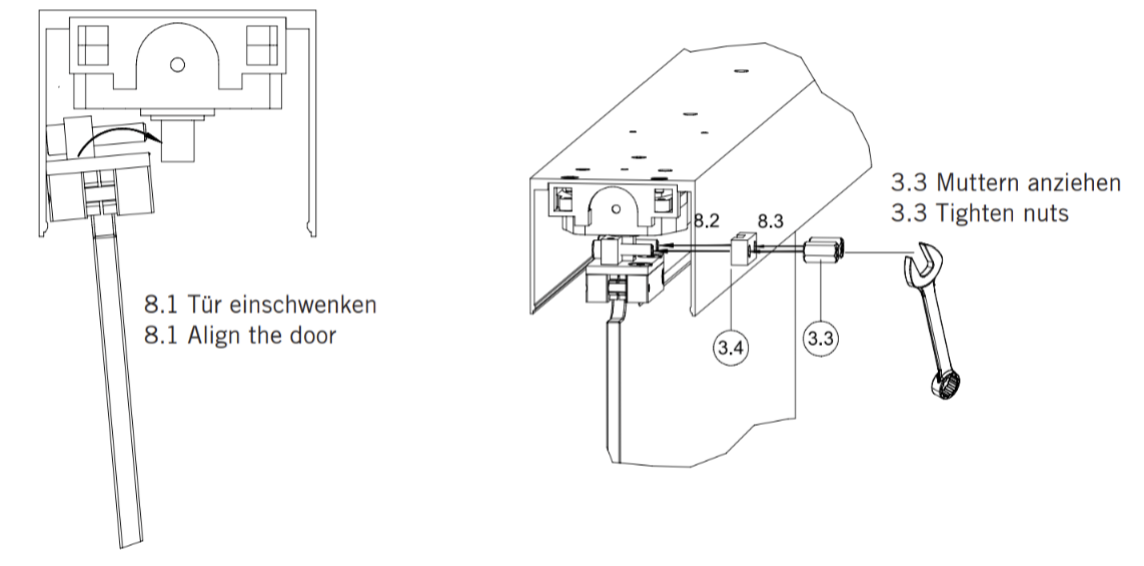

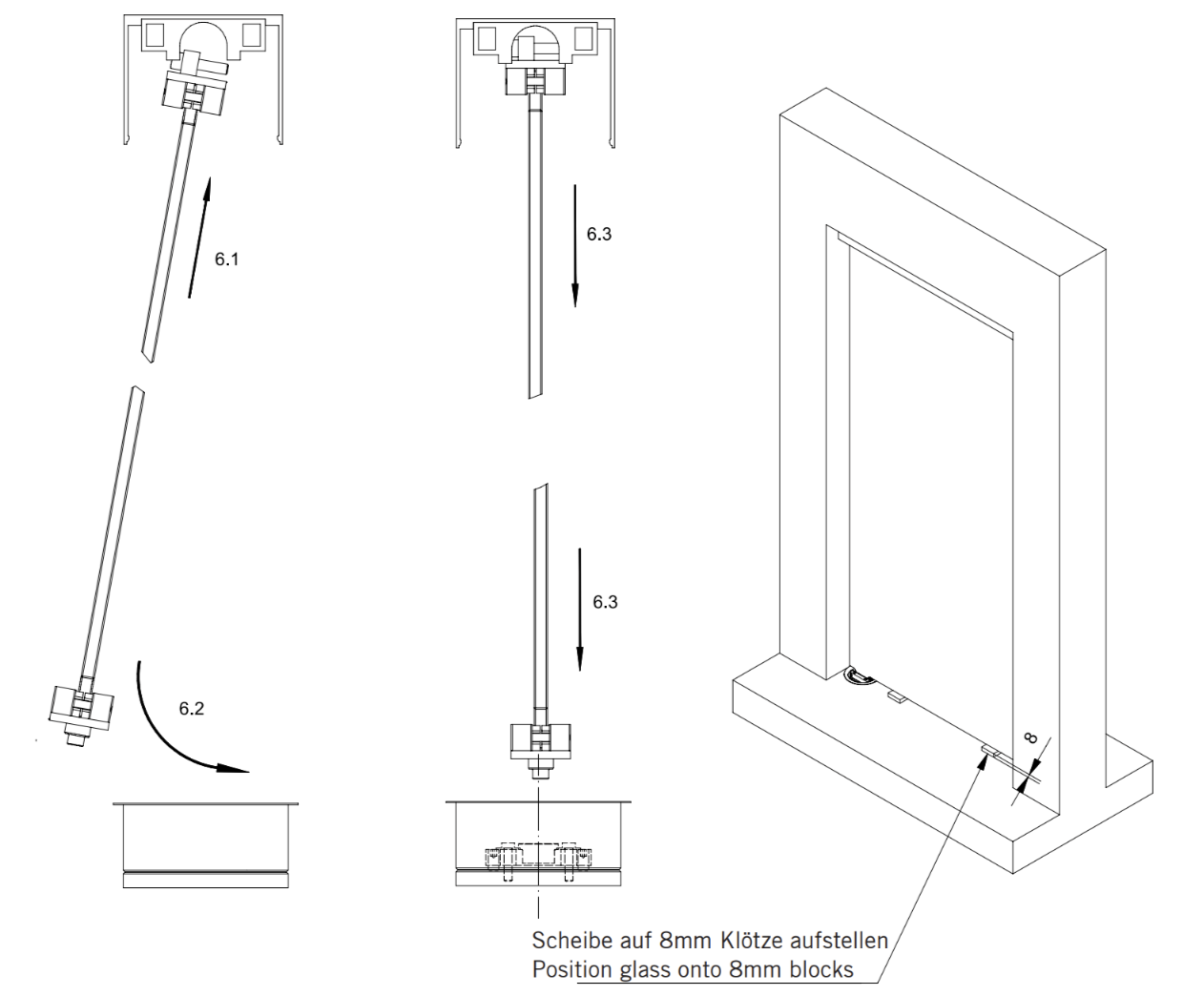

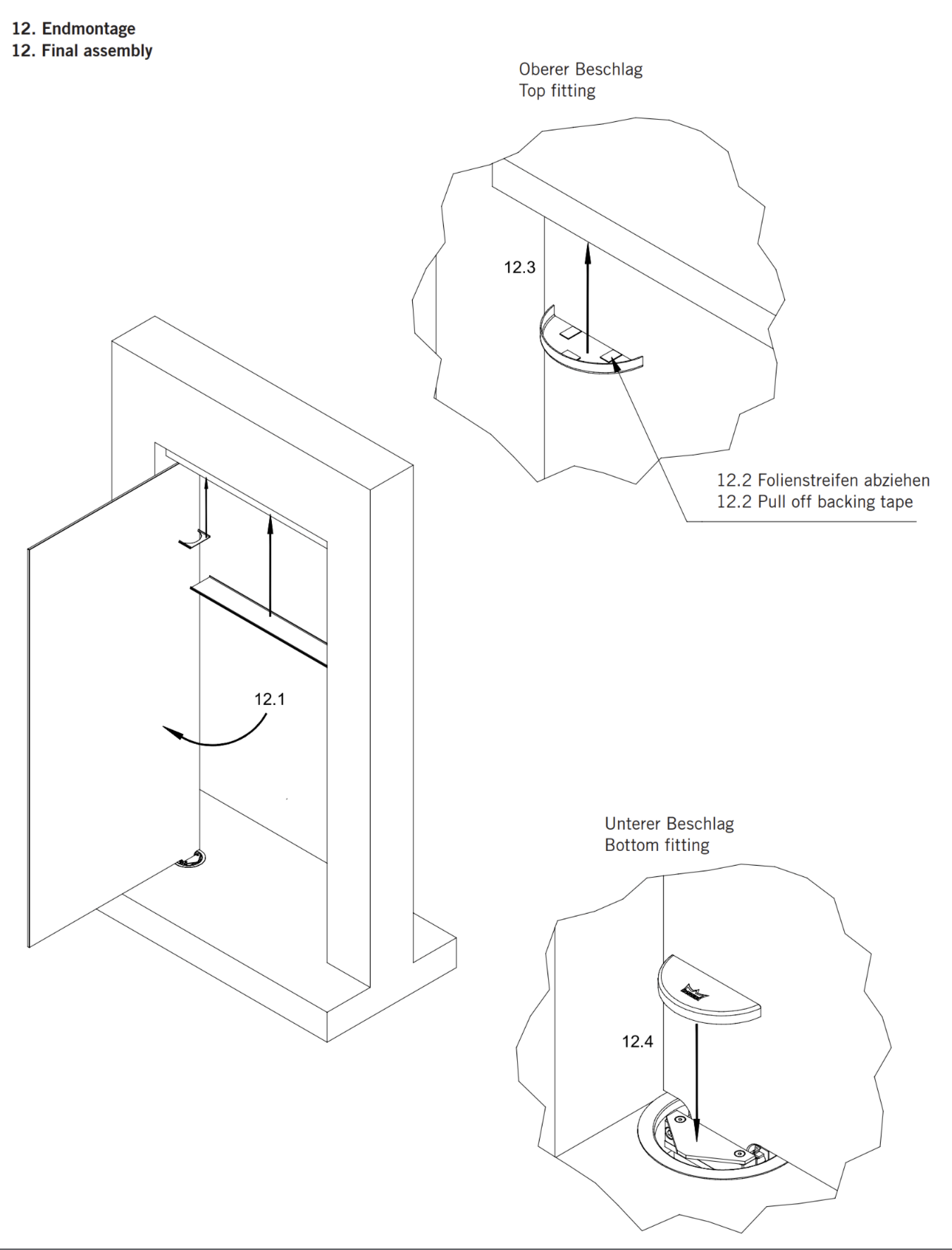

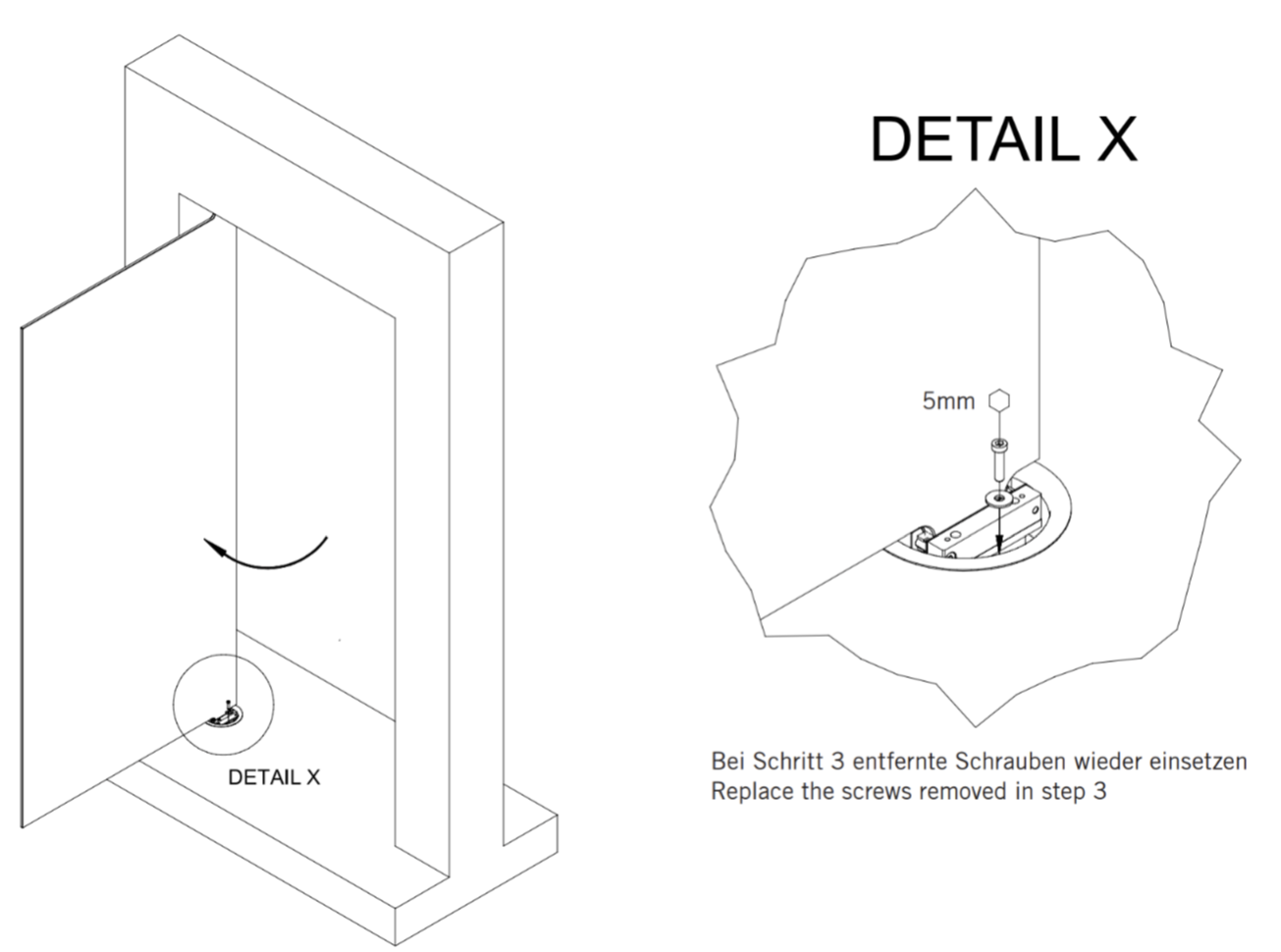

12. Installation of pivoting door

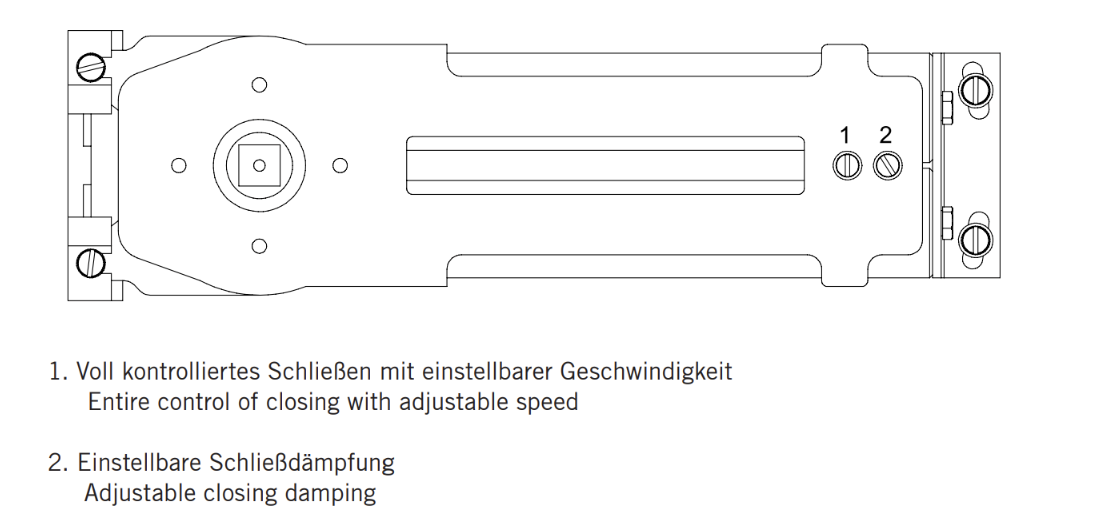

13. Installation of the transom door closer
| 1 | Lean the door against the transom box |
| 2 | Insert the transom door closer as shown |
Protect glass using cloths! On site!
