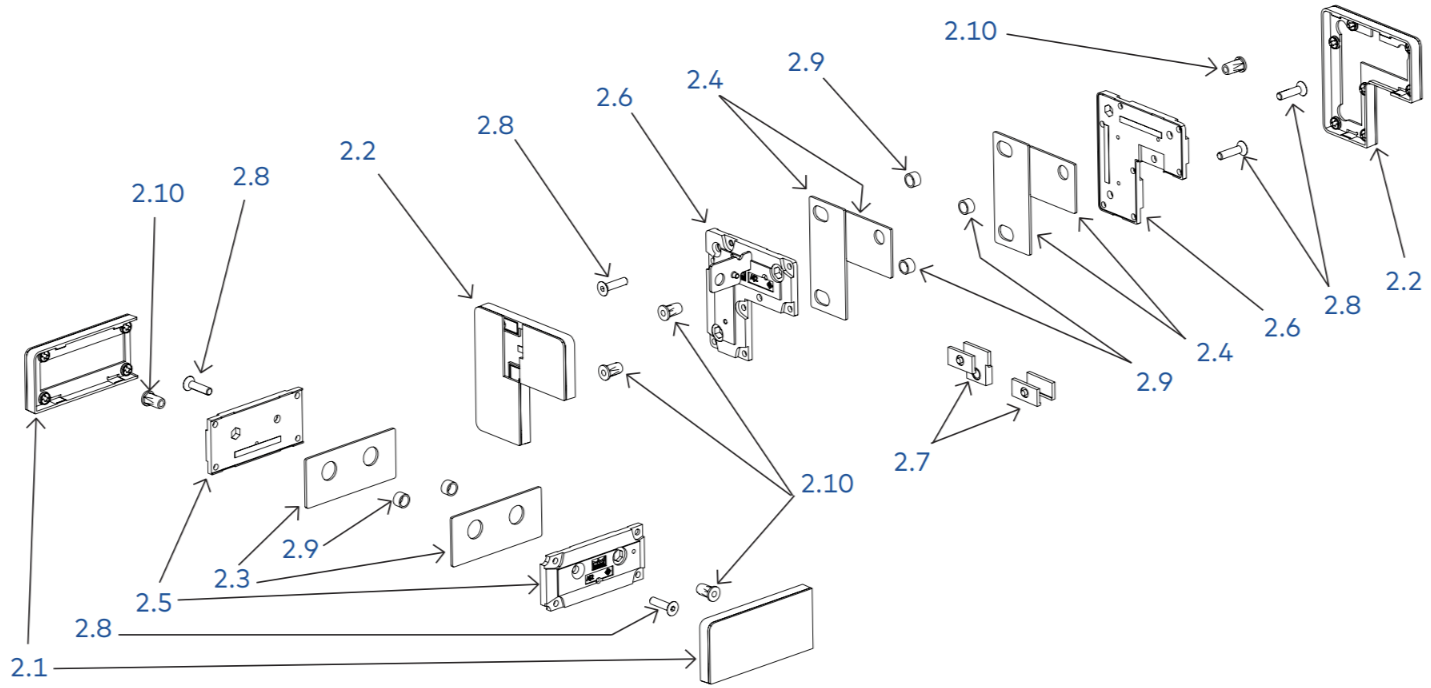

1.Overall

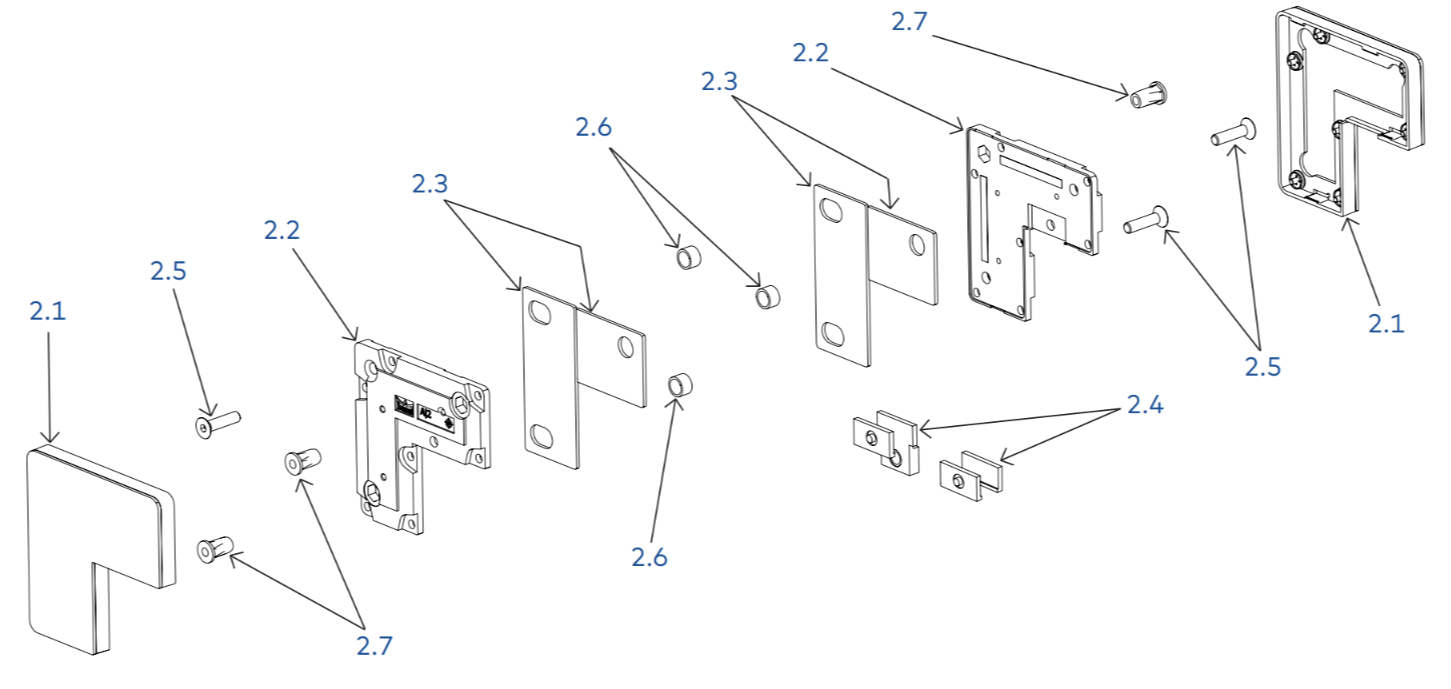

| 1 | Patch covers |
| 2 | Patch plate |
| 3 | Patch gasket (standard or TLG) |
| 4 | Blank/stop (application dependent) |
| 5 | Fasteners (3x included) |
| 6 | Glass grommets (3x included) |
| 7 | Sleeve nuts (3x included) |
| 1 | Fin covers |
| 2 | Patch covers |
| 3 | Fin gasket (standard or TLG) |
| 4 | Patch gasket (standard or TLG) |
| 5 | Fin plate |
| 6 | Patch plate |
| 7 | Pivot/blank/stop(application dependent) |
| 8 | Fasteners (5x included) |
| 9 | Glass grommets (5x included) |
| 10 | Sleeve nuts (5x included) |
2. Install gaskets
| Tempered monolithic glass: | |
| 1 | Install Standard gaskets using the pre-adhered double-sided tape strip. |
| Tempered laminate glass: | |
| 2 | Install TLG gaskets using the pre-adhered double-sided tape strip. |

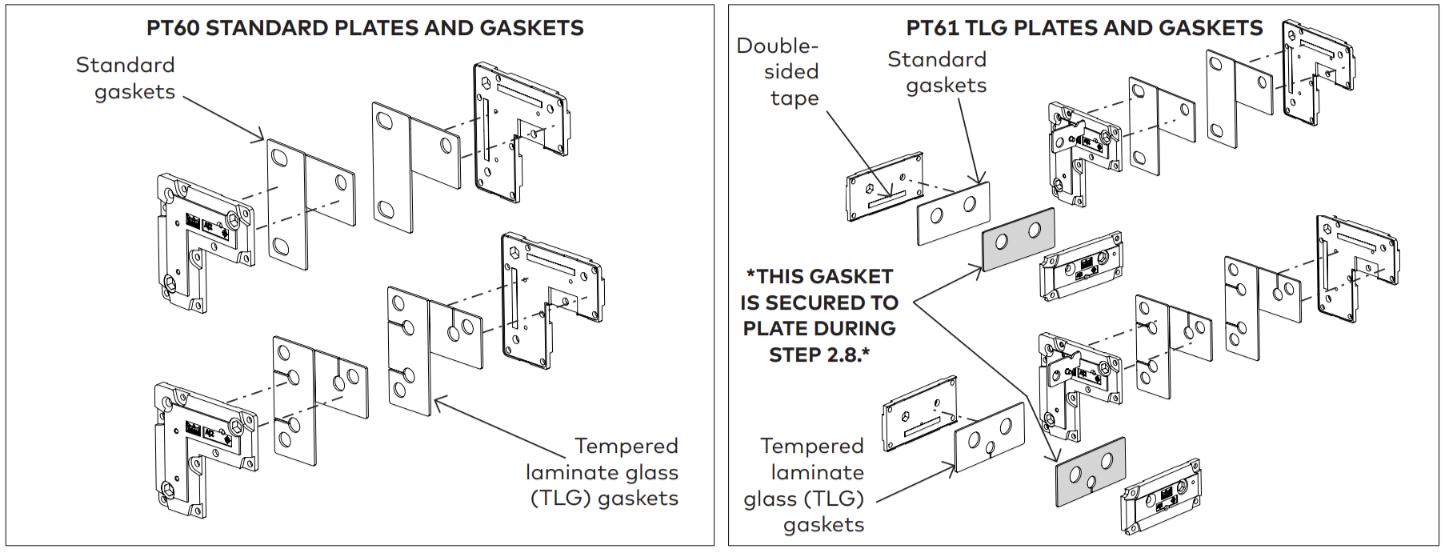

3. Install plates and remaining fitting parts

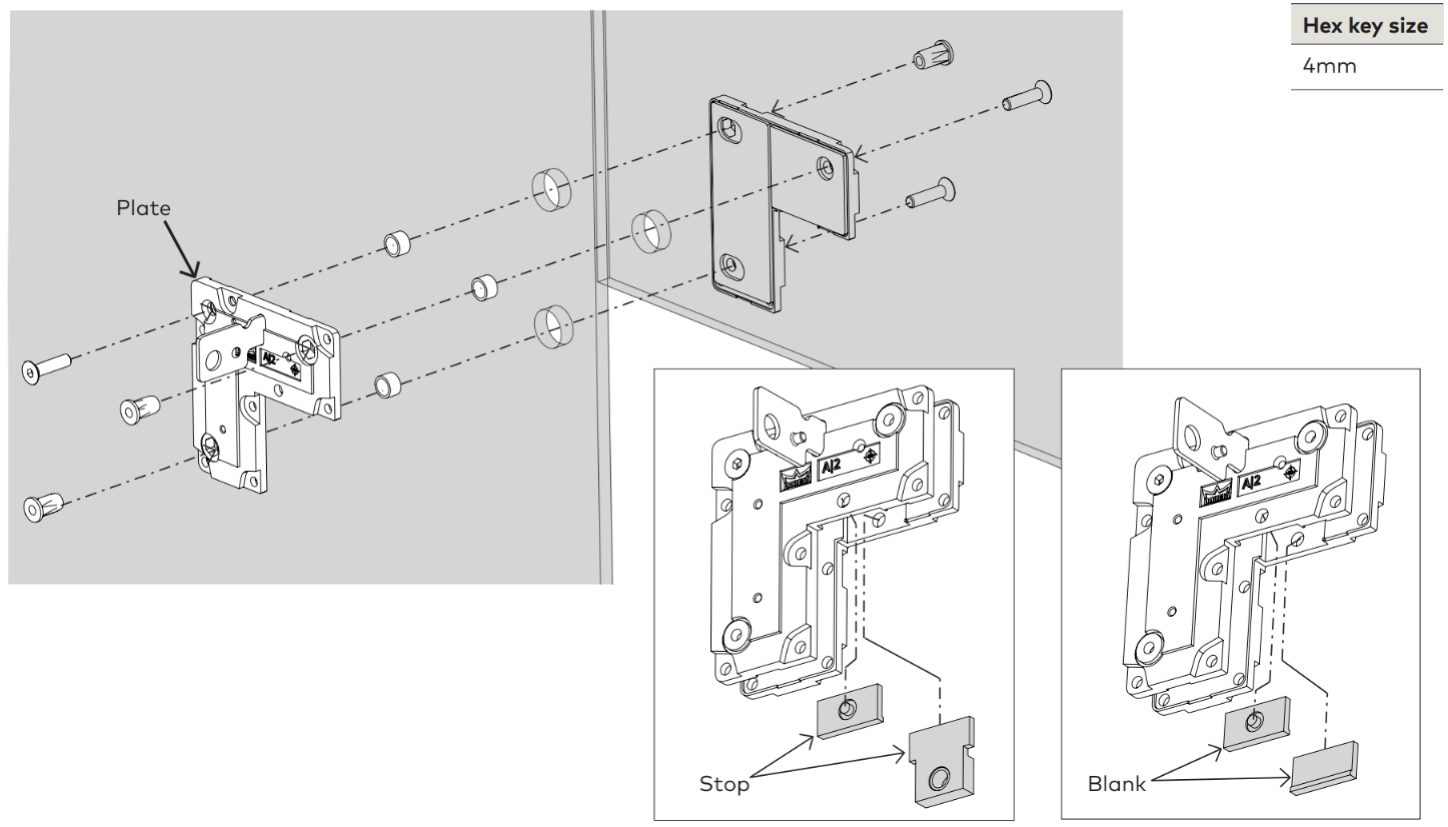

| 1 | Assemble patch fittings on glass with appropriate insert (blank/stop). • Use a 4mm hex key. Hand tighten only. |
4. Plumb and level the fitting

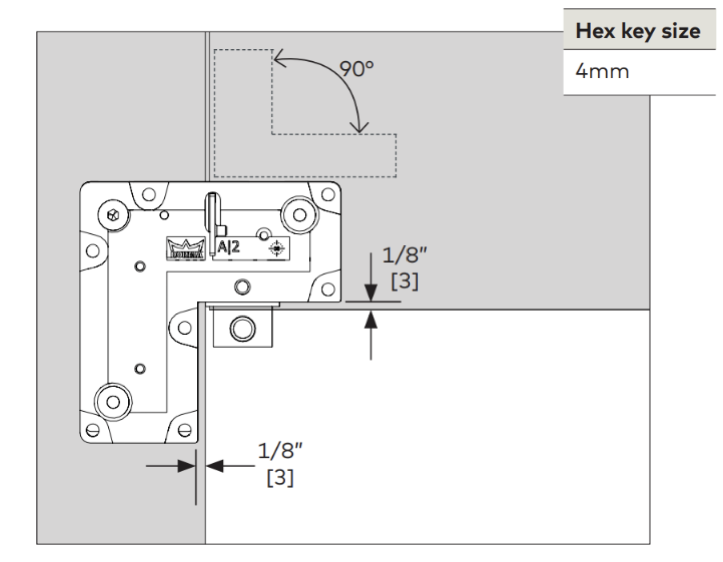

| 1 | Ensure patch fitting is properly aligned and level. |

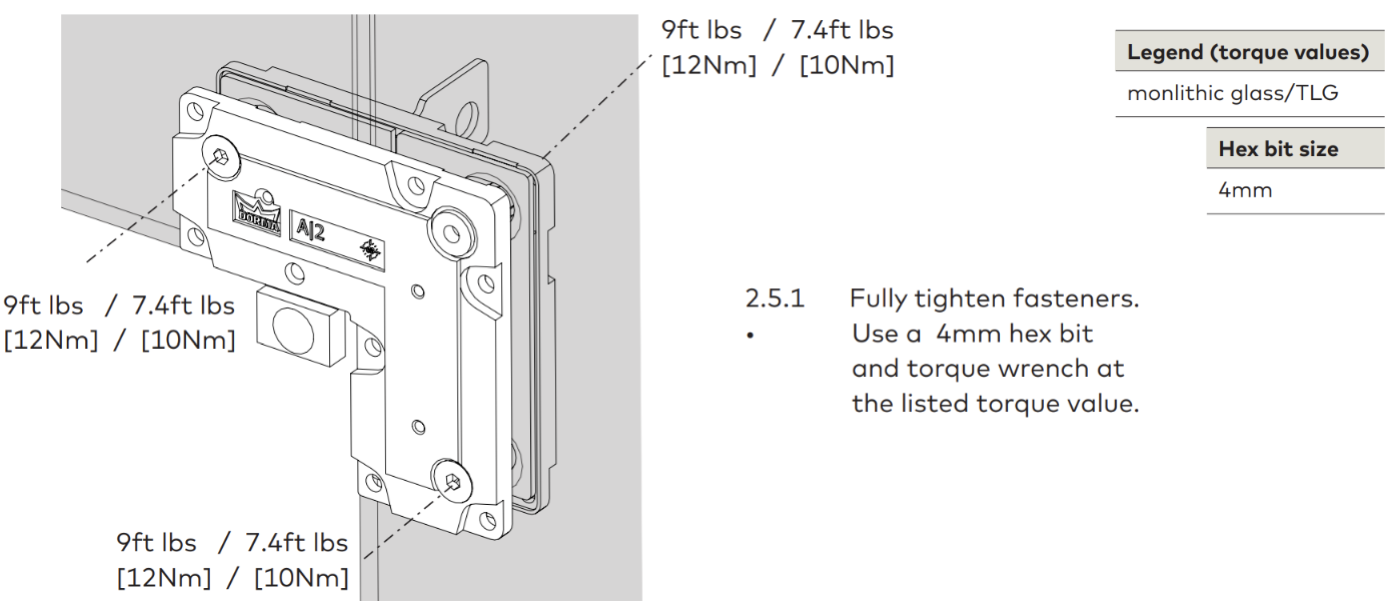

5. Secure the fitting

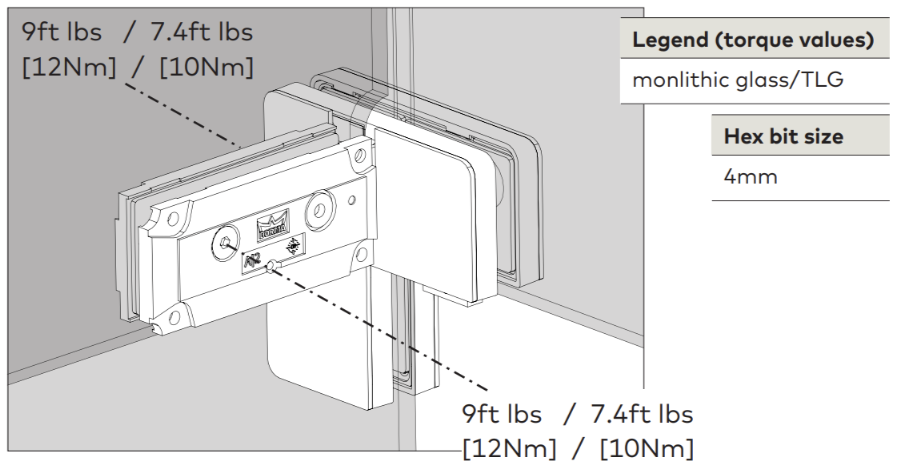

| 1 | Fully tighten fasteners. • Use a 4mm hex bit and torque wrench at the listed torque value. |
6. Apply adhesive: (For TLG applications ONLY)
NOTE: THE RECOMMENDED ADHESIVE’S SET-UP TIME IS 20 MINUTES FOR THE DUO-PAK CARTRIDGES.
NOTE: USE 1:1 RATIO PLUNGER WITH THE 3M™ Scotch-Weld™ Urethane Adhesive.
NOTE: FULLY CLEAN SURFACE OF GLASS WITH AN ALCOHOL-BASED MILD GLASS AND SURFACE
CLEANER. ENSURE NO DEBRIS IS ON THE GASKET.
NOTE: Onto scrap material, first dispense approximately 12” of 3M™ Scotch-Weld™
Urethane Adhesive prior to application prevent mixing errors and ensure optimal hardening.

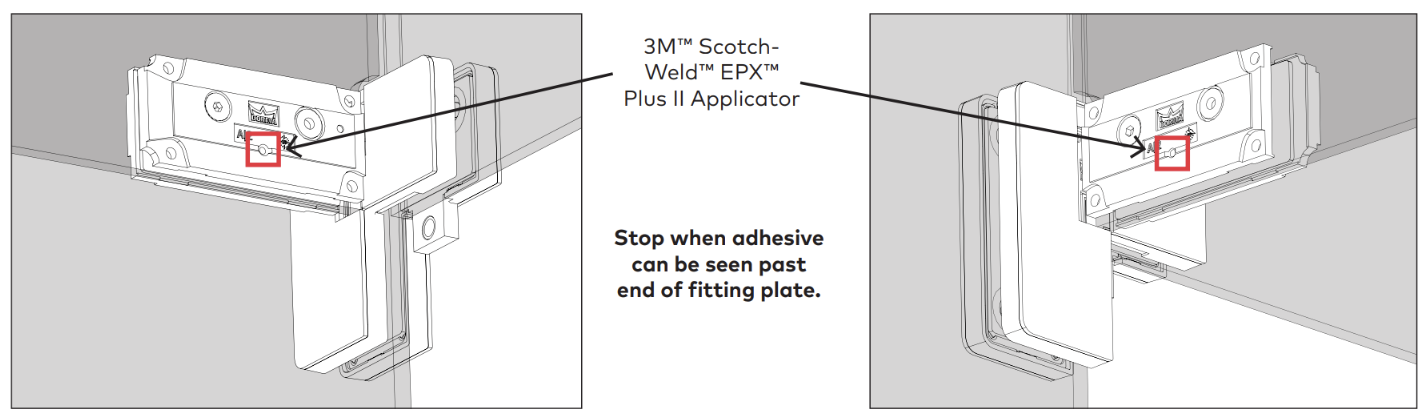

| 1 | Dispense into holes on both sides of fitting. |
Stop application when adhesive can be seen past edge of fitting.
DO NOT WIPE any excess adhesive from glass surface. Allow adhesive to dry and scrape off glass
surface with a beveled-edge chisel or putty knife.
NOTE: See chart in Specifications section for appropriate curing time.
7. Install covers

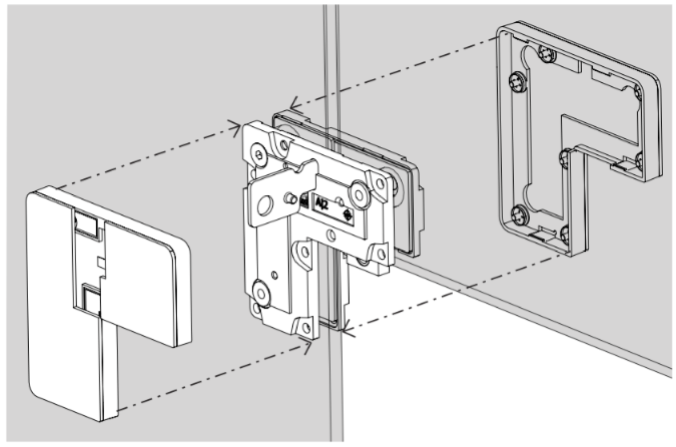

| 1 | Snap covers onto patch fittings. |

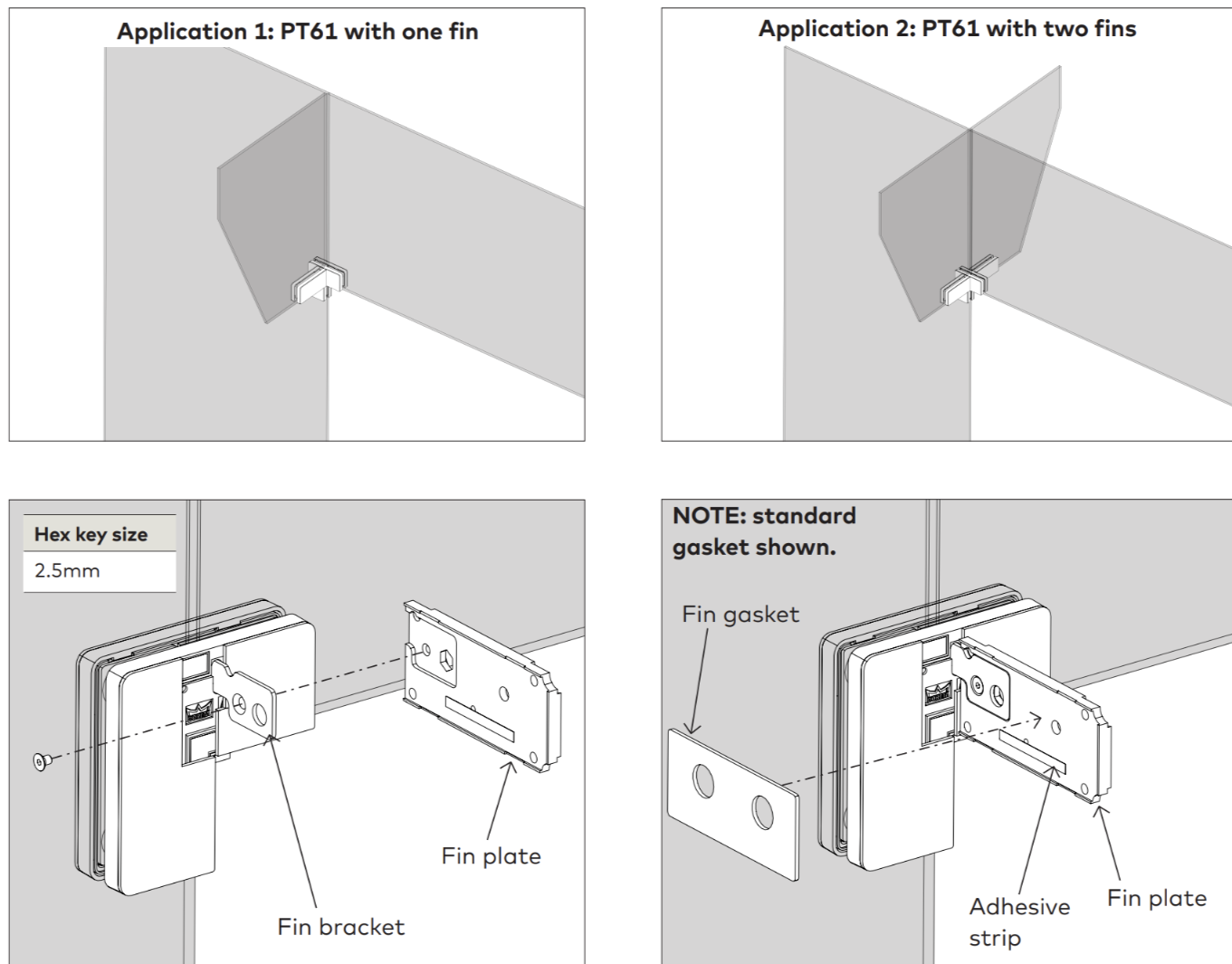

8. Install fin plate(s) and fasteners
| 1 | Secure fin plate to fin bracket with included fastener. |
| 2 | Secure fin gasket to fin plate with pre-installed adhesive strip. |
| 3 | Hold fin glass in place. |

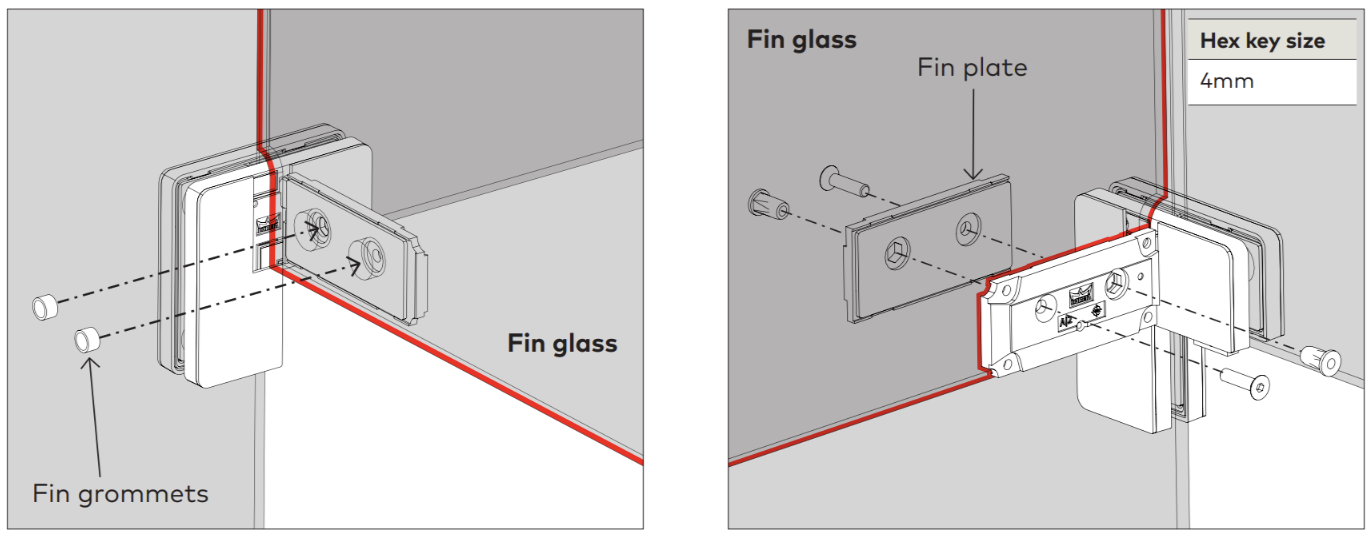

| 4 | Insert fin grommets. |
| 5 | Secure second fin plate to fin glass with included fasteners. |
| 6 | Use a 4mm hex key. Hand tighten only! |

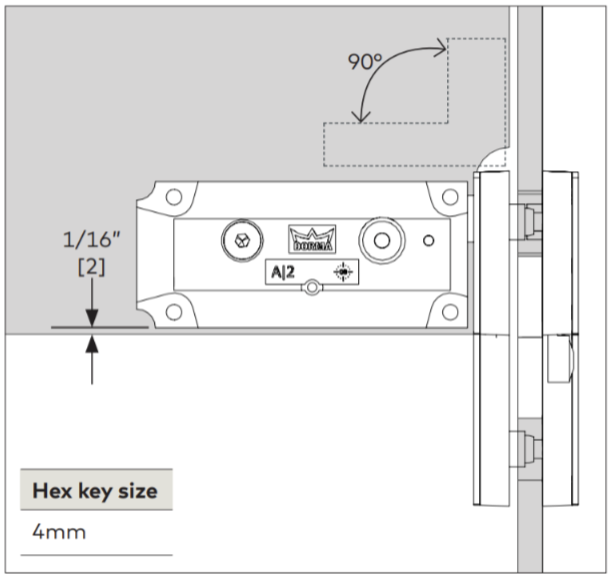

9. Plumb and level the fin fitting
| 1 | Ensure patch fitting is properly aligned and level. |
10. Secure the fin fitting
| 1 | Fully tighten fasteners. • Use a 4mm hex bit and torque wrench at the listed torque value. |
11. Apply adhesive: (For TLG applications ONLY)
NOTE: THE RECOMMENDED ADHESIVE’S SET-UP TIME IS 20 MINUTES FOR THE DUO-PAK CARTRIDGES.
NOTE: USE 1:1 RATIO PLUNGER WITH THE 3M™ Scotch-Weld™ Urethane Adhesive.
NOTE: FULLY CLEAN SURFACE OF GLASS WITH AN ALCOHOL-BASED MILD GLASS AND SURFACE
CLEANER. ENSURE NO DEBRIS IS ON THE GASKET.
NOTE: Onto scrap material, first dispense approximately 12” of 3M™ Scotch-Weld™
Urethane Adhesive prior to application prevent mixing errors and ensure optimal hardening.

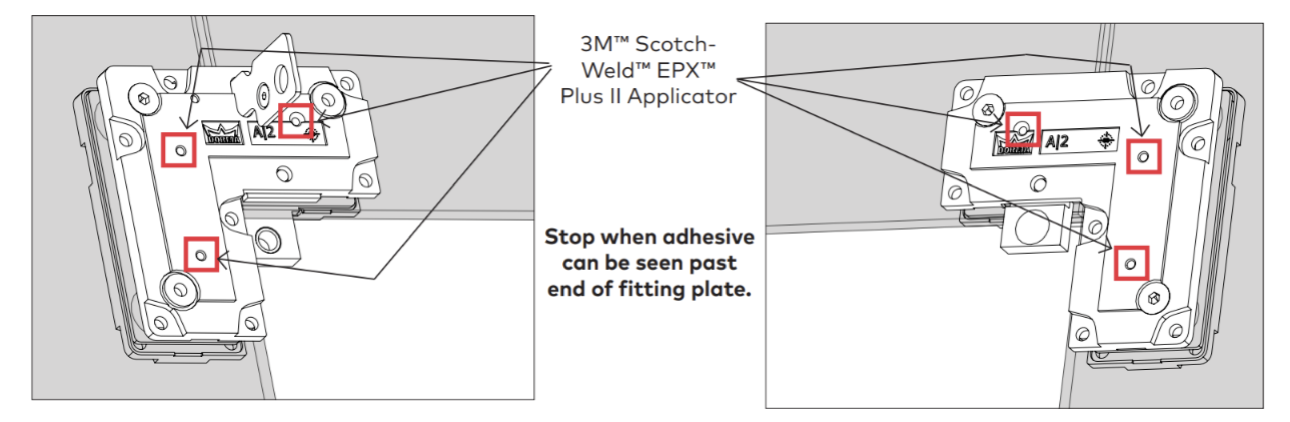

| 1 | Dispense into holes on both sides of fitting. |
Stop application when adhesive can be seen past edge of fitting.
DO NOT WIPE any excess adhesive from glass surface. Allow adhesive to dry and scrape off glass
surface with a beveled-edge chisel or putty knife.
NOTE: See chart in Specifications section for appropriate curing time.
12. Install covers

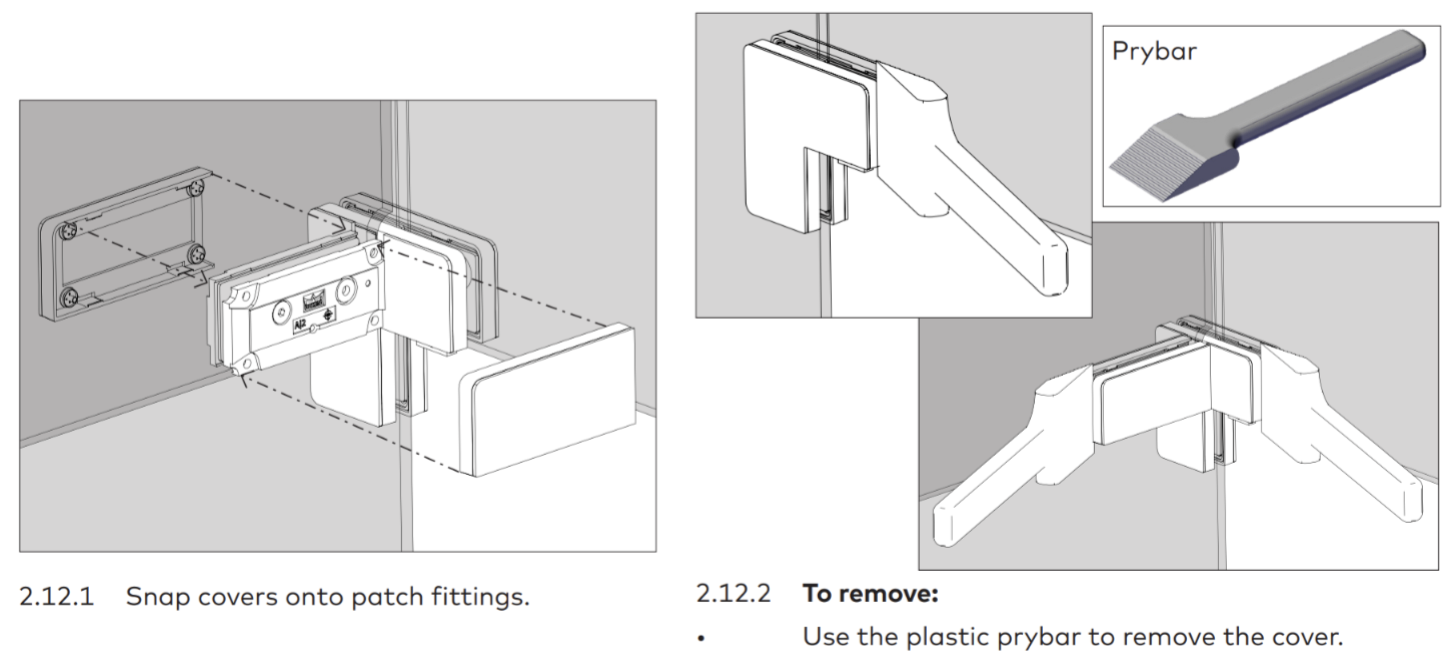

| 1 | Snap covers onto patch fittings. |
| 2 | To remove: • Use the plastic prybar to remove the cover. |
