1.PT21M Installation instructions

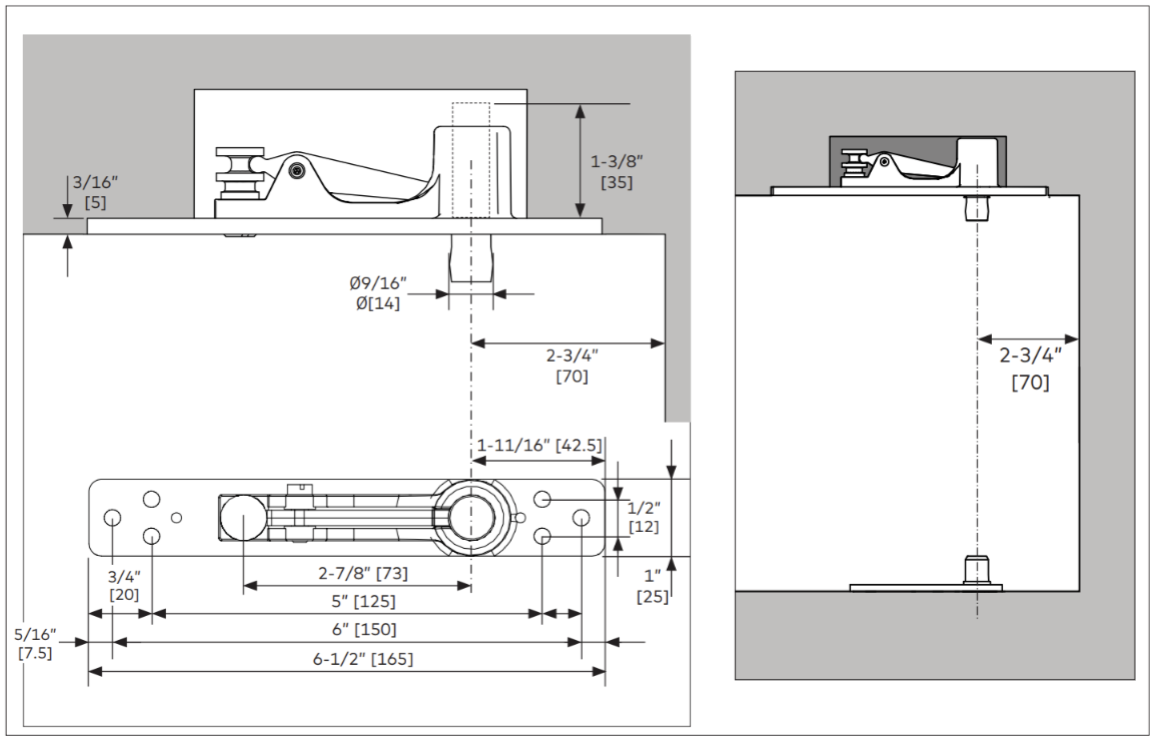

1.1 Dimensions

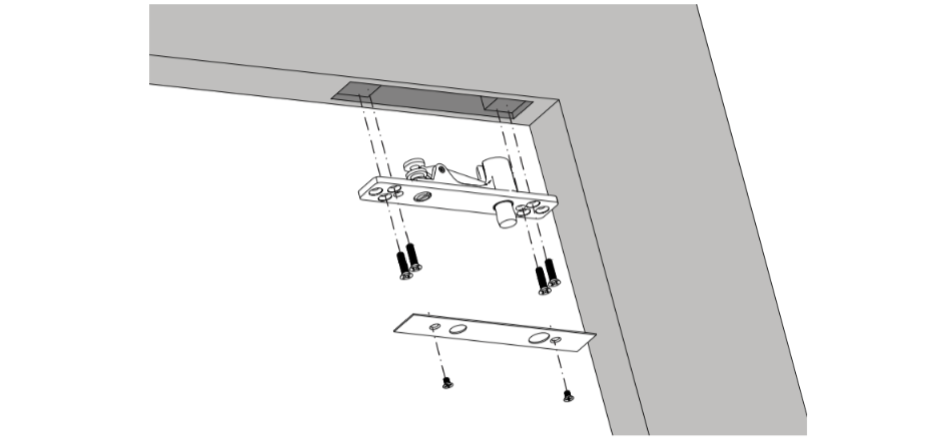

1.2 Secure PT21 pivot
| 1 | Secure pivot to header. • Drill and tap for a 10-32 machine screw. • Wood applications: use included anchors and fasteners. |

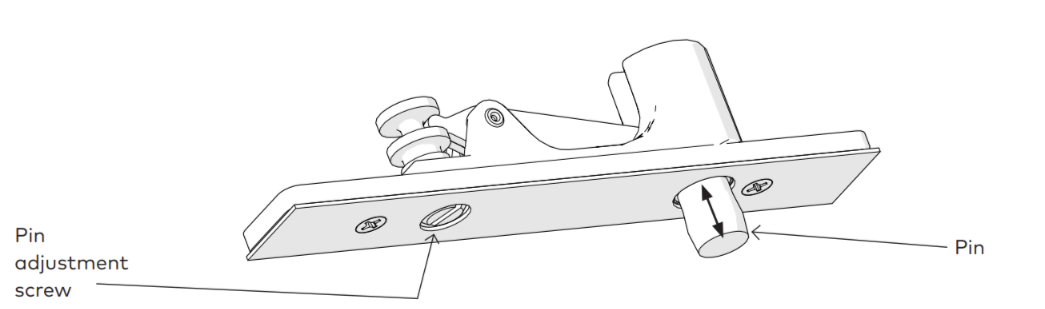

1.3 Adjust PT21
| 1 | Rotate pin adjustment screw or raise or lower pin. |
2. PT24M Installation instructions

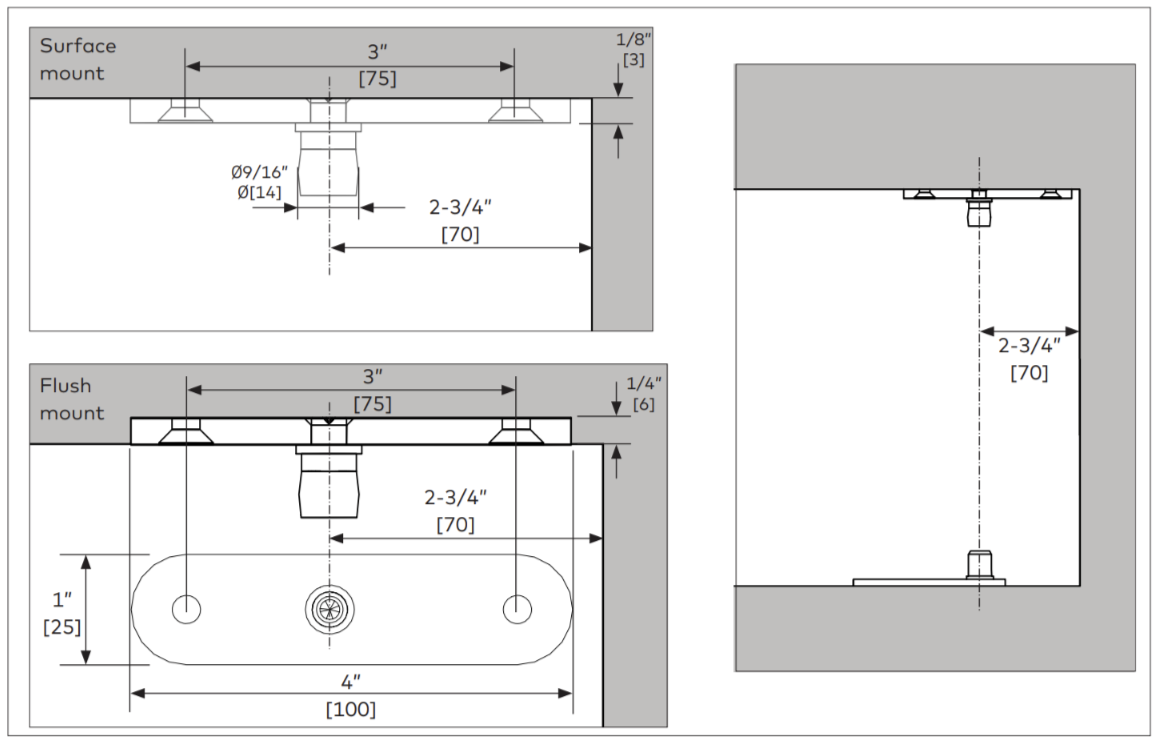

2.1 Dimensions

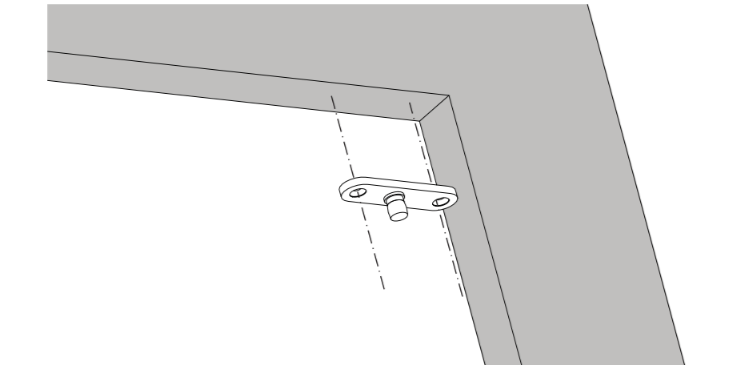

2.2 Secure PT24 pivot
| 1 | Secure pivot to header. • Drill and tap for a 1/4-20 machine screw. • Wood applications: use included anchors and fasteners. |
3. PT25M Installation instructions

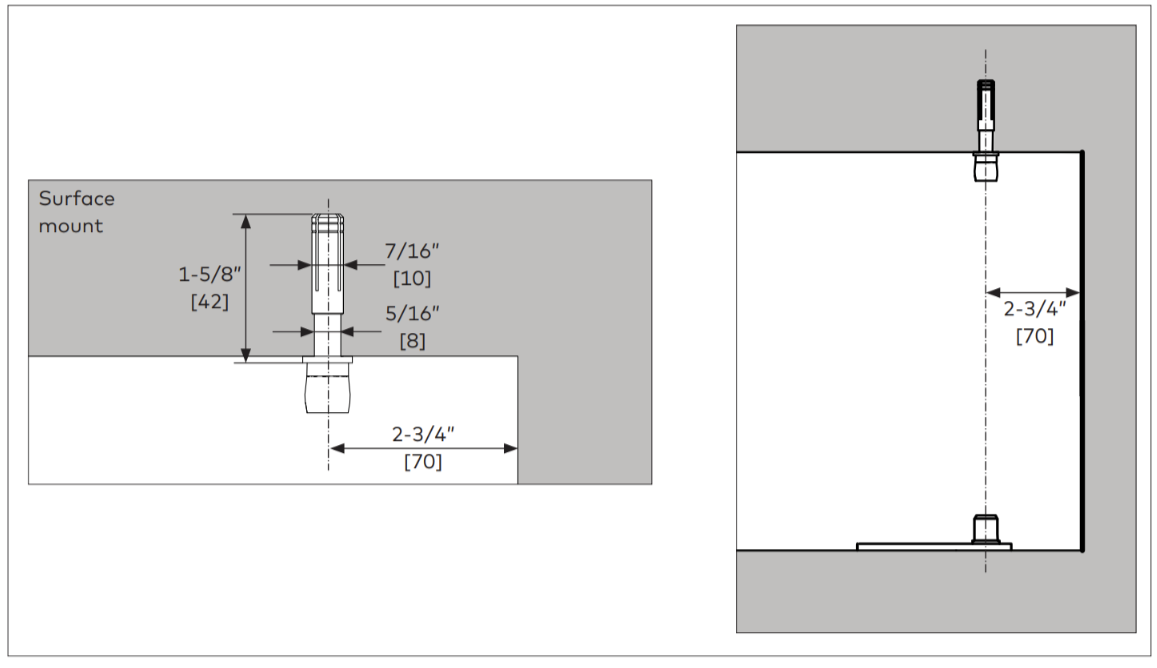

3.1 Dimension

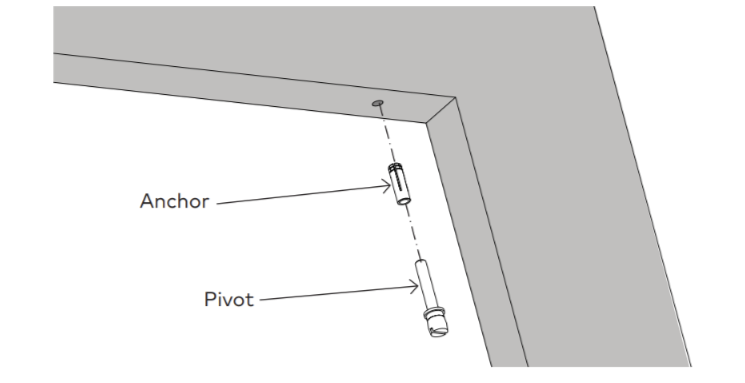

3.2 Secure PT25 pivot
| 1 | Drill for a 7/16” [10] hole. |
| 2 | Secure pivot anchor into header. |
| 3 | Thread pivot into anchor. • Tighten pivot to 2 ft lbs [9Nm] |
