Overview
This article provides the technical specifications and physical dimensions for the YD30S Single Sideload Lock. It includes material composition, mechanical and electrical performance data, environmental limits, compliance certifications, and dimensional drawings to support installation planning and system design.
Technical Specifications
| Materials | ||
| Bolt | Stainless Steel 17-4PH | |
| Lock / Strike Plate | Stainless Steel 304 | |
| Mechanical | ||
| Bolt Extension | 13mm | |
| Door Gap | max. 6mm (1/4 inch) | |
| Misalignment Correction | max. 8mm (5/16 inch) | |
| Cycle Life | 1,000,000 cycles | |
| Holding Force | 10,000N (2,250 lbf) (factory tested only) | |
| Side Load Release | 6,000N (1,350 lbf) (factory tested only) | |
| Locking Time | 1.0 seconds (typical) | |
| Unlocking Time | 0.3 seconds (typical) | |
| Environmental | ||
| Operating Temperature | -10°C to +55°C | |
| Electrical | ||
| Power Requirements | 12-24 VDC ±15% | |
| Initial Power Up Time | 11 seconds | |
| Initial Power Up Current | 750mA@12VDC, 400mA@24VDC | |
| Standby Current | 40mA@12VDC, 25mA@24VDC | |
| Signal Contacts | Bolt Position (NO) | 30VDC max., 100mA max. |
| Door Position (NO) | ||
| Compliance | ||
| CE, UKCA, UL, FCC, IC, RCM, RoHS 2 | ||
Product Dimensions

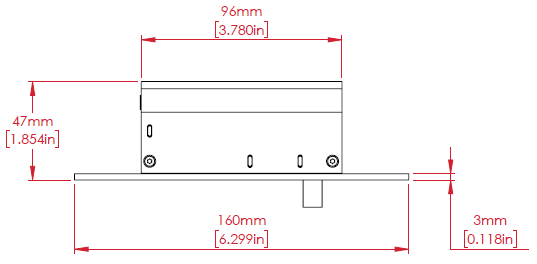

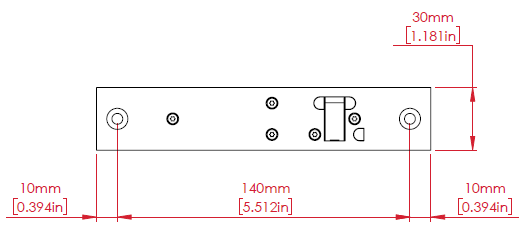

Lock Dimensions
The dimensions shown are approximate and subject to change without prior notice.
Strike Dimensions
The dimensions shown are approximate and subject to change without prior notice.

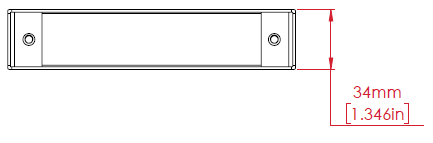

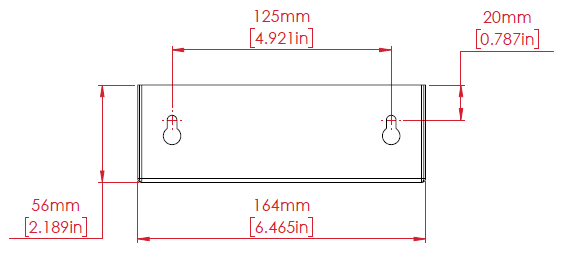

Housing Dimensions (Available Separately)
The dimensions shown are approximate and subject to change without prior notice.

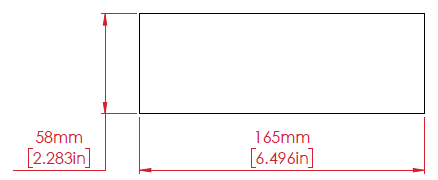

Dress Plate Dimensions (Available Separately)

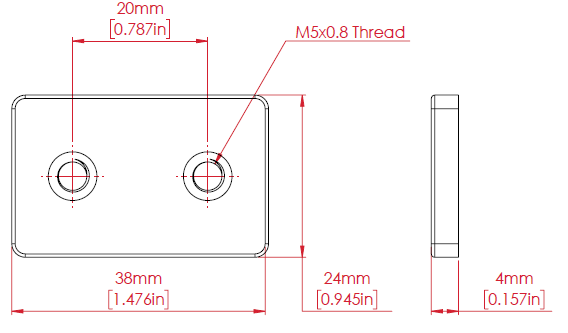

Fitting Tab Dimensions (Available Separately)
The dimensions shown are approximate and subject to change without prior notice.
