Instructions For Lock Mode Change

1. Remove the 2 screws on the bottom.

2. Remove base plate and solenoid.

3. Turn assembly 180º and install into housing.

NOTE: Care should be taken to prevent damage to switch lever.

4. Insert the two screws.

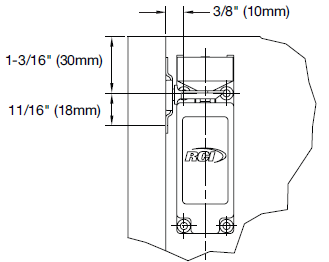

Installation Dimensions

Related to

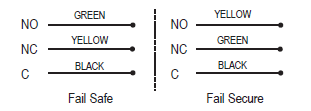

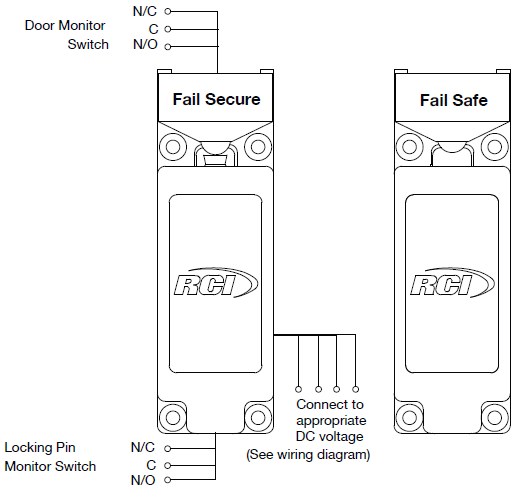

Locking Pin Monitor Switch Wiring Diagram 125VAC; 1A / 30VDC; 0.5A	Cabinet Lock Dual Voltage Wiring Diagram 12VDC (200mA)

Door Monitor Switch Wiring Diagram 125VAC; 3A / 30VDC; 2A	Cabinet Lock Dual Voltage Wiring Diagram 24VDC (100mA)

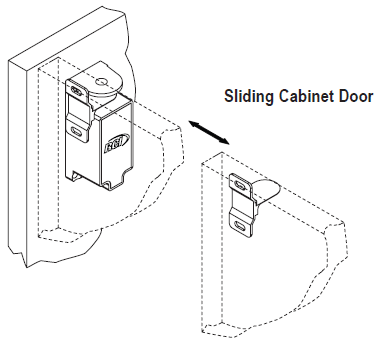

Install rubber pad in between the mounting surface and catch to secure catch position
