RCI 3510LM Cabinet Lock with Latch Monitor Electric Lock for Small Enclosures Installation Instructions

Updated

Wiring Instructions

NOTE: This lock requires some sort of external control.

  1. The connecting wire must be of sufficient gauge to prevent line loss.
    The 3510LM Cabinet Lock operates on either 12 or 24 VAC/DC

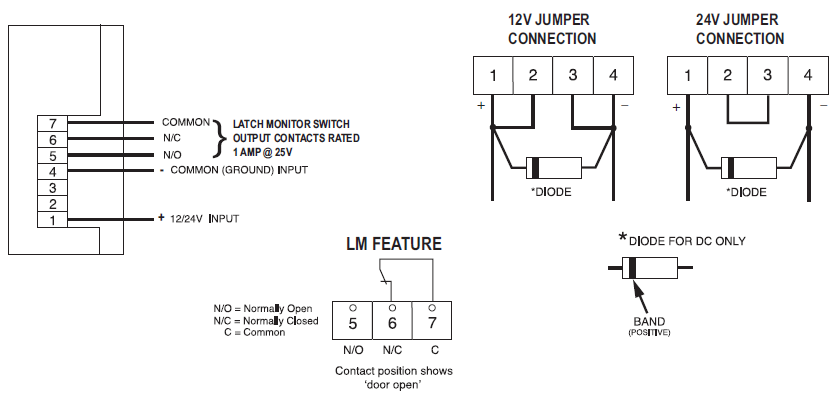

    For 12-volt operation: connect a wire jumper from terminal 1 to 2 and also from terminal 3 to 4.
    For 24-volt operation: connect one wire jumper from terminal 2 to 3.
  2. With voltage jumpers installed, connect the positive (+) lead from the power supply to terminal 1.
    Connect the negative(-) lead from the power supply to terminal 4.
    For DC voltage, the supplied diode must be connected across terminals 1 and 4.
    For AC voltage, terminal 1 and 4 connections are not polarity conscious. The diode is not required.
  3. The latch monitor feature indicates whether the door is closed/locked or open/unlocked.
    The monitor switch contacts are rated 1 Amp @ 25V maximum.
    Connect terminals 5 or 6 and 7 to suit N/O or N/C monitor requirements.
Operating Voltage 12VDC 12VAC 24VDC 24VAC
Amps 0.25A 0.25 .012A .012A



Mounting Instructions



  1. Two Symbols are located on the latch that define fail locked or fail unlock.

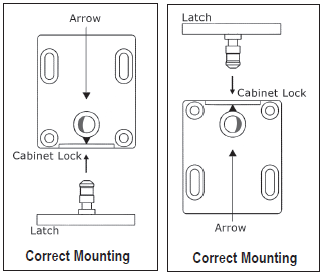

    To set lock mode, align the latch symbol with the arrow on the lock.

    Make sure to use the fail unlocked position for initial mounting and alignment.
    Without power, the fail locked mode cannot open.

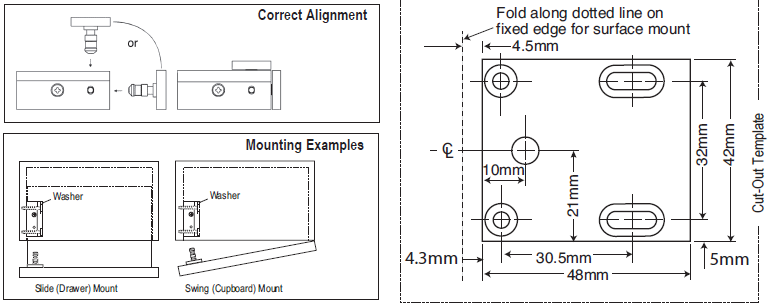

  1. Using the cut-out template, mount the locking unit to the fixed portion of the cabinet or drawer with the four #6 x 1-1/4” PH SMS screws. Typical installations are shown below. The locking unit and latch must be aligned as shown.
  2. Peel the yellow side of the adhesive tape and apply to the back of the latch.
    Engage latch into the mounted locking unit in the fail unlocked position.
    Peel the white side of the adhesive tape.
    Close and open the cabinet door or drawer.
    The latch will be attached in the correct location.
    For fail unlocked, simply secure the latch with the four #6 x 1/2” PH SMS screws.
    For fail locked turn the latch 180˚ and secure.

    NOTE: In failed Locked mode installations:
    In the event of power or mechanical failure, it will require forcible entry, which may damage the lock.
