Change Adapter and Port Settings in Auditcon 2 Series Software

Question

How to Change Adapter and Port Settings in Auditcon 2 Series Software?

Answer

This option is used to change the adapter and port settings in case the adapter type is changed or the adapter has to be moved to a different port. From the Settings menu:

                   1. Select Change Adapter and Port Settings.

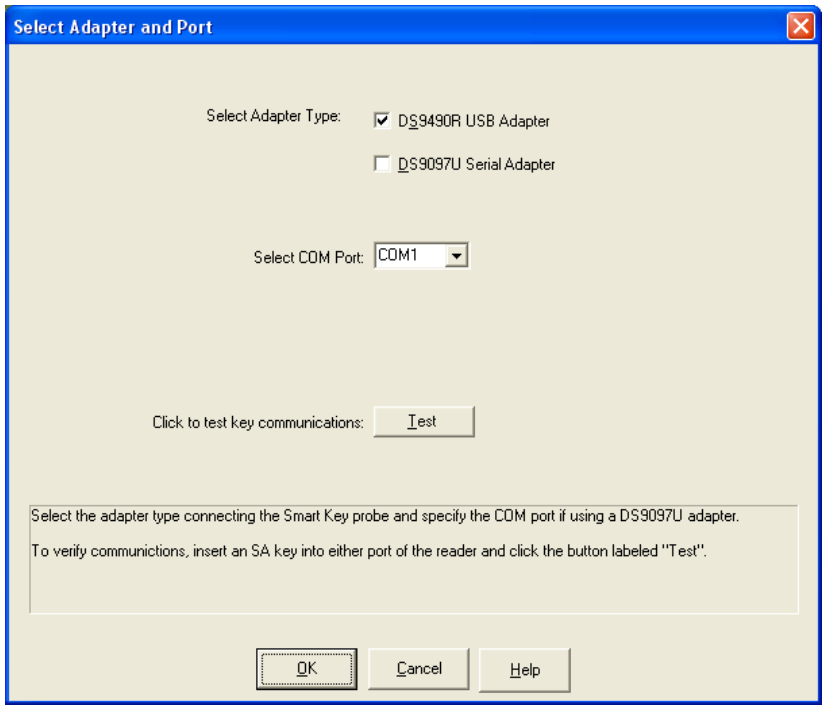

                    The Select Adapter and Port screen is displayed. This window prompts you to specify
                    what type of key reader you have and where it is installed.

                     2. Select the Adapter Type that you have installed with your system. The default value                              for the Adapter Type is the DS9490R USB Adapter. If the Adapter Type is different                                from the default, change it at this time.

                    3. To ensure that your selection(s) are correct, we recommend that you “Test” your
                        selection(s) to verify communications. Insert an SA Key into either port of the reader
                        and click on the Test button.

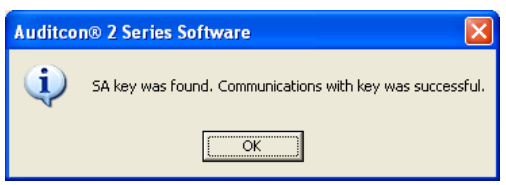

                    If the Test is successful, a message window is displayed indicating the key was found and
                    communication was successful.

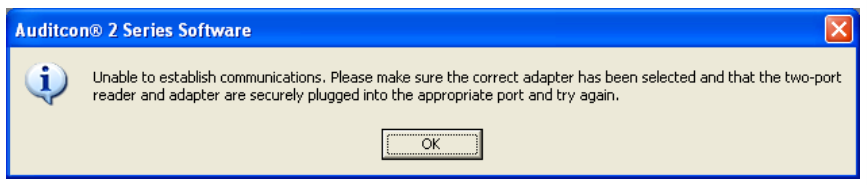

                   If the key reader was not installed or the proper adapter type/port is not selected, the
                   following error message will be displayed and you will not be able to proceed until the
                   problem is corrected.

           If the SA key is not in the reader, the following error message will be displayed, and you
           will not be able to proceed until the problem is corrected.

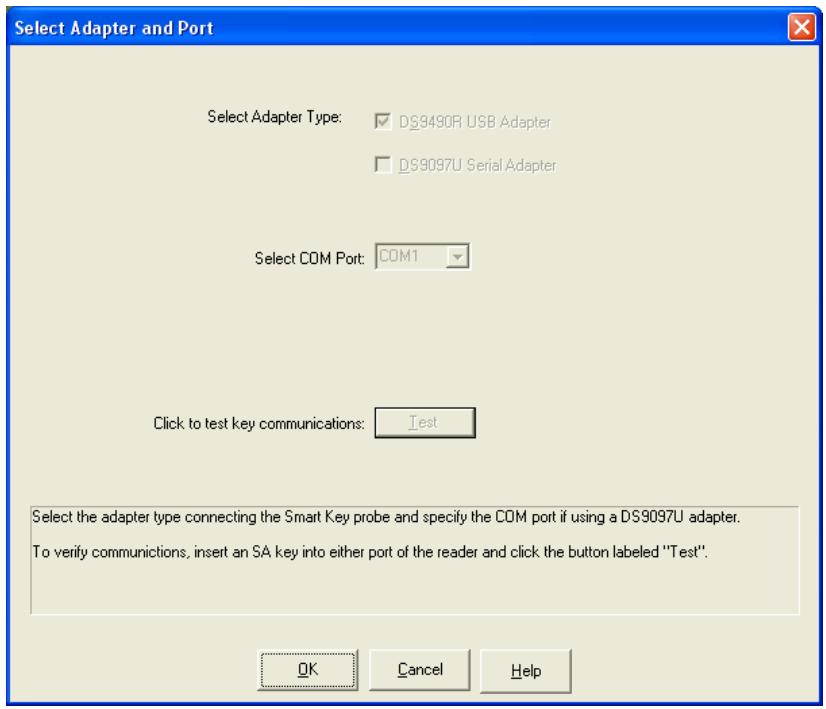

                  4. Click on OK. If the test was not successful, attempt to correct the problem and “test”
                     again. If the test was successful, all selection boxes will be grayed out

                  5. If you have successfully finished “Testing” and wish to accept the adapter and port
                     settings, click on the OK button to proceed.
