To start the Auditcon 2 Series Software program, you can select the Auditcon 2 Series Software icon from the desktop.
If you prefer, you can complete the following steps to start the Auditcon® 2 Series Software Program from the Programs Menu:
Select the Start icon from the Windows task bar.
Select the Programs menu item.

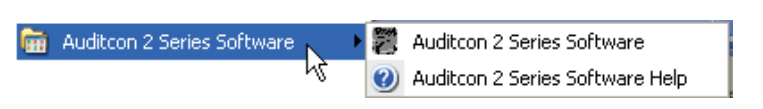

Select the Auditcon 2 Series Software menu item.

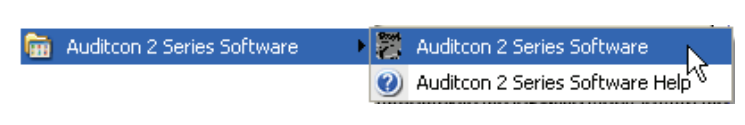

Select the Auditcon 2 Series Software icon.
Configure System Hardware and Software Settings
On the initial load of the Auditcon 2 Series Software, you will be expected to configure the hardware and software settings.
The default configuration for the adapter and port settings is a DS9490R USB Adapter. If this is your current hardware configuration, the Auditcon 2 Series Main Menu will be displayed and you should skip to Step 5.

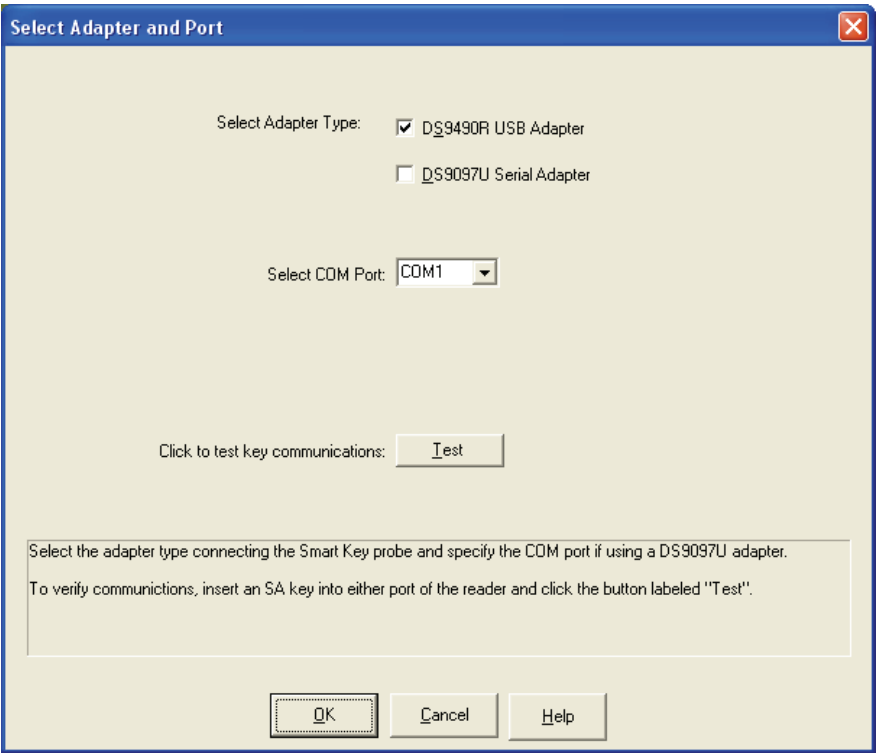

If the USB adapter is not found, the Select Adapter and Port screen is displayed. This screen prompts you to select what type of key reader you have and where it is installed.

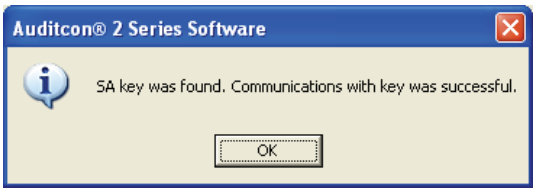

1. Select the Adapter Type that you have installed with your system. The default value for the Adapter Type is the DS9490R USB Adapter. 2. To ensure that your selection(s) are correct, we recommend that you “Test” your selection(s) to verify communications. Insert an SA Key into either port of the reader and click on the Test button. If the Test is successful, a message window is displayed indicating the key was found and communication was successful.

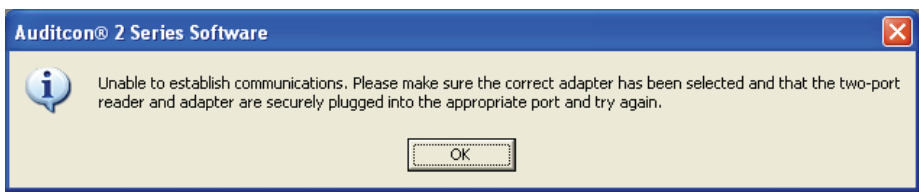

If the key reader was not installed or the proper adapter type/port is not selected, the following error message will be displayed and you will not be able to proceed until the problem is corrected.

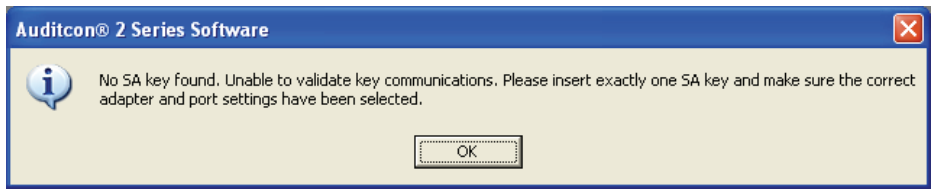

If the SA key is not in the reader, the following error message will be displayed and you will not be able to proceed until the problem is corrected.
4. Click on OK. If the test was not successful, attempt to correct the problem and “test” again. If the test was successful, all selection boxes will be grayed out. 5. If you have succesfully finished “Testing” and wish to accept the adapter and port settings, click on the OK button to proceed. The Auditcon 2 Series Software Main Menu will be displayed.
Before proceeding with system operation, you must define the system software settings.
6. From the Settings menu, select the System Settings option. The System Settings screen will be displayed.
7. If you wish to use the time window settings last entered when defining time windows for a lock under the Time Window Upload option of the Locks menu, click on the check box to select. When not selected, the time windows dialog is displayed with all fields blank. 8. If you wish to have the European Date format (DD/MM/CCYY) used for reporting options, click on the check box to select this option. The default is to display dates as MM/DD/CCYY. 9. If the locks in your system are set to local time, the GMT Offset should be disabled. Audit Reports will show the actual lock time for each audit record.
If the locks in your system are set to Greenwich Mean Time, the GMT Offset should be enabled. When the GMT Offset is enabled, the software adjusts the time of each record in the Audit Download report to the local time using the GMT offset values specified in this screen.
Use the following chart to determine the appropriate GMT Offset to use for your time zone. You should ensure that this value, along with the internal date and time on your PC, is correct at installation time. Select West if you are located to the west of Greenwich, England, between Greenwich and the international date line. Select East if you are located to the east. For example: The United States is West, Germany is East.
United States Time Zone Offsets
Time Zone Standard Time Daylight Savings Offset Time Offset
10. After all fields have been completed, click on the OK button to process the system settings.

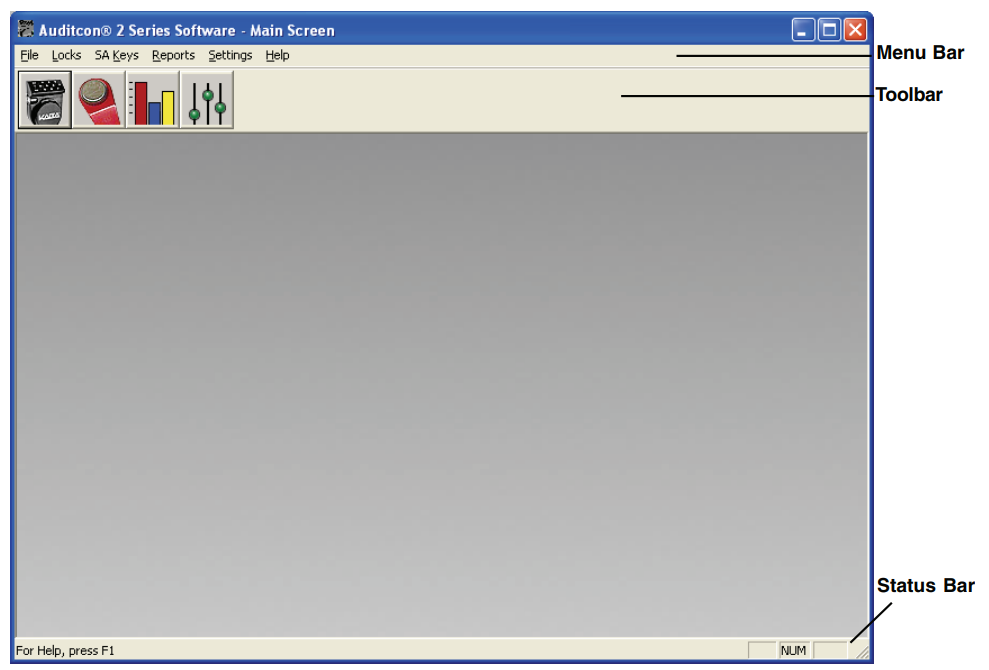

Menu Bar
The Menu Bar displays the available menu options.Some of these options are also available from the toolbar. The menus available from the Auditcon 2 Series Software menu bar are listed below and the corresponding toolbar icon (if applicable) is located to the left of each menu description: File - Perform Print Setup or Exit Auditcon 2 Software
Locks - Program Lock, Add/Delete Users or Upload Time Windows
SA Keys - Initialize or Delete SA Keys
Reports - View or Print Reports
Settings - Define or Maintain System Settings & Data
You can select an option on the menu bar by 1) positioning the mouse pointer on the option name and clicking the left mouse button one time 2) using the shortcut keys underlined on the option’s label. For example, for the option label Locks, you can select the option by pressing the Alt and L keys at the same time (Alt + L).
Toolbar
The Toolbar is located directly below the menu bar and displays the icons for the menu bar options. You can select an icon on the toolbar by positioning the mouse pointer on the icon and clicking the left mouse button one time. The available toolbar icons are pictured and described in the previous Menu Bar section.
Status Bar
The Status Bar is located at the bottom of the Auditcon 2 Series Software window. This bar displays system information (e.g., a brief description of the Toolbar button on which the mouse pointer is positioned).
File Menu Perform Print Setup or Exit Auditcon 2 Series Software
The first option on the Menu bar is “File”. The File menu options allow you to define your Print Setup or exit the software. From the Main menu:
Select File.
Print Setup - This menu item is used to display the printer settings dialog, to allow the user to change the various printer settings for Windows.
Exit - The Exit option is used to end the Auditcon 2 Series program.
